Resuscitation and Monitoring

Course participants can work independently with the ME PAD Trainer without you, as the instructor, having to constantly intervene in the AED trainer’s sequence.

The new ME PAD Trainer, with its updated software, enables exactly this method of first-aid training. Without the use of any additional aids, the trainer guides participants safely through resuscitation, just as a real AED would.

You do not need a simulator or a resuscitation manikin that simulates human vital parameters. The trainer takes over guidance fully automatically. It gives participants enough time to place the electrodes and then immediately starts a preset scenario including shock delivery and CPR instructions.

- AED ME PAD – training device

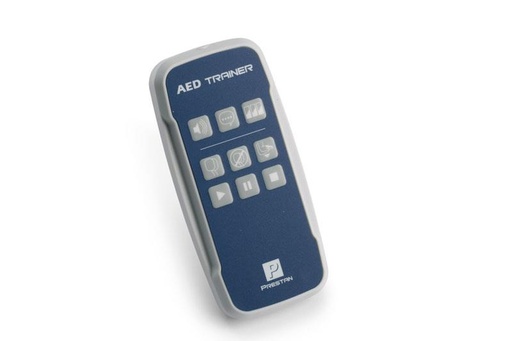

- Remote control
- 1 pair of training electrodes
- 4x 1.5 V AA (Mignon) batteries
- 2x 1.5 V AAA (Micro) batteries
- Carry bag
- Operating instructions

Replacement electrodes for AED ME PAD Trainer

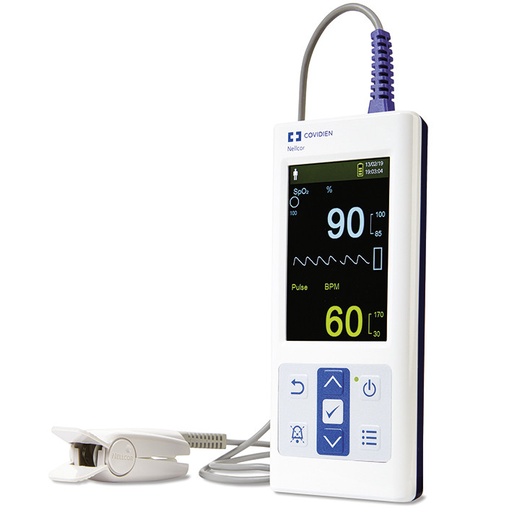

The Nellcor SpO2 patient monitoring system is a small, lightweight, portable pulse oximeter for continuous and spot-check measurements in hospital, on the go and in homecare settings. The pulse oximeter incorporates Nellcor digital signal processing technology, which provides accurate, reliable SpO2 and pulse rate values even in conditions of low perfusion and in the presence of signal interference, including patient motion. The monitoring system is equipped with an easy-to-read 3.5-inch colour LCD screen. It features connections to analytical instruments and patient monitoring systems, is compatible with the full range of Nellcor sensors with OxiMax technology, and offers a range of robust monitoring features including SpO2, pulse rate, SatSeconds alarm management and pleth waveform information. The monitor also has additional functions such as Homecare mode and Sleep Study mode for easier monitoring in hospital and homecare environments.

Technical specifications:
- SpO2 saturation range: 1% to 100%
- Pulse rate range: 20 to 250 beats per minute
- Perfusion range: 0.03% to 20%
- Display sweep speed: 6.25 mm/sec
- Notification: audible and visual
- Screen dimensions: 88.9 mm (3.5 inches) measured diagonally
- Screen type: TFT LCD, white LED backlight, 60° viewing angle and optimal viewing distance of 1 metre
- Resolution: 320 x 480 pixels
- Memory: stores a total of 80 hours of data events; stores date and time, alarm states, pulse rate and SpO2 measurements
- Dimensions (H x W x D): 156 x 70 x 32 mm

Scope of delivery:
- incl. user manual (German/English), 4 lithium batteries with 3,000 mAh for approx. 20 hours of monitoring without external communication, without audible alarm tone
- incl. DS100A sensor
- without rubber protective cover

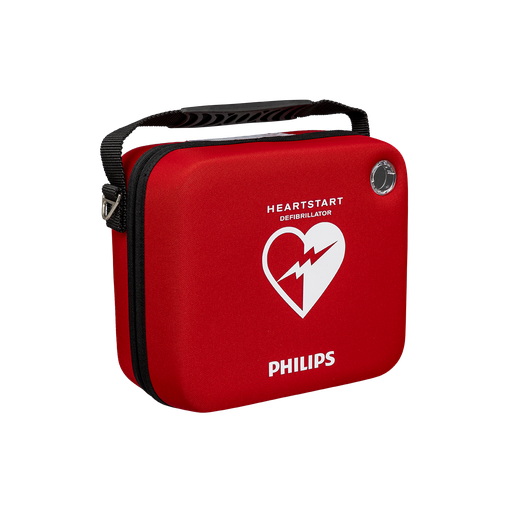

Carrying case for Heartstart HS1 defibrillator, red

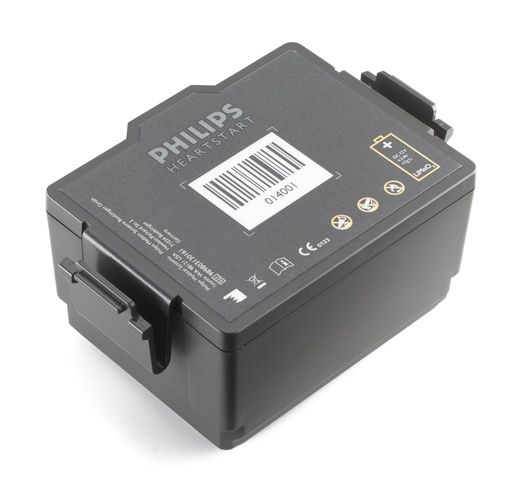

Battery for the Philips Heartstart FR3 defibrillator. This lithium manganese dioxide battery has a standby life of approx. 3 years. In use, the battery capacity is sufficient for approx. 300 shocks.

When replacing the battery, always check the current expiry date of the connected electrode set.

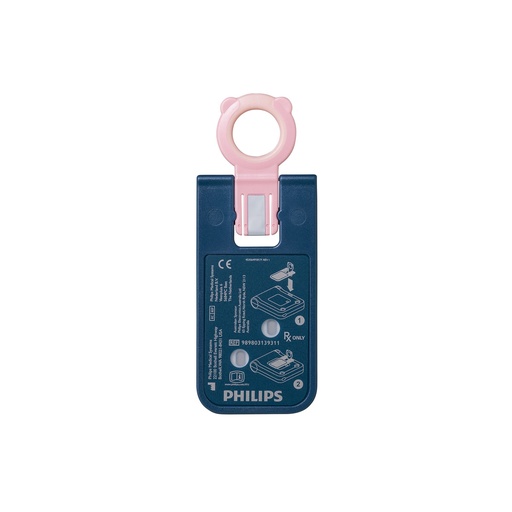

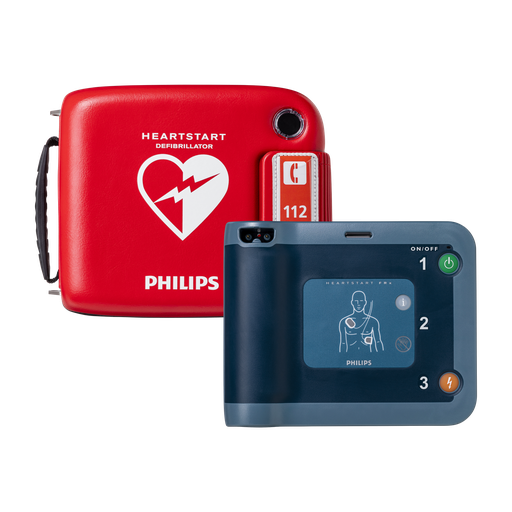

This paediatric key is the secret that makes the Philips HeartStart FRx AED so cost-effective. Other defibrillators use paediatric electrodes for children; just like adult electrodes, these must also be replaced regularly. The Philips HeartStart FRx AED uses a “key”; when it is inserted into the device, the defibrillator is suitable for children. The key can be used again and again without needing to be replaced. Compare this with the cost of replacing paediatric electrodes on other AEDs and you will see the savings.

Philips’ SMART Biphasic technology enables personalised treatment tailored to the patient’s specific needs and increases survival rates after cardiac arrest. The FRx’s IP55 rating provides maximum protection against dust and water, and its rugged design withstands a weight of over 200 kilograms. In addition, the FRx is waterproof and offers protection against accidental drops.

Features:

Rugged protective carry case
Rugged, reliable defibrillator for use in all environments
Pre-connected SMART Pads that can be used for both adults and children
Wireless data transmission for easy transfer of information
Flashing display indicates the correct position for placing the electrodes on the casualty
CPR coaching guides you through the CPR resuscitation process
SMART Analysis for assessing the patient’s heart rhythm
SMART Biphasic technology enables treatment tailored to the individual patient
4-year battery\

SMART Analysis: Philips has developed a technology that evaluates the patient’s heart rhythm and ensures that the Philips FRx defibrillator delivers a shock only when required. Even if the patient panics during the rescue process and presses the button too hastily, the defibrillator will only deliver a shock if it is needed.

Paediatric function:

To switch the defibrillator to child mode, simply insert the optional Infant/Child Key. The device’s pre-connected SMART Pads II are suitable for both adults and children. This means no time is wasted changing pads. And there are no additional costs for purchasing different electrode sizes for different patient types.

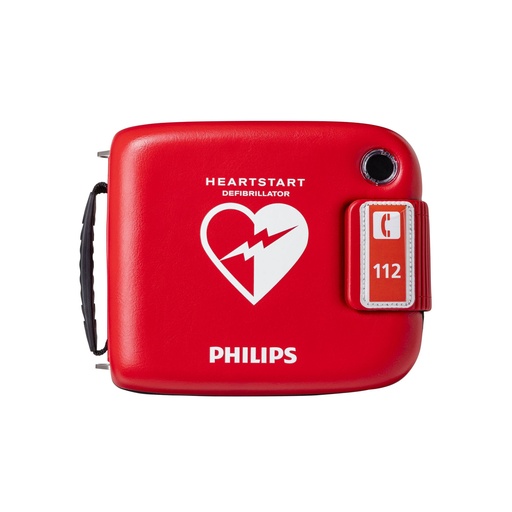

PHILIPS Heartstart FRx Standard Carry Case

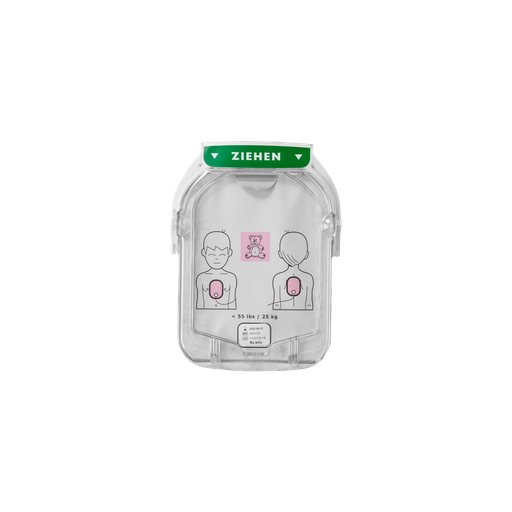

The Philips HeartStart HS1 paediatric electrode set is used for defibrillation of children aged 1–8 years or weighing less than 25 kg. The electrode cartridge can be stored pre-connected in the defibrillator; however, it is usually kept in its packaging next to the defibrillator. When these electrodes are used, the defibrillator’s shock level is automatically reduced. The exact electrode placement is shown both on the packaging and on the electrodes.

TECHNICAL DETAILS OF THE ELECTRODES
Self-adhesive
Pre-connected possible
Latex-free
Shelf life approx. 2 years
Storage temperature between 10°C and 43°C
Electrode cable length: 137.1 cm

SHELF LIFE OF THE HS1 PAEDIATRIC ELECTRODES
Due to the conductive gel layer, electrodes have an expiry date. After this date, the electrodes must no longer be used, as the gel layer can dry out and the conductivity decreases as a result. The electrodes are protected from drying out by a vacuum-sealed foil; however, this foil must not be damaged. The electrode cartridge cover provides additional protection. The HeartStart HS1 paediatric electrodes have a shelf life of approx. 2 years. The exact expiry date is shown on the front of the packaging.

USE IN CHILDREN:
These electrodes are specifically designed for smaller children’s bodies. During paediatric resuscitation, one electrode is placed on the chest and the other on the back.

Philips HeartStart HS 1 electrode pads for children

Suitable for use with the Philips HeartStart HS1 AED defibrillator

Suitable for children under 8 years / <25 kg

These pads reduce the energy level from 150 J to 50 J
Shelf life is approx. 18–24 months

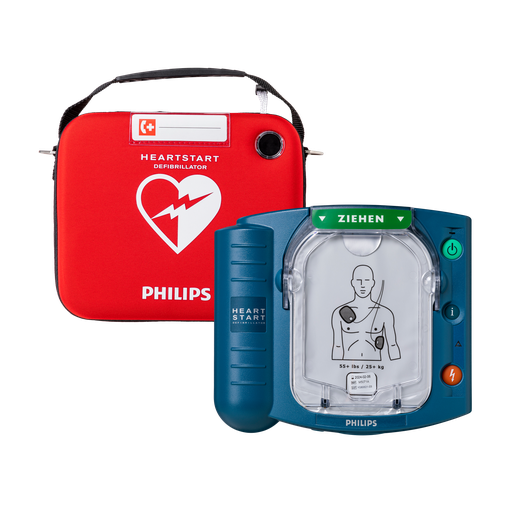

Philips HeartStart HS1 is designed for use by anyone

Philips is a world-leading manufacturer of portable defibrillators for use in airports, aircraft, businesses, public areas and private homes. The Philips HeartStart Home Defibrillator was developed for use by anyone, at any time and in any place, and can be used by virtually anyone in a life-saving situation when every second counts. This award-winning defibrillator has been rated No. 1 for ease of use.

The HS1 defibrillator comes pre-installed in its own carry case, with the battery and electrode pads already connected to the device. Simply pull up the handle on the front of the AED to switch it on, remove the electrode pads and begin defibrillation. Calm, clear voice prompts guide the rescuer through the defibrillation process. In addition, the Philips HeartStart features integrated CPR coaching that guides the rescuer through the correct CPR technique.

Philips SMART Biphasic therapy uses a unique combination of high current – to maximise effectiveness – and a low energy dose – to minimise side effects that can be harmful to a weakened heart. This AED undergoes a 120-point test before it leaves the factory and performs daily self-tests throughout its service life. Overall, the defibrillator carries out more than 80 different self-tests, checking not only the device itself but also the batteries and electrodes.

Cardiopulmonary resuscitation is crucial to increase the patient’s chances of survival; therefore, delivering a shock quickly after chest compressions is essential. The Quick Shock feature of this defibrillator reduces the time between the “stand clear” prompt and shock delivery. The SMART Pads detect when they have been removed from the cartridge and applied to the patient. This helps the AED determine exactly where the helper is in the response process, so it can continue to provide step-by-step instructions.

Key features:

IP21 rating
Custom Philips carry case
SMART Biphasic technology
SMART ECG analysis technology
The self-test function ensures that the defibrillator is always ready for use
Clear visual and audible instructions that guide the rescuer through both defibrillation and resuscitation

1x Electrode set
1x Charge-Pak battery charging stick

Replacement set L for the AED devices Lifepak CR Plus and Lifepak CR Express from the manufacturer Stryker. The replacement set consists of a ChargePak and an electrode set. The ChargePak and the electrode set must always be replaced together. The electrode set is suitable for use on adults and can be stored pre-connected. Correct placement is indicated both on the packaging and on the electrodes.

A charging stick for the defibrillator’s internal battery. Once the battery is charged, the capacity is sufficient for 30 defibrillations at 360 joules. The non-rechargeable stick must remain in the defibrillator even after charging.

An electrode set for use on adults. Due to the conductive gel layer, electrodes have an expiry date. After this date, the electrodes must no longer be used, as the gel layer can dry out and conductivity decreases. Lifepak CR Plus/Express electrodes have a shelf life of approx. 2 years. You can find the expiry date on the electrode packaging.

Technical details:

Pre-connectable
Self-adhesive
Approx. 2-year shelf life
Latex-free
Storage temperature between 15°C and 35°C (max. 7 days at -40/70°C)

Suitable for:

Physio-Control / Medtronic Lifepak CR Plus
Physio-Control / Medtronic Lifepak CR Express

– 2x electrode set
– 1x Charge-Pak battery charging stick

The CR Plus electrode set for the AED devices Lifepak CR Plus and Lifepak CR Express from Stryker is suitable for use on adults. The Physio-Control Replacement Kit XL consists of a ChargePak and two electrode sets. The ChargePak and electrode set are not sold separately and must therefore always be replaced together. Correct placement is shown both on the packaging and on the electrodes.

The non-rechargeable stick must remain in the defibrillator even after charging. Once the battery has been charged, the capacity is sufficient for 30 defibrillations at 360 joules.

The two electrode sets for use on adults must be replaced after use or at the latest once they have reached their expiry date. Due to the conductive gel layer, electrodes have an expiry date. After this date the electrodes must no longer be used, as the gel layer can dry out and conductivity decreases as a result. Lifepak CR Plus/Express electrodes have a shelf life of approx. 2 years. The expiry date is printed on the electrode packaging.

Technical details of the electrodes:

Pre-connected
Self-adhesive
Shelf life approx. 2 years
Latex-free
Storage temperature between 15°C and 35°C (max. 7 days at -40/70°C)

Suitable for:

Physio-Control / Medtronic Lifepak CR Plus
Physio-Control / Medtronic Lifepak CR Express

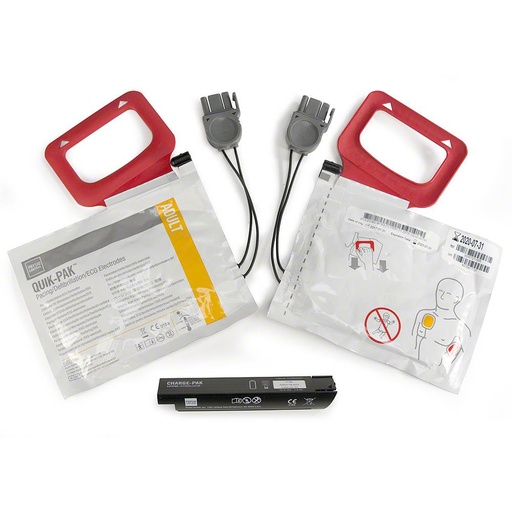

Set with 1 ChargePak & 2 electrode sets for the Physio-Control/Medtronic CR Plus/Express.

Suitable for:
- Physio-Control / Medtronic Lifepak CR Plus
- Physio-Control / Medtronic Lifepak Express

Shelf life: approx. 2 years

Includes:
- 2x electrode set
- 1x Charge-Pak battery charging stick

The Quik-Combo electrodes from Physio-Control are suitable for use on adults. They can be stored pre-connected (already attached). Correct placement of the electrode set is shown on the packaging.

Pre-connected
Self-adhesive
Latex-free
Approx. 2-year shelf life
Storage temperature between 15°C and 35°C (max. 7 days at -30/65°C)

Suitable for:
Physio-Control / Medtronic Lifepak 12
Physio-Control / Medtronic Lifepak 500
Physio-Control / Medtronic Lifepak 1000
Physio-Control / Medtronic Lifepak 20/20e

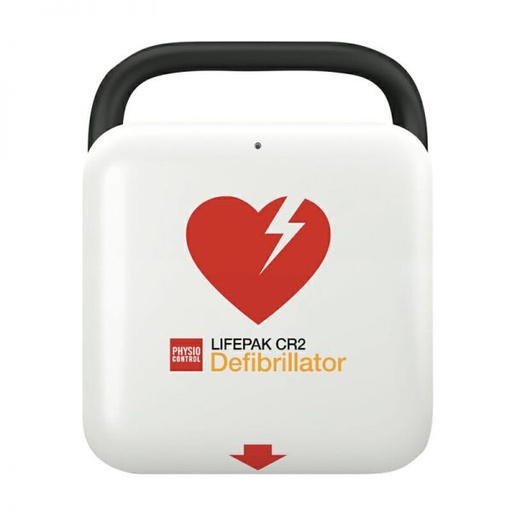

The Physio Control Lifepak CR2 is innovative in many ways. Thanks to its simple 2-step plan, this AED is easy to use, and the new central LIFELINK software ensures the device is always ready for use by continuously checking the defibrillator’s status. The CR2 has a modern design with a striking white colour.

Can be operated by anyone
The device starts immediately when the lid is opened. The numbers 1–2 show at a glance which actions need to be taken. This makes it clear to untrained responders where to start. The QUIK-STEP electrodes become visible after the foil (No. 2) is removed. Images on the electrodes indicate where they should be placed on the casualty. You can start chest compressions immediately once the electrode pads have been applied.

Support during resuscitation
The rescuer is supported by spoken instructions and a metronome. The metronome indicates the correct rate for chest compressions. For use in noisy environments, Clearvoice technology ensures the volume of the instructions is adjusted automatically.

If you may need to use your defibrillator on both adults and children, you can switch the defibrillator to paediatric mode by pressing the dedicated child button. In this child mode, the defibrillator delivers a lower shock output when only adult electrode pads are used. The joule level is set to a level that is better suited to a smaller body.

Physio Control focuses on innovation
The CR2 uses the innovative “cprINSIGHT analysis technology”. This technology makes it possible to continue chest compressions while the defibrillator analyses the heart rhythm. A pause is therefore no longer required, which continuously stimulates circulation and increases the chances of survival.

According to ERC guidelines, survival rates can be improved by up to 70% when CPR is delivered with minimal interruptions.

International environments
This defibrillator can be supplied with two preset languages. You can switch between these languages at any time during a resuscitation. The Lifepak CR2 is therefore perfect for placement in an international environment. In addition, with an IP rating of 55, this device can withstand impact. The AED has high resistance to dust and water, so it can, for example, be installed in a dedicated outdoor cabinet or in a factory.

WiFi connection
The status of the Physio Control Lifepak CR2 is continuously monitored by the so-called “LIFELINK Central AED Program Manager”. For example, if the battery is low or the AED is not in its usual location, you will receive a notification when your CR2 is connected to the Wi-Fi network. This enables an immediate response to unforeseen situations, ensuring the AED is always ready for use.

The integrated Wi-Fi function also ensures that professional care providers connected to Physio Control’s LIFENET system are informed about the status of an incident. For example, in an emergency the AED transmits ECG data to this system. The necessary information can then also be easily forwarded to connected emergency services.

In short, are you looking for an innovative AED that can be operated by anyone? Then the Physio Control Lifepak CR2 is a good solution.

Product data:

Height: 9.7 cm
Width: 22.6 cm
Depth: 27.4 cm
Weight: 2 kg
IP55
Approvals: FDA, CE
Battery life: 4 years
Electrode shelf life: 4 years

The Physio Control Lifepak CR2 is innovative in many ways. This AED is easy to use thanks to the simple 2-step plan, and the new central LIFELINK software ensures the device is always ready for use by continuously checking the defibrillator’s status. The CR2 has a modern design with a striking white colour.

Can be operated by anyone
The device starts immediately when the lid is opened. The numbers 1–2 show at a glance which actions need to be carried out. This makes it clear to untrained responders where to begin. The QUIK-STEP electrodes become visible after removing the foil (No. 2). Images on the electrodes show where they should be placed on the casualty. You can start chest compressions immediately once the electrode pads have been applied.

Support during resuscitation
The rescuer is supported by spoken instructions and a metronome. The metronome indicates the correct rate for chest compressions. For use in noisy environments, Clearvoice technology ensures that the volume of the instructions is adjusted automatically.

If you may need to use your defibrillator on both adults and children, you can switch the defibrillator to paediatric mode by pressing the dedicated child button. In this child mode, the defibrillator delivers a lower shock energy when only adult electrode pads are used. The joule level is set to a level more suitable for a smaller body.

Physio Control focuses on innovation
The CR2 uses the innovative “cprINSIGHT analysis technology”. This technology makes it possible to continue chest compressions while the defibrillator analyses the heart rhythm. A pause is therefore no longer required, meaning circulation is continuously stimulated and survival chances are increased.

According to ERC guidelines, survival chances can be improved by up to 70% when CPR is delivered with minimal pauses.

International environments
This defibrillator can be supplied with two preset languages. You can switch between these languages at any time during resuscitation. The Lifepak CR2 is therefore perfectly suited for placement in an international environment. In addition, with an IP rating of 55, this device can withstand impact. The AED has high resistance to dust and water, meaning it can be installed, for example, in a designated outdoor cabinet or in a factory.

WiFi connection
The status of the Physio Control Lifepak CR2 is continuously monitored by the so-called “LIFELINK Central AED Program Manager”. For example, if the battery is low or the AED is not in its usual location, you will receive a notification when your CR2 is connected to the Wi-Fi network. This enables an immediate response to unforeseen situations, ensuring the AED is always ready for use.

The integrated Wi-Fi function also ensures that professional care providers connected to Physio Control’s LIFENET system are informed about the status of an incident. For example, in an emergency the AED transmits ECG data to this system. The necessary information can then also be easily forwarded to connected emergency services.

In short, are you looking for an innovative AED that can be operated by anyone? Then the Physio Control Lifepak CR2 is a good solution.

Product data:

Height: 9.7 cm
Width: 22.6 cm
Depth: 27.4 cm
Weight: 2 kg
IP55
Approvals: FDA, CE
Battery life: 4 years
Electrode shelf life: 4 years
