Wall Lamps

Product data:

• Examination light with central reflector for long-term economical use in hospitals and medical practices

• The new LED light source, in combination with a specially developed reflector, ensures focused illumination

• Maintenance-free thanks to an extended light source service life of up to 30,000 h

• Very low heat generation due to the double-walled lamp head housing and integrated ventilation slots on the lamp head Colour: white

Light source: LED central reflector 18 V / 12 W

Light output: approx. 55,000 lux (at 0.5 m distance)

approx. 12,750 lux (at 1.0 m distance)

Light field Ø: approx. 100 mm (at 0.5 m distance)

approx. 200 mm (at 1.0 m distance)

Colour temperature: approx. 4,300 Kelvin ± 200 For ceiling height 2.70 m

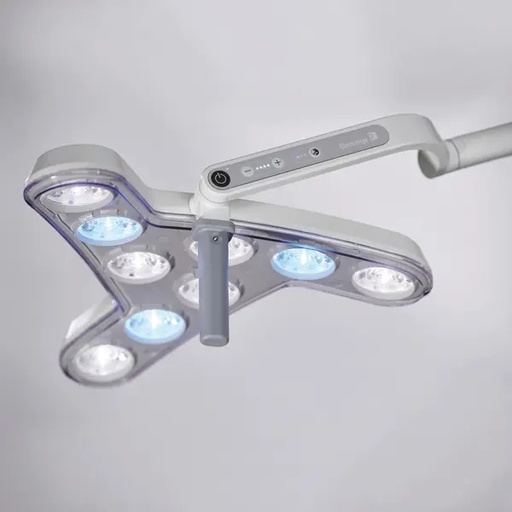

The latest premium product from the Swiss quality brand Derungs. With 100,000 lux at one metre, it is the most powerful medical examination light. It is suitable for treatments or in-depth examinations.

Exceptional: large homogeneous light field, perfect colour rendering properties
Reliable: arm system with stable positioning
Customisable: 3 different light colours, dimmable and optionally focusable light field
Versatile minor surgery light: further versions for wall or ceiling mounting available on request, duo version with two lamp heads
Hygienic: removable, sterilisable and easy-to-clean, robust housing

The lights are supplied as a ready-to-install set.
The ceiling tube (for ceiling heights up to 325 cm) can be individually shortened in length; the standard mounting ring (for concrete ceilings) and canopy are included in the scope of delivery.
For difficult installation locations, a ceiling anchoring ring is available as an option.

Technical data:

Light output: 100,000 lux @ 1.0 m
Colour temperature: 4,300 K
Illuminated field @ 1.0 m: Ø 18 / 23 / 28 cm
Colour rendering index: Ra > 95
Operation: membrane keypad on the gimbal joint
Tested safety: EN 60601-1, EN 6601-2-41
Weight: 15.9 kg

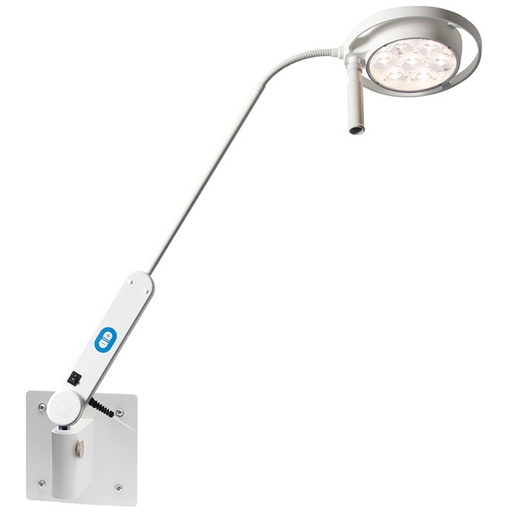

Mach LED 115 examination light, wall-mounted model, with wall bracket
with electronic power supply 100–240 V, brightness control, fixed focus, on/off switch, 7 LEDs, colour temperature 4500 K, illuminance: 60,000 lux / distance 0.5 m

Mach LED 130 examination light, wall-mounted model, on SWING wall arm, incl. power supply unit mounted in the wall bracket
Colour rendering Ra = 95, fixed focus, 19 LEDs, light field diameter 17 cm, on/off switch and brightness control on the light head, illuminance: 60,000 lux / distance 1 m

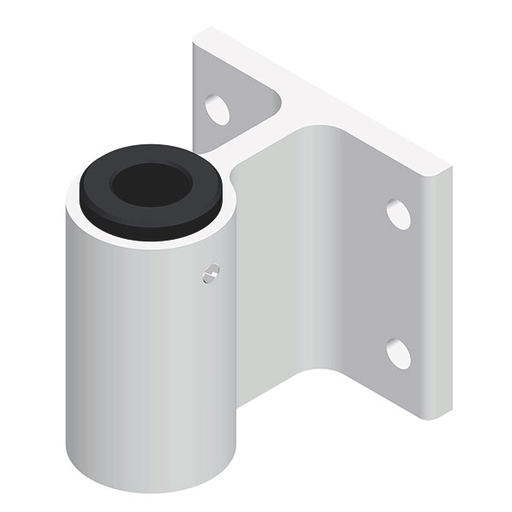

Aluminium wall mount, white-coated for halogen combination lamp.

Material: aluminium, white-coated
Maximum load (kg): 150
Dimensions (mm): approx. 60 x 60 x 70
Holder (mm): Ø 18, with side grub screw for securing

Wall rail claw with grub screw for halogen combination light.

Material: aluminium, ball-polished
Total load capacity (kg): 12.5
Mount (mm): 18

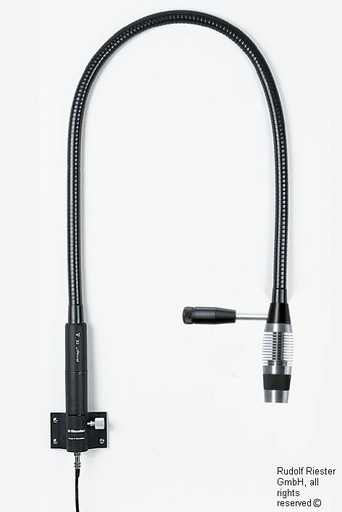

ri-magic LED Examination Light 230 V, wall-mounted model
The flexible ri-magic LED examination light provides optimum illumination of the examination and operating area. Clearly distinguishable colour shades, strong contrasts and powerful lighting enable faster and easier diagnosis. Unlike halogen or xenon lamps, the LED emits hardly any heat. - state-of-the-art LED technology, daylight-like and powerful, making it ideal for examinations and minor procedures - lamp service life approx. 50,000 hours, no replacement necessary - min. 45,000 lux at a distance of 40 cm, colour temperature 6200 K - significantly less heat generation and energy loss - focusing device at the front of the lamp head for precise adjustment of the size of the illuminated examination field - highly flexible long special arm can be bent in any direction, lamp remains in the selected position - easy-to-use handle with rheostat for continuous adjustment of light intensity - wide-range power supply for 230V/120V

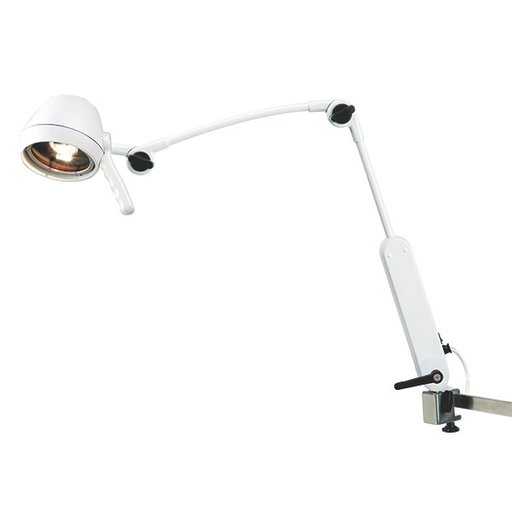

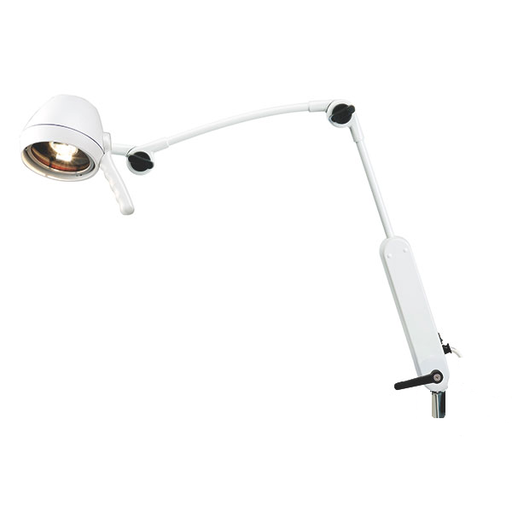

Brilliant, glare-free illumination of the treatment area supports the examining physician in diagnosis. Proven light source as an economical alternative: natural light with a high colour rendering index. Universally adaptable.

Product data:

Colour: white
Light source: halogen reflector lamp with cold-light mirror,
12 V / 35 W IRC, 10°
Light colour: approx. 3,000 Kelvin
Illuminance: 28,500 lux / 500 mm
Light field: Ø 90 / 180 mm at 500 / 1,000 mm
Service life: approx. 3,000 h (light source)
Input voltage: 230 V, 50 - 60 Hz
Switch: in the housing
Luminaire reach: approx. 1,100 mm
Total weight (net): approx. 2.9 kg
Connector pin: Ø 18, L 35 mm
Optional: dimmer on request / international plug / 110 V version
Colour correction filter (light colour: 3,700 K)

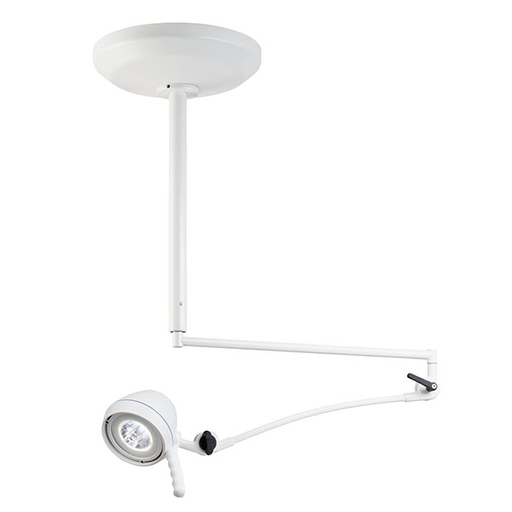

Please note that this product is B-stock with minor defects offered at a greatly reduced price.

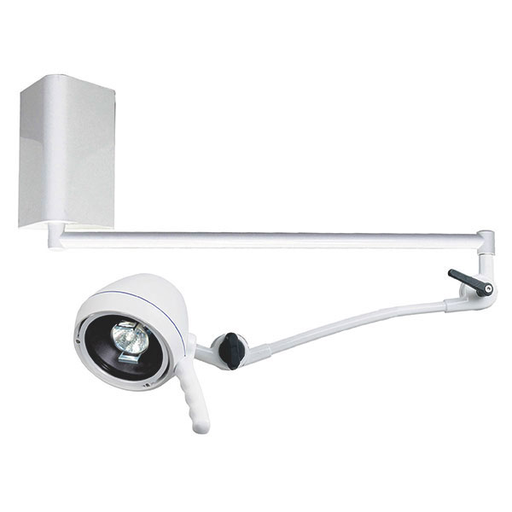

Product data:

• Examination light with central reflector for long-term economical use in hospitals and medical practices

• The new LED illuminant, in combination with a specially developed reflector, provides focused illumination

• Maintenance-free thanks to an extended illuminant service life of up to 30,000 h

• Very low heat generation thanks to the double-walled lamp head housing as well as integrated ventilation slots on the lamp head
Colour: white

Light source: LED central reflector 18 V / 12 W

Light output: approx. 55,000 lux (at 0.5 m distance)
approx. 12,750 lux (at 1.0 m distance)

Light field Ø: approx. 100 mm (at 0.5 m distance)
approx. 200 mm (at 1.0 m distance)

Colour temperature: approx. 4,300 kelvin ± 200
For ceiling height 2.70 m

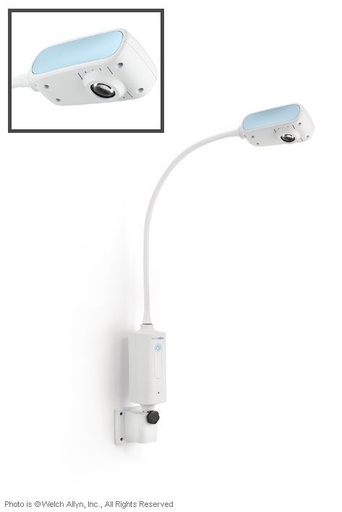

Light for general examinations in the practice.

- 1 white LED with 5,500 Kelvin provides excellent white light that optimally illuminates the area to be examined, renders tissue colour accurately and provides uniform illumination
- no dark areas, no “hot spots” and no heat build-up
- better for the environment: low operating costs, as no lamp needs to be replaced and less energy is consumed
- infection control: touch-free switching on and off significantly reduces the risk of infection through cross-contamination and makes cleaning easier

Technical data:
- light intensity at working distance: 30,000 lux at 30.5 cm, 15,000 lux at 50 cm
- light field at working distance: 13 cm to 15 cm
- wall reach: 79 cm
- lamp head (H x W x D): 19 x 9 x 8 cm
- control unit (H x W x D): 27.5 x 10 x 8 cm
- weight: 2.56 kg
- power supply: input: 100–240 V ~ 50–60 Hz, 0.35 A max.
- 3-core mains cable, 2.5 m long
- operating life: 50,000 hours

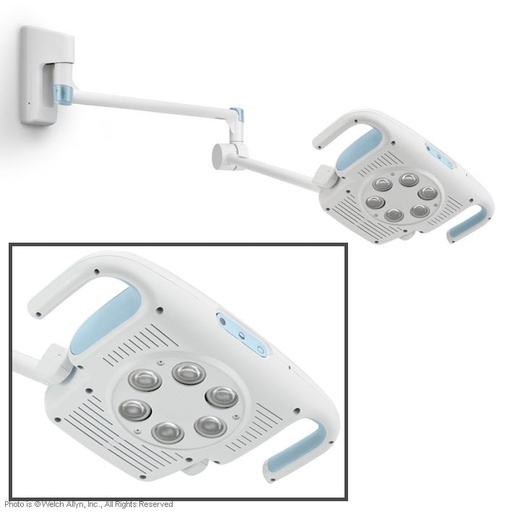

GS 900 large LED examination light for wall mounting
Light suitable for almost any application in hospitals, outpatient departments and medical practices. - 6 white LEDs with 5,500 Kelvin provide excellent white light, optimally illuminating the area to be examined, rendering tissue in true colour and providing uniform illumination - no dark spots, no “hot spots” and no heat build-up - better for the environment: low operating costs as no lamps need replacing and less energy is consumed - infection control: touch-free on/off switching with dimming significantly reduces the risk of infection through cross-contamination and makes cleaning easier Technical data: - Light intensity at working distance: 80,000 lux at 61 cm, 65,000 lux at 100 cm - Spot size at working distance: 28 cm at 61 cm, 23 cm at 100 cm - Wall reach: 175 cm - Lamp head (H x W x D): 34.9 x 45.8 x 10.2 cm - Weight: 8.12 kg - Power supply: Input: 100-240 V ~ 50-60 Hz, max. 1.00 A - 3-core mains cable 2.5 m long - Service life: 50,000 hours
