Centrifuges

The powerful and user-friendly MiniSpin microcentrifuge is so compact that every workstation can be equipped with a personal centrifuge.

Product data:

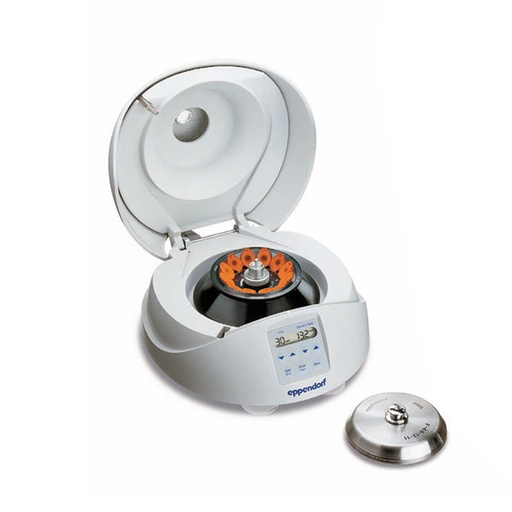

- MiniSpin centrifuge with F-45-12-11 rotor
- Microcentrifuge
- Speed control from 800 rpm to 13,400 rpm
- RCF 12,100 x g, 230 V/50–60 Hz
- incl. standard rotor F-45-12-11 (aluminium)
- 12 holes
- Angle 45°
- For 1.5/2.0 ml reaction tubes with max. Ø 11 mm
- Complete with lid (stainless steel) and rotor nut
- Dimensions (W x D x H): 22.6 x 23.9 x 13 cm
- Height 25 cm (with lid open)
- Weight 4.3 kg

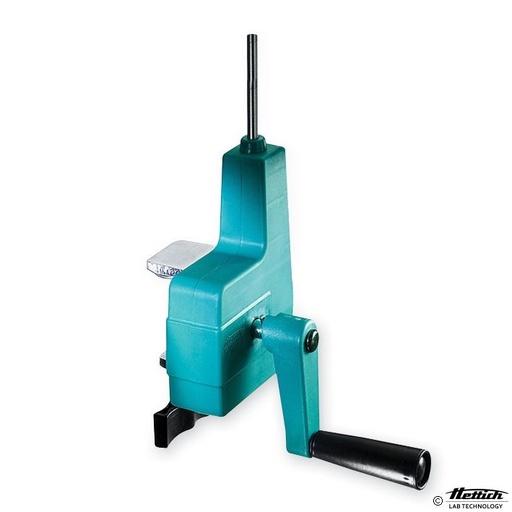

Manual centrifuge without rotor
The flexible, handy centrifuge can be easily attached to any tabletop using a clamping device and operated without electricity. Thanks to its self-lubricating gear, it is virtually maintenance-free. - compatible rotors: 1014 and 1025 - Dimensions (H x W x D): 285 x 140 x 175 mm - Weight: approx. 0.9 kg

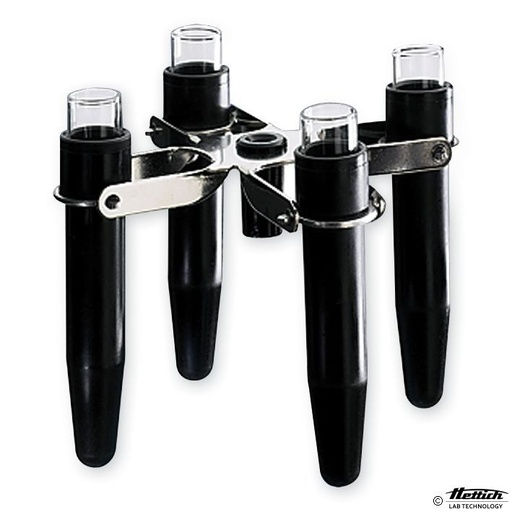

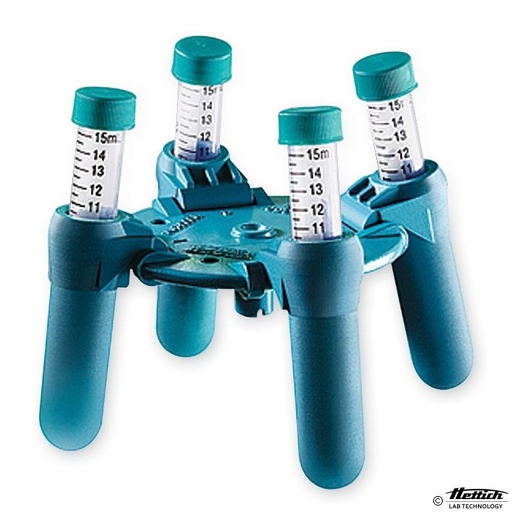

Swing-out rotor for 4 x 15 ml for HET 1011
complete with sleeves for hand centrifuge 1011

Adapter for 5 round-bottom tubes 2–7 mL, 12.5 mm × 100 mm, for 100 mL round bucket in rotor A-4-38, 2 pieces

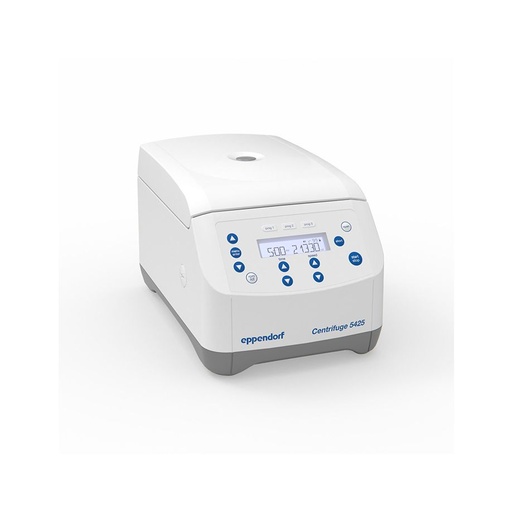

The Centrifuge 5425 is the new laboratory standard. With a capacity for 24 vessels and a speed of up to 21,300 x g, it is perfectly suited for all modern molecular biology applications using Eppendorf and PCR tubes. The Centrifuge 5425 is used to separate liquid mixtures of substances with different densities, in particular for the processing and analysis of samples from the human body as part of an in vitro diagnostic application, to enable use of the in vitro diagnostic device in accordance with its intended purpose. This centrifuge, including its components, is an in vitro diagnostic device within the meaning of Directive 98/79/EC of the European Parliament and of the Council of 27 October 1998. Eppendorf centrifuges are intended exclusively for indoor use and for operation by trained specialist personnel.

- whisper-quiet microcentrifuge for stress-free work
- aerosol-tight Eppendorf QuickLock® lids for easy and safe handling
- outstanding software features (e.g. 10 acceleration and braking ramps, 3 programme buttons, short function without having to keep the button pressed)
- extended rotor programme (e.g. 5.0 mL rotor, swing-bucket rotor for PCR strips)
- OptiBowl® design for quiet operation, even without the rotor lid
- ergonomic lid operation with just one finger
- automatic lid opening at the end of the run – prevents sample warming and enables easy access to the samples

Product data:
- maximum rotor capacity: 10 x 5.0 mL tubes
- Max. RCF: 21,300 x g
- Max. speed: 15,060 rpm
- Mains connection: 230 V, 50–60 Hz
- Dimensions (W x D x H): 24 x 39 x 24 cm
- Height (with lid open): 48 cm
- Weight without accessories: 15.6 kg

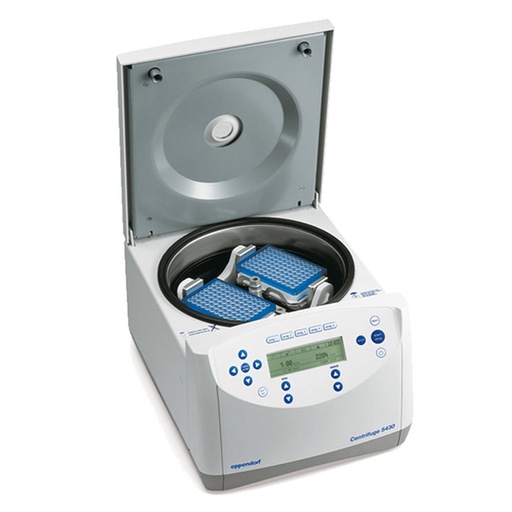

Centrifuge 5430 without rotor, with membrane keypad
48-place microcentrifuge for 1.5/2.0 ml reaction tubes, up to 30,130 x g / 17,500 rpm, 230 V / 50–60 Hz, choice of 12 different rotors, e.g. MTP rotor, Falcon rotor, automatic rotor recognition, stores up to 50 routine programmes, menu-guided operation in 4 languages (English, German, French, Spanish), backlit LCD display, automatic lid opening at the end of the run, dimensions (W x D x H): 33 x 42 x 25 cm, height with lid open: 56 cm, weight: 29 kg

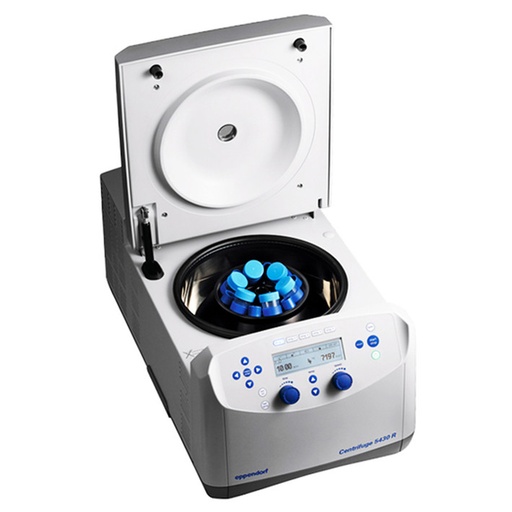

Centrifuge 5430 with FA-45-30-11 rotor, aerosol-tight, with membrane keypad
48-place microcentrifuge for 1.5/2.0 ml reaction vessels, up to 30,130 x g / 17,500 rpm, 230 V/50–60 Hz, with FA-45-30-11 rotor, choice of 12 different rotors, e.g. MTP rotor, Falcon rotor, automatic rotor recognition, stores up to 50 routine programmes, menu-guided operation in 4 languages (English, German, French, Spanish), backlit LCD display, automatic lid opening at the end of the run, dimensions (W x D x H): 38 x 64 x 29 cm, height with lid open: 63 cm, weight: 56 kg

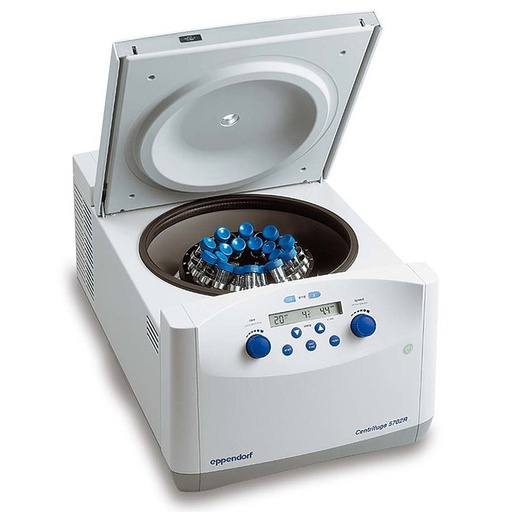

Centrifuge 5702 RH without rotor, refrigerated and heated
230 V / 50–60 Hz, as Centrifuge type 5702, active heating adjustable from -9°C to +42°C, ready for immediate operation thanks to standby warming/cooling, temperature at steady state at 4°C and at 37°C ± 1°C, dimensions (W x D x H): 38 x 58 x 26 cm, height with lid open: 60 cm, weight: 36 kg

Centrifuge 5702 R, rotary knobs, refrigerated, with

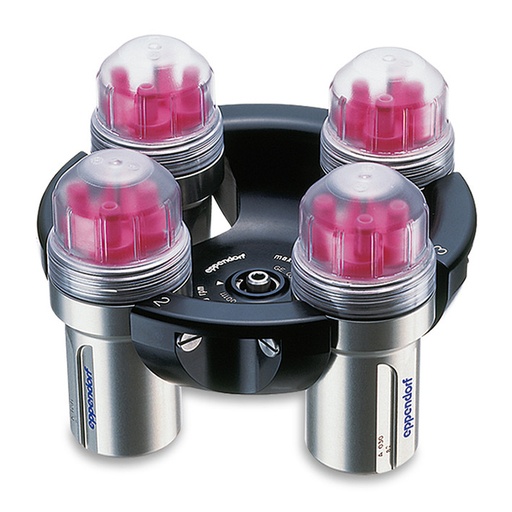

Rotor A-4-38 incl. adapters for 13/16 mm
blood collection tubes, 2 sets with 2
adapters, 230 V/50–60 Hz (EU)

Product features:
- Maximum capacity for round-bottom tubes
per rotor: 16 × 13 mm / 16 × 16 mm
Technical specifications:
- Dimensions (W × D × H): 38 × 58 × 27
cm / 15 × 22.9 × 10.6 in
- Weight without accessories: 35 kg / 77.4 lb
- Mains connection: 230 V, 50–60 Hz

Centrifuge 5702 R without rotor, refrigerated
230V / 50–60 Hz, like centrifuge model 5702, additionally temperature range from -9°C to +40°C, achievable even at ambient temperatures of up to 40°C, Fast Temp and stand-by cooling via vibration-free, frequency-controlled refrigeration unit of the new generation, dimensions (W x D x H): 38 x 58 x 26 cm, height with lid open: 60 cm, weight: 36 kg

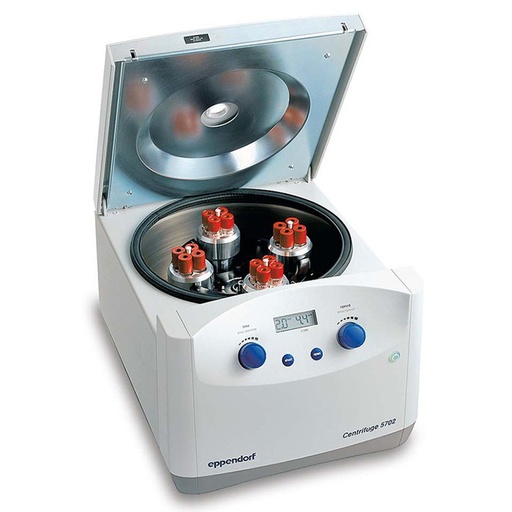

Centrifuge 5702 without rotor
230 V / 50–60 Hz, universal benchtop centrifuge for highly efficient loading with max. 4 x 100 ml containers, 16 x 20 ml DIN containers or 20 blood collection tubes in the swing-out rotor, 30 x 15 ml or 10 x 15 ml and 20 x 15 ml Falcon tubes in the fixed-angle rotor F 35-30-17, maximum capacity 450 ml, max. RCF 3,000 x g, max. speed: 4,400 rpm, dimensions (W x D x H): 32 x 40 x 24 cm, height with lid open: 53 cm, weight: 20 kg

This unit is suitable for refrigerated and non-refrigerated centrifugation with low, medium and high throughput.

Product data:

- Refrigerated benchtop centrifuge
- Max. load 4 x 250 ml
- Max. RCF: 20,800 x g
- Speed control up to 14,000 rpm
- Adjustable temperature range: -9 °C to 40 °C
- Stand-by cooling
230 V/50–60 Hz

- incl. swing-out rotor S-4-72
- incl. 4 aluminium round buckets, 250 ml each, for use with adapters for vessels up to max. Ø 72 mm
- incl. 2 SA adapters for 15 ml conical tubes (each with 8 bores, Ø 17.5 mm)
- incl. 2 SA adapters for 50 ml conical tubes (each with 4 bores, Ø 31 mm)
- 1 SA = 2 pieces

This device is suitable for refrigerated or non-refrigerated centrifugation, with low, medium or high throughput.

Product data:

- Refrigerated benchtop centrifuge
- Max. load: 4 x 750 ml
- Max. RCF: 20,800 x g
- Speed control up to 14,000 rpm
- Adjustable temperature range: -9 °C to 40 °C
- Stand-by cooling
- 230 V / 50–60 Hz
- Incl. swing-out rotor S-4-104
- Incl. 4 aluminium round buckets, 750 ml each, for holding adapters for vessels up to max. Ø 104 mm
- Incl. 2 SA adapters for 15 ml conical tubes (each with 14 bores Ø 17.5 mm)

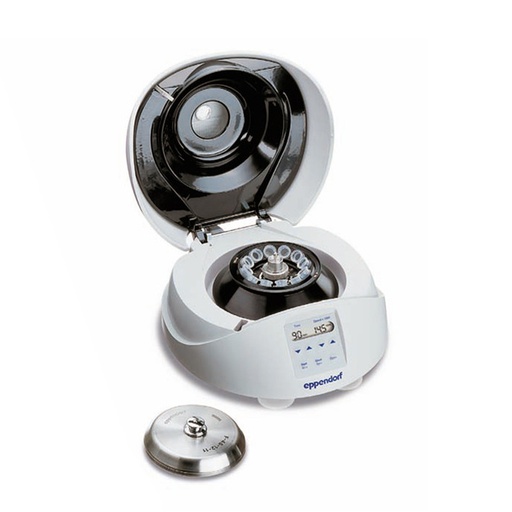

MiniSpin plus centrifuge with Rotor F-45-12-11
Microcentrifuge with speed control from 800 rpm to 14,500 rpm, RCF 14,100 x g, 230 V/50–60 Hz, incl. "Black-Line" Rotor F-45-12-11 (aluminium), 12 bores, 45° angle, for 1.5/2.0 ml reaction tubes with max. Ø 11 mm, complete with lid (stainless steel) and rotor nut, with continuous centrifugation function, dimensions (W x D x H): 22.6 x 23.9 x 13 cm, height 25 cm (with lid open), weight 4.3 kg

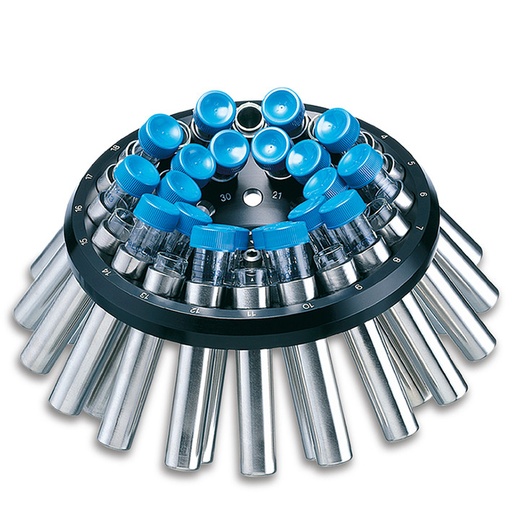

Fixed-angle rotor F-35-30-17
incl. 30 steel sleeves for 15 mL tubes, with 20 adapters for conical tubes and 30 rubber mats for round-bottom tubes

Fixed-angle rotor F-35-6-30 complete with lid and adapter
Falcon rotor for 6 × 15/50 ml tubes

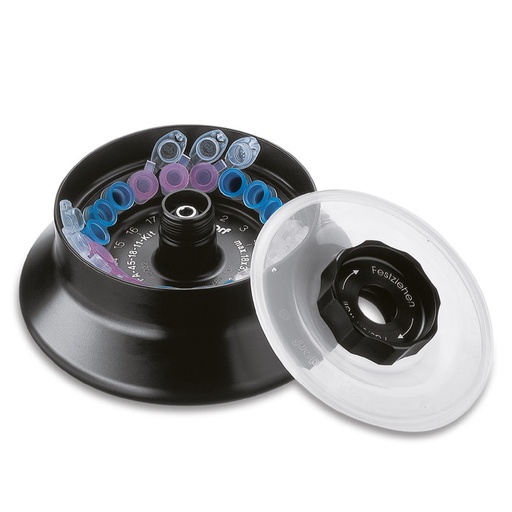

Fixed-angle rotor F-45-18-11 kit incl. rotor lid
Raised rim for safe centrifugation of spin columns in open vessels, aluminium, 18 holes, Ø 11 mm, 45° angle

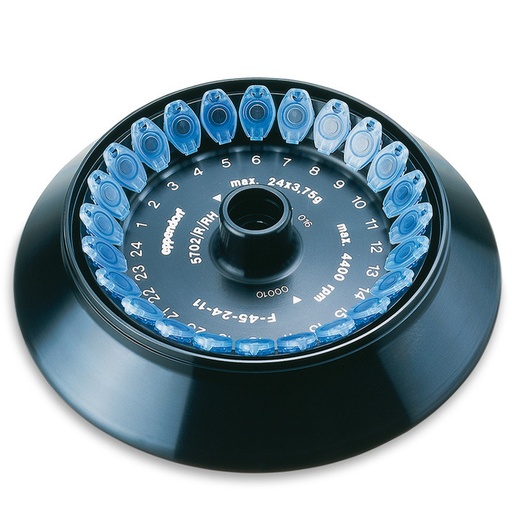

Fixed-angle rotor F-45-24-11 without lid
for 24 x 1.5/2.0 ml tubes
