Microscopes: Ensuring the Right View for Examinations

Whether in medicine, biology, or other sciences, many groundbreaking scientific discoveries would not have been possible without microscopes, and our current knowledge would be significantly more limited. In laboratory routines, microscopes remain among the most essential tools, whether for research or medical and dental diagnostics. This guide provides an overview of the components of a traditional microscope, the differences between digital microscopes, and how to choose the right model for your needs.

Transmitted-Light and Reflected-Light Microscopes: The Basic Structure

Regardless of whether it is a transmitted-light or reflected-light microscope, every light microscope consists of specific optical components.

The Eyepiece

The eyepiece is cylindrical in shape and always contains at least two lenses. A diaphragm disk is positioned at the top.

Functionally, the eyepiece serves as a link in the optical system: it rotates the intermediate image so that the observer sees it upright and correctly oriented. In most cases, the eyepiece can be replaced, allowing adjustments to the magnification.

If a microscope has only one eyepiece, it is referred to as a monocular microscope, which is the traditional design but is rarely used in professional laboratories. Instead, binocular microscopes have become the standard, as they allow for fatigue-free operation over extended periods and provide a more comfortable viewing experience. Trinocular microscopes offer even greater versatility: they can be used with both eyes and allow for the attachment of an imaging device, such as a digital camera.

Microscope Stage

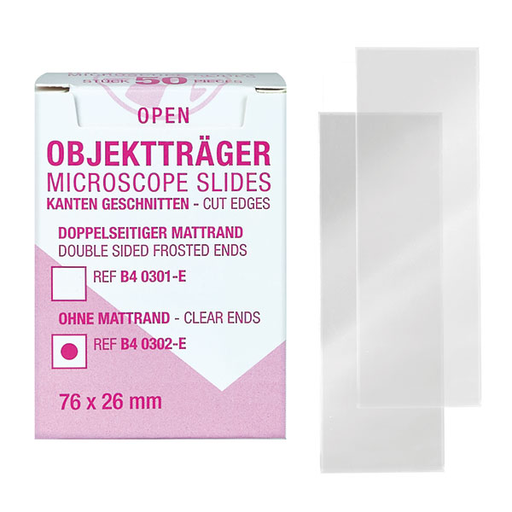

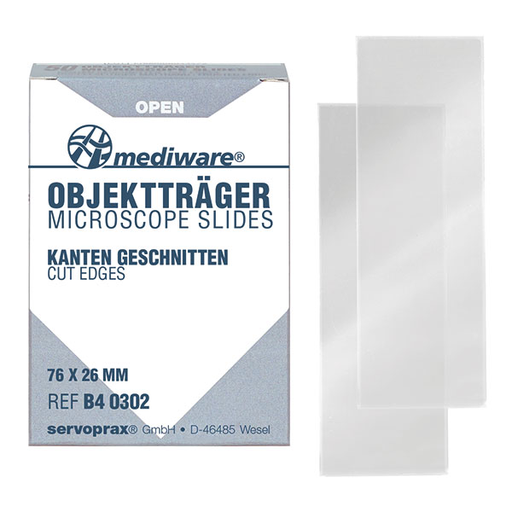

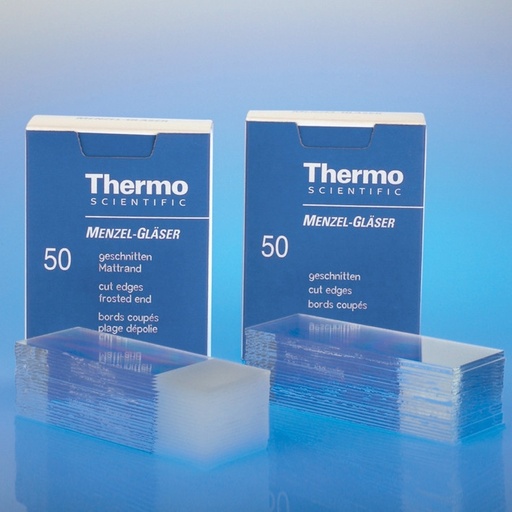

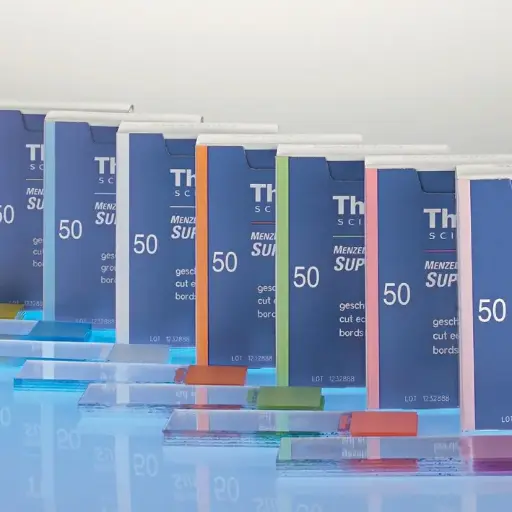

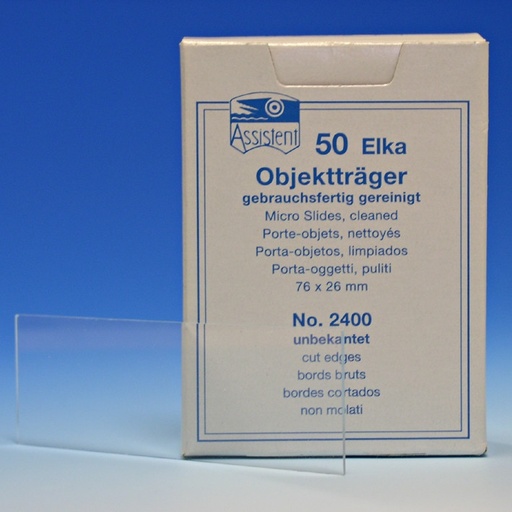

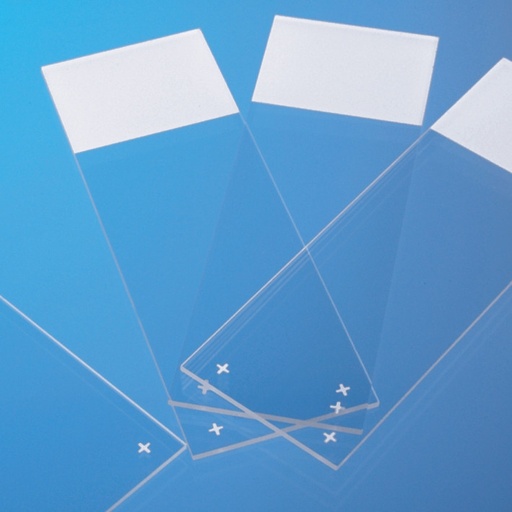

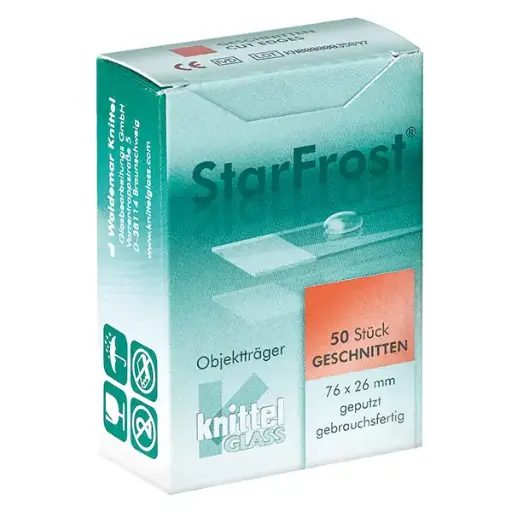

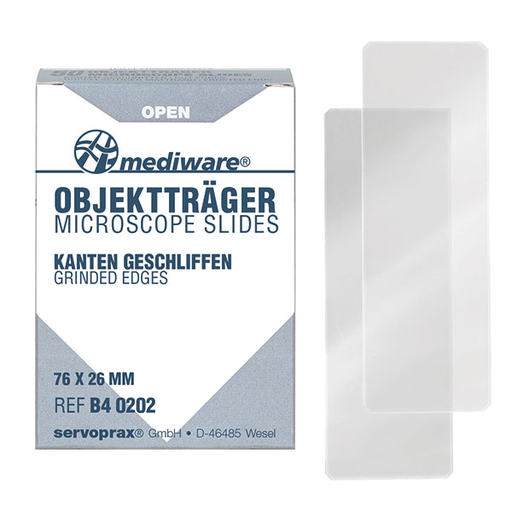

The stage is where the specimen to be examined is placed. The specimen is positioned on a glass slide, which allows light to pass through the sample for observation through the eyepiece. Typically, two slides are used to secure the sample between them, and the slides can be fixed in place with clamps on the stage.

The Light Source

A sufficient light source is essential for accurate and efficient work. In basic models, mirrors are used to direct light, while high-quality microscopes are equipped with a controlled light source. Halogen lamps remain a standard lighting option, though LEDs are becoming increasingly popular. In professional settings, Köhler illumination is often used.

The Digital Microscope

Digital microscopes are playing an increasingly significant role in laboratories, as they offer a refined and highly convenient working experience. These models come equipped with a built-in camera that projects the specimen onto a computer screen or display instead of requiring direct observation through an eyepiece. Some digital microscopes even allow full computer-based control.
