Examination Couches

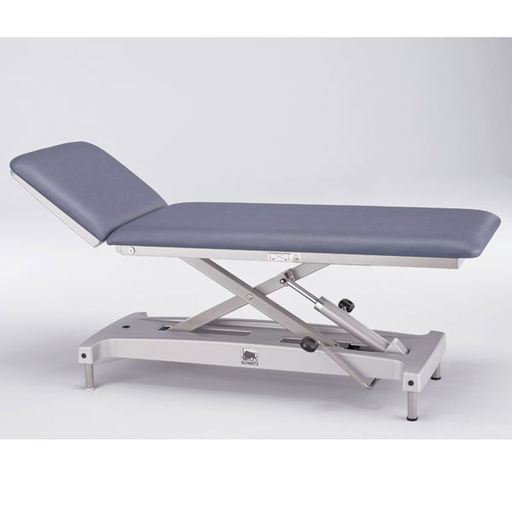

Height-adjustable examination couch model 211.410/211.411
- Hydraulic height adjustment via foot pump lever from 500 to 920 mm
- Head section adjustable via gas spring from -20° to +40°
- Upholstery 70 mm, 2-piece
- Frame powder-coated in RAL 9002, 9006 or RAL 9007
- Lower section cover made of plastic, silver-grey
- With 4 levelling feet, not electrically conductive
- Safe working load: 225 kg
The locking switch 200030 for activating and deactivating the foot control is now included as standard. When used in DE, A, CH, the locking switch is mandatory.

The frame paint finish, as well as the artificial leather cover (Comfort/Classic), is available in almost any colour.
If you have any questions about other colours, please contact our friendly service team.

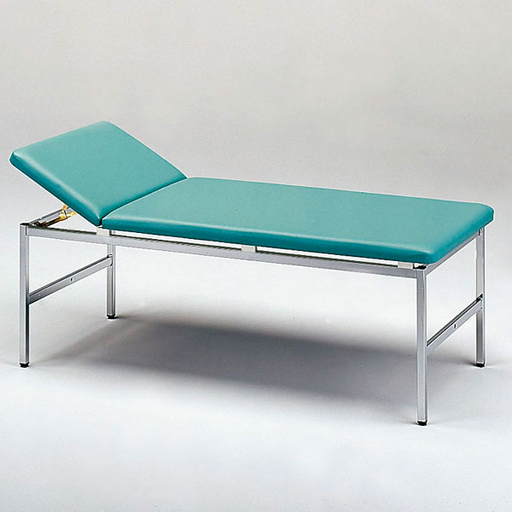

The SCHMITZ ECG examination couch is an 800 mm wide couch which, thanks to its large surface area, is ideal for electrocardiography. The frame of the couch is made of square-section steel tubes powder-coated to RAL 9007 (aluminium grey). The cross bracing ensures a safe, stable stance. It also features fold-in pairs of feet and a 2-part, 70 mm thick upholstery. The couch is upholstered in gatten Classic artificial leather. In addition, the ECG couch has a head section adjustment of +40°.

Product data:

Frame: RAL 9002 grey white
Height: 680 mm
Width: 800 mm
Length: 1950 mm (head section: 500 mm, body section: 1450 mm)
Head section adjustment: +40°
Load capacity: up to 225 kg

The SCHMITZ ECG examination couch is an 800 mm wide couch which, thanks to its large surface area, is ideal for electrocardiography. The couch frame is made of square tubing powder-coated to RAL 9007 (aluminium grey). The cross bracing ensures a secure and stable stand. It is also characterised by fold-in leg pairs and 2-piece, 70 mm thick upholstery. The couch is upholstered in gatted Classic artificial leather. In addition, the ECG couch features a backrest adjustment of up to +40°.

Product data:

Frame: RAL 9006
Height: 680 mm
Width: 800 mm
Length: 1950 mm (head section: 500 mm, body section: 1450 mm)
Backrest adjustment: +40°
Load capacity: up to 225 kg

The height-adjustable examination couch model 211.410 from SCHMITZ can be electrically adjusted via a foot switch. The electric height adjustment range is from 500 to 920 mm. The head section can be adjusted from -20° to +40° using gas springs. The couch features 70 mm thick, 2-part upholstery with smooth leather. The frame is powder-coated to RAL 9007 (grey aluminium). The lower section cover is made of silver-grey plastic. In addition, the examination couch has 4 non-electrically conductive levelling feet. It is supplied with a 2.4 m connection cable incl. power supply unit.

The lock switch 200030 for activating and deactivating the foot control is now part of the standard specification. When used in DE, A, CH, the lock switch is mandatory.

Product data:

Height: 500 to 920 mm
Width: 650 mm
Length: 1950 mm (head section: 500 mm, body section: 1450 mm)
Load capacity: up to 225 kg
Head section adjustment: -20° to +40°

Height-adjustable examination couch model 211.410/211.411
- Hydraulic height adjustment via foot pump lever from 500 to 920 mm
- Head section adjustable via gas spring from -20° to +40°
- 70 mm upholstery, 2-section
- Frame powder-coated in RAL 9002, 9006 or RAL 9007
- Lower section cover made of plastic, silver-grey
- With 4 levelling feet, non-electrically conductive
- Safe working load: 225 kg
The interlock switch 200030 for activating and deactivating the foot control is now part of the standard specification. When used in DE, A, CH, the interlock switch is mandatory.

The frame coating, like the artificial leather cover (Comfort/Classic), is available in almost any colour.
If you have any questions about additional colours, please contact our friendly service team.

Height-adjustable examination couch model 211.410/211.411
- Hydraulic height adjustment via foot pump lever from 500 to 920 mm
- Head section adjustable by gas spring from -20° to +40°
- Upholstery 70 mm, 2-piece
- Frame powder-coated in RAL 9002, 9006 or RAL 9007
- Lower section cover made of plastic, silver-grey
- With 4 levelling feet, non-electrically conductive
- Safe working load: 225 kg
The locking switch 200030 for activating and deactivating foot operation is now included as standard. When used in DE, AT, CH, the locking switch is mandatory.

The frame finish, as well as the artificial leather cover (Comfort/Classic), is available in almost any colour.
If you have any questions about additional colours, please contact our friendly service team.

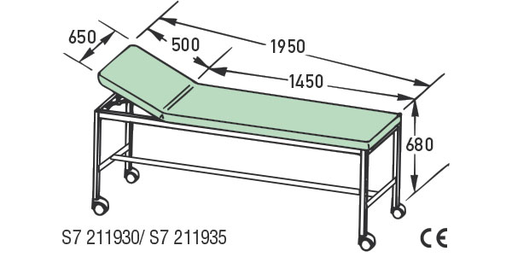

Frame made of square tubing, with cross and longitudinal bracing, 4 swivel castors Ø 125 mm, 2 of which with total brake, electrically conductive, 1 castor with directional lock, with wall bumpers Ø 150 mm, 2-piece upholstery 70 mm,
head section adjustment +40°.
Safe working load: 225 kg.

The frame finish, like the artificial leather upholstery (Comfort/Classic), is available in almost any colour.
If you have questions about additional colours, please contact our friendly service team.

Frame made of square steel tubing with transverse and longitudinal bracing; 4 swivel castors Ø 125 mm, including 2 castors with total brake, electrically conductive; 1 castor with directional lock; with wall buffers Ø 150 mm; 2-piece upholstery 70 mm.
Head section adjustment up to +40°.
Safe working load: 225 kg.

The frame finish, like the artificial leather upholstery (Comfort/Classic), is available in almost any colour.
If you have questions about additional colours, please contact our friendly service team.

Frame made of square tubing with cross and longitudinal braces; 4 swivel castors Ø 125 mm, including 2 castors with total brake, electrically conductive; 1 castor with directional lock; with wall guards Ø 150 mm; 2-piece upholstery 70 mm.
Head section adjustment up to +40°.
Safe working load: 225 kg.

The frame finish, like the (Comfort/Classic) synthetic leather cover, is available in almost any colour.
If you have questions about further colours, please contact our friendly service team.

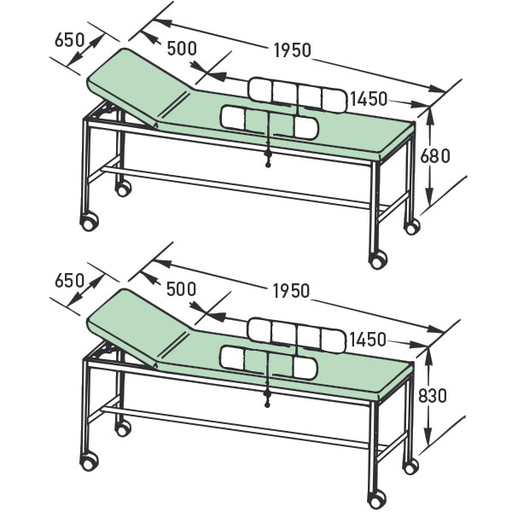

Frame made of square steel tubing, chrome-plated, with cross and longitudinal braces; 4 swivel castors Ø 125 mm, including 2 castors with total lock, electrically conductive; 1 castor with directional lock; with wall buffers Ø 150 mm; head section adjustment +40°; 2 chrome-plated side rails with fixing parts, lowerable down to upholstery height. Safe working load: 225 kg.

The frame finish, like the (Comfort/Classic) synthetic leather upholstery, is available in almost any colour.
If you have questions about other colours, please contact our friendly service team.

Frame made of square-section tubing, chrome-plated, with cross and longitudinal brace; 4 swivel castors Ø 125 mm, including 2 castors with total lock; electrically conductive; 1 castor with directional lock; with wall buffers Ø 150 mm; head section adjustment +40°; 2 chrome-plated side rails with fixing components, lowerable down to upholstery height. Safe working load: 225 kg.

The frame finish, like the artificial leather upholstery (Comfort/Classic), is available in almost any colour.
If you have questions about additional colours, please contact our friendly service staff.

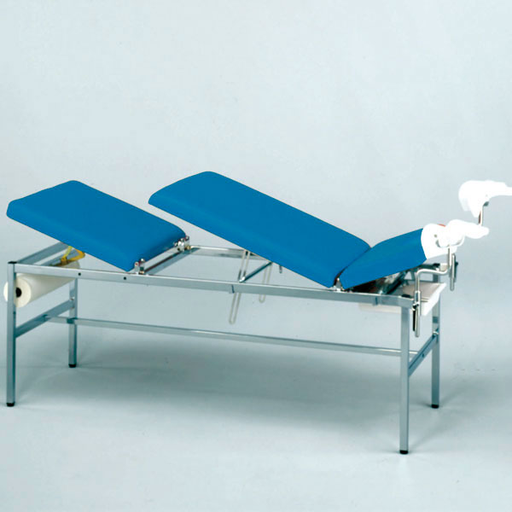

The universal examination couch model 211.175 from SCHMITZ stands out thanks to its adjustability. The middle section can be used as a backrest section. Both the head section and the seat section are adjustable.

Adjustability:
Head section adjustment +35°
Backrest adjustment +35°
Pelvic elevation +35°

The couch frame is made of chrome-plated square tubing and, thanks to additional cross and longitudinal bracing, offers optimum stability and durability. Beneath the couch there is a basin made of stainless steel (chromium-nickel steel). Fixing clamps for leg supports are fitted to the foot section. A 70 mm cushion with a smooth Classic artificial leather cover ensures a high level of sitting and lying comfort.

Product data:

Height: 625 mm
Width: 650 mm
Length: 1950 mm (head section: 650 mm, middle section: 900 mm, foot section: 350 mm)
Load capacity: up to 225 kg

Frame made of square steel tubing, 2-part upholstery, levelling feet, head section adjustment to +40°. Safe working load: 225 kg.

Classic version:
Hard-wearing, elastic material, smooth surface.

Comfort version:
Hard-wearing material with high elasticity and flexibility for exceptionally high seating and lying comfort. Embossed surface.

Upholstery:
Foam on a base board, with a premium, hard-wearing artificial leather cover in 2 qualities

Coating:
High-quality powder coating, high-gloss finish, with extremely high impact and scratch resistance

Colours:

The frame coating, just like the artificial leather cover (Comfort/Classic), is available in almost any colour.
If you have any questions about additional colours, please contact our friendly service team.

Frame made of square-section steel tubing, 2-part upholstery, levelling feet, headrest adjustment up to +40°. Safe working load: 225 kg.

Classic version:
Hard-wearing, elastic material, smooth surface.

Comfort version:
Hard-wearing material with high elasticity and flexibility for exceptionally high sitting and lying comfort. Embossed (grain) surface.

Upholstery:
Foam on a support board, with premium, hard-wearing artificial leather cover in 2 quality grades

Coating:
High-quality powder coating, high-gloss surface, with extreme impact and scratch resistance

Colours:

The frame coating, like the artificial leather cover (Comfort/Classic), is available in almost any colour.
If you have any questions about additional colours, please contact our friendly service team.

Frame made of square steel tubing, 2-part upholstery, levelling feet, head section adjustment up to +40°. Safe working load: 225 kg.

Classic version:
Hard-wearing, elastic material, smooth surface.

Comfort version:
Hard-wearing material with high elasticity and flexibility for exceptionally high sitting and lying comfort. Grained surface.

Upholstery:
Foam on a support board, with a premium, hard-wearing artificial leather cover in 2 quality grades.

Coating:
High-quality powder coating, high-gloss finish, with extremely high impact and scratch resistance.

Colours:

The frame coating, like the artificial leather cover (Comfort/Classic), is available in almost any colour.
If you have any questions about additional colours, please contact our friendly service team.

Frame made of square tubing, 2-part upholstery, levelling feet, headrest adjustment up to +40°. Safe working load: 225 kg.

Classic version:
Hard-wearing, elastic material, smooth surface.

Comfort version:
Hard-wearing material with high elasticity and flexibility for exceptionally high sitting and lying comfort. Embossed (grain) surface.

Upholstery:
Foam on a support board, with a premium, hard-wearing synthetic leather cover in 2 quality options.

Coating:
High-quality powder coating, high-gloss finish, with extremely high impact and scratch resistance.

Colours:

The frame finish, as well as the synthetic leather cover (Comfort/Classic), is available in almost any colour.
If you have questions about further colours, please contact our friendly service team.

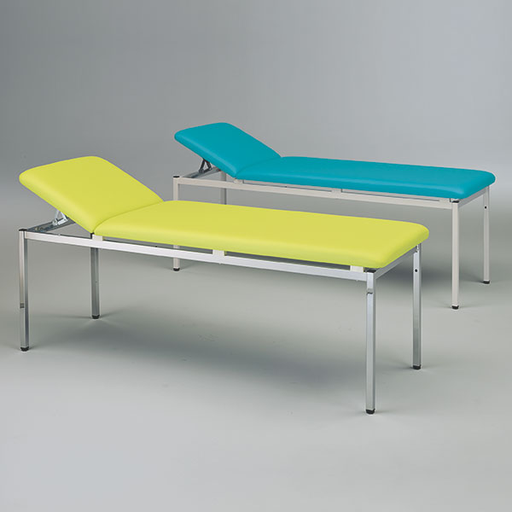

The varimed A examination couch model 211.118 from SCHMITZ is characterised by fold-in leg pairs and a sturdy frame made of square-section steel tubing. The couch features 70 mm padding with a 2-piece cover made of smooth leather and levelling feet. The frame is powder-coated to RAL 9007 (grey aluminium).

Product data:

Height: 680 mm
Width: 650 mm
Length: 1950 mm (head section: 500 mm body: 1450 mm)
Head section adjustment: +40°
Load capacity: up to 225 kg

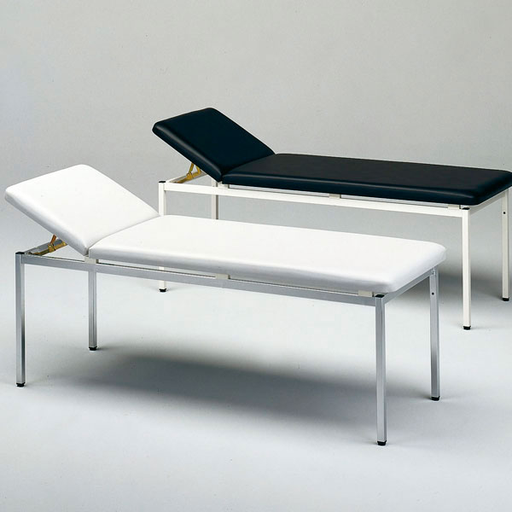

The varimed A examination couch model 211.118 from SCHMITZ is characterised by its foldable pairs of feet and the robust frame made of square-section steel tubing. The couch features 70 mm padding with a 2-piece cover made of grained leather, offering a high level of sitting and lying comfort, as well as levelling feet. The frame is powder-coated to RAL 9007 (grey aluminium).

Product data:

Height: 680 mm
Width: 650 mm
Length: 1950 mm (head section: 500 mm, body: 1450 mm)
Head section adjustment: +40°
Load capacity: up to 225 kg
