Laboratory Technology and Analysis

Thermal printer paper (5 rolls)
for Clinitek 50, 100, 500, Clinitek Status, Clinitek Advantus, DCA and INNOVANCE PFA-200

Matching data transfer software UriConnect Pro can be reordered free of charge (please make sure to specify the practice management software used).

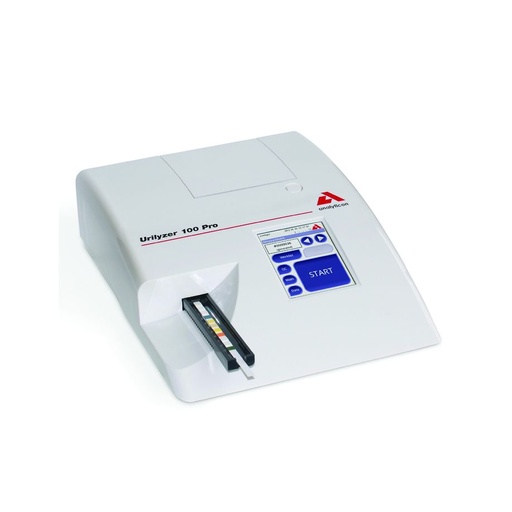

Compact, intuitive reader for semi-automated urine analysis using CombiScreen® 11 SYS PLUS, 7 SYS, 5 SYS PLUS and mALB/CREA test strips. Clean and safe automatic start of measurement via strip detection, convenient colour touchscreen and integrated Easy-Load printer. Optimised user management prevents unauthorised use. Extended connectivity options (HL 7, Ethernet, POCT1-A2) and quality control that supports the user in meeting the requirements of Rili-BÄK Part B2. Connection to the practice management software via UriConnect® Pro for transferring measurement data to the patient record.

Memory capacity: up to 3000 patient tests.

Scope of delivery: Urilyzer® 100 Pro reader, quick guide with QR code linking to the manual, thermal printer paper roll 57 mm x 25 m, 2 strip holders, control strip, mains power cable, adapter 100–240 V, 50/60 Hz.

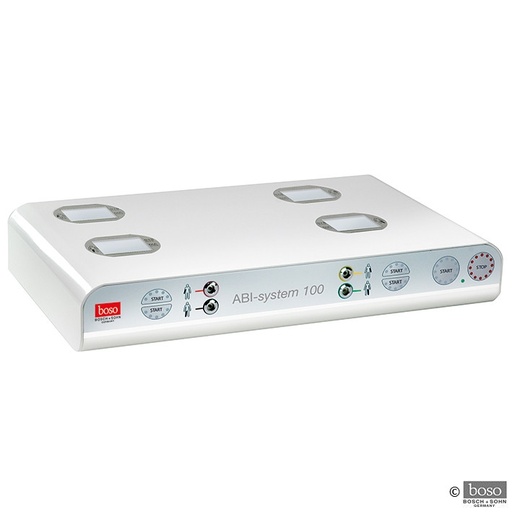

boso ABI-system 100
Fast and precise determination of the ankle–brachial index. The ABI enables early detection of PAD (peripheral arterial occlusive disease) with high sensitivity. The boso ABI-system 100 determines this key value without Doppler.
- simultaneous measurement of systolic blood pressure on all 4 limbs
- intelligent inflation system and controlled deflation speed
- no distortion due to blood pressure fluctuations

Scope of delivery: device, 2 nylon arm cuffs (arm circumference 22–42 cm) incl. tube, 2 nylon leg cuffs (leg circumference 18–38 cm) incl. tube, mains power supply, USB connection cable, application software with database for patient management

This is a very compact, small spectrophotometer with the option of carrying out measurements in the UV and VIS range. In a spectral range from 200 nm to 830 nm, single-wavelength measurements can be performed or absorbance spectra can be recorded.

Product data:

- BioSpectrometer basic
Compact spectrophotometer for applications in cell and molecular biology as well as biochemistry

- Eppendorf uCuvette G1.0
Microvolume cuvette for photometric quantification of nucleic acids and proteins (A 280 nm) as well as for colorimetric protein assays; can be used with the Eppendorf BioPhotometer plus and the BioSpectrometer

Sensor for water leak detector

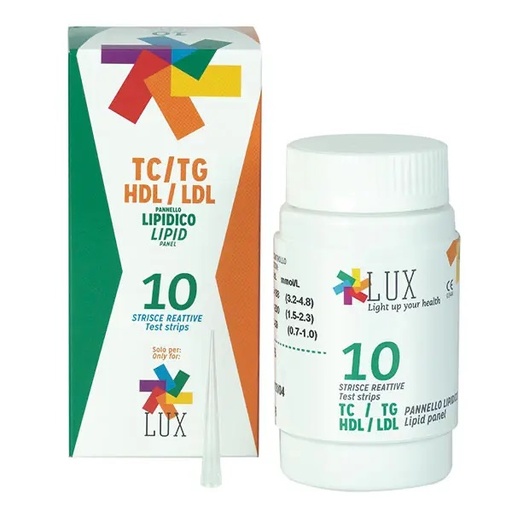

LIPID test strips for use with the Multicheck PRO lipid system. For fast, easy and reliable determination of: total cholesterol / triglycerides / HDL / LDL / LDL to HDL ratio from capillary blood or venous blood.

- Pipette tips included

- No refrigeration required

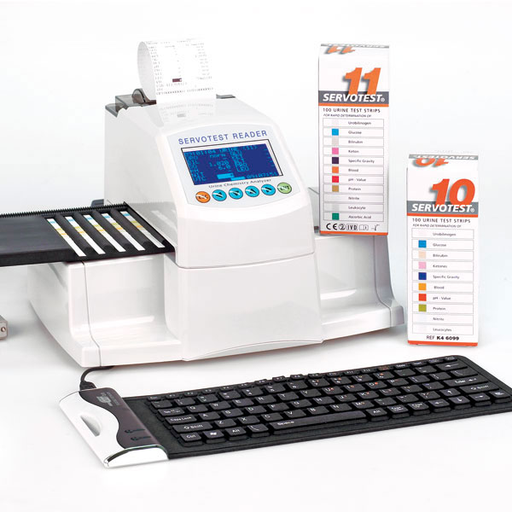

With this device you can evaluate all SERVOTEST® test strips quickly, objectively and reliably; you receive traceable, documented results! You will receive on-site training by authorised specialist staff! The cost-effective reader for strip tests with high performance, optimum accuracy and many advantages!

Scope of delivery:

2 test strip trays

1 mains adapter 12 V

1 power cable

1 roll keyboard

2 rolls of thermal printer paper

1 pack of calibration test strips, 25 pcs.

1 operating manual

1 RS232 computer connection cable

Optional available:

• Scanner

• Online connection to laboratory or practice IT/EDP system

Technical data:

• Single test evaluation or up to 10 test evaluations per test strip tray

• Max. deviation < 5%

• 250 x 170 x 275 mm

• Installation width 500 mm

• Weight 1.3 kg

• Test strips: SERVOTEST® from 3 to 11 parameters

• Connections for: keyboard and barcode scanner

• Light bandwidth: 460B-550G-650R

• Voltage: 220 V

• Input/Output: DC12V3A

• Memory capacity for max. 2000 patient records

• Throughput: max. 800 test strips per hour

• With built-in thermal printer

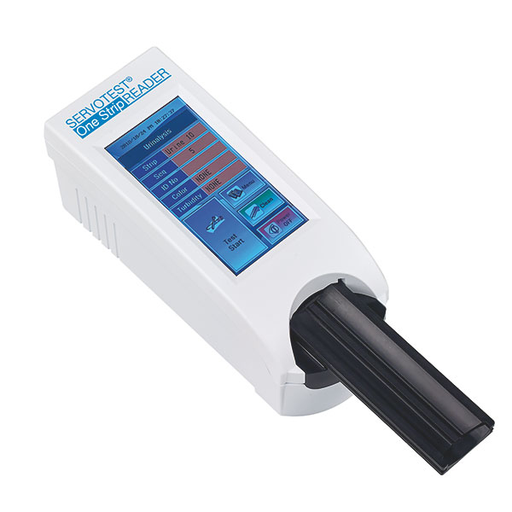

With this portable strip reader you can evaluate the SERVOTEST Test Strips 10 and 11 as well as the SERVOTEST Albucreal II test quickly, objectively and reliably.

You obtain reproducible results regardless of colour vision deficiencies and lighting conditions; with storage for 2,000 results, they can be retrieved again over a long period of time.

A printer port and an optional thermal printer allow you to print reports.

Technical data:

- Single-test evaluation
- Dimensions: 188 x 74 x 77 mm (W x D x H)
- Wavelengths: 470, 530, 626 nm
- Weight: 460 g
- Throughput approx. 40–50 tests per hour
- Memory for up to 2,000 results
- Input voltage 100–240 V
- Output voltage DC 12 V, 3.33 A
- Measuring environment 2–30 °C, humidity 10%–70%

Scope of delivery:

- 1 reader
- 1 mains adapter 12 V
- 1 power cable
- 1 USB cable
- 1 operating instructions

Optional:
- External printer

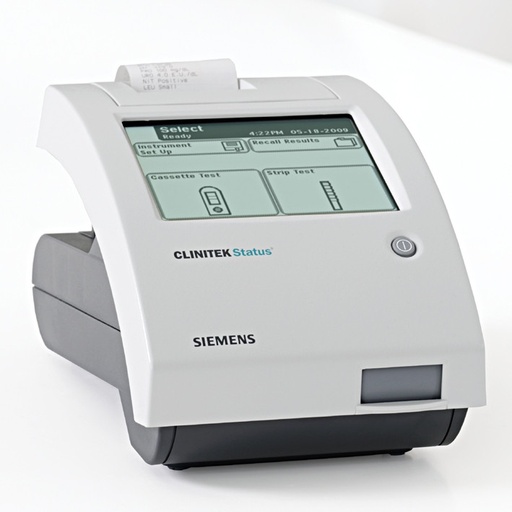

The CLINITEK Status®+ analyser system is designed for point-of-care urinalysis and, when used with Siemens Healthcare Diagnostics urine test strips, delivers high-quality clinical data.
-Automatic checks
-Easy operation
-Improved data security
-Complete point-of-care test portfolio
-Future-ready with upgrade kits

Easy operation:
-Simple, intuitive operation via touchscreen
-Place the test strip – the analyser system does the rest
-Rapid results – test results are available within one minute
-Automatic result printout – no manual transcription required

Improved data security:
-In combination with the patented test strip technology, the new analyser system enables automatic checks (Auto-Checks) for:
- Detection of the Siemens test strip type
- Messages regarding potential sample interferences if interferences are detected (only with certain types of test strips)
- Automatic error messages if the test strip has become damp before analysis

Complete point-of-care test portfolio:
-Multistix® 10SG is the most commonly used urine test strip for routine testing
-Automatic calculation of the albumin-to-creatinine ratio using CLINITEK® Microalbumin test strips for early detection of kidney disease
-Instrument-based evaluation of CLINITEST® hCG cassettes for pregnancy detection

Future-ready:
-Upgrade kits are available for:
- Connecting the analyser system to the LIS/HIS, EMR (Electronic Medical Record) or data management software
- Barcode reader for data entry

Product data:

Intended use:
The CLINITEK Status+ analyser system is a POC urine analyser system developed exclusively for the evaluation of Siemens Healthcare Diagnostics urine test strips and CLINITEST hCG cassettes.

Semi-quantitative tests:
Routine urine tests: albumin, bilirubin, creatinine, glucose, ketone, leukocytes, nitrite, pH, protein, specific gravity and urobilinogen

Kidney tests: albumin-to-creatinine ratio

Pregnancy tests: human chorionic gonadotropin (hCG)

User interface: touchscreen

Computer interface: unidirectional via serial interface (RS232)

Data entry: via integrated touchscreen

Power supply: mains power 100 V–240 V AC, 50/60 Hz (with power cord)
Battery operation: 6 x AA batteries, non-rechargeable

Dimensions / weight: height x width x depth 15.8 x 17.1 x 27.2 cm; weight 1.66 kg

Operation: ambient temperature 18–30 ºC
Humidity: 18–80% relative humidity, non-condensing
Calibration: automatic, self-calibrating

Functional features: memory
Patient test results 950
QC test results 0
User ID 700

Automatic checks (Auto-Checks)*:
-Detection of test strip type
-Humidity influence is tested for each strip with a leukocyte pad
-Sample interference check, depending on test strip type

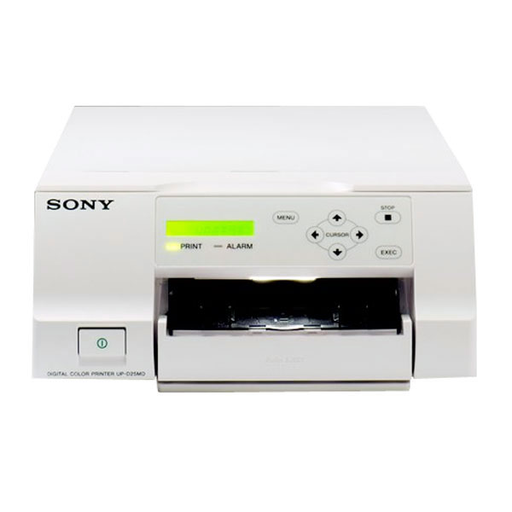

Digital A6 colour printer for medical applications. Dye-sublimation process for best image quality.

The UP-D25MD is the successor model to the UP-D23MD. It is a user-friendly printer with improved image quality (up to 423 dpi, colour adjustment function), suitable for a wide range of media (standard / lamination). The UP-D25MD has a more compact design.

• Fits on modern trolleys for endoscopic examinations

With a width of 212 mm, the UP-D25MD fits on modern trolleys for endoscopic examinations. The space requirement is just as low as with the UP-D23MD.

• High ease of use

The LCD display and control buttons are located on the front. Required adjustments can be made quickly and easily.

• Dye-sublimation printing with lamination

This printer produces durable prints that can be stored and used for a long time. Thanks to intelligent technology that regulates colour consumption per number of sheets, the colour lasts for as long as there is paper left in the printer.

• Easy operation from the front of the device

Even in confined spaces, consumables (including the ribbon) can be replaced quickly and easily. There is no need to access the top, rear or sides.

• Colour adjustment functions

The colours shown on the OR monitor display are reproduced accurately on the printout, enabling the user to interpret procedures in the original colours accordingly.

• Compatible media

The UP-D25MD is compatible with UPC-21L and 21S media.

Printing method: dye-sublimation printing

Resolution: 423 dpi

Colour gradation: 8-bit (256 levels) for yellow, magenta and cyan

Effective print pixels: 21L / 24LA: 2100 x 1600 pixels 21S / 24SA: 1600 x 1200 pixels

Print size: 21L / 24LA: 126 x 96 mm 21S / 24SA: 96 x 72 mm

Print speed: 21L 21S 24LA 24SA approx. 29 sec. approx. 19 sec. approx. 36 sec. (approx.) approx. 25 sec. (approx.)

Interface: Hi-Speed USB (USB 2.0)

Paper capacity: Size L: max. 50 sheets Size S: max. 80 sheets

Operating voltage: 100 to 240 V AC, 50/60 Hz

Input current: 1.7 - 1.0 A

Operating temperature: 5 °C to 35 °C

Operating humidity: 20 to 80% (non-condensing)

Temperature (storage / transport): -20 °C to 60 °C

Humidity (storage / transport): 20% to 80% (non-condensing)

Dimensions: approx. 212 (W) x 98 (H) x 398 (D) mm

Weight: approx. 5.5 kg

Printer paper: UPC-21L: colour printer paper (size L, 50 sheets, 4 x) UPC-21S: colour printer paper (size S, 80 sheets, 3 x)

UPC-24LA: colour printer paper with lamination (size L, 40 sheets, 4 x) UPC-24SA: colour printer paper with lamination (size S, 60 sheets, 3 x)

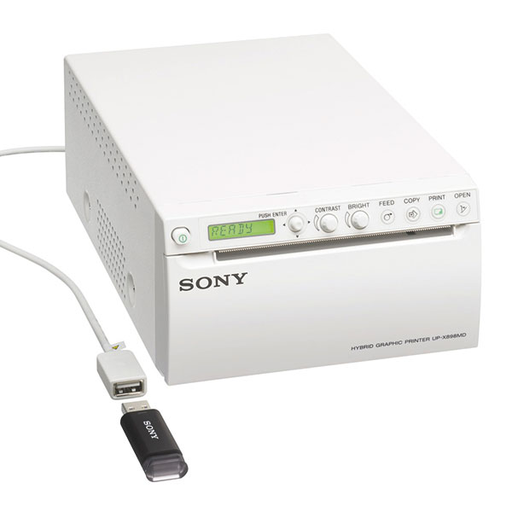

The UP-X898MD is a compact A6 black-and-white printer for medical applications that processes both analogue video signals and PC-friendly digital USB input signals. It was designed for integration with a wide range of compatible medical imaging systems, for example mobile C-arm, cardiac catheter laboratory and digital ultrasound systems. The high-quality thermal print mechanism can produce still-image printouts from such systems for use in patient records and referrals. For even greater convenience, printed photos can also be saved to a connected USB flash drive.

(Please note that images printed by the UP-X898MD cannot be used for diagnostic purposes).

The UP-X898MD is the successor to Sony’s popular UP-897 series of medical printers. The newly designed and revised version now offers numerous operational enhancements and improved ergonomics while retaining its compact design and easy integration into medical trolleys. Ease of use has been further enhanced with a larger LCD display and a joystick for intuitive menu navigation. The unit is capable of producing high-quality black-and-white prints in under 2 seconds. Advanced thermal printing technology ensures near-photographic quality while working with widely used print media. Printing method: Direct thermal printing

Resolution: 325 dpi

Grey scale: 8 bit (256 levels)

Image elements: Digital: 4,096 x 1,280 pixels

Video NTSC: 720 x 504 pixels

Video PAL: 720 x 604 pixels

Image area: Digital: 320 x 100 mm (max.)

STD video NTSC: 94 x 73 mm, video PAL: 94 x 71 mm (WIDESCREEN 1)

SIDE video NTSC: 124 x 96 mm, video PAL: 127 x 96 mm (WIDESCREEN 1)

Paper size: Paper width 110 mm

Print speed: High-speed mode:

Approx. 1.9 seconds per image (at standard setting)

Normal-speed mode:

Approx. 3.3 seconds per image (at standard setting)

Image memory: Digital: 4,096 x 1,280 x 8 (bit)

Video: 10 image memories (850k x 8 bit per full frame)

Interface: USB port (Type A) for USB flash drives (1x)

Hi-Speed USB (USB 2.0) (1x)

VIDEO IN: BNC type (1x)

NTSC or PAL composite video signals

1.0 Vp-p, 75 ohms (NTSC/PAL automatically detected)

VIDEO OUT: BNC type (1x), loop-through

REMOTE: Stereo mini-jack (1x)

Printer driver software: Microsoft Windows XP 32/64, Vista 32/64, 7 32/64, 8 32/64

Operating voltage: 100 to 240 V AC, 50/60 Hz

Input current: 1.3 to 0.6 A

Operating temperature:

5 °C to 40 °C

Operating humidity: 20% to 80% (non-condensing)

Storage and transport temperature: -20 °C to +60 °C

Storage and transport humidity: 20% to 80% (non-condensing)

Dimensions (W x H x D): 154 x 88 x 240 mm

Weight: 2.5 kg

Safety regulations: (US/CA) ANSI/AAMI ES60601-1, UL 60601-1, UL 60950-1,

CAN/CSA-C22.2 No. 60601-1, CAN/CSA C22.2 No. 601.1, CAN/CSA C22.2 No. 60950-1

(EU) EN 60601-1, EN 60950-1 (CB) IEC 60601-1 (2nd/3rd ed.), IEC 60950-1

EMC standards: (US/CA) FCC Part 15 Subpart B Class A digital device, ICES-003 Class A

digital device (EU) EN 60601-1-2 (Class B), EN 55022 (Class B) + EN 55024,

EN 61000-3-2 and EN 61000-3-3 (AU) AS/NZS CISPR22 (EN55022) Class B (JP) VCCI

Class A, JIS C 61000-3-2 (KR) KN22, KN24 Class B

EU Directive: (EU) MDD, EMC, LVD

Supplied accessories: Thermal head cleaning sheet (1), CD-ROM (1), Notes on

using the printer (1), service contact list (1), USB flash memory

without cable cable, print media (UPP-110HG)

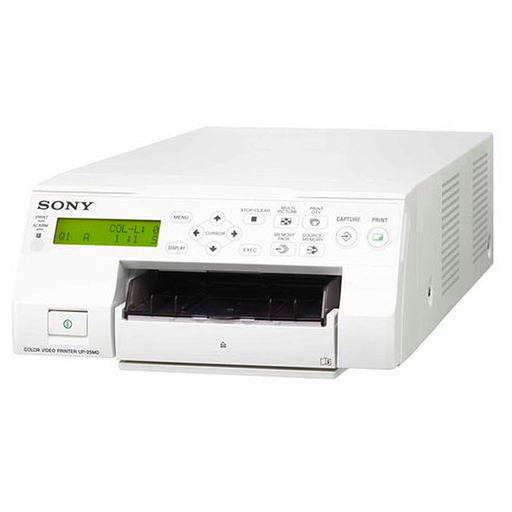

The UP-25MD is a high-quality printer for medical applications. It is equipped with a wide range of analogue video inputs for standard-definition and high-definition signals and is compatible with numerous medical imaging devices.

The dye-sublimation printing process produces robust, durable prints in photo-lab quality. The unit can be used with both our traditional UPC-21S/L media series and the UPC-24SA/LA media, whose laminate layer protects the prints from external influences. To optimise colour reproduction accuracy, the colours can be adjusted using RGB or HSV colour spaces to match the monitor display. Dimensions: 212 x 98 x 398 mm (W x H x D)

Weight: 5.7 kg

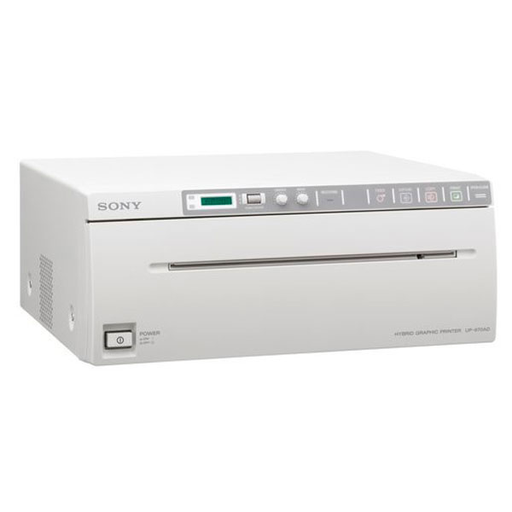

The UP-970AD, successor model to the UP-960, receives analogue and digital input signals. Ideal for medical applications such as printing C-arm and ultrasound images. Supplied accessories:

Print head cleaning sheet (1) BNC cable (1) USB cable (1) Operating instructions (Getting Started) (1) CD-ROM (Operating instructions, driver software) (1) Stickers (1) Software licence (1) UPP-210HD high-density printer paper (1)

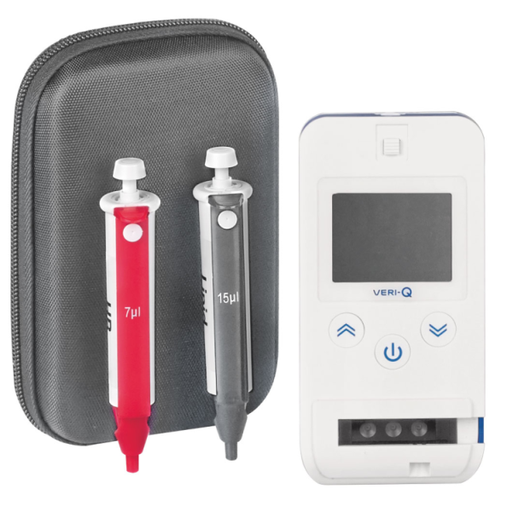

The Multicheck PRO lipid is a portable POINT OF CARE system for fast and reliable analysis of: lipid profile and glucose. It enables reliable monitoring of diabetes, metabolic syndrome and anaemias.

Hypercholesterolaemia is a silent killer. Cardiovascular diseases caused by excessively high cholesterol levels are now at the top of the causes of death in industrialised countries and in high-income population groups.

Multicheck PRO lipid shows the complete lipid profile with a single measurement and calculates the ratios of:

• Total cholesterol
• Triglycerides
• HDL ratio and LDL
• HDL ratio to cardiovascular risk
• Glucose

Software for downloading the data (Windows®) is available for PC connection.

Complete system with meter incl. batteries and 2 pipetting aids, 1 lancing device, 1 bag and an instruction manual.

Instruction and setup directly at your practice available on request by prior arrangement!

Technical data:

Power supply: 3 x AAA 1.5 volt alkaline batteries
Battery life: 500 lipid profiles or 1000 Hb measurements
Measurement method: Lipid – reflectometric measurement method; Glucose – electrochemical measurement method
Display: LCD with backlight
Buttons: ON / OFF and two additional function buttons
Memory capacity: 1000 measurements
Measurement time: Hb = 5 seconds / Lipid = 3 minutes / Glucose = 5 seconds
Ambient temperature: +10 °C to +40 °C
