Diagnostic Lights

Modern LED headlamp with consistently bright light.
Comfortable, interference-free wearing comfort.

Product data:

High light output: 15,000 lux
Colour temperature: 6,000 Kelvin
LED service life: approx. 50,000 hours
Battery operation: 4 hours cordless
Weight: 223 grams incl. battery
Colour: black
Light beam focusable!

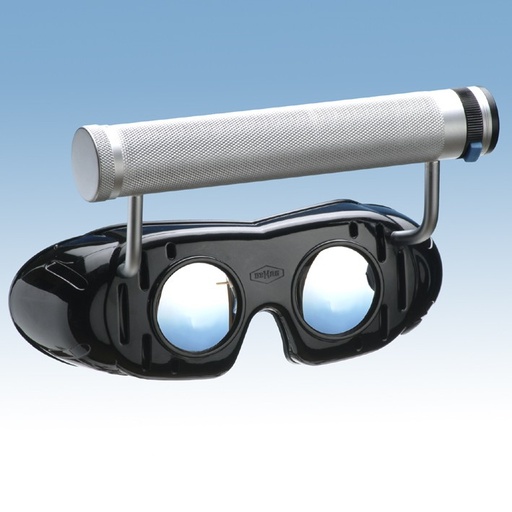

The actual examination with Frenzel goggles takes place in a dark room or a heavily dimmed room. The internal illumination of the goggles interrupts the patient’s visual contact with their surroundings (elimination of fixation that suppresses nystagmus). At the same time, the brightly illuminated eyes can be observed particularly well under the magnifying lenses. This makes it possible in many cases to detect pathological nystagmus in primary gaze that cannot be seen, or cannot be seen reliably, without the goggles even when looking to the side. With the Type 503 nystagmus goggles it is possible to carry out short examinations on the patient. This model enables cordless operation and can be used independently of the mains power supply. Power is supplied via the permanently upward-mounted, adjustable battery handle, which holds three size C LR14/AM-2 batteries (R14 “Baby” cells), 1.5 volts each. - with fixed lenses - without batteries

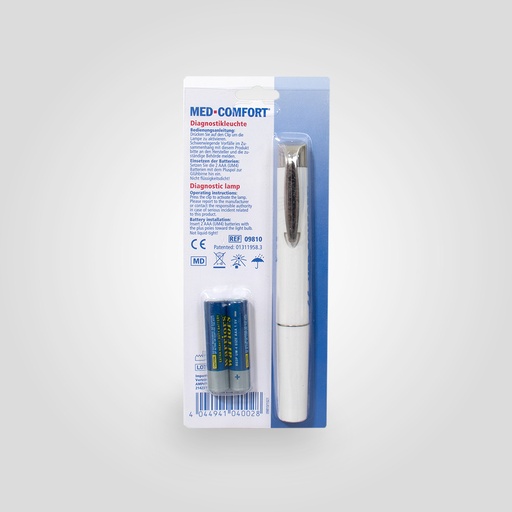

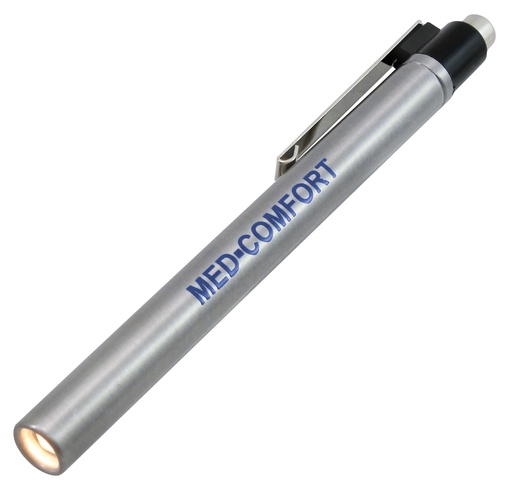

High-quality diagnostic penlight with plug-in clip and push-button for switching on and off.
Made of ABS plastic and aluminium, with 2 long-life 1.5 V AAA batteries, 2.2 V bulb, in blister packaging with Euro hole, individually packed.

Magnifying glasses for BT-410, 3.5x magnification

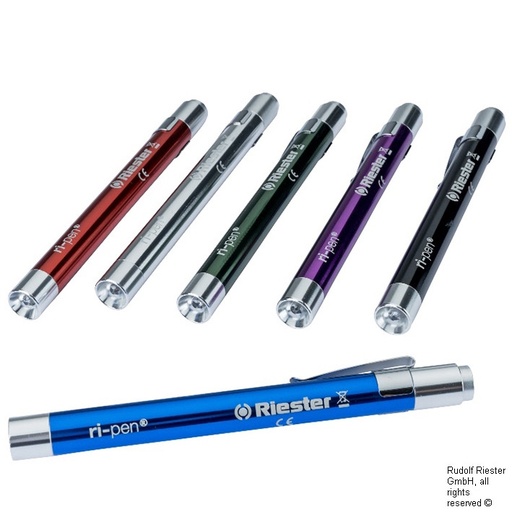

Economy diagnostic penlight "ri-pen Diagnostic Penlights LED 3 V" incl. 2 AAA batteries - 6 lights per pack - for medical diagnosis with LED illumination.

Product data:

- photobiological validation as a pupil penlight in accordance with EN 62471:2008
- LED illumination, comparable to daylight
- pre-focused light field
- aluminium housing with metal clip, disinfectable
- 5,300 Kelvin
- max. 40,000 lux
- light field: approx. 40 mm diameter (distance 15 cm)
- nickel-free
- batteries: 2x alkaline AAA, 1.5 V

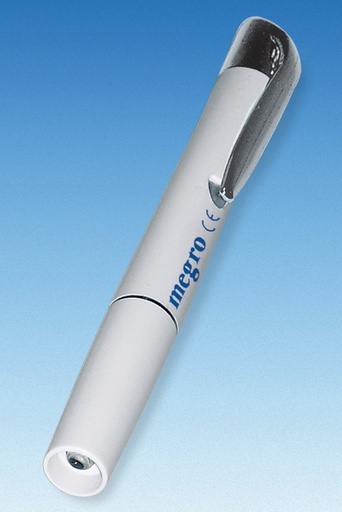

Handy diagnostic light with battery and spring clip contact.
With aluminium tube, ABS plastic material on the outside, white, lamp 2.2 V, individually packed

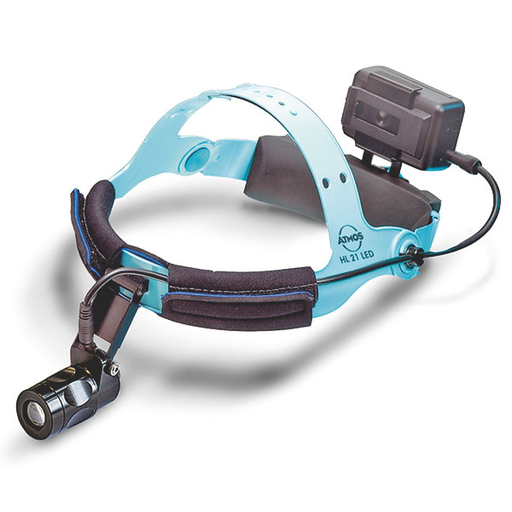

The headlamp with outstanding light intensity for medical examinations and operations.
For optimal, mobile illumination for medical examinations, e.g. in ENT applications.

Performance features:

Long-life light source with high-performance white-light LED, focusing optics, continuously adjustable, high-end rechargeable battery system with particularly lightweight and powerful lithium-ion battery, two operating modes: Eco / Power mode, ergonomic ultra-light headband, holder for battery on the rear of the headband, universal rapid-charging power supply unit with a range of primary adapters, connecting cable battery - LED.

Scope of delivery:

1 x ATMOS HL 21 LED headlamp, 1 x LED-battery connecting cable (40 cm), 1 x Li-ion battery, 1 x rapid-charging power supply unit LED

Brightness: 50 lumens / 60 kLux

Illuminated field Ø: 25 to 55 mm at a distance of 17 cm in front of the light, focusable

Service life: up to 50,000 hours

Power: 2 watts

Battery

Type: Li-ion

Capacity: 1950 mAh

Operating time: approx. 4 h (Eco mode) or approx. 2 h (Power mode)

Charging time: max. 120 min (when fully discharged)

Power supply unit

Voltage range: 100-230V~, 50/60 Hz

Plug-in adapters: USA, Europe, UK, Australia

General

Weight: headlamp: 200 g, battery 80 g

Classification: Class I (according to Annex IX of Directive 93/42/EEC)

Li-ion rechargeable battery for HL 21 LED

Capacity: 1950 mAh

Operating time: approx. 4 h (eco mode) or approx. 2 h (power mode)

Charging time: max. 120 min (when fully discharged)

Universal fast charger power supply unit for rechargeable batteries (100–240 V~)

Rechargeable battery for BT 410 head torch

Charging mains adapter (EU) for Bistos BT-410

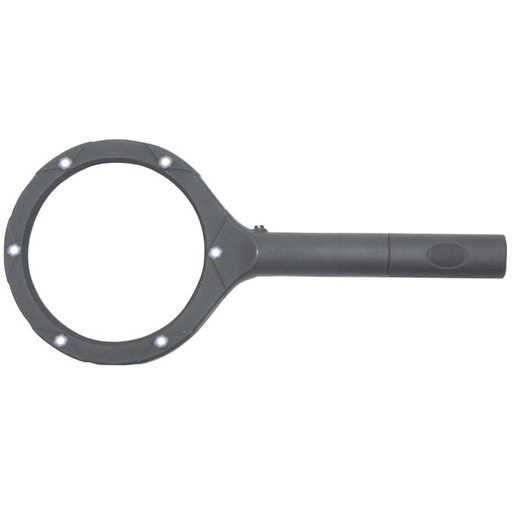

It impresses with its large, dimmable light field in daylight quality and excellent colour rendering. Dermatologists and veterinarians can look forward to the powerful Wood’s light, which is available in addition to the daylight mode.

Unique: large magnifier diameter
Economical: long-lasting, rechargeable battery
Optimal: 1.7x magnification and very good colour rendering
Comfortable: bright, dimmable light field in daylight quality
Powerful Wood’s light: no darkening of the room required, ideal for detecting parasites or skin changes

Technical data:

Light output: 8,000 lux @ 0.15 m

Colour temperature: 6,500 K / Wood’s light

Illuminated field @ 1.0 m: Ø 16 cm

Colour rendering index: Ra 95

Operation: membrane keypad on the handle

Tested safety: EN 60601-1, EN 6601-2-41

Weight: 0.5 kg

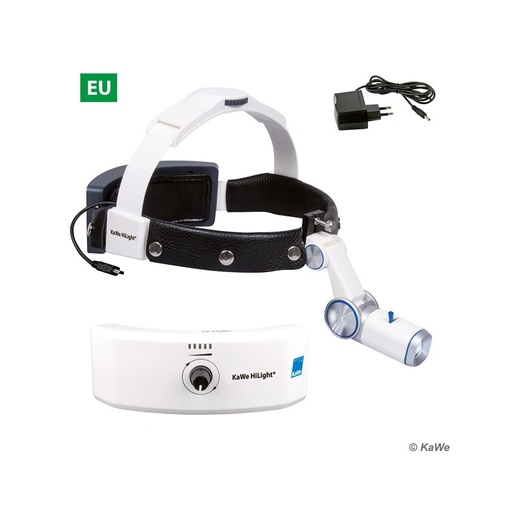

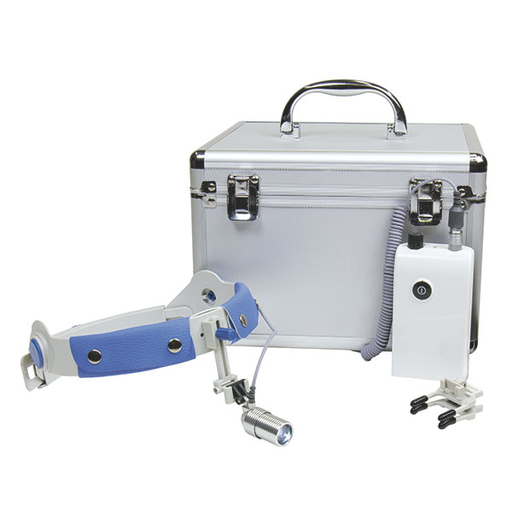

Ergonomic and modern design with LED technology
High-performance LED with white, homogeneous light for various diagnostic applications, e.g. in dental or ENT, etc.
Coated glass optics ensure optimum illumination and less heat generation
High LED efficiency, resulting in long rechargeable battery operating time
Aluminium cover on the joints provides cooling by convection and radiation; no forced cooling by cooling fan required, therefore no fan noise
Infinitely variable adjustment of the light field size and iris diaphragm, as well as the illumination angle
Can be used with binocular loupes; stepless and easy adjustment of the headband via an integrated levelling system, so there is no interference from protruding screws under surgical caps
Replaceable forehead pad
Net weight: approx. 390 g
Quick replacement of the rechargeable batteries via clip/plug-in system
LED service life: approx. 50,000 hrs.
Rechargeable battery: lithium-ion
Charging time of the headband rechargeable battery: approx. 3 hrs.
Operating time of the headband rechargeable battery: approx. 12 hrs.
Power: 3 W (LED)
Scope of delivery: headlight only, incl. charging plug, with rechargeable battery for headband

Aluminium transport case for Keeler handheld slit lamp PSL, empty

Accessory for handheld slit lamp 22454-01

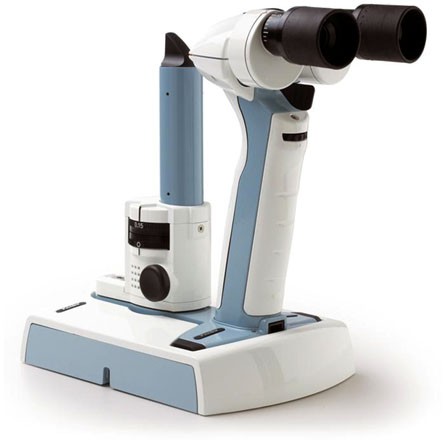

Keeler PSL rechargeable handheld slit lamp, including charging station, LED illumination, 10x and 16x magnification, red-free & blue filter

Outstanding slit lamp functionality, portable and versatile

Unique features such as fixation targets and the square 1 mm light spot for assessing the irritation status of the anterior chamber set new standards for handheld slit lamps.

Precision-manufactured aluminium housing

The PSL Classic handheld slit lamp was designed by the British heritage manufacturer Keeler. It is robust enough for demanding day-to-day ophthalmic use, lightweight and exceptionally durable.

Guaranteed sharpness
The modern, multi-coated binocular optics with 10x and 16x magnification guarantee unrivalled performance and the highest quality.

Adjustable illumination

The illumination system uses advanced LED technology. The light intensity can be adjusted conveniently, allowing you to always select the appropriate examination parameters.

Product data:

Slit type: Slit lamp with selection via rotating slit wheel
Slit length: 12 mm
Slit widths: 0.15 mm, 0.5 mm, 0.8 mm and 1.6 mm, 12 mm circle and a 1 mm square
Filters: Red-free, blue, neutral density 0.8 and clear
IR protection: Integrated IR protection filter
Slit angle: +/- 60º
Illumination: LED, adjustable
Fixation targets: LED system
Power supply: Battery operation, including charging station
Power consumption: 30 VA (12 VDC 2.5 A)
Optics: 13º converging binoculars
Magnification: 10x and 16x, switchable by lever
Objective lens: 10x at 16 mm working distance

Up to 10 hours operating time without recharging

- Lithium rechargeable battery

- Adjustable brightness

- LED lifetime > 20,000 hours

Complete with comfortable adjustable headband, in aluminium case

• Up to 10 hours of operating time without recharging
• Lithium rechargeable battery
• Adjustable brightness
• LED service life > 20,000 hours

Complete with comfortable adjustable headband, in aluminium case

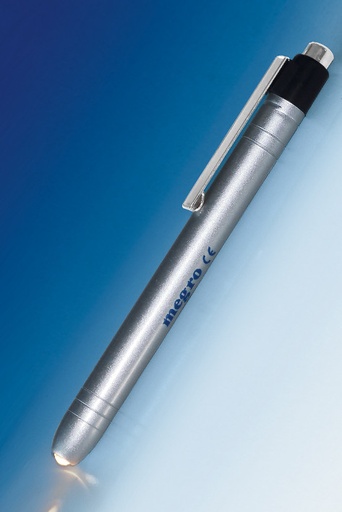

ratiomed diagnostic torch, silver, with replaceable batteries!
For easy examination of pupils (not an iris torch), throat, nose and ears. Made of aluminium, 13.5 cm long, with push-button switch and 2 micro batteries 1.5 V.
