Resuscitation and Monitoring

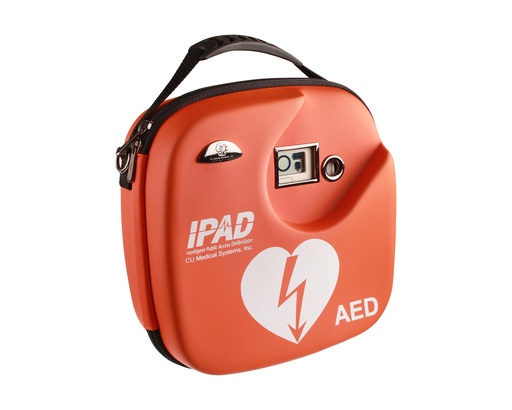

The carry case for the iPAD CU-SP1 is high-quality finished, ideal for mobile use and protects your AED from external influences.

- Case for the CU-SP1 semi
- High-quality workmanship
- Ideal for mobile use

ATTENTION!!!! From now on with LONG LIFE BATTERY. Price advantage: EUR 180.00!

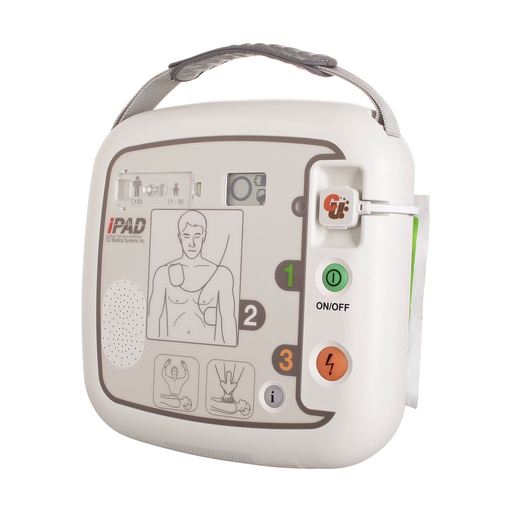

Latest-generation AED device –
the semi-automatic external defibrillator
iPAD CU-SP1

EASY TO UNDERSTAND
Automatic volume
Immediately after switch-on, the device detects ambient noise and automatically adjusts the volume of its voice prompts accordingly. Especially in crowded railway stations, at airports or in factory halls with lots of loud background noise, this feature can be life-saving.

READY FOR IMMEDIATE USE
Pre-connected electrodes – cleverly stored
Already connected and well protected, the defibrillation electrodes are located on the underside of the device in an integrated storage compartment. This makes your AED even safer and faster to deploy! Are the electrodes new? If used or expired “intelligent” electrodes are connected, the smart defibrillator immediately tells you what to do.

SIMPLE CONTROL
Adult and paediatric mode
Is the patient a child? Thanks to a simple slider, you can quickly switch from adult to paediatric mode. The device then operates with less energy to protect the smaller heart muscle. Special paediatric electrodes are available as an option.

DOUBLE PROTECTION
Artifact and CPR detection
As an intelligent first-aid defibrillator, the CU-SP1 detects whether the patient is being touched by other people. In this case, it will not deliver a shock. Not only is the emergency patient optimally cared for – you as a first aider are protected too! In addition, the iPAD CU-SP1 detects whether you are performing chest compressions to ensure the best possible chances of survival for the emergency patient.

ALWAYS IN VIEW
The clear status display
Whether battery charge level or electrode status – the LCD display lets you keep the functionality of your iPAD in view at all times! Is your device ready for use? Regular self-tests check whether everything is OK. Do the defibrillation electrodes need to be replaced? The display warns you in good time, starting as early as three months before the expiry date.

AFTER USE
Memory and data transfer
The iPAD CU-SP1 stores up to five emergency deployments on an SD card. Would you like to evaluate the ECGs on your computer? Simply transfer the data via SD card or via infrared interface. With the optionally available CU-EX1 software, you can edit and archive the patient data.

Product data:

Defibrillator
Type: Semi-automatic external defibrillator
Model: CU-SP1
Manufacturer: CU Medical Systems, Inc.
Waveform: Biphasic truncated exponential pulse, E-cube technology
Delivered energy: 150 joules for adults, 50 joules for children, impedance-compensated
Charge time: Under 8 seconds

Controls
LCD display (electrode and battery status, proper functionality), metronome for chest compressions, voice prompts (automatic volume adjustment to the operating environment) and backlit pictograms, pre-connected electrodes, slider for adult and paediatric mode, information button for detailed voice instructions (optionally activatable),
shock button, on/off switch

Resuscitation guidelines
Standard default setting: 5 cycles with 30 chest compressions and 2 ventilations (in accordance with the CPR Guidelines 2010)
Custom settings
Number of chest compressions, number of ventilations, number of cycles, number of chest compressions per minute, pause duration, activation of the detailed instructions (individually adjustable in line with future guideline changes)

Self-tests
Automatic self-diagnostic test after switch-on and continuous functional tests during use; daily, weekly and monthly self-diagnostic tests
Manual self-diagnostic test after each battery insertion

Environmental conditions
Operation and storage: Temperature 0 °C to 43 °C, humidity: 5% to 95% (non-condensing)
Transport: Temperature -20 °C to 60 °C
Vibration protection: Switched on: complies with MIL-STD-810G, Fig. 514.6E-1, random test; Stand-by: complies with MIL-STD-810G, Fig. 514.6E-2, swept sine (helicopter)
Protection rating: Protected against dust and water jets, rating IP55 in accordance with DIN EN 60529: IP55
Drop protection: Withstands drops from up to 1.2 metres onto edges, corners or smooth surfaces
ESD: Complies with EN 61000-4-2:2001
EMC emissions: Meets EN 60601-1-2 limit values, method EN 55011:2007 + A2:2007, Group 1, Class B
EMC immunity: Meets EN 60601-1-2 limit values,
method EN 61000-4-3:2006 + A1:2008 Level 3 (10 V/m, 80 MHz to 2500 MHz)

Event documentation
Internal memory: Recording of up to 5 events, up to 3 hours of data
Data transfer: Via SD card or infrared interface
Data evaluation: PC software CU-EX1 (available as an option)

Power supply
Long-life battery 12 V DC; 4.2 Ah LiMnO2, at least 200 shocks or 8 hours operating time, at least 5 years stand-by time

Size and weight
Dimensions 260 mm x 256 mm x 69.5 mm
(width x length x height)
Weight 2.4 kg (including battery and electrodes)

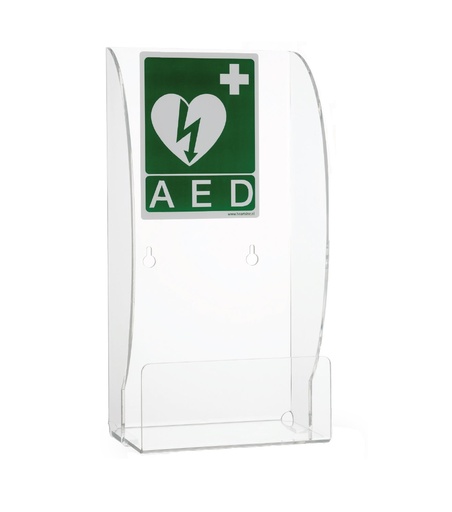

Holder for all AEDs from the manufacturer CU-Medical Systems, Inc.
Wall mount made of high-quality acrylic glass, 5 mm thick – easy to clean
Dimensions: 44.5 cm high x 33 cm wide x 15 cm deep

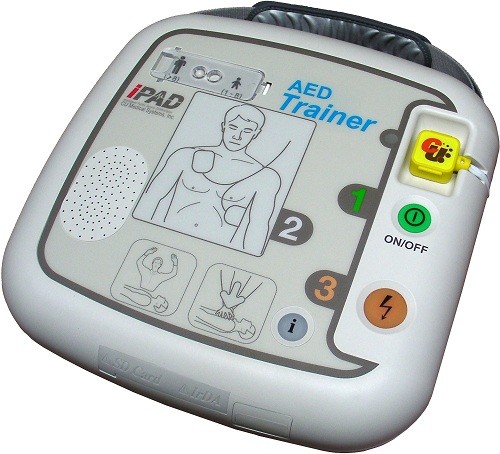

The training device runs through up to eight scenarios for faster responses to emergency situations.

Users can control all functions of the CU-SPT with one button or optionally with a remote control.

Power is supplied by six AA batteries/rechargeable batteries.

Scope of delivery: CU-SPT, device bag, training electrodes, user manual (German), AA batteries

- 8 scenarios
- Functions controlled via switch or remote control
- Power supply via 6 AA batteries/rechargeable batteries

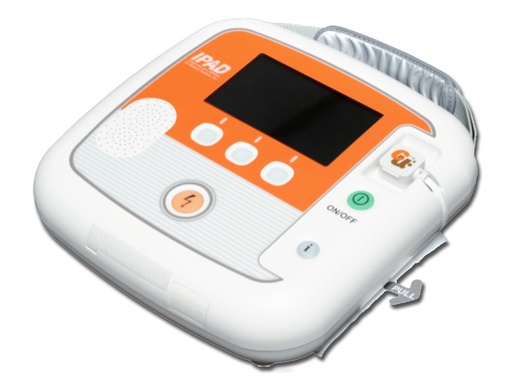

CU-SP2 is the latest generation of intelligent public access defibrillators with innovative features:

Automatic volume adjustment
It detects ambient noise and automatically adjusts the volume of the voice prompts so they remain audible over background noise.

Smart Pads – intelligent storage
The pre-installed “Smart” electrode pads are located in an easily accessible compartment on the underside of the device, ensuring the fastest possible deployment. In addition, the front visual indicator shows whether the connected pads are within their shelf life. The indicator changes when the pads have only 3 months remaining before expiry, giving you time to arrange replacements. It changes again once the expiry date is reached.

CPR detection
CPR is crucial to ensure the victim has the best chance of survival. iPAD CU-SP2 detects whether CPR is being performed and provides corresponding prompts; otherwise it prompts the responder to perform it.

Easy communication with CU-EX1 software
It enables viewing and analysing information such as power-on duration, the victim’s heart rhythm and delivered shocks. The iPAD CUSP2 stores 3 events in internal memory (up to 17 hours per event).

16 languages available (to be specified when ordering)
Selectable software languages: USA, GB, FR, IT, ES, DE, PT, NL, SE, PL, DK, NO, CZ, GR, AE, KR, IL. Supplied with SAVE PADS for adults, carry case, lithium disposable battery, paper manual (GB, IT) and CD manual in the above languages, except PL and GR.

Defibrillator
• Operating mode: Semi-automatic
• Waveform: E-cube biphasic (truncated exponential type)
• Energy: Fixed 150 J
- Adult: rated 150 J at 50 ohm load
- Infant/Child: nominal 50 joules at 50 ohm
• Charge control: Controlled by an automated patient analysis system
• Charging time: within 10 seconds from the voice prompt “a shock is required”
• Sealing:
- protected against water jets IPX5 in accordance with IEC60529 (IP55)
- dust-protected IP5X in accordance with IEC60529

User interface
• User support: Detailed voice prompts and flashing indicators
• CPR instruction: Voice prompts for performing CPR for adults and children
• Controls: On/Off button, “i” button, shock button
• Display: LCD display (device status, battery status, pad status)
• Sensing: pad expiry date, pad connection status

CPR monitoring
• Automatic volume adjustment

Data recording and transfer
• IrDA port: Wireless transfer of event data to PC, to SD card
• Internal memory (NAND flash): ECG, event
• Storage capacity: Multiple recording of 5 events / max. 3 hours
• Data review PC program: CU-EX1

Patient analysis system
• Patient analysis: Shockable rhythms – ventricular fibrillation, tachycardia
• Sensitivity/specificity complies with the AAMI DF80 guideline

High-capacity disposable battery
• Type: DC 11.1 V 1.9 Ah, Li-ion rechargeable
• Capacity: At least 60 shocks or 3 hours of operating time

These are electrodes for iPAD devices. Available for both adults and children, as well as for the training device.

Description:

The H100B handheld pulse oximeter (EDAN) offers a wide range of technical refinements, integrated into a compact, functional design and with an impressive price-performance ratio.

Sensors based on BCI or Nellcor technology (without complex modifications) can be used effortlessly; adjustable alarm limits for HR and SpO2 and an integrated data memory perfectly round off the strong product portfolio of the new H100B.

The H100B can be adapted with various sensors, e.g. adhesive sensors, paediatric finger sensors or an ear sensor, etc., enabling a wide range of applications such as in medical practices, clinics, emergency services, veterinary medicine and homecare.


Technical data:
· Dimensions (H x W x D): 158 x 70 x 30 mm
· Weight: 210 g (incl. batteries)
· Display: 128 x 64 pixels
Battery
· Type: 4 x AA standard batteries (or rechargeable batteries)
· Operating time: Up to 50 hrs in normal operation
Pulse oximetry
· Method: Dual-wavelength LED technology
· SpO2 sensor: EDAN (Nellcor and BCI compatible)
· Saturation range: 0–100%
· Accuracy: +/- 2%
· Response time: fast, normal, slow
Heart rate
· Measuring range: 30–254 beats/min
· Resolution: 1 beat/min
· Accuracy: +/- 3 beats/min
· Accuracy with motion: +/- 5 beats/min
Medical devices and medical technology
Alarm:
· Adjustable alarm sequences for upper and lower limits
· Visual and audible alarm tone
· Pulse tone (playback of pulse rate)
Environment:
· Operating temperature: 0–50°C
· Storage temperature: -20°C to 60°C
· Operating humidity: 15%–95%
· Storage humidity: 10%–95%
Classification
· Type of protection: internal power supply
· Degree of protection: BF
· Safety: IEC 60601-1, EN 865, ISO 14971
Memory:
· 10 min spot-trend of SpO2 and HR
· 300 hours data memory
· 100 patient ID numbers

Scope of delivery:
H100B handheld pulse oximeter, adult SpO2 finger clip sensor, 4 AA batteries, carry case

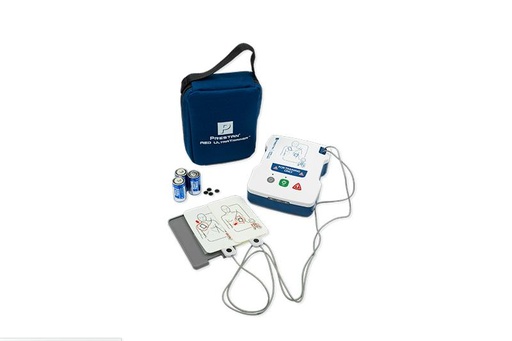

Prestan AED UltraTrainer
The Prestan AED UltraTrainer offers performance features that no other universal AED trainer has and is an exact replica of what current AEDs on the market offer. This compact and lightweight unit provides trainees with a realistic training experience, with training pads that detect when they are applied to a manikin. In addition, the pads are pre-connected and the voice prompts are clear and calm. Instructors can customise their training sessions by switching the compression metronome on or off, or selecting the “ventilate now” command.

Prestan is the first and only universal AED trainer with:
- Dual-graphic (adult/child) training pads
- Pad sensor system
- Pre-connected pads
- Paediatric mode switch
- Paediatric-specific AED voice prompts
- Automatic or semi-automatic shock simulation
- CPR coaching, “ventilate now” voice prompts
- Compression metronome can be switched on and off
- “ventilate now” voice prompts can be switched on and off

Other features:
- Two selectable languages
- Compliant with the 2015 guidelines and upgradable
- Play/pause button
- 5 training scenarios

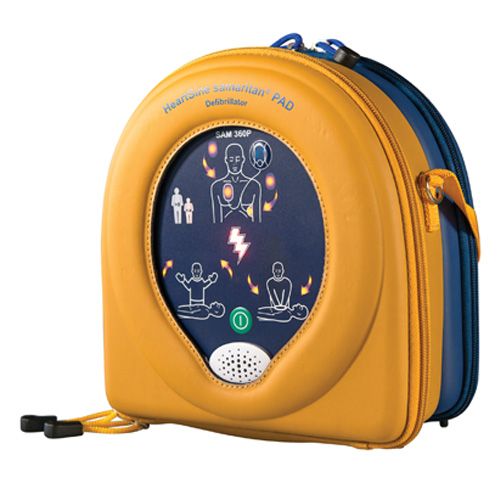

Multi-function double carry bag in yellow and blue

Product details:

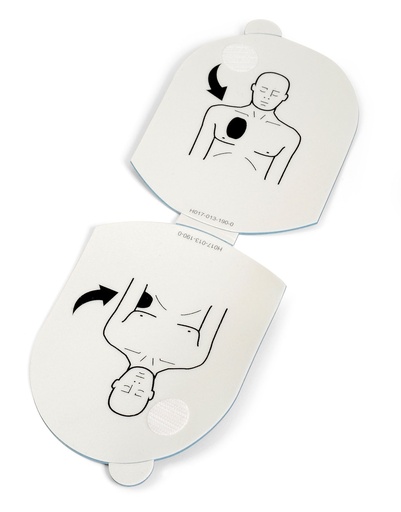

Replacement electrodes for HeartSine devices

This multipack contains 10 sets of training electrodes suitable for all Heartsine training sessions.

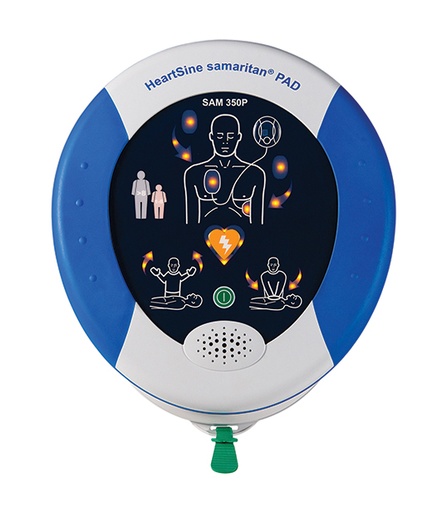

The HeartSine™ Samaritan® PAD Trainer battery/electrode pack is intended for use with the HeartSine Samaritan PAD training device. It also works with the HeartSine Samaritan PAD training device. It is equipped with a new feature that includes a cable-winding system for easy replacement of electrodes and cables after the training session.

Two-colour display: 360° adjustable at the push of a button (6 display modes)
Displays:
SpO2 - pulse rate - pulse intensity
Plethysmogram - battery capacity
Clinically tested measurement accuracy
Portable lightweight (58 g)
Convenient transport in the storage pouch
Approx. 30 hours continuous operation
Optical low-battery alarm
High-quality materials and workmanship
Finger chamber made of high-quality silicone
Sturdy battery compartment with flip-open battery cover
Versatile fields of use
Hospital/clinic
Homecare
Doctor’s practice
Other medical facility
Sports sector
Private households

Scope of delivery
Fingertip pulse oximeter, pouch and 2 x AAA batteries

This pulse oximeter is the first choice if you need a rugged and reliable product for outdoor use. Thanks to the silicone sensor, the RESQ-Meter Extreme is suitable for measurements in both adults and children. The OLED display shows oxygen saturation (SpO2), pulse rate, pulse intensity and a plethysmogram. The silicone housing provides optimum protection against shocks and dirt, and the included clip lanyard helps secure the device against loss. Continuous measurement for 8 hours is possible with one battery.

Product data:

OLED display
Measuring range: SpO2: 70–100%
Pulse rate: 30–235 bpm
Accuracy: SpO2: +/- 3% (70–100%)
Pulse rate: +/- 2 bpm
Power supply: 1 AAA battery
Dimensions: 63.5 x 47 x 39.5 mm
Weight: 50 g (without battery)

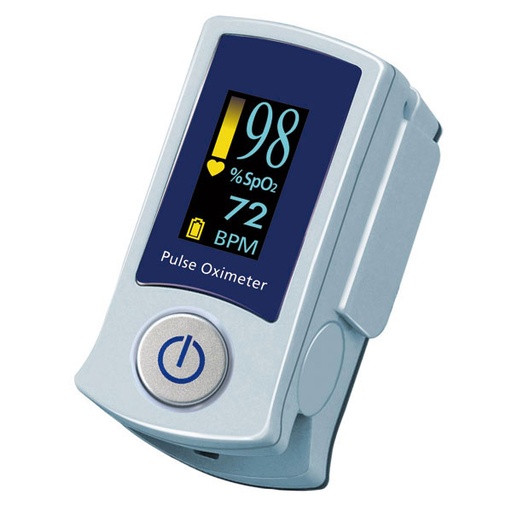

RESQ-Meter Finger Pulse Oximeter
Compact and handy finger pulse oximeter for non-invasive measurement of pulse rate and blood oxygen concentration. The integrated infrared light source measures the intensity of the blood pigment and calculates the blood oxygen percentage based on the measured values.
As a special feature, in addition to oxygen saturation, the pulse and perfusion in the smallest vessels (capillaries) are also recorded and used in 6 levels to calculate the “vascular age (APG)”.
The large OLED display is easy to read; the build quality is very high, robust and hard-wearing.
The Res-Q-Meter pulse oximeter can be used in hospitals, clinics or at home for adults and children, as well as to determine performance data for athletes.

KEY FEATURES:
• Reliable measurement and display of oxygen saturation and pulse rate
• Calculation of vascular age (APG) with 6-level display
• Simple one-button operation
• Large, easy-to-read OLED display
• Lightweight, compact and easy to transport (weight: 37 grams without batteries)
• Up to 16 hours of operation with one set of batteries (2 AAA batteries)
• Automatic switch-off when not in use

Scope of delivery:
• Pulse oximeter
• 2 AAA standard batteries
• Clip strap for attachment
• Operating instructions
• 12-month warranty

Product data:

OLED display
Measuring range
SpO2: 35 - 99 %
Pulse rate: 30 - 250 BPM

Accuracy
SpO2: +/- 2 % (70 - 99%)
Pulse rate: +/- 3 BPM

Vascular age in 6 levels
Power supply: 2 AAA batteries
Dimensions: 63.5 x 34 x 35 mm
Weight: 37 g (without batteries)

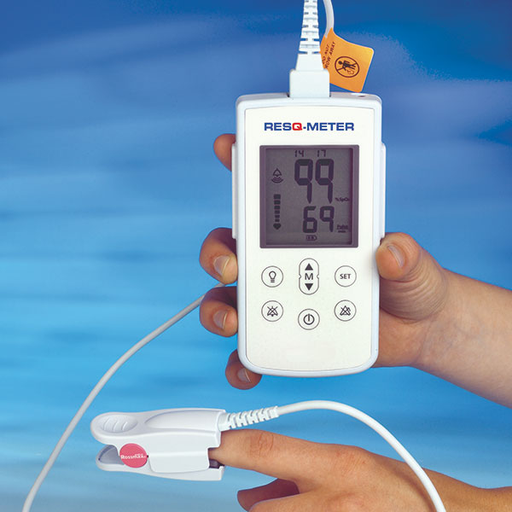

The RESQ-METER pulse oximeter from LIFEGUARD impresses with its compact design, user-friendly operation, large display and well thought-out technology. With USB interface and software, finger sensor and shockproof protective case. “Spot Check” measurement or “attended-care monitoring” for adults or children, for finger thickness from 7.6 to 25.4 mm. Incl. 4 AA batteries and shockproof protective case (orange).

SCOPE OF DELIVERY:

• Pulse oximeter
• 4 AA standard batteries
• Shockproof protective case, orange
• Finger sensor
• Software
• Operating instructions

Product data:

Measuring range: SpO₂: 35% - 100%
Accuracy: SpO₂: 70% - 100% ± 2 digital
35% - 69% ± 3 digital
Pulse rate: 30 - 250 BPM

Adjustable alarm levels: audible and visual
Digital LCDs for SpO₂ and pulse rate

These are replacement finger sensors from LIFEGUARD for the RESQ-METER pulse oximeter. Available for children or adults.

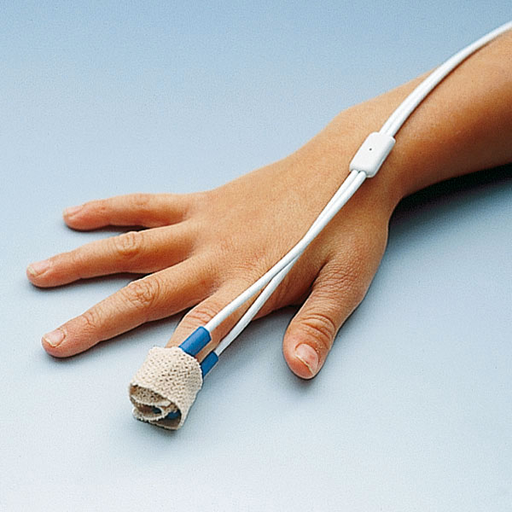

This is a reusable wrap sensor from LIFEGUARD for the RESQ-Meter pulse oximeter. Ideal for adults/neonates.
