Resuscitation and Monitoring

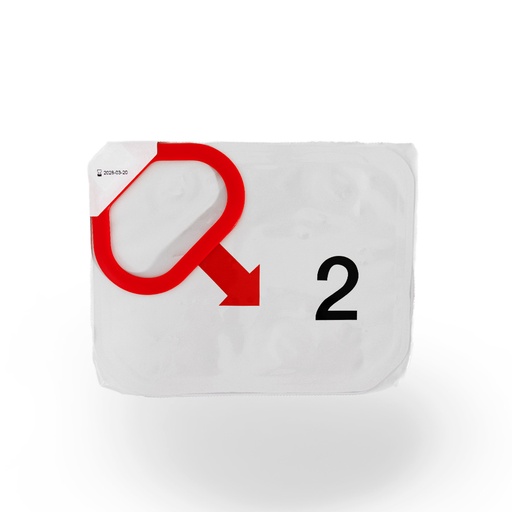

The CR2 electrodes can be pre-connected to the Lifepak CR2 defibrillator, saving valuable time during an emergency. When the AED lid is opened, the electrodes are immediately available. The electrodes can be used for both children and adults by pressing the child button on the defibrillator.

Shelf life of the Lifepak CR2 defibrillation electrodes
The shelf life of the electrodes is 3.5 to 4 years and they are intended for single use only. Once the electrodes have reached their expiry date, they must be replaced. The conductive gel layer dries out over time or if the packaging has been opened; electrode pads that are past their expiry date may not adhere to the patient in an emergency, which means the AED will not deliver a shock.

Features:
- Can be pre-connected
- Self-adhesive
- Pacemaker detection
- Long 1.1 m cable

Specifications:
- Store at temperatures between 15°C and 35°C
- Operating temperature between 0°C and 50°C

Use:
The Physio-Control CR2 electrodes can be used for both adults and children via the child button on the AED. If you use the electrodes on a child, you should press the child button on the AED and position the electrodes on the child’s chest and back as shown in the illustration below. Electrodes should always be placed so that they do not touch each other.

The LIFEPAK CR2 USB is the successor model to the now discontinued LIFEPAK CR Plus defibrillator and also gives users who do not require 3G or Wi‑Fi connectivity the ability to feel safe in a cardiac emergency and to act with confidence.

When someone suffers sudden cardiac arrest, every moment counts, and it is essential that treatment is delivered as quickly as possible after the patient collapses. The LIFEPAK CR2 USB defibrillators are the successor model to the now discontinued CR Plus range and feature a simple user interface that enables responders at all levels to react effectively in an emergency.

Contents:

Physio Control Lifepak CR2 USB fully automatic defibrillator
1 set of electrodes
1 battery
1 USB cable
AED Armor rescue kit
8-year manufacturer’s warranty

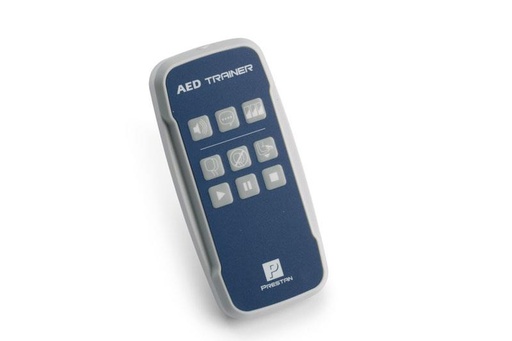

Accessory for 24669-01. Enables the instructor to control the functions of the AED Trainer Plus during the training session.

Replacement pads, 1 pair for AED Trainer Plus 24669-01

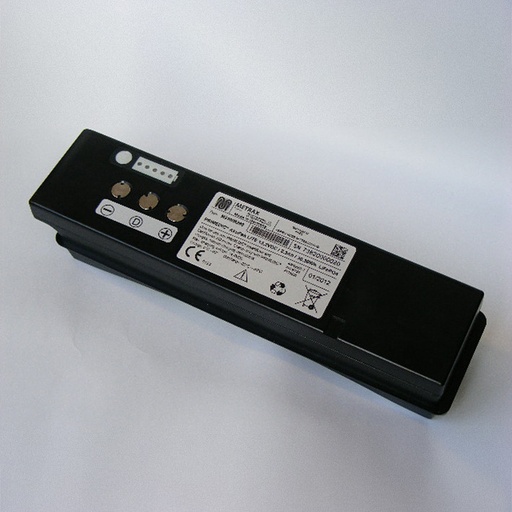

AkuPak LITE 2.5 Ah

Lithium iron phosphate (LiFePO4) rechargeable battery, rechargeable in the M290 DefiMonitor, Charger Base or ClipCharger, 13.2 V DC, capacity 2.5 Ah, with charge status indicator, service life 4 years from date of manufacture, memory effect: NO, number of defibrillations at 360 J: 95, number of defibrillations at 200 J: 150, for use with: NB, AED-M, HeartSave 6, HeartSave 6S, XD, Xdxe

Charger base charging dock for HeartSave and XD

incl. one-hand release and wall mounting and 12-volt cable, in accordance with EN1789 requirements

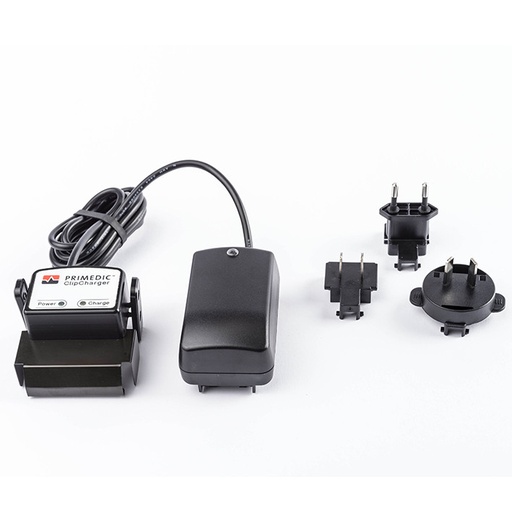

PRIMEDIC ClipCharger

An external charger for all AkuPaks (EU plug), for use with: NB, AED-M, HeartSave 6, HeartSave 6S

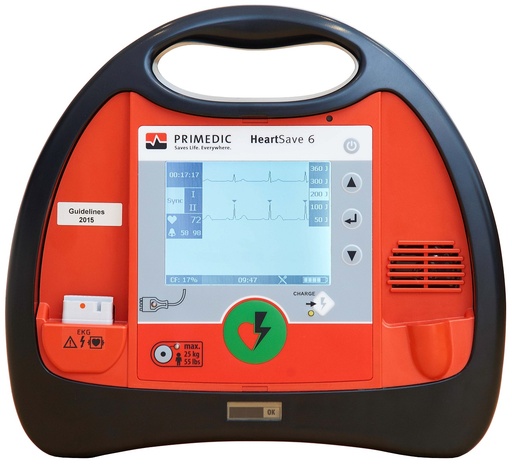

HeartSave 6

Automated external defibrillator with biphasic, current-controlled defibrillation shock (CCD technology) and VF/VT detection.
- intuitive and easy to use
- high-resolution blue-mode LCD monitor (95 x 72 mm, 320 x 240 pixel resolution)
- switchable to manual mode, 6-channel ECG
- one-button operation
- adult/paediatric mode
- no energy selection required
- short charging time < 12 sec., energy: 140–360 J, operating modes: asynchronous
- ECG leads: I, II, III, aVr, aVf, aVl, patient impedance 20–200 ohms, heart rate 30–300/min
- data management: internal memory 8 MB RAM, removable memory 2–4 GB or approx. 14 days with voice recording
- robust design
- dimensions (H x W x D): approx. 260 x 260 x 90 mm
- weight: approx. 2 kg (without power supply)

Scope of delivery: PRIMEDIC HeartSave 6 with blue-mode LCD monitor, incl. AkuPak LITE (LifePO4), SavePads preconnect (adults), CompactFlash card 2 GB, Lister scissors 14.5 cm, incl. read-out software ECG Viewer, voice-guided user guidance in German, English, Spanish and French.

To charge the AkuPak LITE, the ClipCharger charger (No. 97004) or the Charger Base (No. 96344) is required!

! User training mandatory !
Please note that, when purchasing, the manufacturer will charge the customary fees for user instruction/training!

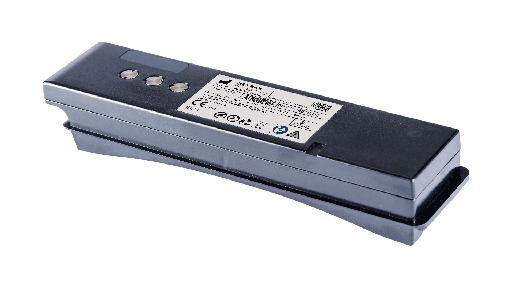

Battery for Primedic HeartSave AED

Shelf life: approx. 6 years

This battery is suitable for the AED, AS, AED-M, 6 and 6S models.

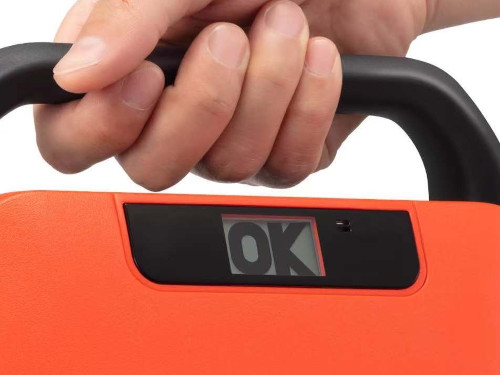

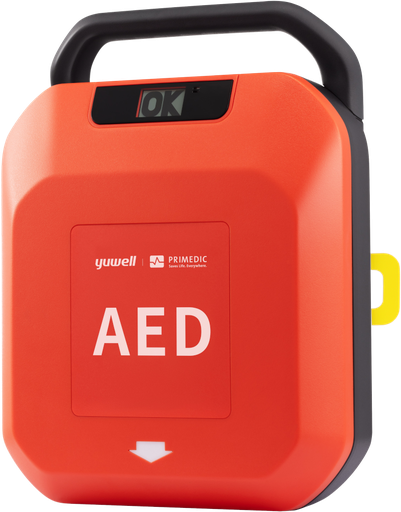

For hesitant or uncertain users, the HeartSave YA is the ideal choice. It delivers the shock to the patient independently and fully automatically, without the first aider having to trigger defibrillation themselves. This ensures that the life-saving energy is administered safely and reliably.
Especially in public areas, where first-aid measures are generally carried out by lay helpers, the HeartSave YA can really play to its strengths.

In a paediatric emergency, you do not need special electrodes for children, as the HeartSave YA switches to a child mode at the touch of a button.

Using the language selection button, the spoken instructions can be switched during operation between up to four languages. In areas with users of many different nationalities – industry, airports, public institutions – this increases the likelihood that the HeartSave YA can be clearly understood and used safely.

To ensure it is available safely and reliably at all times, the HeartSave YA performs a comprehensive self-test every day. This checks the technical condition of the AED, the remaining battery capacity, and the expiry date of the electrodes. Readiness is indicated by a clearly visible and intuitive ‘OK’ on the device.

The HeartSave YA is a fully automated defibrillator which, if a shock is required, triggers it completely independently. This version is particularly advantageous for uncertain or hesitant first aiders, as the shock – if necessary – is reliably delivered to the person affected.

WITH GERMAN / ENGLISH LANGUAGE PACKAGE

For hesitant or uncertain users, the HeartSave YA is the ideal choice. It delivers the shock to the patient independently and fully automatically, without the first aider having to trigger defibrillation themselves. This ensures that the life-saving energy is administered safely and reliably.
Especially in public areas, where first-aid measures are usually carried out by lay rescuers, the HeartSave YA can play to its strengths.

In a paediatric emergency, you do not need special paediatric electrodes, as the HeartSave YA switches to a child mode at the touch of a button.

Using the language selection button, the voice prompts can be switched during operation between up to four languages. In areas with users of many different nationalities – industry, airports, public institutions – this increases the chance that the HeartSave YA can be clearly understood and used safely.

To be available at all times safely and reliably, the HeartSave YA performs a comprehensive self-test every day. This checks the technical condition of the AED, the remaining battery capacity, and the expiry date of the electrodes. Readiness is indicated by a clearly visible and intuitively understandable “OK” on the device.

The HeartSave YA is a fully automated defibrillator which, if a shock is required, triggers it completely independently. This version is particularly advantageous for unsure or hesitant first responders, as the shock – if necessary – will also be delivered safely to the casualty.

WITH LANGUAGE PACKAGE GERMAN / ENGLISH / SPANISH / FRENCH

For hesitant or uncertain users, the HeartSave YA is the ideal choice. It delivers the shock to the patient independently and fully automatically, without the first aider having to trigger defibrillation. This ensures that the life-saving energy is administered safely and reliably.
Especially in public areas, where first-aid measures are usually carried out by lay helpers, the HeartSave YA can really show its strengths.

In a paediatric emergency, you do not need special paediatric electrodes, as the HeartSave YA switches to a child mode at the press of a button.

Using the language selection button, the spoken instructions can be switched during operation between up to four languages. In areas with users of many different nationalities – industry, airports, public institutions – this increases the likelihood that the HeartSave YA can be understood and used safely.

To ensure it is always available safely and reliably, the HeartSave YA performs a comprehensive self-test every day. This checks the technical condition of the AED, the remaining battery capacity, and the expiry date of the electrodes. Readiness is indicated by a clearly visible and intuitively understandable “OK” on the device.

The HeartSave YA is a fully automated defibrillator which, if a shock is required, triggers it entirely independently. This version is particularly beneficial for uncertain or hesitant first aiders, as the shock – if necessary – is reliably delivered to the casualty.

WITH LANGUAGE PACKAGE GERMAN / ENGLISH / ITALIAN / FRENCH

For hesitant or uncertain users, the HeartSave YA is the ideal choice. It delivers the shock to the patient independently and fully automatically, without the first aider having to trigger defibrillation themselves. This ensures that the life-saving energy is delivered safely and reliably.
Especially in public areas, where first aid is generally provided by lay responders, the HeartSave YA can really show its strengths.

In a paediatric emergency, you do not need special paediatric electrodes, as the HeartSave YA switches to a paediatric mode at the touch of a button.

Using the language selection button, the spoken instructions can be switched during operation between up to four languages. In areas with users of many different nationalities – industry, airports, public institutions – this increases the chance that the HeartSave YA can be clearly understood and used safely.

To be available at all times safely and reliably, the HeartSave YA carries out a comprehensive daily self-test. This checks the technical condition of the AED, the remaining battery capacity, and the expiry date of the electrodes. Readiness is indicated by a clearly visible and intuitively understandable “OK” on the device.

The HeartSave YA is a fully automated defibrillator that, if a shock is required, triggers it completely independently. This variant is particularly beneficial for uncertain or hesitant first responders, as the shock – if necessary – is reliably delivered to the casualty.

WITH LANGUAGE PACK GERMAN / FRENCH

For hesitant or unsure users, the HeartSave YA is the ideal choice. It delivers the shock to the patient automatically and fully automatically, without the first aider having to trigger defibrillation themselves. This ensures that the life-saving energy is administered safely and reliably.
Especially in public areas, where first-aid measures are generally carried out by lay helpers, the HeartSave YA can really play to its strengths.

In a paediatric emergency, you do not need special paediatric electrodes, as the HeartSave YA switches to a paediatric mode at the touch of a button.

Using the language selection button, the voice prompts can be switched during operation between up to four languages. In areas with users of many different nationalities – industry, airports, public facilities – this increases the chance that the HeartSave YA can be clearly understood and used safely.

To be available safely and reliably at all times, the HeartSave YA performs a comprehensive self-test every day. This checks the technical condition of the AED, the remaining battery capacity, and the expiry date of the electrodes. Readiness is indicated by a clearly visible and intuitive “OK” on the device.

The HeartSave YA is a fully automated defibrillator that, if a shock is required, triggers it entirely independently. This version is particularly advantageous for unsure or hesitant first aiders, as the shock – if necessary – is reliably delivered to the affected person.

WITH GERMAN / ITALIAN LANGUAGE PACK

The HeartSave Y is the ideal AED for any first aider and lay user. Short, clear voice prompts guide you safely throughout the entire cardiopulmonary resuscitation (CPR) process, supported by a metronome. The device independently determines whether a life-saving shock is required or not. The shock is only enabled by the device when it is truly necessary. This ensures you can be confident at all times that a shock cannot be triggered accidentally.

In a paediatric emergency, you do not need special paediatric electrodes, as the HeartSave Y can be switched to child mode at the press of a button.

Using the language selection button, the voice prompts can be switched during operation between up to four languages. In areas with users of different nationalities—industry, airports, public facilities—this increases the likelihood that the HeartSave Y can be clearly understood and used safely.

To ensure it is always available safely and reliably, the HeartSave Y performs a comprehensive self-test every day. This checks the technical status of the AED, the remaining battery capacity, and the expiry date of the electrodes. Readiness is indicated by a clearly visible and intuitively understandable “OK” on the device.

The HeartSave Y is a so-called semi-automatic defibrillator. As soon as the AED detects a shockable heart rhythm in the patient, the shock is delivered by the first aider at the press of a button.

WITH LANGUAGE PACKAGE GERMAN / ENGLISH / SPANISH / FRENCH

The HeartSave Y is the ideal AED for any first aider and lay user. Short, clear voice prompts guide you safely throughout the entire cardiopulmonary resuscitation (CPR) process, supported by a metronome. The device independently decides whether a life-saving shock is required or not. It will only enable shock delivery when it is truly necessary. This means you can always be confident as a user that a shock cannot be triggered accidentally.

In a paediatric emergency, you do not need special paediatric electrodes, as the HeartSave Y switches to a child mode at the press of a button.

Using the language selection button, the voice prompts can be switched during operation between up to four languages. In areas with users of many different nationalities – industry, airports, public facilities – this increases the likelihood that the HeartSave Y can be clearly understood and used safely.

To ensure it is always available safely and reliably, the HeartSave Y performs an extensive daily self-test. This checks the technical condition of the AED, the remaining battery capacity, and the expiry of the electrodes. Readiness is indicated by a clearly visible and intuitively understandable ‘OK’ on the device.

The HeartSave Y is a so-called semi-automatic defibrillator. As soon as the AED detects a heart rhythm that requires defibrillation in the patient, the shock is delivered at the press of a button by the first aider.

WITH LANGUAGE PACK GERMAN / ENGLISH / ITALIAN / FRENCH

The HeartSave Y is the ideal AED for any first aider and lay rescuer. Short, clear voice prompts guide you safely through the entire cardiopulmonary resuscitation (CPR) process, supported by a metronome. The device independently decides whether a life-saving shock is required or not. A shock is only enabled by the device when it is truly necessary. This ensures that, as the user, you can always be confident that no shock can be triggered accidentally.

In a paediatric emergency, you do not need special paediatric electrodes, as the HeartSave Y switches to a child mode at the touch of a button.

Using the language selection button, the voice prompts can be switched during operation between up to four languages. In areas with users of different nationalities—industry, airports, public facilities—this increases the likelihood that the HeartSave Y can be clearly understood and used correctly.

To ensure it is always available safely and reliably, the HeartSave Y performs a comprehensive self-test every day. This checks the technical condition of the AED, the remaining battery capacity, and the expiry of the electrodes. Readiness is indicated on the device by a highly visible and intuitive “OK”.

The HeartSave Y is a so-called semi-automatic defibrillator. As soon as the AED detects a shockable heart rhythm in the patient, the shock is delivered by the first aider at the press of a button.

WITH LANGUAGE PACK GERMAN / FRENCH

The HeartSave Y is the ideal AED for any first responder and lay user. Short, clear voice prompts guide you safely throughout the entire cardiopulmonary resuscitation (CPR) process, supported by a metronome. The device independently determines whether a life-saving shock is required. A shock is only enabled by the device when it is truly necessary. This ensures you can always be confident that no shock can be triggered accidentally.

In a paediatric emergency, you do not need special child electrodes, as the HeartSave Y switches to paediatric mode at the press of a button.

Using the language selection button, the voice prompts can be switched during operation between up to four languages. In areas with users of many different nationalities—industry, airports, public facilities—this increases the likelihood that the HeartSave Y can be clearly understood and used safely.

To ensure it is always available safely and reliably, the HeartSave Y performs a comprehensive self-test every day. This checks the AED’s technical condition, the remaining battery capacity, and the expiry date of the electrodes. Readiness is indicated by a clearly visible and intuitively understandable “OK” on the device.

The HeartSave Y is a semi-automatic defibrillator. As soon as the AED detects a shockable heart rhythm in the patient, the shock is delivered at the press of a button by the first responder.

WITH LANGUAGE PACK GERMAN / ITALIAN
