Resuscitation and Monitoring

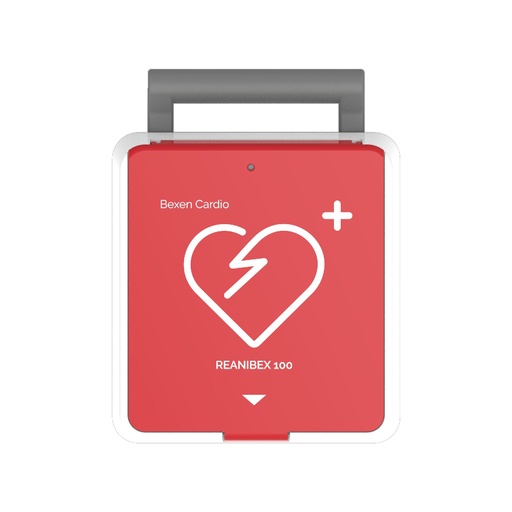

The BEXEN CARDIO Reanibex 100 AED is an automated external defibrillator designed for rapid use in the event of cardiac arrest. It is user-friendly, with intuitive voice prompts and visual aids that guide even laypersons through the rescue process. Thanks to its robust design, it is ideal for public areas, schools and businesses. Lightweight and portable, it provides reliable support in emergency situations.

Clear instructions
Voice prompts guide the user through the entire procedure. Volume adjusts to ambient noise.

Connectivity
Sigfox and Wi‑Fi transmission for status alerts regarding the device and accessories, as well as for geolocation.

Semi- or fully automatic
In the semi-automatic version, the user must press the shock button to deliver the shock. In the fully automatic version, the shock is delivered automatically when required.

Faster shock delivery
Switches on automatically as soon as the device lid is opened, with pre-connected electrodes and pre-charged for faster shock delivery.

Self-test
Daily automatic self-test ensures continuous readiness of the device and accessories.

CPR support
Metronome and real-time rate feedback for effective chest compressions.

GENERAL
Dimensions:
Without handle: 217 mm (width) x 235 mm (depth) x 96 mm (height)
With handle: 217 mm (width) x 285 mm (depth) x 96 mm (height)

Weight: device with disposable electrodes and battery: less than 2 kg

AED DEFIBRILLATOR
Operating mode: semi- or fully automatic
Waveform: typically biphasic (BTE) depending on patient impedance
Energy output: 150–200 joules for adult patients and 50–90 joules for children
Charge time: 0 seconds – pre-charged
Electrode types: pre-connected disposable electrodes for adults and children
Shockable rhythms: ventricular fibrillation and ventricular tachycardia
CPR support: metronome with real-time feedback on chest compression rate
CPR guidelines: factory-set guideline 2015 (ERC/AHA) and its new version from 2017

DATA STORAGE
Internal data memory: 10 treatment events with at least 15 hours of ECG signal and events
USB port: for PC connection
Data review: Reanibex Data Net web application for downloading, replaying, saving and reviewing recorded treatment events

BATTERY
Type: disposable battery LiMnO2 4.2 Ah, 12 V
Capacity: more than 350 shocks at 200 J or more than 36 hours of monitoring at 25 °C

ENVIRONMENT
Operating temperature: from 0 °C to 50 °C
Storage temperature: from -25 °C to 70 °C
Humidity: 0 to 95%
Altitude: 0 to 5,000 m
Resistance to solids/liquids: IP55
EMC: EN 60601-1-11:2015 and EN 60601-1-2:2015
Vibration / shocks: EN 60601-1-11:2015

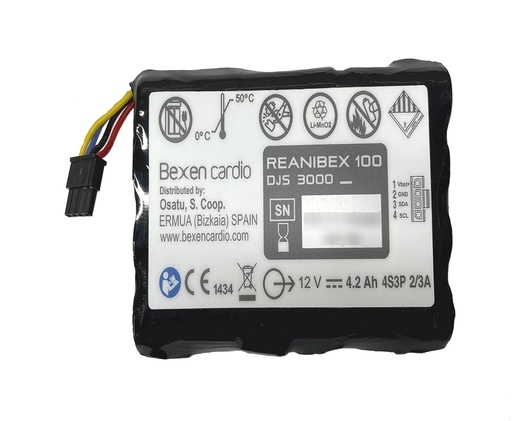

Replacement battery for the Bexen Cardio Reanibex 100 AED.

Replacement battery for item 25549-01/25550-01

Replacement electrodes for the Bexen Cardio Reanibex 100 AED.

Replacement electrode for item 25549-01 / 25550-01

The BEXEN CARDIO Reanibex 100 AED is a semi-automatic external defibrillator designed for rapid use in the event of cardiac arrest. It is user-friendly, with intuitive voice prompts and visual aids that guide even untrained users through the rescue process. Thanks to its robust design, it is ideal for public places, schools and businesses. Lightweight and portable, it provides reliable support in emergency situations.

Clear instructions
Voice prompts guide the user through the entire procedure. Volume adjusted to the ambient noise.

Connectivity
Sigfox and Wi‑Fi transmission for alerts on the status of the device and accessories, as well as for geolocation.

Semi- or fully automatic
With the semi-automatic version, the user must press the shock button to deliver a shock. With the fully automatic version, the shock is delivered automatically when necessary.

Faster shock delivery
Switches on automatically as soon as the device lid is opened, with pre-connected electrodes and pre-charged for faster shock delivery.

Self-test
Daily automatic self-test ensures continuous readiness of the device and accessories.

CPR support
Metronome and real-time rate feedback for effective chest compressions.

GENERAL
Dimensions:
Without handle: 217 mm (wide) x 235 mm (deep) x 96 mm (high)
With handle: 217 mm (wide) x 285 mm (deep) x 96 mm (high)

Weight: Device with single-use electrodes and battery: less than 2 kg

AED DEFIBRILLATOR
Operating mode: Semi- or fully automatic
Waveform: Typically biphasic (BTE) depending on patient impedance
Energy output: 150–200 Joules for adult patients and 50–90 Joules for children
Charging time: 0 seconds – pre-charged
Electrode types: Pre-connected single-use electrodes for adults and children
Shockable rhythms: Ventricular fibrillation and ventricular tachycardia
CPR support: Metronome with real-time feedback on chest compression rate
CPR guidelines: Factory-set 2015 guideline (ERC/AHA) and its updated 2017 version

DATA STORAGE
Internal data memory: 10 treatment sessions of at least 15 hours of ECG signal and events
USB port: For PC connection
Data review: Reanibex Data Net web application for downloading, replaying, saving and reviewing recorded treatment sessions

BATTERY
Type: Single-use battery LiMnO2 4.2 Ah, 12 V
Capacity: More than 350 shocks at 200 J or more than 36 hours of monitoring at 25 °C

ENVIRONMENT
Operating temperature: 0 °C to 50 °C
Storage temperature: -25 °C to 70 °C
Humidity: 0 to 95%
Altitude: 0 to 5,000 m
Resistance to solids/liquids: IP55
EMC: EN 60601-1-11:2015 and EN 60601-1-2:2015
Vibration/shock: EN 60601-1-11:2015

Product data:

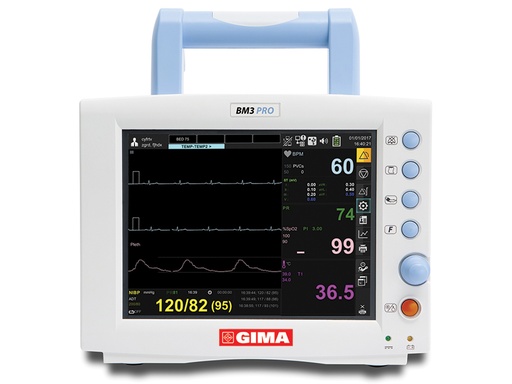

GIMA BM3 PRO Touch MONITOR (8” - 800x600 - TFT display)

GIMA monitor is configured with:
- 8-inch TFT LCD colour touchscreen for clear viewing
- Individual sweep speed setting for each parameter
- 168 full hours of trend data stored
- SpO2 measurement with detection of very low perfusion and pulse tone
- 2-trace ECG - screen freeze on/off
- External HDMI output for large screen
- Connection to the central monitoring system via LAN or Wi-Fi
- Li-ion battery (for 2 hours of continuous operation)
- High-performance ECG detection and analysis

• Input impedance for dry skin or electrode patches
• ST level, real-time display of PVC count
• 13 types of arrhythmia analysis
• Pacemaker detection function
- Enhanced and expandable multi-parameter monitoring
• Sidestream/mainstream EtCO2
- Improved data management
• Graphical and tabular trends
• 20 cases per 10 sec. alarm waveform stored, reviewed and printed
- USB storage
- B2B connection
• Up to 4 monitors (BM3/5/7) can be connected
- Internal software selectable in GB, DE, FR, IT, PT, PL, RO, HU, ES, CZ, BG, RU, TR, CN
- User manual: GB, IT (on request: ES, FR, DE).

58 mm built-in printer for real-time and trend data (speeds: 25-50 mm/sec.)
Bed rail hook
Ergonomic handle
Pacemaker detection is displayed on the ECG screen
Battery status indicator - continuous operating time approx. 2 h

For all Bionet monitors: accessory kit included!
- 3-lead ECG cable for BM 3
- 5-lead ECG cable for BM 5
- SpO2 sensor and SpO2 adapter cable 3 m
- NIBP blood pressure cuff
- 2 rolls of paper (BM 3 & BM 5)
- Adhesive electrodes (BM 3 & BM 5)
- User manual
- Mains cable
- Battery

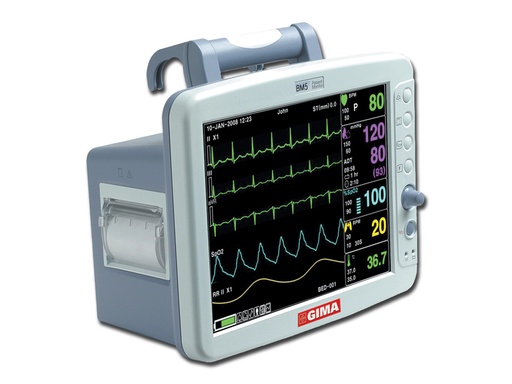

With 10.4" TFT colour display with 800 x 600 pixels, additional VGA connection for external monitor, IBP and CO2 measurement (optional)

With Suntech blood pressure module incl. printer.



- Measures NIBP, ECG, pulse rate, respiration, SpO2, temperature (optional), IBP (optional), CO2 with EtCO2 module (optional)
- Alarm function for all parameters
- Incl. built-in printer, printing parameters freely selectable
- With training mode
- Display of up to 7 waveforms
- Ideal transport monitor: weight only approx. 4.5 kg
- Incl. accessory set
- W 270 x H 184 x D 250 mm



For all Bionet monitors: accessory set included!

- 3-lead ECG cable with BM 3
- 5-lead ECG cable with BM 5
- SpO2 sensor and SpO2 adapter cable 3 m
- NIBP blood pressure cuff
- 2 rolls of paper (BM 3 & BM 5)
- Adhesive electrodes (BM 3 & BM 5)
- Operating instructions
- Mains cable
- Rechargeable battery

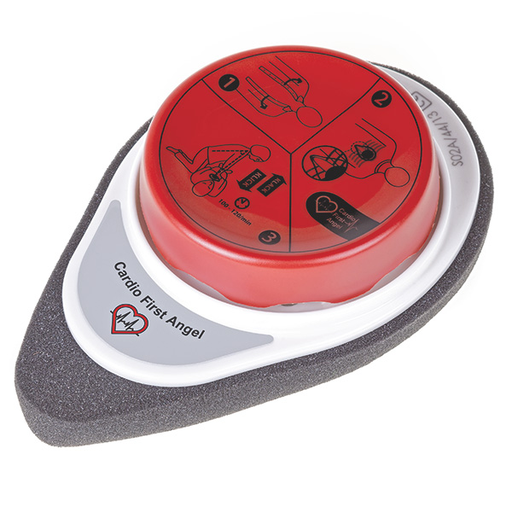

In an emergency, an untrained first aider can use it immediately as a life-saving measure without risk.
Every year there are around 700,000 heart attacks in Europe, and approx. 17 million worldwide. When the heart stops beating, the brain is no longer supplied with oxygen and suffers irreversible damage. Using Cardio First Angel can prevent this.

Ideal usability
Purely mechanical – no electricity or battery – Cardio First Angel is ready for use at any time. A special plastic provides a soft contact surface and absorbs sweat.

Ideal positioning
Thanks to the special shape of Cardio First Angel, correct positioning on the patient’s chest is guaranteed – ensuring chest compressions work exactly where they are needed. Use is straightforward and explained with internationally understandable pictograms.

Ideal force required
A special spring signals the optimum pressure for chest compressions of 41 kg with a loud click. This clicking can also be heard during the subsequent release. This gives the first aider a tempo guide to achieve the required rate of approx. 100 compressions.

Technical data
Dimensions (L x W x H): 20 x 13 x 6 cm

Weight: 130 g

In the event of a heart attack, valuable minutes are far too often lost in which either no resuscitation attempts are made or they are performed incorrectly until the emergency doctor finally arrives. This is exactly where Cardio First Angel comes in. It enables even an untrained person to perform chest compressions quickly and efficiently.

Many first aiders cannot find the right spot for chest compressions without support. With Cardio First Angel, however, compressions are automatically performed exactly where they are most effective. A positioning aid ensures this. The device is placed in the centre of the chest, and a diagram on the surface shows how the hand must be positioned.

But how hard should you press? Cardio First Angel provides reassurance here too. When sufficient force is applied, the loud click of a special spring can be heard and felt. When the pressure is released, another click makes it clear that you must now build up pressure again. Alternating between the two clicking sounds helps the rescuer find exactly the right rhythm. In this way, Cardio First Angel can bridge the time until the emergency doctor arrives.

If Cardio First Angel were available everywhere within one to three minutes, many lives could be saved and patients protected from long-term damage. With pack dimensions of only 20 x 13 cm and a weight of just 130 grams, Cardio First Angel fits into almost any bag and is immediately to hand in an emergency. This ensures the best possible care in the crucial first minutes after cardiac arrest. Being purely mechanical, it provides the necessary pressure, the most effective frequency and the correct positioning for chest compressions.

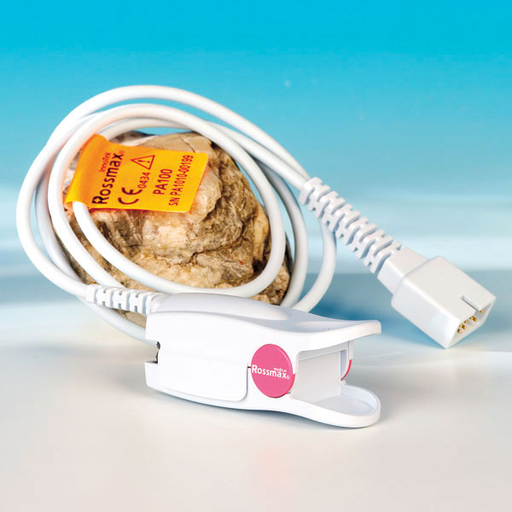

Compatible adult finger sensor

- Connector type: C03 9-pin
- Cable length: 100 cm
- Compatible with: Oxycount Mini, BCI, Amstrong AD-900, 1000, 2000, 3000, 4000, Choice Electronic,

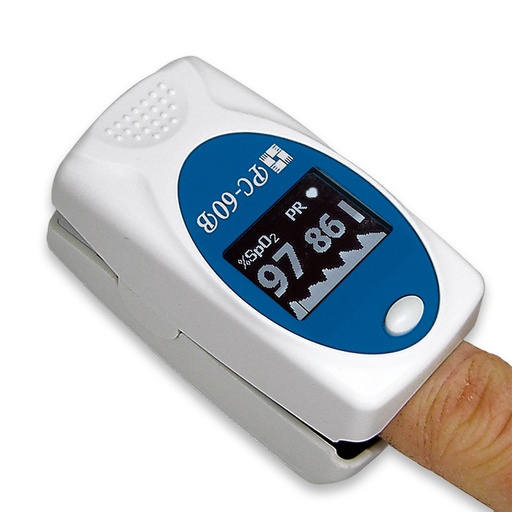

PC 60B PRO finger pulse oximeter
The PC 60B PRO comes as standard with a very easy-to-read display with blue backlighting (ideal for darkened rooms) and an automatic alarm function. If readings deviate from normal values, the device triggers a visual (display flashes) and audible (beep) alarm. The PC 60B PRO also features an integrated perfusion index (PI) measurement; this PI enables assessment of the peripheral perfusion of the measured tissue, allowing conclusions to be drawn about measurement quality and blood flow.
- Clear display shows pulse rate (BPM) and current oxygen saturation (SpO2)
- Comfortable and easy to wear
- Automatic switch-on and switch-off function
- Up to 30 hours of operation with 2 standard (AAA) batteries
- Dimensions (L x W x H): approx. 66 x 36 x 33 mm
- Weight: 60 g (incl. batteries)

Scope of delivery: PC 60B PRO pulse oximeter, 2 x AAA standard batteries, fabric pouch for safe storage, clip strap for attachment, operating instructions.

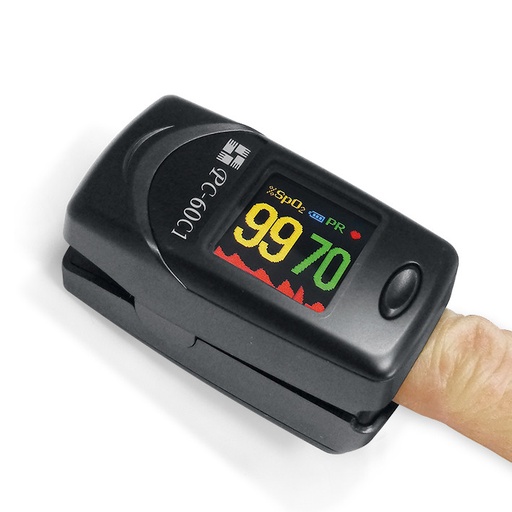

The PC 60C PRO fingertip pulse oximeter from CREATIVE MEDICAL stands out with a large, crystal-clear colour display that is ideal for dimly lit rooms, as well as an automatic alarm function. It alerts both visually (display flashes) and acoustically (beep) if readings deviate from the normal values. Thanks to the integrated measurement of the Perfusion Index (PI), this fingertip pulse oximeter is considered a professional oximeter and is indispensable in fields such as medical practices, hospitals and emergency services. The PI enables an assessment of the peripheral perfusion of the measured tissue, allowing conclusions to be drawn about the quality of the measurement and blood circulation. Additional features include an adjustable pulse rate alarm limit, an audible pulse tone that can be switched on and off, the option to restore factory settings, an automatically rotating display with four viewing angles, automatic power on/off, and an operating time of up to 30 hours.

Product data:

Dimensions (L x W x H): approx. 66 x 36 x 33 mm
Weight: 60 g (incl. batteries)
Scope of delivery: PC 60C PRO pulse oximeter, 2 x AAA standard batteries, fabric pouch for safe storage, clip strap for fastening, operating instructions.

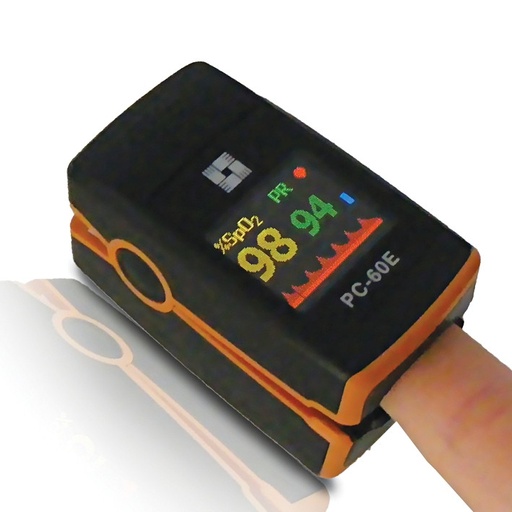

PC 60E finger pulse oximeter
The PC 60E features a very large, crystal-clear colour display (ideal for dimly lit rooms) and an automatic alarm function. In the event of deviations from normal values, an alarm is triggered visually (display flashes) and acoustically (beep). By connecting an external sensor (MEG 690659, MEG 690660, MEG 690661), infants can also be measured conveniently using the same device. Particularly suitable for professional use, including GP practices, clinics and emergency medical services.
- automatic switch-on function without buttons
- plethysmographic waveform clearly displayed in red
- automatically rotating display in four viewing orientations, no PI display
- automatic switch-off function
- up to 30 hours of operation with 2 standard (AAA) batteries
- dimensions (L x W x H): approx. 66 x 36 x 33 mm
- weight: 60 g (incl. batteries)

Scope of delivery: PC 60E pulse oximeter, 2 x AAA standard batteries, fabric pouch for safe storage, clip strap for fastening, operating instructions.

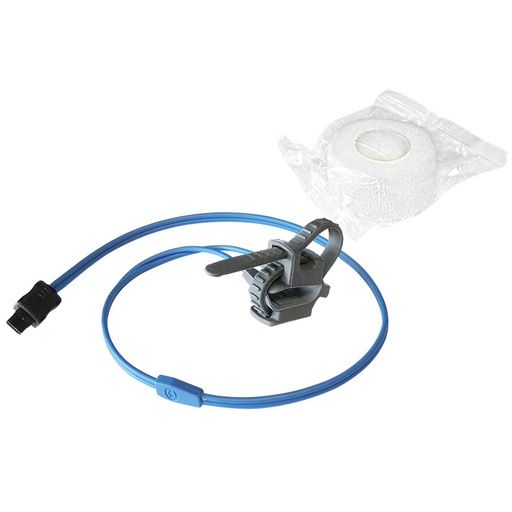

Clip sensor for children for finger pulse oximeter model PC 60E

Finger Pulse Oximeter PC 60E
The PC 60E features a very large, crystal-clear colour display (ideal for dimly lit rooms) and an automatic alarm function. If values deviate from the normal range, an alarm is triggered visually (display flashes) and acoustically (beep). By connecting an external sensor, infants and young children can be measured conveniently with the same device. Particularly suitable for professional use, e.g. in doctors’ practices, clinics and emergency medical services.
- automatic switch-on function without buttons
- plethysmographic waveform clearly displayed in red
- automatically rotating display in four viewing perspectives, no PI display
- automatic switch-off function
- up to 30 hours of operation with 2 standard (AAA) batteries
- dimensions (L x W x H): approx. 66 x 36 x 33 mm
- weight: 60 g (incl. batteries)

Scope of delivery: PC 60E pulse oximeter, 2 x AAA standard batteries, fabric pouch for safe storage, clip strap for fastening, operating instructions.

Incl. 2 sensors of your choice

Item no. 41.20-5273 Finger clip sensor, children
Item no. 41.20-5274 Wrap sensor, infant/child
with hook-and-loop fastener
Item no. 41.20-5275 Soft sensor, children

SpO2 soft sensor for infants/children for finger pulse oximeter model PC 60E

45 cm cable length, made of silicone, reusable, individually adjustable thanks to size adjustment, can also be used as a Y-sensor (can also be used for adults)

This is a replacement battery for the iPAD NF1200.
