Scales, Height and Circumference Meters

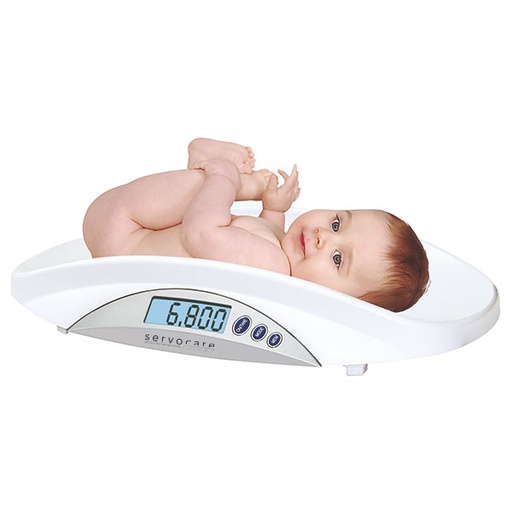

Digital baby scale that accompanies your child from birth up to a weight of 20 kg. The flat design and large lying surface give the child a sense of security, reduce the risk of falling and increase weighing accuracy.
The servocare baby scale offers flexible options: with a simple movement, the baby tray can be removed, allowing you to easily switch from a baby scale to a toddler scale. And when the little ones have grown up, simply use your servocare baby scale as a kitchen or luggage scale.

Product data:

Maximum load: 20 kg
Graduation: 5 g
Dimensions: 580 x 335 x 106 mm
Net weight: approx. 2 kg
Weighing tray: 525 x 275 x 90 mm
Power supply: 4 x AA 1.5 V batteries (not included)
Calibration: not verified/calibrated (non-approved)

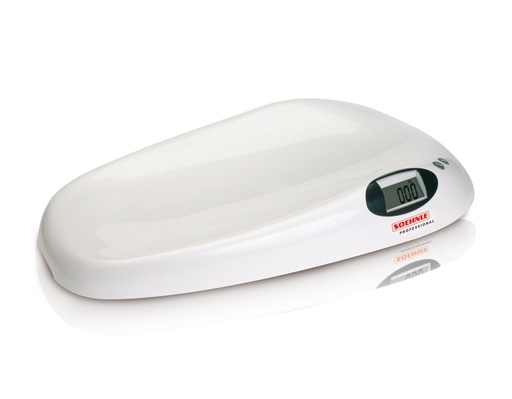

The Soehnle Professional baby scale 8310.02 is an elegant baby scale. Thanks to its rounded corners and comfortable plastic cradle, safety and hygiene come first. Functions such as the hold function and the memory function for the last weight reading enable quick and stress-free weighing of the baby. When operated on batteries, the scale can be used flexibly and, thanks to the integrated auto-off function, saves energy by switching off automatically when not in use.

- Easy-to-read LCD display
- Tare function: Any pads or liners placed on the scale can be tared
- Hold function: The weight value is frozen; after the load is removed the scale automatically returns to zero
- Memory function: The last recorded weight value can be recalled
- Easy-care plastic housing
- Simple operation
- Unit switch kg/lb
- Energy-saving auto-off function
- Battery operation with 4 AA batteries (included)

Product data:

Colour: white
Platform size: 280 x 600 mm
Maximum load: 20 kg
Graduation: 5 g

Handy and tip-proof baby scale with an easy-care plastic housing. Thanks to filtering and the hold function, the scale provides a stable weight display.

Product data:

- Battery operation with 4 AA batteries
- Units switchable kg/lb
- Graduation: 10 g
- Maximum load: 20 kg
- Dimensions: 600 x 340 x 85 mm
- Net weight: 1.7 kg

Model 6752: Conformity assessed according to Class III, MPG Class 1 m
Particularly small graduation: 5 g
Easy-to-read LCD display with 20 mm high digits and backlight
Integrated length scale in the weighing tray
Battery and mains operation

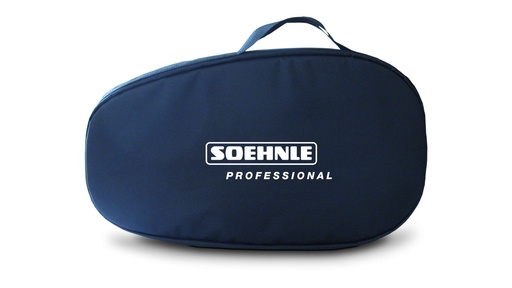

Carrying bag for baby scales 8330 and 8310.01
specially tailored to fit the baby scales 8330 and 8310.01, made of durable black textile fabric with handle.

Carry bag for baby scale 8352
Made of durable black textile fabric with handle, padded, with shoulder strap and additional outer pocket.
This makes transporting the baby scale 8352 even more convenient – and transporting it packed also protects it from scratches. The bag is therefore especially recommended for mobile use of the baby scale, i.e. for hire and for midwives.

Bag dimensions: 63 x 36 x 11.5 cm

Conformity assessed according to Class III, MPG Class 1 m
Ergonomically shaped seat, easy to clean
Foldable armrests and footrest
BMI function
Four heavy-duty swivel castors with parking brakes at the front and rear

- Tare function: items placed on the scale can be tared
- Hold function for improved readability
- Ergonomically shaped seat, easy to clean
- Foldable armrests and footrests
- 2 rear wheels swivelling and with parking brake
- Units in kg or lb
- Energy-saving auto-off function
- Integrated rechargeable battery with mains charger (operating time 50 h, charging time 5.5 h)

Basic 3700 indicator:
> Protection rating IP 42
> Large LCD display, digit height 20 mm
> Quick one-button operation
> Functions: weighing, taring, add-on weighing, plus/minus check, hold function
> RS 232 interface optional
> Mains operation/battery operation

Product data:

Maximum load: 200 kg
Graduation: 100 g
Dimensions: 580 x 1,100 x 930 mm
Net weight: 25 kg

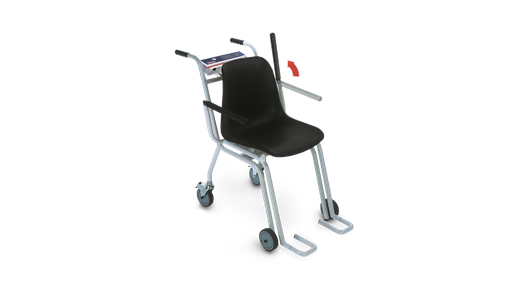

Robust construction
Easy weighing of people with walking or standing impairments

- Tare function: placed pads/liners can be tared
- Hold function for easier reading
- Ergonomically shaped seat, easy to clean
- Foldable armrests and footrests
- 4 swivel castors with rear parking brake
- Energy-saving auto-off function
- Integrated rechargeable battery with mains charger (operating time 50 h, charging time 5.5 h)

Basic E 3705 indicator:
> Legal-for-trade verifiable, Class III
> Protection rating IP42
> Large LCD display, digit height 20 mm
> Fast one-button operation
> Functions: weighing, taring, add-on weighing,
plus/minus check, hold function
> RS 232 interface (galvanically isolated) optional
> Mains operation / battery operation

or

Standard 3710 indicator:
> Legal-for-trade verifiable, Class III
> Protection rating IP42
> Backlit LCD display, digit height
16 mm
> 5-button operation with freely assignable
function key
> Manual tare entry via function key
> Fixed tare values (e.g. tare weight of
wheelchairs) can be stored
> Functions: weighing, taring, PLU memory,
plus/minus weighing, add-on weighing, GLP report,
hold function, BMI function,
as well as further functions
> RS 232 interface (galvanically isolated) optional
> Mains operation

Product data:

Verification: verified to Class III, MPG Class 1
Maximum load: 200 kg
Graduation: 50 g / 100 g
Dimensions: 580 x 1,100 x 930 mm
Net weight: 25 kg

Data cable 2 m (display unit – PC/IT).

Data cable for service interface

Serial data cable and connection for data transfer to PC/IT system

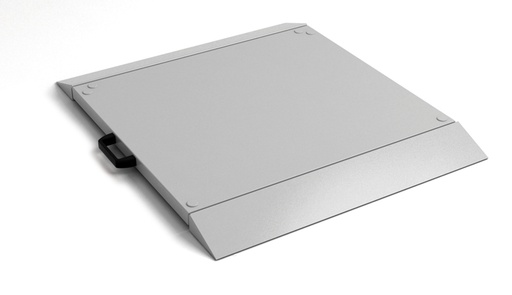

Access ramp for easy access with wheelchairs; includes 1 ramp. Two access ramps can be fitted. Suitable for the multifunction scales 7708/7808!

The scale is not included in the scope of delivery and must be purchased separately!

Product data:

Dimensions: 880 x 115 x 48 mm

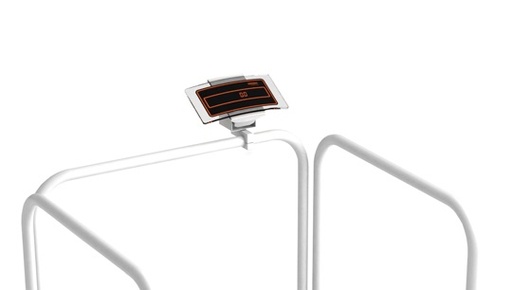

Mounting bracket for the display unit Basic, Basic E, Standard or Glas.

The railings are not included in the scope of delivery and must be purchased separately!

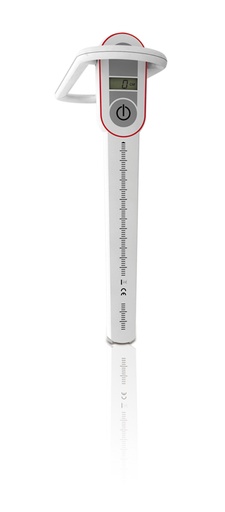

Handy length measuring device for use on the go
For self-measurement and measurement by others

- Ultrasonic measuring technology, temperature-compensated
- Tilt sensor for correction if the measuring device is placed at an angle, with error message
- Space-saving thanks to foldable design
- Plastic housing
- LCD display with 9 mm-high digits
- Acoustic confirmation after measurement is completed and display of the measured value
- Units in cm or inches
- Battery operation with 2 Mignon batteries 1.5 V AA (included in delivery)

Folded up, perfect for mobile use.

Product data:

Measuring range: 50 – 240 cm
Graduation: 1 cm
Dimensions: 345 x 92 x 28 mm
Net weight: 250 g

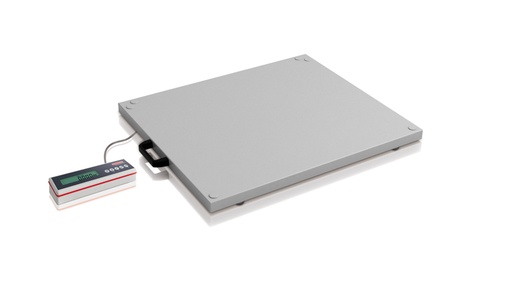

Can be combined and retrofitted as required
Sturdy handrails for a secure hold

- Large, flat weighing platform and aluminium handrails, white painted
- Portable thanks to two castors and carry handle
- Instant start function when stepping onto the scale (only 7808.01.001)
- Tare function: any items placed on the scale can be tared
- Hold function for easier reading
- Includes wall bracket
- Energy-saving auto-off function
- Units in kg or lb
- Battery operation with mains adaptor

Basic display unit:
> Protection rating IP42
> Large LCD display, digit height 20 mm
> Quick one-button operation
> Functions: Weighing, tare, add weighing,
plus/minus check, hold function
> RS232 interface optional
> Mains operation/battery operation

or

Glass display unit:
> Bright LED display,
digit height 15 mm
> Quick one-button operation
> Functions: Weighing, tare,
hold function
> Interface for data transfer to
PC / service interface as standard
(data cable optional)
> Mains operation

Product data:

Maximum load: 300 kg
Graduation: 100 g
Dimensions: 840 x 880 x 55 mm
Net weight: 16 kg

Can be combined and retrofitted as required
Sturdy handrails for a secure hold

- Large, flat weighing platform and aluminium handrails, white painted
- Portable thanks to two rollers and carry handle
- Immediate-start function when stepping onto the scale (only 7808.01.001)
- Tare function: placed supports/pads can be tared
- Hold function for easier reading
- Includes wall mount
- Energy-saving auto-off function
- Units in kg or lb
- Rechargeable battery operation with mains adaptor

Basic E 3705 indicator:
> Approved for verification, Class III
> Protection rating IP42
> Large LCD display, digit height 20 mm
> Fast one-button operation
> Functions: weighing, taring, add-on weighing, plus/minus check, hold function
> RS232 interface (galvanically isolated) optional
> Mains operation / rechargeable battery operation

or

Standard 3710 indicator:
> Approved for verification, Class III
> Protection rating IP42
> Backlit LCD display, digit height 16 mm
> 5-button operation with freely assignable function key
> Manual tare entry via function key
> Fixed tare values (e.g. the tare weight of wheelchairs) can be stored
> Functions: weighing, taring, PLU memory, plus/minus weighing, add-on weighing, GLP protocol, hold function, BMI function, and further functions
> RS232 interface (galvanically isolated) optional

Product data:

Verification: verified according to Class III, MPG Class 1
Max. load: 300 kg
Graduation: 100 g
Dimensions: 840 x 880 x 55 mm
Net weight: 16 kg

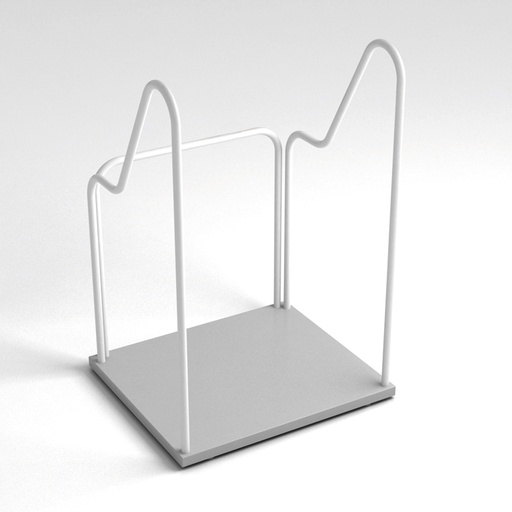

Obesity handrails (set) include 2 obesity handrails, a support handrail (16929) as well as 2 mounting clamps (16932). Suitable for the multifunction scales 7708/7808!

The scales are not included in the scope of delivery and must be purchased separately!

Product data:

Dimensions: 1,360 x 850 x 30 mm

Small and handy

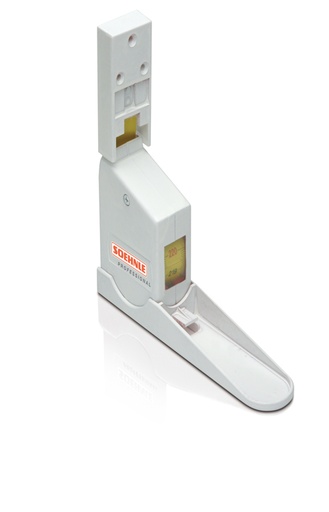

- Wall-mounted length measuring tape
- Wear-free and maintenance-free
- Units in mm

Product data:

Measuring range: 0–220 cm
Scale interval: 1 mm
Dimensions: 150 x 30 x 140 mm
Net weight: 130 g
