Scales, Height and Circumference Meters

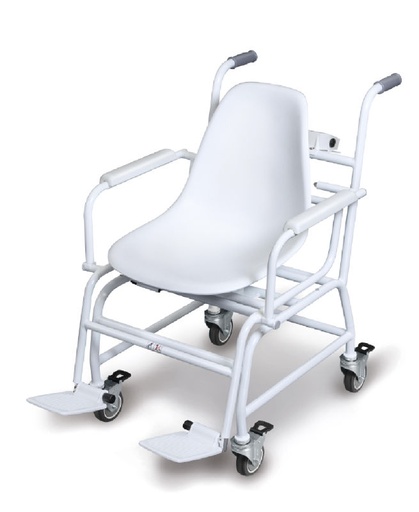

Mobile chair scale with four wheels, verified and medically approved
for professional use in medical diagnostics


Product description:

-Verification class III (verification, price €68, incl.)

-Medical approval in accordance with 93/42/EEC

-Mobile version with parking brakes on all four wheels

-Thanks to its four wheels, this chair scale ensures maximum mobility when being moved to the patient. This increases time efficiency for clinical staff and improves patient safety, as patients can be weighed in their familiar environment

-The four swivel castors, with their large diameter, allow easy crossing of door thresholds, edges and gaps in passenger lifts

-This chair scale is the ideal measuring instrument for nursing homes, rehabilitation centres and clinics with a high patient volume, including weighings in the obese range up to 300 kg

-For frail patients, the comfortable, ergonomically optimised seat shell provides secure support during weighing

-Two fold-up armrests and footrests make it easier to sit down. Ideal for overweight patients or for barrier-free transfers, e.g. from the bed to the chair scale

-Hold function: For patients who cannot sit still, a stable weight value is determined by averaging and “frozen”. This leaves enough time to attend to the patient and then read the weight value at leisure

-BMI function for determining underweight/normal weight/overweight

-Battery and mains operation possible, rechargeable battery operation optional


Technical data:

-Readability: 0.1 kg

-Verification interval: 0.1 kg

-LCD display, digit height 25 mm

-Evaluation unit dimensions: W×D×H 210×110×50 mm

-Overall dimensions: W×D×H 600×850×960 mm

-Mains adapter (external) supplied as standard

-Battery operation possible, 6×1.5 V AA, not included, operating time up to 70 h

-Net weight approx. 26 kg

- MCB 300K100M

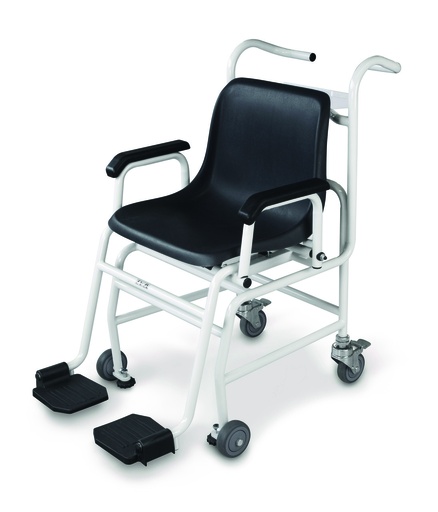

Ergonomically optimised chair scale with verification approval and medical certification for professional use in medical diagnostics

Product description:

-Verification class III (calibration, price €56, incl.)

-Medical certification according to 93/42/EEC

-This chair scale is the ideal measuring instrument for nursing homes, rehabilitation centres and hospitals with high patient throughput, including weighing in the obese range up to 250 kg

-Mobile version with two steerable castors at the rear and particularly convenient parking brakes

-Thanks to its four castors, this chair scale ensures maximum mobility when moving it to the patient. This increases time efficiency for clinical staff and improves patient safety, as patients can be weighed in their familiar environment

-The castors, with their large cross-section, make it easy to overcome door thresholds, edges and gaps in passenger lifts

-For frail patients, the comfortable, ergonomically optimised seat shell provides secure support during weighing

-Seat surface, footrests and armrests in clearly contrasting black, making it ideal for patients with dementia

-Two fold-up armrests and footrests make it easier to sit down

-Ideal for overweight patients or for barrier-free transfers, e.g. from the bed to the chair scale

-Ergonomically positioned handles

-Hold function: For patients who sit restlessly, a stable weight value is determined by averaging and “frozen”. This leaves enough time to attend to the patient and then read the weight value at leisure

-BMI function to determine underweight/normal weight/overweight

-Fine display: at the touch of a button, readability can be increased by 1 digit for 5 s


Technical data:

-Readability: 0.1 kg

-Verification interval: 0.1 kg

-Large backlit LCD display, digit height 25 mm

-Evaluation unit dimensions: W×D×H 200×128×55 mm

-Overall dimensions: W×D×H 625×990×985 mm

-Practical mains adapter pouch on the back of the chair and mains adapter (external) supplied as standard

-Internal rechargeable battery operation, standard, operating time up to 40 h without backlighting, charging time approx. 12 h

-Battery operation possible, 6×1.5V AA, not included, operating time up to 20 h

-Net weight approx. 22 kg

-MCC 250K100M

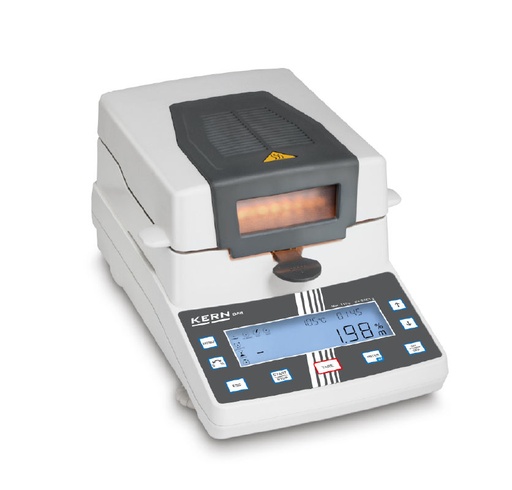

- Backlit LCD display, digit height 14 mm

1 Drying process active
6 Active heating profile
3 Active switch-off criterion
4 Drying time to date
5 Current temperature
5 Current moisture content in %

- Halogen quartz glass infrared heater, 400 W
- Viewing window to the sample, very helpful during initial setup
- Internal balance memory for the automatic sequence of 15 drying programmes and 5 completed drying processes
- The last reading remains displayed until it is overwritten by a new measurement
- 50 sample pans included
Application manual: On the internet you will find a practical application manual for every KERN moisture analyser, with many examples, user reports, settings and tips

Product data:

Design:
Rotating levelling feet: yes
Overall dimensions fully assembled (W×D×H): 240 mm x 365 mm x 180 mm
Spirit level: yes
Material of weighing plate: aluminium pans
Weighing surface (d): 92 mm

Measuring system:
Readability (moisture): 0.010 %
Readability [d]: 1 mg
Warm-up time: 2 h
Resolution: 110000
Off-centre load at 1/3 Max: 5 mg
Stabilisation time under laboratory conditions: 3 s
Adjustment options: adjustment with external weight
Linearity: 3 mg
Measuring range [Max]: 199 °C
Minimum weight (USP): 2 g
Repeatability: 1 mg
Tare range: 110 g
Weighing capacity [Max]: 110 g
Weighing units: % moisture % dry matter g
Weighing system: strain gauge load cell

- NEW: KERN DAB 200-2! Version with lower resolution, meaning the switch-off criterion is reached faster, saving time. Ideally suited for rapid tests and spot checks
- Backlit LCD display, digit height 14 mm

1 Drying process active
6 Active heating profile
3 Active switch-off criterion
4 Previous drying time
5 Current temperature
5 Current moisture content in %

- Halogen quartz glass radiator 400 W
- Viewing window for the sample, very helpful during initial setup
- Internal balance memory for the automatic sequence of 15 drying programmes and 5 completed drying processes
- The last measured value remains on the display until it is overwritten by a new measurement
- 50 sample pans included
Application manual: On the internet you will find, for every KERN moisture analyser, a practical application manual with many examples, user reports, settings and tips

Product data:

Design:
Rotating foot screws: yes
Overall dimensions, fully assembled (W×D×H): 240 mm x 365 mm x 180 mm
Spirit level: yes
Material of weighing plate: aluminium pans
Weighing surface (d): 92 mm

Measuring system:
Readability (moisture): 0.050 %
Readability [d]: 10 mg
Warm-up time: 30 min
Resolution: 20000
Off-centre load at 1/3 Max: 50 mg
Stabilisation time under laboratory conditions: 3 s
Adjustment options: adjustment with external weight
Linearity: 30 mg
Measuring range [Max]: 199 °C
Minimum weight (USP): 20 g
Repeatability: 10 mg
Tare range: 200 g
Weighing range [Max]: 200 g
Weighing units: % moisture % dry matter g
Weighing system: strain gauge load cell

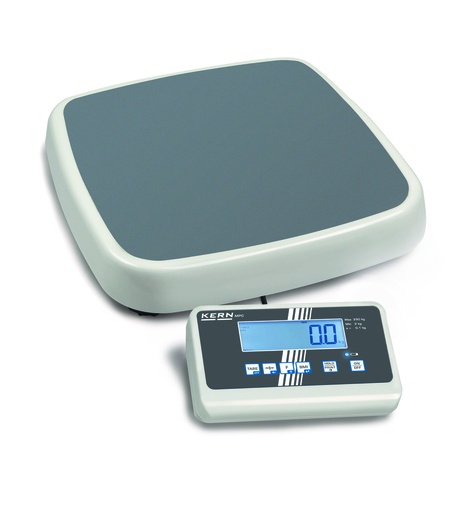

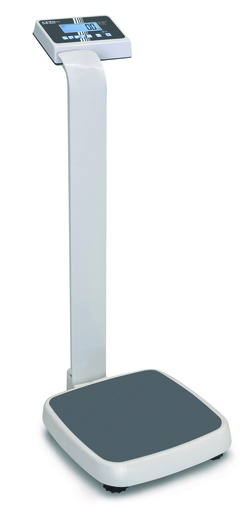

- Calibrated to Class III
- Medical approval in accordance with 93/42/EEC
- Robust design for everyday use in professional environments
- Ergonomically optimised design
- Hygienic and easy to clean
- Safe, non-slip positioning thanks to height-adjustable rubber feet. Spirit level for precise levelling of the scale included as standard
- Large, non-slip platform for optimum stability
- Hold function: for patients who cannot stand still, a stable weight value is determined by averaging and then “frozen”. This leaves enough time to attend to the patient and then read the weight at leisure
- BMI function for determining normal weight/overweight
- Mother-and-child function: the mother’s weight determined by weighing is set to zero at the touch of a button. Mother and child are then weighed together. The child’s weight is shown directly on the display. Particularly comfortable for small children, as they can be weighed safely and securely in the mother’s arms
- Fine display: at the touch of a button, readability can be increased by 1 digit for 5 seconds
- Display unit (cable length approx. 150 cm) can be positioned flexibly, e.g. free-standing or screwed to the wall. Wall bracket for wall mounting of the display unit included as standard
- Capacity: 250 kg
- Graduation: 100 g
- Backlit LCD display: digit height 25 mm
- Weighing platform dimensions (W x D x H): 365 mm x 360 mm x 80 mm
- Display unit dimensions (W x D x H): 200 mm x 128 mm x 55 mm
- Battery operation possible, 6 x 1.5 V AA (not included), operating time up to 170 hours
- Mains adapter (external) included as standard
- Net weight: approx. 10 kg

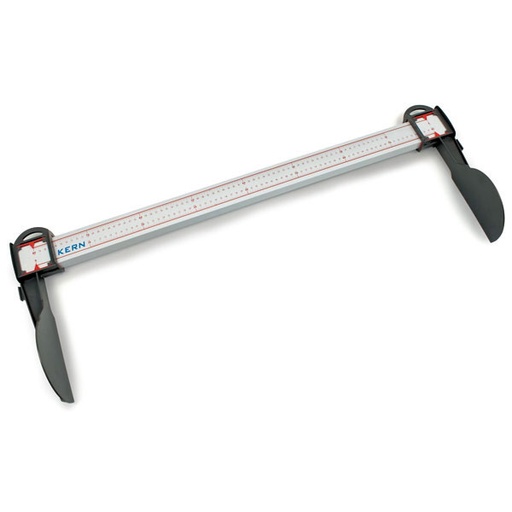

Product description:

- For babies up to a maximum body length of 80 cm
- Medical device approval in accordance with 93/42/EEC
- Measuring range 10–80 cm; graduation 1 mm
- Large end stops make handling easier (positioning, sliding, reading)
- Measuring scale with 0 starting from both the left and the right, i.e. can be used in both directions
- Space-saving storage thanks to the measuring rod being separable

Product data:

- Overall dimensions max. 890 x 330 x 100 mm (W x D x H)
- Net weight approx. 0.7 kg

Product description:

- For young children up to max. 100 cm body height
- Medical approval in accordance with 93/42/EEC
- Measuring range 6.5–100 cm (2½–39¼ inch); graduation 1 mm (1/16 inch)
- Foldable end stop
- Reading on scale with sliding end stop
- Robust aluminium profile
- Space-saving storage thanks to foldable end stop

Product data:

- Overall dimensions max. 1040 x 290 x 55 mm (W x D x H)
- Net weight approx. 0.8 kg

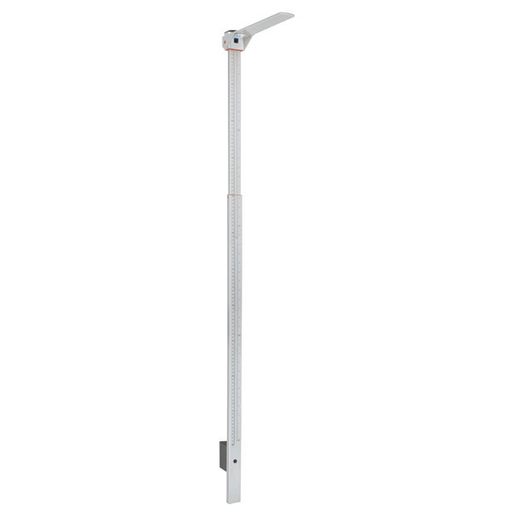

Product description:

- For mounting on KERN MTS stand-on aid scale or for wall mounting
- Medical approval according to 93/42/EEC
- Measuring range 60 - 200 cm (23½ - 78¾ inch); graduation 1 mm (1/16 inch)
- Reading on scale with sliding, foldable head stop
- Robust aluminium profile

Product data:

- Overall dimensions max. 60 x 330 x 1630 mm (W x D x H)
- Net weight approx. 0.7 kg

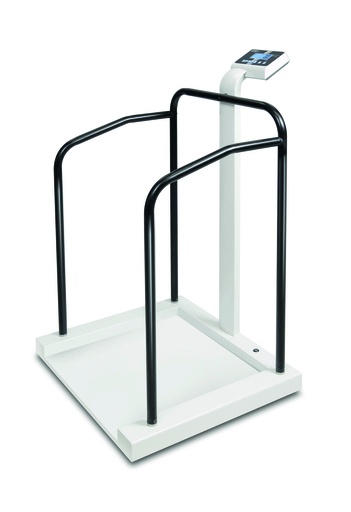

Stable stand-on support scale for a safe feeling when weighing – with legal-for-trade verification and medical approval for professional use in medical diagnostics

Verification class III
(Verification, price €83, included in the price))

- Medical approval according to 93/42/EEC

- Ideal for nursing homes, geriatric wards, internal medicine and much more

- The sturdy support конструкции enables frail and weak patients to stand safely while ensuring precise weight measurement at the same time

- Large platform for optimal patient stability, hygienic and easy to clean

- Particularly easy to step onto the platform thanks to the low installation height of only 30 mm

- Spirit level supplied as standard for precise levelling of the scale

- Hold function: For patients who are unsteady while standing or sitting, a stable weighing value is determined by averaging and “frozen”. This leaves enough time to attend to the patient and then read the value at leisure

- Practical second display on the rear of the scale, making it easy to read for both the patient and the doctor or nursing staff

- BMI function to determine underweight/normal weight/overweight

- Ergonomic indicator with large keypad and high-contrast LCD display for convenient input and reading of patient data, e.g. height for BMI calculation

- Battery and mains operation possible, rechargeable battery operation optional

- MTA400K-1M

Technical data:

- Readability: Up to 300 kg: 0.1 kg, from 400 kg: 0.2 kg

- Verification interval: Up to 300 kg: 0.1 kg, from 400 kg: 0.2 kg

- Large backlit LCD display, digit height 25 mm

- Dimensions weighing plate: W×D×H 780×680×68 mm

- Dimensions weighing surface: W×D 600×600 mm

- Dimensions indicator: W×D×H 200×128×55 mm

- Overall dimensions: W×D×H 780×680×1100 mm

- Battery operation possible, 6×1.5 V AA, not included, operating time up to 50 h

- Mains adapter (external) supplied as standard

- Net weight approx. 40 kg

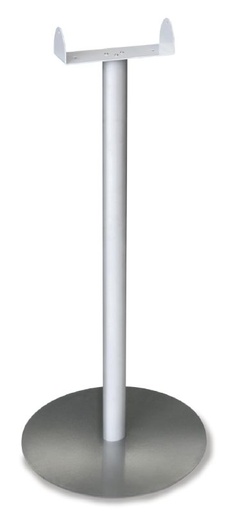

-Stand for raising the evaluation device, stand height approx. 950 mm,
KERN MWS - A01

Suitable for devices of the series:
KERN BOBP, MPT, MWS, MXS, UOB

Weight: 4 kg
Packaging dimensions: (W x D x H) 930 mm x 530 mm x 110 mm

Wheelchair scale with low overall height for easy roll-on access – with verification and medical approval for professional, mobile use in medical diagnostics.

-Verification class III (verification, price €53, incl.)

-Medical approval according to 93/42/EEC

-Especially suitable for weighing patients in wheelchairs, thanks to the low-profile platform accessible from both sides and a memory for tare weights of up to five (electric) wheelchairs

-The large steel weighing platform is also ideal for weighing bariatric patients

-Safe, non-slip positioning thanks to height-adjustable rubber feet

-Spirit level for precise levelling of the scale, as standard

-Hold function:
For patients who are standing or sitting unsteadily, a stable weight value is determined by averaging and “frozen”. This leaves enough time to attend to the patient and then read the weight value at your convenience

-BMI function to determine underweight/normal weight/overweight

-The scale can be easily transported using two rollers and a handle and stored away in a space-saving manner

-Evaluation unit with 2 magnets on the rear, ideal for attachment to metallic surfaces, e.g. to the weighing platform


Technical data:

-Readability/verification interval: 0.1 kg

-LCD display, digit height 25 mm

-Dimensions of evaluation unit: W×D×H 210×110×50 mm

Overall dimensions:
-MWS 300K100NM W×D×H 1155×800×66 mm
-MWS 400K100DM W×D×H 1255×1060×69 mm

-Cable length of evaluation unit approx. 180 cm

-Battery operation possible, 6×1.5 V AA, not included, operating time up to 50 h

-Mains adapter (external) as standard

-Net weight approx. 28.4 kg


Optional accessories: Stand for mounting the evaluation unit at a higher position, stand height approx. 950 mm,
KERN MWS - A01.
Our item number: 19507-01

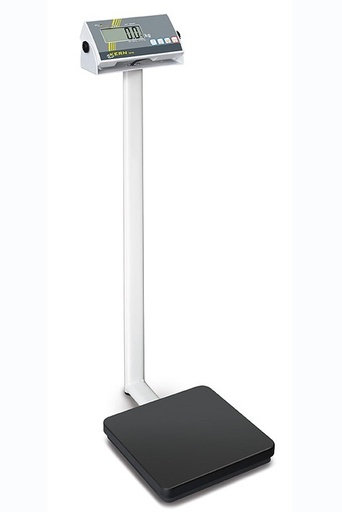

Personal Scale MPB 300K with BMI function with stand

- sturdy steel weighing platform with a non-slip, abrasion-resistant surface, easy and hygienic to clean
- Dynamic Weighing function, ideal for patients who are unable to stand still
- simple and convenient 4-button operation
- BMI function to determine normal weight/overweight

Product data:

Maximum capacity: 300 kg
Graduation: 100 g
LCD display: digit height 25 mm
Weighing platform dimensions (W x D x H): 315 x 300 x 60 mm
Display unit dimensions (W x D x H): 210 x 110 x 50 mm
Overall dimensions incl. stand (W x D x H): 315 x 440 x 1010 mm
Battery operation possible, 6 x 1.5 V AA (not included)
Operating time approx. 170 hrs. Mains adapter supplied as standard
Net weight: approx. 6.4 kg

Personal scale MPE 250K100HM with stand and height measuring rod incl. EUR 69.00 calibration costs

- Calibrated to Class III
- Medical approval in accordance with 93/42/EEC
- Rear secondary display
- Telescopic height measuring rod integrated in the stand, measuring range 88–200 cm
- Robust design for daily use in professional environments
- Hygienic and easy to clean
- Safe, non-slip positioning thanks to height-adjustable rubber feet. Spirit level for precise levelling of the scale as standard
- Large, non-slip weighing platform
- Vibration-free weighing: vibrations are filtered out to determine a stable weight value, ideal for patients who cannot stand still
- Data-hold function: when weighing is stable, the weight display is “frozen” for 10 seconds, giving enough time to read the result at ease
- Mother-and-child function: the mother’s weight determined by weighing is set to zero at the press of a button. The mother and child are then weighed together. The child’s weight is displayed directly. Particularly comfortable for small children, who can be weighed safely and securely in the mother’s arms
- BMI function for determining normal weight/overweight
- 2 rollers for convenient transport of the scale
- Fine display: at the touch of a button, readability can be increased by 1 digit for 5 seconds

Product data:

Maximum capacity: 250 kg
Graduation: 100 g
LCD display: digit height 25 mm
Dimensions of weighing platform (W x D x H): 365 mm x 360 mm x 80 mm
Dimensions of display unit (W x D x H): 200 mm x 128 mm x 55 mm
Incl. batteries (6 x 1.5 V AA) - mains adapter (external) as standard
RS232 data interface as standard
Net weight: approx. 12 kg

Personal scale MPE 250K100PM with stand incl. EUR 51.00 calibration costs

- Calibrated to Class III
- Medical approval according to 93/42/EEC
- Rear secondary display
- Robust design for daily use in professional environments
- Hygienic and easy to clean
- Safe, non-slip positioning thanks to height-adjustable rubber feet. Spirit level for precise levelling of the scale as standard
- Large, non-slip platform
- Vibration-free weighing: vibrations are filtered out to determine a stable weight value, ideal for patients who cannot stand still
- Automatic Data Hold function: when weighing is stable, the weight display is “frozen” for 10 sec. This leaves enough time to read the weight at ease
- Mother-and-child function: the mother’s weight determined by weighing is set to zero at the touch of a button. The mother and child are then weighed together. The child’s weight is now displayed directly. Particularly comfortable for small children, as they can be weighed safely and securely in the mother’s arms
- BMI function to determine normal weight/overweight
- 2 rollers for convenient transport of the scale
- Fine display: at the press of a button, readability can be increased by 1 digit for 5 seconds

Product data:

Capacity: 250 kg
Graduation: 100 g
LCD display: digit height 25 mm
Weighing platform dimensions (W x D x H): 365 mm x 360 mm x 80 mm
Display unit dimensions (W x D x H): 200 mm x 128 mm x 55 mm
Incl. batteries (6 x 1.5 V AA)
Mains adapter (external) as standard
RS232 data interface as standard
Net weight: approx. 12 kg

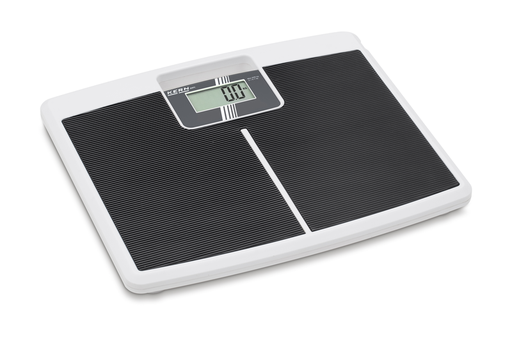

Personal scale with an extra-large, low-profile weighing platform for easy step-on access and maximum safety

This personal scale is the ideal measuring instrument for elderly care, paramedical use or private use, including weighings in the obese range up to 200 kg
Very large weighing platform
Hygienic and easy to clean
The scale can be conveniently carried using the handle and stored in a space-saving way
Extra-flat design makes stepping on easier
Extra-large platform with a non-slip, abrasion-resistant plastic surface
Very easy to use: tap – step on – read
Integrated AUTO-OFF function to save battery power
Unit switch from kg to lb possible
Large display, makes reading easier
Supplied in an individual designer packaging

Technical data:

Weighing range (max): 200 kg
Readability (d): 0.1 kg
Units: kg, lb
Dimensions of weighing platform (W x D x H): 433 x 370 x 34.5 mm
Battery operating time: 20 h
Net weight: 3.024 kg
Scale type: single-range scale

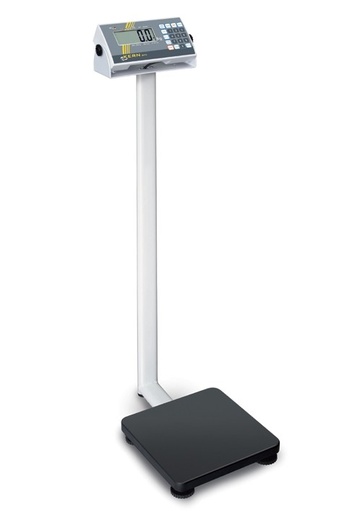

Personal scale MPS 200K100PM with stand incl. EUR 51.00 verification costs

- verified to Class III
- medical approval in accordance with 93/42/EEC
- sturdy steel weighing platform with non-slip and abrasion-resistant surface
- easy and hygienic to clean
- safe, non-slip positioning thanks to height-adjustable rubber feet
- Dynamic Weighing function to determine a stable weighing value, ideal for patients who cannot stand still
- Data Hold function: when the weighing stabilises, the weight display is automatically “frozen” until the Hold button is pressed
- intuitive operation via keypad
- PRE-TARE function for 5 weight values
- BMI function to determine normal weight/overweight
- battery and mains operation possible
- wall bracket for wall mounting of the display unit included as standard

Product data:

Capacity: 200 kg
Graduation: 100 g
LCD display: digit height 25 mm
Dimensions of weighing platform (W x D x H): 275 x 295 x 58 mm
Dimensions of display unit (W x D x H): 210 x 110 x 50 mm
Overall dimensions incl. stand (W x D x H): 275 x 430 x 1015 mm
Battery operation possible, 6 x 1.5 V AA (not included), operating time approx. 57 hrs
Mains adapter (external) included as standard
RS232 data interface included as standard
Net weight: approx. 6 kg

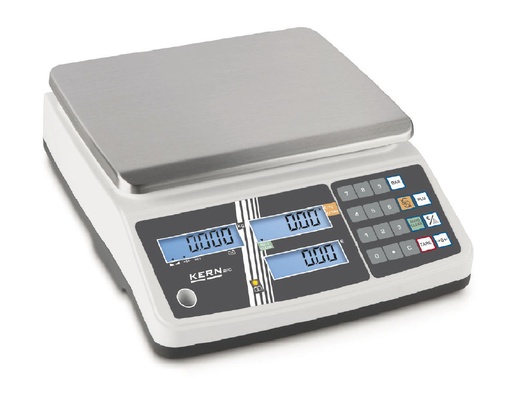

- New: modern, ergonomic design and an even more compact housing, supporting efficient work and saving space
- Secondary display on the rear of the scale, as standard (only for models without column display)
- Three displays for: weight (legal-for-trade), unit price, total price
- Change calculation
- Unit price switchable from €/kg to €/100 g
- Memory (PLU) for 10 item prices
- Auto-clear key: the set unit price is automatically cleared when the scale is unloaded

Application examples:
Retail shops
Markets (mobile)
Farm shops
Fruit and vegetable sales for pick-your-own customers

Product data:

Design:
Housing dimensions (W×D×H): 310 mm x 270 mm x 65 mm
Rotating levelling feet: yes
Housing material: plastic
Overall dimensions, fully assembled (W×D×H): 310 mm x 270 mm x 65 mm
Spirit level: yes
Weighing plate material: stainless steel
Weighing surface (W×D): 204 mm x 263 mm

Measuring system:
Readability [d]: 2 g / 5 g
Warm-up time: 10 min / 10 min
Number of weighing ranges: 2
Resolution: 3 3,000
Resolution (legal-for-trade): 6000
Resolution (non-legal-for-trade): 6000
Eccentric loading at 1/3 Max: 10 g / 25 g
Stabilisation time under laboratory conditions: 2 s
Recommended calibration weight: 15 kg (M1)
Calibration options: calibration with external weight
Linearity: 6 g / 15 g
Repeatability: 2 g / 5 g

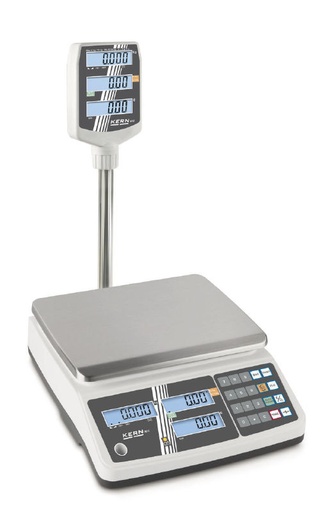

- New: modern, ergonomic design and an even more compact housing, supporting efficient working and saving space
- High-visibility backlit display, rotatable on stand, stand height approx. 480 mm, only -HM, not retrofittable
- Three displays for: weight (verifiable), unit price, sales price
- Change calculation
- Unit price switchable from €/kg to €/100 g
- Memory (PLU) for 10 item prices
- Auto-clear button: the set unit price is automatically cleared when the scale is unloaded

Application examples:
Retail shops
Mobile markets
Farm shops
Fruit and vegetable sales for pick-your-own customers

Product data:

Design
Housing dimensions (W×D×H): 310 mm x 270 mm x 65 mm
Rotatable levelling feet: yes
Housing material: plastic
Overall dimensions, fully assembled (W×D×H): 310 mm x 270 mm x 545 mm
Spirit level: yes
Weighing pan material: stainless steel
Stand height: 48 cm
Weighing surface (W×D): 204 mm x 263 mm

Measuring system:
Readability [d]: 2 g / 5 g
Warm-up time: 10 min / 10 min
Number of weighing ranges: 2
Resolution: 3 3,000
Resolution (verifiable): 6000
Resolution (non-verifiable): 6000
Off-centre load at 1/3 Max: 10 g / 25 g
Stabilisation time under laboratory conditions: 2 s
Recommended adjustment weight: 15 kg (M1)
Adjustment options: adjustment with external weight
Linearity: 6 g / 15 g
Repeatability: 2 g / 5 g
