Scales, Height and Circumference Meters

- High mobility thanks to compact, low-profile design, suitable for use at multiple locations (laboratory, quality control, order picking etc.)
- Platform: stainless steel weighing plate, painted steel base, silicone-coated aluminium load cell, dust and splash water protection IP65
- Spirit level and foot screws for precise levelling of the scale as standard, ensuring maximum weighing accuracy
- Percentage determination: enables weighing in to a preset value (100%) and determining deviations from this target value
- Weighing with tolerance range (checkweighing): an optical and acoustic signal supports portioning, dosing or sorting
- Hold function: in unstable weighing conditions, a stable weight value is calculated by averaging
- Table stand incl. wall bracket for the display unit as standard
- Weigh instead of counting! The easy-to-use counting function allows quick recording of large quantities of small parts – saving time and costs!
- Querying and remote control of the scale via external control devices or computer using the KERN Communication Protocol (KCP). KCP is a standardised interface command set for KERN scales and other instruments, enabling retrieval and control of all relevant parameters and device functions. KERN devices with KCP can therefore be easily integrated into computers, industrial controllers and other digital systems. The KCP protocol is largely compatible with the MT-SICS protocol. Only possible via RS-232 data interface; further interfaces available on request
- Protective work cover included in delivery

Product data:

Design
Dimensions of display unit (W×D×H): 268 mm x 115 mm x 80 mm
Dimensions of weighing plate (W×D×H): 300 mm x 300 mm x 110 mm
Rotating foot screws: yes
Cable length display unit: 3 m
Spirit level: yes
Material of weighing plate: stainless steel
Stand height: 33 cm
Wall bracket: yes
Weighing surface (W×D): 300 mm x 300 mm

Functions:
Vibration-free weighing (animal weighing programme): yes
Percentage determination: yes
Weighing with tolerance range: yes
Counting function: yes

Measuring system
Readability [d]: 1 g / 2 g
Warm-up time: 10 min / 10 min
Resolution: 3 3,000
Off-centre load at 1/3 Max: 5 g / 10 g
Stabilisation time under laboratory conditions: 2 s
Recommended adjustment weight: 6 kg (M1)
Adjustment options: adjustment with external weight
Linearity (in points): 3
Linearity: 3 g / 6 g
Repeatability: 1 g / 2 g
Tare range: -6 kg
Weighing range [Max]: 3 kg / 6 kg
Weighing units: g kg lb oz

- High mobility thanks to compact, low-profile design, suitable for use at multiple locations (laboratory, quality inspection, order picking, etc.)
- Platform: stainless steel weighing plate, painted steel base, silicone-coated aluminium load cell, dust and splash-water protection IP65
- Spirit level and levelling feet for precise levelling of the scale as standard, ensuring maximum weighing accuracy
- Percentage determination: enables weighing-in to a preset value (100%) and determining deviations from this target value
- Weighing with tolerance range (checkweighing): an optical and acoustic signal supports portioning, dosing or sorting
- Hold function: in unstable weighing conditions, a stable weight value is calculated by averaging
- Table base incl. wall bracket for the indicator as standard
- Weigh instead of count! The simple operation of the counting function enables fast recording of large quantities of small parts – saving time and costs!
- Querying and remote control of the scale via external control devices or computer using the KERN Communication Protocol (KCP). KCP is a standardised set of interface commands for KERN scales and other instruments, allowing retrieval and control of all relevant parameters and device functions. This makes it easy to connect KERN devices with KCP to computers, industrial controllers and other digital systems. The KCP protocol is largely compatible with the MT-SICS protocol. Only possible via RS-232 data interface; further interfaces available on request
- Protective work cover included in the scope of delivery

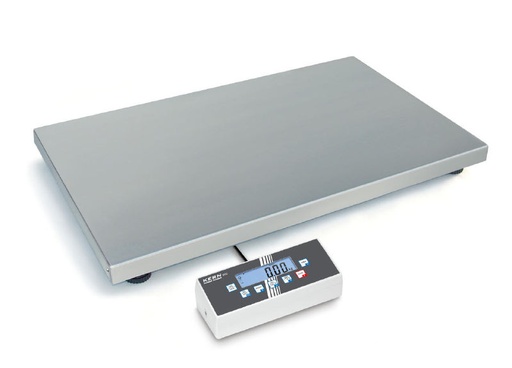

Product data:

Design
Dimensions of indicator (W×D×H): 268 mm x 115 mm x 80 mm
Dimensions of weighing plate (W×D×H): 950 mm x 500 mm x 60 mm
Swivelling levelling feet: yes
Indicator cable length: 2.700 m
Spirit level: yes
Material of weighing plate: stainless steel
Stand height: 33 cm
Wall bracket: yes
Weighing surface (W×D): 950 mm x 550 mm

Functions
Vibration-free weighing (animal weighing programme): yes
Percentage determination: yes
Weighing with tolerance range: yes
Counting function: yes

Measuring system
Readability [d]: 20 g / 50 g
Warm-up time: 10 min / 10 min
Resolution: 3 3,000
Eccentric load at 1/3 Max: 100 g / 250 g
Stabilisation time under laboratory conditions: 2 s
Recommended calibration weight: 150 kg (M1)
Calibration options: calibration with external weight
Linearity (in points): 3
Linearity: 60 g / 150 g
Repeatability: 20 g / 50 g
Tare range: -150 kg
Weighing capacity [Max]: 60 kg / 150 kg
Weighing units: g kg lb oz

- High mobility thanks to the compact, low-profile design, suitable for use at multiple locations (laboratory, quality inspection, order picking etc.)
- Platform: stainless steel weighing plate, painted steel substructure, silicone-coated aluminium load cell, dust and splash water protection IP65
- Spirit level and levelling feet for precise levelling of the scale as standard, ensuring maximum weighing accuracy
- Percentage determination: enables weighing in to a preset value (100%) and determining deviations from this target value
- Weighing with tolerance range (checkweighing): an optical and acoustic signal supports portioning, dosing or sorting
- Hold function: in unstable weighing conditions, an average value is calculated to obtain a stable weight reading
- Table stand incl. wall bracket for the indicator as standard
- Weigh instead of count! The easy-to-use counting function enables fast recording of large quantities of small parts – saving time and costs!
- Querying and remote control of the scale via external control devices or computers using the KERN Communication Protocol (KCP). KCP is a standardised set of interface commands for KERN scales and other instruments, enabling retrieval and control of all relevant parameters and device functions. KERN devices with KCP can therefore be easily integrated into computers, industrial controllers and other digital systems. The KCP protocol is largely compatible with the MT-SICS protocol. Only possible via RS-232 data interface; further interfaces available on request
- Protective work cover included in the delivery

Product data:

Design
Dimensions of indicator (W×D×H): 265 mm x 110 mm x 70 mm
Dimensions of weighing plate (W×D×H): 500 mm x 400 mm x 120 mm
Swivelling levelling feet: yes
Indicator cable length: 3 m
Spirit level: yes
Material of weighing plate: stainless steel
Stand height: 33 cm
Wall bracket: yes
Weighing surface (W×D): 500 mm x 400 mm

Functions
Vibration-free weighing (animal weighing programme): yes
Percentage determination: yes
Weighing with tolerance range: yes
Counting function: yes

Measuring system
Readability [d]: 5 g / 10 g
Warm-up time: 10 min / 10 min
Resolution: 3 3,500
Off-centre load at 1/3 Max: 25 g / 50 g
Stabilisation time under laboratory conditions: 2 s
Recommended adjustment weight: 30 kg (M1)
Adjustment options: adjustment with external weight
Linearity (in points): 3
Linearity: 15 g / 30 g
Repeatability: 5 g / 10 g
Tare range: -30 kg
Weighing capacity [Max]: 15 kg / 35 kg
Weighing units: g kg lb oz

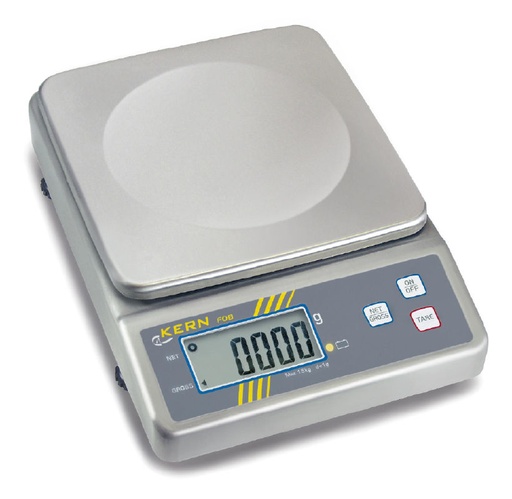

- NEW: Innovative checkweighing with tolerance range: the display colour changes depending on the weighing result (too light/OK/too heavy), supporting portioning, dosing and sorting
- Stainless-steel version of housing and weighing plate. Easy to clean thanks to smooth surfaces
- Increased moisture protection through waterproof silicone sealing of load cell, electronics and solder joints
- High mobility: thanks to compact, flat design suitable for use at multiple locations (kitchen, sales area, market stall, food laboratory, etc.)
- Net/gross weight: switch at the touch of a button to check the already loaded weighing range
- Supports your HACCP-compliant quality system

Application examples:
- Weighing ingredients and spices in catering/food service
- Portioning dough, meat, fish, poultry, salad plates in canteens, etc.
- Filling tins, etc.
- Checking pre-packaged products
- Safe, non-slip positioning thanks to rubber feet
- Check the already loaded weighing range at the touch of a button (net/gross weight)

Product data:

Design:
Housing dimensions (W×D×H): 180 mm x 235 mm x 60 mm
Rotating levelling feet: yes
Housing material: stainless steel
Spirit level: yes
Weighing plate material: stainless steel
Weighing surface (W×D): 175 mm x 165 mm

Measuring system:
Readability [d]: 2 g
Warm-up time: 10 min
Resolution: 3000
Off-centre load at 1/3 Max: 6 g
Stabilisation time under laboratory conditions: 2 s
Recommended calibration weight: 5 kg (M2)
Calibration options: calibration with external weight
Linearity: 4 g
Repeatability: 2 g
Weighing capacity [Max]: 6 kg
Weighing units: g lb oz
Weighing system: strain gauge load cell (DMS)

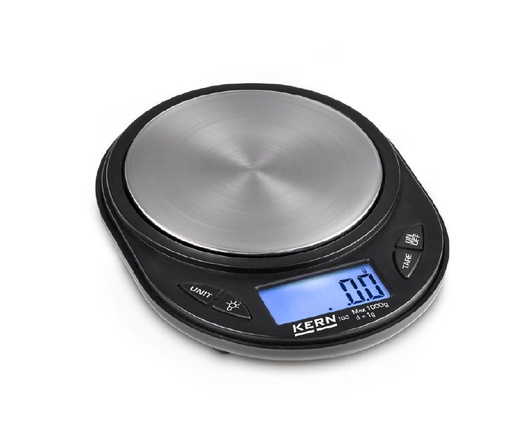

- High-resolution pocket scale with particularly fast response and settling time, enabling very efficient operation
- Extra-slim design
- Impact-resistant plastic cover for pressure and dust protection. Can also be used as a weighing container
- Stainless steel weighing plate, hygienic and easy to clean

Product data:
Housing dimensions (W×D×H): 100 mm x 130 mm x 18 mm
Housing material: Plastic
Weighing plate material: Stainless steel
Weighing surface (d): 81 mm
Display digit height: 12 mm
Battery: 2xCR2032
Battery operating time: 33 h

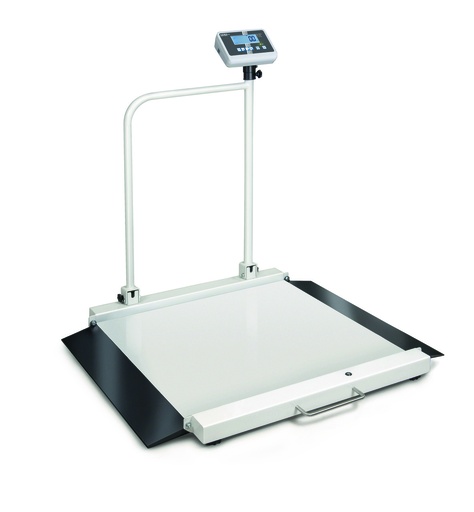

Wheelchair scale with two integrated access ramps for convenient rolling on –
with legal-for-trade verification and medical approval for professional, inpatient use in
medical diagnostics

Verification class III (verification included, price €56, incl.)

-Medical approval in accordance with 93/42/EEC

-Especially suitable for weighing patients in wheelchairs, thanks to the low-profile platform that can be accessed from both sides

-The large steel weighing platform is also ideally suited for weighing bariatric patients

-Spirit level for precise levelling of the scale as standard

-Hold function: For patients who are unsteady while standing or sitting, a stable weight value is determined by averaging and “frozen”. This leaves enough time to attend to the patient and then read the weight value at leisure

-MWA 300K-1PM:
This set includes the wheelchair scale MWA 300K-1M and the KERN MWA-A01 handrail
(including stand for ergonomically favourable mounting of the evaluation device), which offers the patient maximum safety when rolling onto or stepping onto the weighing platform

-The two access ramps and the handrail can be folded in with just a few simple steps, e.g. for convenient transport


Technical data:

-Readability/verification interval: 0.1 kg

-Large backlit LCD display, digit height 25 mm

-Dimensions of evaluation device: W×D×H 200×128×55 mm

-Overall dimensions, without handrail W×D×H 1180×1000×1130 mm

-Cable length of evaluation device approx. 180 cm

-Battery operation possible, 6×1.5 V AA, not included, operating time up to 20 h

-Mains adapter (external) as standard

-Net weight approx. 57.6 kg

Wheelchair scale with two integrated access ramps for convenient roll-on weighing –
with legal-for-trade calibration and medical approval for professional, stationary use in
medical diagnostics

Verification class III (calibration, price €56, incl.)

- Medical approval according to 93/42/EEC

- Particularly suitable for weighing patients in wheelchairs, thanks to the low-profile platform that can be accessed from both sides

- The large steel weighing platform is also ideal for weighing bariatric patients

- Spirit level for precise levelling of the scale included as standard

- Hold function: For patients who are unsteady when standing or seated, a stable weight value is determined via averaging and “frozen”. This leaves sufficient time to attend to the patient and then read the weight value at leisure


Technical data:

- Readability / verification interval: 0.1 kg

- Large backlit LCD display, digit height 25 mm

- Dimensions of the indicator unit: W×D×H 200×128×55 mm

- Overall dimensions, without support handle: W×D×H 1180×1000×1130 mm

- Indicator unit cable length approx. 180 cm

- Battery operation possible, 6×1.5 V AA, not included, operating time up to 20 h

- Mains adapter (external) included as standard

- Net weight approx. 57.6 kg

Professional, lightweight aluminium calliper. The measuring jaws have floating tips to ensure accurate and reproducible results. The 65 mm scale is large and easy to read. An adjustment scale for sex and age is included in a multilingual manual.

• Supplied in a high-quality soft carry case

OMRON BF212 Body Composition Monitor
Fast and easy body analysis

• 4-sensor technology (feet)
• For accurate measurement and classification of:
- Weight up to 150 kg / 100 g increments
- Body fat percentage
- Body Mass Index (BMI)
• Slim and compact (only 18 mm high)
• 4 user profiles and guest mode
• Also suitable for children
• Automatic switch-off
• Clinically validated

The OMRON BF212 body composition monitor, with its slim design (only 18 mm high), allows discreet and convenient storage. Thanks to its 4 foot sensors, it provides body analysis including body fat percentage and BMI. The sensor technology guarantees reliable readings up to 150 kg. Values are displayed in 100 g increments. The body composition monitor can be used for 4 personal profiles and also features an additional guest mode. The BF212 is suitable for children aged 10 and over, making it the ideal family model. The automatic switch-off function is both sustainable and environmentally friendly. The product has been assessed by an independent organisation and is clinically validated. Included in the delivery are the body composition monitor, batteries, instructions for use and warranty card.

OMRON digital scales allow you to measure your body weight and track progress towards your target weight. If you want a more complete picture of your body than weight alone, a body composition monitor is particularly valuable. With regular use, it records how your body changes and helps ensure that you do not lose muscle when you are actually trying to reduce body fat.

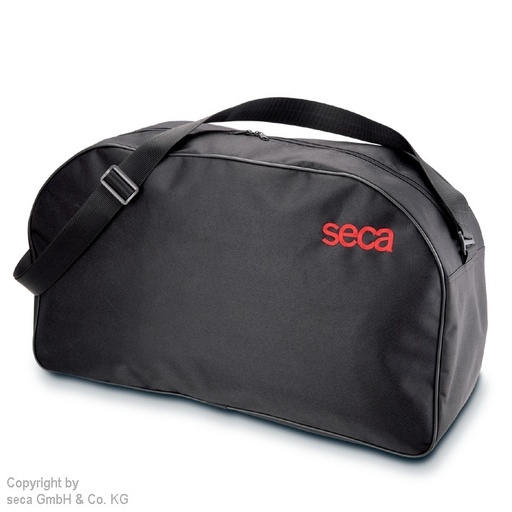

seca 413 carry bag for seca 354 infant scale
This bag allows the seca 354 infant scale to be transported conveniently and safely. The precise fit of the seca 413 provides optimal protection for the scale, and a generous opening makes packing and unpacking easy. An adjustable shoulder strap also makes it easier to carry. The water-repellent nylon surface protects the bag against splashes. - Dimensions (W x H x D): 570 x 150 x 330 mm - Net weight: 874 g

The seca 704 is suitable even for weighing heavyweight patients. In addition to its capacity of 250 kg, this is supported by the large platform, which is also positioned low. The surface made of a grooved rubber mat ensures a high level of stability. The cast-iron base gives the scales their outstanding stability. At the touch of a button, after weighing and entering the patient’s height, the patient’s BMI value can be determined quickly and easily. This provides reliable information about nutritional status. With the optionally integrable seca G3 220 measuring rod, height can also be measured in a single step.

Optional accessory: seca G3 220 measuring rod
Capacity: 250 kg
Graduation: 100 g
Dimensions (W x H x D): 360 x 930 x 520 mm
Platform (W x H x D): 335 x 80 x 345 mm
Net weight: 14.9 kg
Verification class: III
Power supply: Battery / mains adapter (optional)
Functions: TARE, HOLD, BMI

incl. €46.00 verification costs

The electronic flat scale with a classic, clean design and a 2-component rubber surface makes weighing easier.

Product data:

Maximum load: 150 kg
Graduation: 100 g
Function: Auto-HOLD, Tip-on, automatic switch-on, automatic switch-off
Scale dimensions (W x H x D): 316 x 37 x 326 mm
Platform dimensions (W x H x D): 295 x 35 x 305 mm
Net weight: 1.5 kg
Power supply: batteries

The scales can easily withstand up to 200 kilograms and feature a wide platform. They have a robust rubber surface and the low-profile design makes stepping on extremely easy.

Product data:

Maximum load: 200 kg
Graduation: 100 g
Functions: Auto-HOLD, Step-Off, Tip-on automatic switch-on, automatic switch-off
Dimensions (W x H x D): 433 x 47 x 373 mm
Platform dimensions (W x H x D): 400 x 45 x 300 mm
Net weight: 2.9 kg
Power supply: batteries

A large number of chrome-plated electrodes shows what this scale is capable of. In addition to weight, the scale can also calculate body fat, body water and BMI. It automatically recognises the respective user once age, gender, height and fitness level have been entered.

Product data:

Max. load: 150 kg
Graduation: 100 g
Functions: Auto-HOLD, BMI, body fat/body water measurement, user memory, automatic user recognition, tip-on switch-on function, automatic switch-off
Dimensions (W x H x D): 315 x 44 x 300 mm
Platform dimensions (W x H x D): 315 x 44 x 300 mm
Net weight: 1.3 kg
Power supply: batteries

Electronic baby scale SECA Lena 354
So that not only infants but also toddlers can be weighed, this scale has a truly special feature: the weighing tray can be quickly and easily detached from the base at the touch of a button. This eliminates the need to buy a second scale. Extra attention has also been paid to the comfort of the little ones, as the soft, rounded shape of the tray is designed to give them the important feeling of safety and security. The Breast-Milk-Intake Function also enables precise measurement of how much milk has been taken in during breastfeeding.

Product data:

Functions: TARE, Auto-HOLD, BMIF, automatic switch-off, weighing range switch-over
Capacity: 20 kg
Graduation: 10 g < 10 kg > 20 g
Dimensions (W x H x D): 552 x 156 x 332 mm
Scale dimensions (W x H x D): 525 x 80 x 250 mm
Platform dimensions (W x H x D): 280 x 65 x 235 mm - Net weight: 2.3 kg
Power supply: batteries

Measuring rod 220 for SECA 704 scales.

Measuring range: 85 cm to 200 cm

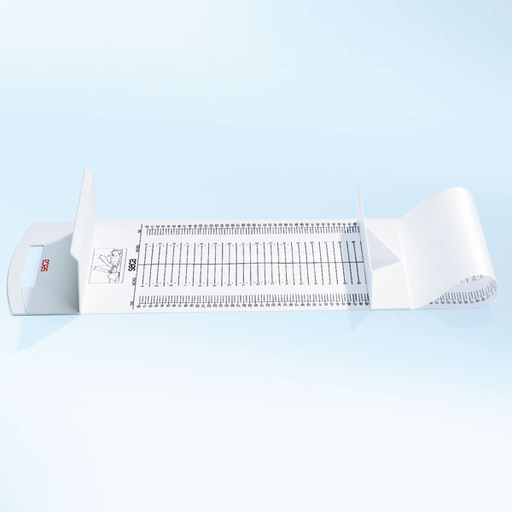

Skin-friendly, washable, foldable: the portable and space-saving solution for easy, precise measurement of the body length of infants and toddlers in a lying position. The fixed head stop and the easily movable foot stop make it easier to use.
Measuring range: 10–99 cm
Graduation: 5 mm
Dimensions (W x H x D): 300 x 140 x 1,340 mm
Net weight: 580 g, with hanging fixture

Large platform with high load capacity
Flexible cabled remote display
Integrated functions: BMI, pre-TARE, HOLD, damping
Precise, extra-robust seca weighing technology for up to 300 kg
Readings can be sent wirelessly at the touch of a button to a seca wireless printer or PC
