Scales, Height and Circumference Meters

- CAL adjustment program for setting accuracy using an external test weight
- Spirit level and levelling feet included as standard for precise levelling of the balance, ensuring highly accurate weighing results
- Large glass draught shield with 3 sliding doors for convenient access to the weighing sample
- Compact dimensions, ideal where space is limited
- Simple and convenient 6-key operation

Product data:

Housing dimensions (W×D×H): 230 mm x 310 mm x 330 mm
Draught shield dimensions (W×D×H): 175 mm x 175 mm x 230 mm
Rotating levelling feet: yes
Housing material: plastic
Spirit level: yes
Weighing pan material: stainless steel
Weighing surface (Ø): 90 mm
Weighing chamber (W×D×H): 170 mm x 160 mm x 205 mm
Display digit height: 16 mm

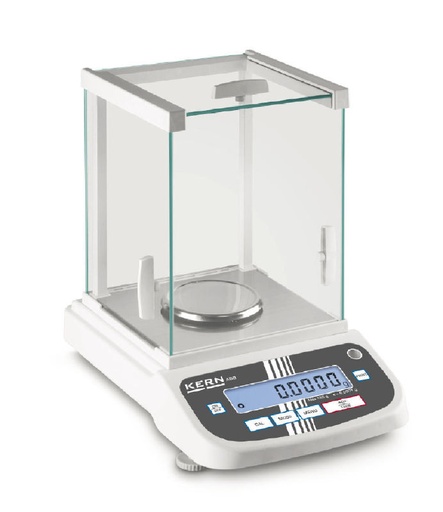

KERN ADB 600-C3! Compact, space-saving carat scale with a readability of 0.001 ct and a weighing range of 600 ct. The high accuracy saves real money wherever valuable gemstones are weighed.

- CAL adjustment program for setting accuracy using an external test weight
- Spirit level and levelling feet as standard for precise levelling of the scale, ensuring the most accurate weighing results
- Large glass draught shield with 3 sliding doors for convenient access to the weighing sample
- Compact dimensions, ideal where space is limited
- Simple and convenient 6-key operation

Product data:

Housing dimensions (W×D×H): 230 mm x 310 mm x 230 mm
Draught shield dimensions (W×D×H): 175 mm x 175 mm x 130 mm
Rotating levelling feet: yes
Housing material: plastic
Spirit level: yes
Weighing pan material: stainless steel
Weighing surface (Ø): 90 mm
Weighing chamber (W×D×H): 170 mm x 160 mm x 110 mm
Display digit height: 16 mm

KERN ADJ: Internal adjustment mechanism for temperature changes ≥ 2 °C and time-controlled every 3 h, guarantees high accuracy and enables location-independent use

KERN ADB 600-C3: Compact, space-saving carat scale with a readability of 0.001 ct and a weighing range of 600 ct. The high accuracy saves real money wherever valuable gemstones are weighed

CAL calibration programme for setting the accuracy using an external test weight
Spirit level and levelling feet for precise levelling of the balance as standard, ensuring maximum weighing accuracy
Large glass draught shield with 3 sliding doors for convenient access to the weighing sample
Compact dimensions, ideal where space is limited
Simple, convenient 6-key operation

The robust classic for quickly determining body weight

Timeless design
Sturdy construction
Large, easy-to-read circular dial
Large platform with a non-slip plastic surface
Safe, non-slip positioning thanks to rubber feet
Extremely simple operation: set down – read off
Convenient adjustment of the display via adjustment wheel
Supplied in an individual design packaging

Technical data:

Weighing range (max): 150 kg
Readability (d): 1 kg
Units: kg
Dimensions of weighing platform (W x D x H): 265 x 210 x 40 mm
Net weight: 3.2 kg
Scale type: single-range scale

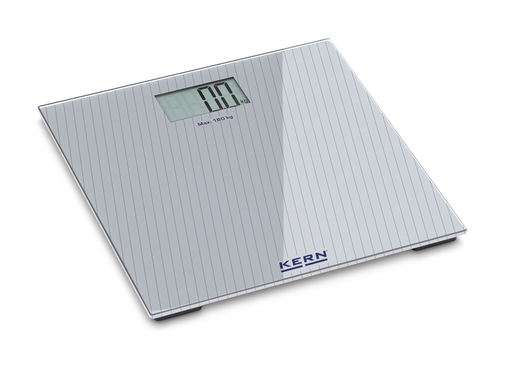

Premium look combined with a flat, stable glass weighing platform for easy step-on use and maximum safety

Elegant design
Stable glass weighing platform
Hygienic and easy to clean
Extra-slim design makes stepping on easier
Generous weighing surface
Safe, non-slip placement thanks to rubber feet
Very easy operation: tap – place – read
Integrated AUTO-OFF function to conserve battery power
Unit switch from kg to lb possible
Large display for easier reading
Supplied in an individual design box

Technical data:

Weighing range (max): 180 kg
Readability (d): 0.1 kg
Units: kg, lb
Dimensions of weighing platform (W x D x H): 300 x 300 x 19 mm
Battery operating time: 100 h
Net weight: 1.5 kg
Scale type: single-range scale

- Simple, convenient 2-button operation
- Very fast display: stable weighing values within approx. 3 seconds
- Suitable as a compact letter and parcel scale, especially where space is limited
- Suitable as a sorting, order picking or simple checkweigher in production or dispatch

Product data:

Design
Housing dimensions (W×D×H): 270 mm x 323 mm x 110 mm
Weighing pan dimensions (W×D×H): 252 mm x 228 mm x 12.5 mm
Housing material: plastic
Weighing pan material: plastic
Weighing surface (W×D): 252 mm x 228 mm
Display digit height: 25 mm

Measuring system:
Readability [d]: 5 g
Warm-up time: 10 min
Resolution: 3000
Eccentric loading at 1/3 Max: 25 g
Settling time under laboratory conditions: 3 s
Recommended calibration weight: 15 kg (M2)
Calibration options: calibration with external weight
Linearity: 15 g
Repeatability: 10 g
Weighing range [Max]: 15 kg
Weighing units: g
Weighing system: strain gauge (load cell)

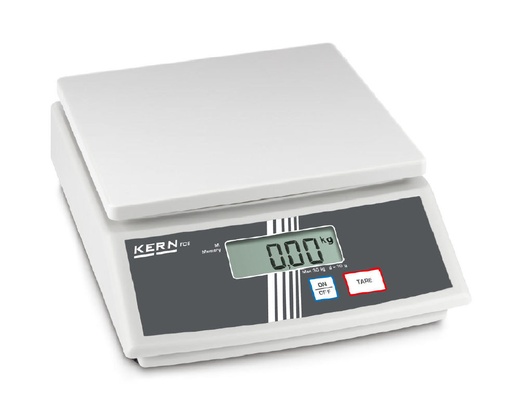

- Simple and convenient 2-button operation
- Very fast display: stable weighing results within approx. 3 sec
- Suitable as a compact letter and parcel scale, especially where space is limited
- Suitable as a sorting, order picking or simple checkweigher in production or dispatch

Product data:

Design
Housing dimensions (W×D×H): 270 mm x 323 mm x 110 mm
Weighing pan dimensions (W×D×H): 252 mm x 228 mm x 12.5 mm
Housing material: plastic
Weighing pan material: plastic
Weighing surface (W×D): 252 mm x 228 mm
Display digit height: 25 mm

Measuring system:
Readability [d]: 10 g
Warm-up time: 10 min
Resolution: 3000
Off-centre load at 1/3 Max: 50 g
Stabilisation time under laboratory conditions: 3 s
Recommended calibration weight: 30 kg (M2)
Calibration options: calibration with external weight
Linearity: 30 g
Repeatability: 10 g
Weighing capacity [Max]: 30 kg
Weighing units: kg
Weighing system: strain gauge load cell

- Simple and convenient 2-button operation
- Very fast display: stable weighing values within approx. 3 seconds
- Suitable as a compact letter and parcel scale, especially where space is limited
- Suitable as a sorting, order picking or simple checkweigher in production or dispatch

Product data:

Design
Housing dimensions (W×D×H): 270 mm x 323 mm x 110 mm
Weighing plate dimensions (W×D×H): 252 mm x 228 mm x 12.5 mm
Housing material: plastic
Weighing plate material: plastic
Weighing surface (W×D): 252 mm x 228 mm
Display digit height: 25 mm

Measuring system:
Readability [d]: 2 g
Warm-up time: 10 min
Resolution: 3000
Off-centre load at 1/3 Max: 10 g
Stabilisation time under laboratory conditions: 3 s
Recommended calibration weight: 6 kg (M2)
Calibration options: calibration with external weight
Linearity: 4 g
Repeatability: 2 g
Weighing range [Max]: 6 kg
Weighing units: g
Weighing system: strain gauge

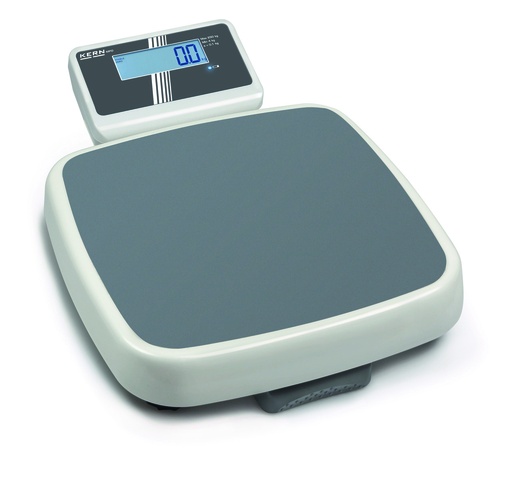

Professional step-on personal scale with legal-for-trade verification and medical approval

-Verification class III (price incl. verification, €56)

-Medical approval in accordance with 93/42/EEC

-The bestseller for doctors’ surgeries, pharmacies and hospitals: extremely time-saving in use – simply tap, position, read

-Robust design for everyday use in a professional environment

-Ergonomically optimised design

-Hygienic and easy to clean

-Safe, non-slip positioning thanks to height-adjustable rubber feet

-Spirit level for precise levelling of the scale included as standard

-Large platform with a non-slip, abrasion-resistant plastic surface for optimum patient stability

Variant:

NEW: Medical scale MPD 200K-1EM

Same design as MPD 250K100M but without backlight and mains adapter, battery operation only; the reduced resolution provides a faster display response.
Particularly attractive price!

KERN MPD: Battery and mains operation possible, rechargeable battery operation optional

Technical data:

-Dimensions weighing platform W×D×H 365×360×80 mm

-Dimensions evaluation unit W×D×H 200×128×55 mm

-Net weight approx. 10 kg

MPD-250K100M:

-Readability/verification scale interval: 0.1 kg

-Large backlit LCD display, digit height 25 mm

-Battery operation possible, 6×1.5 V AA,
not included, operating time up to 20 h

-Mains adapter (external) included as standard

MPD-200K-1EM:

-Readability/verification scale interval: 0.2 kg

-Large LCD display, without backlight, digit height 25 mm

-Battery operation, 6×1.5 V AA, operating time up to 20 h

Note: For applications subject to legal metrology verification, please order the verified scale; subsequent initial verification is not possible. For verification we require the full address of the installation site.

Product description:

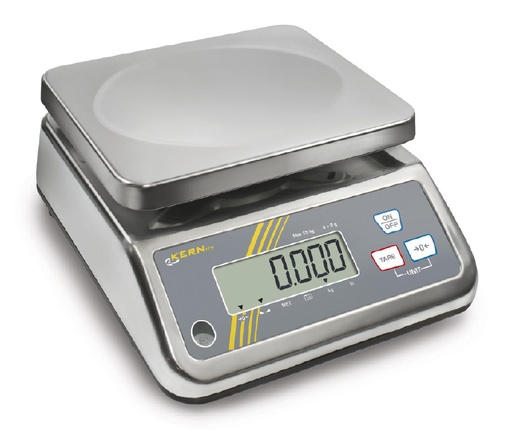

Compact organ scale, splash-proof thanks to stainless steel and IP65

Very well suited for determining the specific weight of organs, tissues, etc. in pathology or in the laboratory

-Stainless-steel protected housing with removable stainless-steel weighing pan, making it easy and hygienic to clean

-Suitable for the increased hygiene requirements in medical environments

-High mobility: Thanks to recessed grips on the underside, battery operation, compact design and low dead weight, suitable for use at multiple locations

-Safe, non-slip positioning thanks to height-adjustable rubber feet

-Built-in spirit level for precise levelling of the scale as standard

-IP65: Protected against dust and splashing water (battery operation only)


Technical data:

-Readability: 0.2 g

-Large LCD display, digit height 25 mm

-Dimensions of stainless-steel weighing pan W×D 230×190 mm

-Overall dimensions W×D×H 230×300×130 mm

-Net weight approx. 3.2 kg

-Permissible ambient temperature range 0 °C/40 °C

-FFN 1K-4N

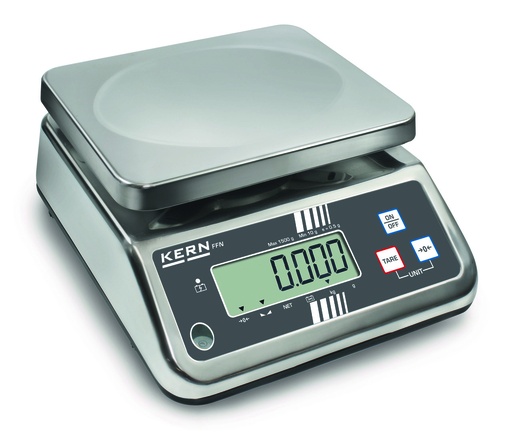

Compact organ scale, splash-proof thanks to stainless steel and IP65

Very well suited for determining the specific weight of organs, tissues, etc. in pathology or in the laboratory

-Verification class III (verification, price €55, incl.)

-Stainless-steel protected housing with removable stainless-steel weighing plate, making it easy and hygienic to clean

-Suitable for increased hygiene requirements in medical environments

-High mobility: Thanks to recessed grips on the underside, battery operation, compact design and low dead weight, suitable for use at multiple locations

-Safe, non-slip positioning thanks to height-adjustable rubber feet

-Spirit level for precise levelling of the scale as standard

-IP65: Protected against dust and splashing water (battery operation only)


Technical data:

-Readability: 0.5 g

-Verification interval: 0.5 g

-Large LCD display, digit height 25 mm

-Stainless-steel weighing plate dimensions W×D 230×190 mm

-Overall dimensions W×D×H 230×300×130 mm

-Net weight approx. 3.2 kg

-Permissible ambient temperature range 0 °C to 40 °C

-FFN 1K-4NM

Gemstone bowl

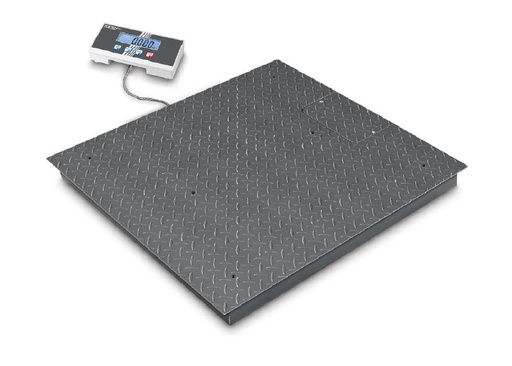

- Weighbridge: slip-resistant steel chequer plate, 4 silicone-coated steel load cells, dust and splash-water protection IP67
- Convenient levelling of the weighbridge and access to the junction box from above
- Simple and convenient 4-button operation
- Wall bracket for wall mounting of the display unit included as standard
- A clever plug connection allows the indicator and platform to be conveniently separated, e.g. for retrofitting the scale into a packing and shipping table, pit frame, etc.

Did you know? Our floor scales are delivered in a sturdy wooden box. This protects the high-quality weighing technology from environmental influences and loads during transport.

Product data:

Design
Dimensions (W×D×H): 1200 mm x 1500 mm x 108 mm
Display unit dimensions (W×D×H): 235 mm x 114 mm x 51 mm
Weighing plate dimensions (W×D×H): 1200 mm x 1500 mm x 108 mm
Swivelling foot screws: yes
Cable length: 5 m
Display unit cable length: 5 m
Spirit level: yes
Weighing surface (W×D): 1200 mm x 1500 mm

Measuring system
Readability [d]: 100 g / 200 g
Warm-up time: 10 min / 10 min
Resolution: 3 3,000
Off-centre load at 1/3 Max: 500 g / 1000 g
Stabilisation time under laboratory conditions: 2 s
Recommended calibration weight: 600 kg (M1)
Calibration options: calibration with external weight
Linearity: 300 g / 600 g
Repeatability: 100 g / 200 g
Tare range: -600 kg
Weighing capacity [Max]: 300 kg / 600 kg
Weighing units: g kg lb oz

- Weighing platform: non-slip steel chequer plate, 4 silicone-coated steel load cells, dust and splash-water protection IP67
- Convenient levelling of the weighing platform and access to the junction box from above
- Simple and convenient 4-button operation
- Wall bracket for wall mounting of the indicator included as standard
- A clever plug-in connection allows the indicator unit and platform to be easily disconnected, e.g. for retrofitting the scale into a packing and shipping table, pit frame, etc.

Did you know? Our floor scales are delivered in a sturdy wooden box. This protects the high-quality weighing technology from environmental influences and stresses during transport.

Product data:

Design
Dimensions of indicator (W×D×H): 235 mm x 114 mm x 51 mm
Dimensions of weighing plate (W×D×H): 1000 mm x 1000 mm x 108 mm
Rotating foot screws: yes
Cable length: 5 m
Cable length (indicator): 5 m
Spirit level: yes
Weighing surface (W×D): 1000 mm x 1000 mm

Measuring system
Readability [d]: 100 g / 200 g
Warm-up time: 10 min / 10 min
Resolution: 3 3,000
Off-centre load at 1/3 Max: 500 g / 1,000 g
Stabilisation time under laboratory conditions: 2 s
Recommended calibration weight: 600 kg (M1)
Calibration options: calibration with external weight
Linearity: 300 g / 600 g
Repeatability: 100 g / 200 g
Tare range: -600 kg
Weighing range [Max]: 300 kg / 600 kg
Weighing units: g kg lb oz

- NEW: Fully featured crane scale for low to medium load ranges. The robust design provides added safety (TÜV tested). Thanks to the large LCD display and the remote control supplied as standard, it can be read and operated safely even from a greater distance.
1 With the TÜV test mark, the scales meet the requirements of standards EN 13155 (non-fixed load lifting attachments) and EN 61010-1 (electrical safety).
- High mobility: Thanks to battery operation and a compact, lightweight design, suitable for use at multiple locations (production, warehouse, shipping).
- Hold function: when the weight is stable, the weight display is automatically “frozen” until the HOLD button is pressed.
- Tare: Reset the display to “0” with the scale loaded. Loads removed or added are then displayed directly.
- Battery level indicator, visual via LED.
- Large, high-contrast display for easy reading.
- Stand-by function: Automatic switch-off of the display after 5 minutes without any change in load. Automatic activation with any key press.
- Hook with safety catch, swivel.
2 Infrared remote control supplied as standard. Wireless range up to 20 m. All functions can be selected. Batteries included.

Design
Dimensions of display unit (W×D×H): 150 mm x 79 mm x 97.7 mm
Dimensions of housing (W×D×H): 150 mm x 79 mm x 97 mm
Housing material: Plastic
Overall dimensions, fully assembled (W×D×H): 150 mm x 276 mm x 79 mm

Measuring system
Readability [d]: 50 g
Warm-up time: 10 min
Resolution: 3000
Stabilisation time under laboratory conditions: 2 s
Recommended calibration weight: 100 kg (M1)
Calibration options: Calibration with external weight
Linearity: 100 g
Accuracy (of [Max]): 0.200 %
Repeatability: 50 g
Weighing range [Max]: 150 kg
Weighing units: kg lb N
Weighing system: Strain gauge load cell (strain gauge)

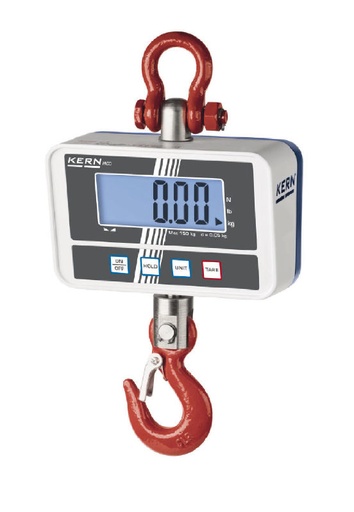

- NEW: Fully featured crane scale for low to mid load ranges. The robust design provides added safety (TÜV tested). Thanks to the large LCD display and the remote control supplied as standard, it is easy to read and operate safely even from a greater distance
1 With the TÜV test mark, the scales meet the requirements of EN 13155 (non-fixed load lifting attachments) and EN 61010-1 (electrical safety)
- High mobility: Battery operation and a compact, lightweight design make it suitable for use at multiple locations (production, warehouse, shipping)
- Hold function: When the load is stable, the weight display is automatically “frozen” until the HOLD key is pressed
- Tare: Reset the display to “0” with the scale under load. Removed or added loads are then displayed directly
- Battery level indicator, visual via LED
- Large, high-contrast display, makes reading easier
- Stand-by function: Automatic switch-off of the display after 5 min without load change. Automatic activation with any key press
- Hook with safety catch, swivelling
2 Infrared remote control supplied as standard. Radio range up to 20 m. All functions selectable. Batteries included

Design
Dimensions of indicator unit (W×D×H): 150 mm x 79 mm x 97.7 mm
Housing dimensions (W×D×H): 150 mm x 79 mm x 97 mm
Housing material: Plastic
Overall dimensions fully assembled (W×D×H): 150 mm x 276 mm x 79 mm

Measuring system
Readability [d]: 100 g
Warm-up time: 10 min
Resolution: 3000
Stabilisation time under laboratory conditions: 2 s
Recommended calibration weight: 200 kg (M1)
Calibration options: Calibration with external weight
Linearity: 200 g
Accuracy (of [Max]): 0.200%
Repeatability: 100 g
Weighing range [Max]: 300 kg
Weighing units: kg lb N
Weighing system: Strain gauge load cell

- NEW: Fully featured crane scale for lower to medium load ranges. The robust design provides added safety (TÜV tested). Thanks to the large LCD display and the remote control supplied as standard, the scale is easy to read and operate safely even from a greater distance
1 With the TÜV test mark, the scales meet the requirements of EN 13155 (Loose lifting attachments) and EN 61010-1 (Electrical safety)
- High mobility: Suitable for use at multiple locations (production, warehouse, dispatch) thanks to battery operation and a compact, lightweight design
- Hold function: When weighing is stable, the weight display is automatically “frozen” until the HOLD key is pressed
- Tare: Reset the display to “0” with the scale under load. Removed or added loads are then displayed directly
- Battery status indicator, visual via LED
- Large, high-contrast display for easy reading
- Stand-by function: Automatic switch-off of the display after 5 min with no change in load. Automatic activation with any key press
- Hook with safety catch, swivel-mounted
2 Infrared remote control supplied as standard. Wireless range up to 20 m. All functions can be selected. Batteries included

Design
Dimensions of display unit (W×D×H): 150 mm x 79 mm x 97.7 mm
Housing dimensions (W×D×H): 150 mm x 79 mm x 97 mm
Housing material: Plastic
Overall dimensions fully assembled (W×D×H): 150 mm x 276 mm x 79 mm

Measuring system
Readability [d]: 20 g
Warm-up time: 10 min
Resolution: 3000
Settling time under laboratory conditions: 2 s
Recommended calibration weight: 50 kg (M1)
Calibration options: Calibration with external weight
Linearity: 40 g
Accuracy (of [Max]): 0.200 %
Repeatability: 20 g
Weighing range [Max]: 60 kg
Weighing units: kg lb N
Weighing system: Strain gauge load cell (DMS)

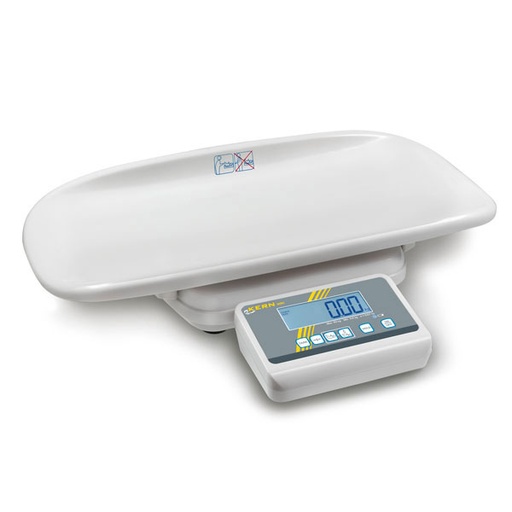

Attractively designed baby scale with calibration and medical approval

- Calibrated to Class III / Medical approval in accordance with 93/42/EEC
- Robust ABS plastic. Hygienic and easy to clean
- Data hold function: when the weight is stable, the weight display is automatically “frozen” for 10 seconds until the HOLD button is pressed.
- The baby’s weight can be saved before breastfeeding.

Optional accessory: Battery pack MBC-A03
Operating time up to 40 h, charging time approx. 12 h

Product data:

- Backlit LCD display: digit height 25 mm
- Dimensions of weighing tray: 600 x 280 x 55 mm (W x D x H)
- Overall dimensions: 890 x 460 x 55 mm (W x D x H)
- Weighing range, type: K8 15 max.: 6/15 kg
- Weighing range, type: K8 20 max.: 20 kg
- Readability: up to 6 kg = 0.002 kg, from 6 kg to 15 kg = 0.005 kg
- Battery operation (internal): standard
- Operating time: up to 40 hours (without backlight)
- Charging time: approx. 12 hours
- Mains adapter (external): standard
- Net weight: approx. 5.5 kg

Calibration costs included!!!
