Defibrillators

This is a replacement battery for the iPAD NF1200.

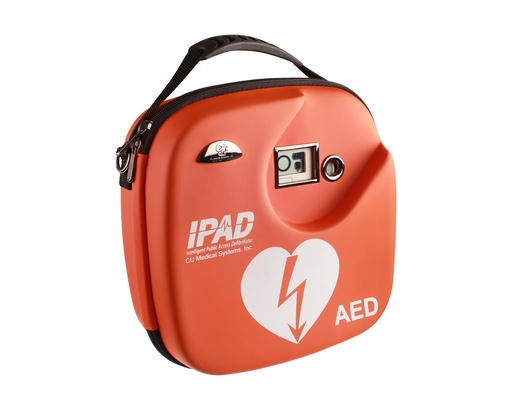

The carry case for the iPAD CU-SP1 is high-quality finished, ideal for mobile use and protects your AED from external influences.

- Case for the CU-SP1 semi
- High-quality workmanship
- Ideal for mobile use

ATTENTION!!!! From now on with LONG LIFE BATTERY. Price advantage: EUR 180.00!

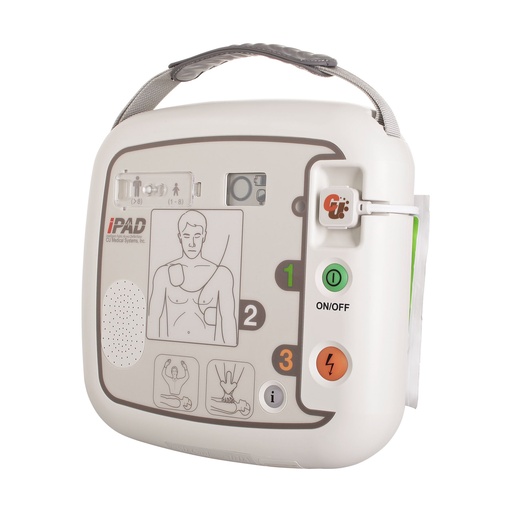

Latest-generation AED device –
the semi-automatic external defibrillator
iPAD CU-SP1

EASY TO UNDERSTAND
Automatic volume
Immediately after switch-on, the device detects ambient noise and automatically adjusts the volume of its voice prompts accordingly. Especially in crowded railway stations, at airports or in factory halls with lots of loud background noise, this feature can be life-saving.

READY FOR IMMEDIATE USE
Pre-connected electrodes – cleverly stored
Already connected and well protected, the defibrillation electrodes are located on the underside of the device in an integrated storage compartment. This makes your AED even safer and faster to deploy! Are the electrodes new? If used or expired “intelligent” electrodes are connected, the smart defibrillator immediately tells you what to do.

SIMPLE CONTROL
Adult and paediatric mode
Is the patient a child? Thanks to a simple slider, you can quickly switch from adult to paediatric mode. The device then operates with less energy to protect the smaller heart muscle. Special paediatric electrodes are available as an option.

DOUBLE PROTECTION
Artifact and CPR detection
As an intelligent first-aid defibrillator, the CU-SP1 detects whether the patient is being touched by other people. In this case, it will not deliver a shock. Not only is the emergency patient optimally cared for – you as a first aider are protected too! In addition, the iPAD CU-SP1 detects whether you are performing chest compressions to ensure the best possible chances of survival for the emergency patient.

ALWAYS IN VIEW
The clear status display
Whether battery charge level or electrode status – the LCD display lets you keep the functionality of your iPAD in view at all times! Is your device ready for use? Regular self-tests check whether everything is OK. Do the defibrillation electrodes need to be replaced? The display warns you in good time, starting as early as three months before the expiry date.

AFTER USE
Memory and data transfer
The iPAD CU-SP1 stores up to five emergency deployments on an SD card. Would you like to evaluate the ECGs on your computer? Simply transfer the data via SD card or via infrared interface. With the optionally available CU-EX1 software, you can edit and archive the patient data.

Product data:

Defibrillator
Type: Semi-automatic external defibrillator
Model: CU-SP1
Manufacturer: CU Medical Systems, Inc.
Waveform: Biphasic truncated exponential pulse, E-cube technology
Delivered energy: 150 joules for adults, 50 joules for children, impedance-compensated
Charge time: Under 8 seconds

Controls
LCD display (electrode and battery status, proper functionality), metronome for chest compressions, voice prompts (automatic volume adjustment to the operating environment) and backlit pictograms, pre-connected electrodes, slider for adult and paediatric mode, information button for detailed voice instructions (optionally activatable),
shock button, on/off switch

Resuscitation guidelines
Standard default setting: 5 cycles with 30 chest compressions and 2 ventilations (in accordance with the CPR Guidelines 2010)
Custom settings
Number of chest compressions, number of ventilations, number of cycles, number of chest compressions per minute, pause duration, activation of the detailed instructions (individually adjustable in line with future guideline changes)

Self-tests
Automatic self-diagnostic test after switch-on and continuous functional tests during use; daily, weekly and monthly self-diagnostic tests
Manual self-diagnostic test after each battery insertion

Environmental conditions
Operation and storage: Temperature 0 °C to 43 °C, humidity: 5% to 95% (non-condensing)
Transport: Temperature -20 °C to 60 °C
Vibration protection: Switched on: complies with MIL-STD-810G, Fig. 514.6E-1, random test; Stand-by: complies with MIL-STD-810G, Fig. 514.6E-2, swept sine (helicopter)
Protection rating: Protected against dust and water jets, rating IP55 in accordance with DIN EN 60529: IP55
Drop protection: Withstands drops from up to 1.2 metres onto edges, corners or smooth surfaces
ESD: Complies with EN 61000-4-2:2001
EMC emissions: Meets EN 60601-1-2 limit values, method EN 55011:2007 + A2:2007, Group 1, Class B
EMC immunity: Meets EN 60601-1-2 limit values,
method EN 61000-4-3:2006 + A1:2008 Level 3 (10 V/m, 80 MHz to 2500 MHz)

Event documentation
Internal memory: Recording of up to 5 events, up to 3 hours of data
Data transfer: Via SD card or infrared interface
Data evaluation: PC software CU-EX1 (available as an option)

Power supply
Long-life battery 12 V DC; 4.2 Ah LiMnO2, at least 200 shocks or 8 hours operating time, at least 5 years stand-by time

Size and weight
Dimensions 260 mm x 256 mm x 69.5 mm
(width x length x height)
Weight 2.4 kg (including battery and electrodes)

Holder for all AEDs from the manufacturer CU-Medical Systems, Inc.
Wall mount made of high-quality acrylic glass, 5 mm thick – easy to clean
Dimensions: 44.5 cm high x 33 cm wide x 15 cm deep

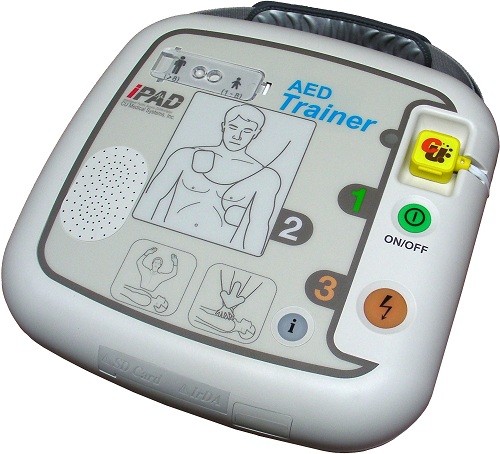

The training device runs through up to eight scenarios for faster responses to emergency situations.

Users can control all functions of the CU-SPT with one button or optionally with a remote control.

Power is supplied by six AA batteries/rechargeable batteries.

Scope of delivery: CU-SPT, device bag, training electrodes, user manual (German), AA batteries

- 8 scenarios
- Functions controlled via switch or remote control
- Power supply via 6 AA batteries/rechargeable batteries

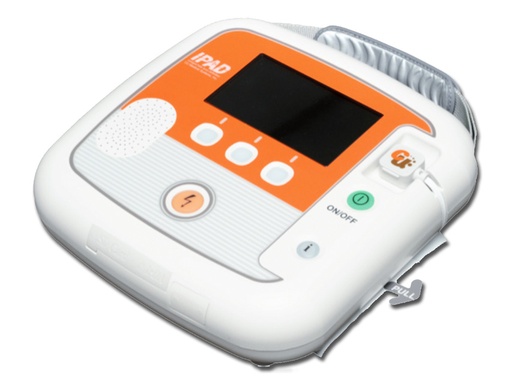

CU-SP2 is the latest generation of intelligent public access defibrillators with innovative features:

Automatic volume adjustment
It detects ambient noise and automatically adjusts the volume of the voice prompts so they remain audible over background noise.

Smart Pads – intelligent storage
The pre-installed “Smart” electrode pads are located in an easily accessible compartment on the underside of the device, ensuring the fastest possible deployment. In addition, the front visual indicator shows whether the connected pads are within their shelf life. The indicator changes when the pads have only 3 months remaining before expiry, giving you time to arrange replacements. It changes again once the expiry date is reached.

CPR detection
CPR is crucial to ensure the victim has the best chance of survival. iPAD CU-SP2 detects whether CPR is being performed and provides corresponding prompts; otherwise it prompts the responder to perform it.

Easy communication with CU-EX1 software
It enables viewing and analysing information such as power-on duration, the victim’s heart rhythm and delivered shocks. The iPAD CUSP2 stores 3 events in internal memory (up to 17 hours per event).

16 languages available (to be specified when ordering)
Selectable software languages: USA, GB, FR, IT, ES, DE, PT, NL, SE, PL, DK, NO, CZ, GR, AE, KR, IL. Supplied with SAVE PADS for adults, carry case, lithium disposable battery, paper manual (GB, IT) and CD manual in the above languages, except PL and GR.

Defibrillator
• Operating mode: Semi-automatic
• Waveform: E-cube biphasic (truncated exponential type)
• Energy: Fixed 150 J
- Adult: rated 150 J at 50 ohm load
- Infant/Child: nominal 50 joules at 50 ohm
• Charge control: Controlled by an automated patient analysis system
• Charging time: within 10 seconds from the voice prompt “a shock is required”
• Sealing:
- protected against water jets IPX5 in accordance with IEC60529 (IP55)
- dust-protected IP5X in accordance with IEC60529

User interface
• User support: Detailed voice prompts and flashing indicators
• CPR instruction: Voice prompts for performing CPR for adults and children
• Controls: On/Off button, “i” button, shock button
• Display: LCD display (device status, battery status, pad status)
• Sensing: pad expiry date, pad connection status

CPR monitoring
• Automatic volume adjustment

Data recording and transfer
• IrDA port: Wireless transfer of event data to PC, to SD card
• Internal memory (NAND flash): ECG, event
• Storage capacity: Multiple recording of 5 events / max. 3 hours
• Data review PC program: CU-EX1

Patient analysis system
• Patient analysis: Shockable rhythms – ventricular fibrillation, tachycardia
• Sensitivity/specificity complies with the AAMI DF80 guideline

High-capacity disposable battery
• Type: DC 11.1 V 1.9 Ah, Li-ion rechargeable
• Capacity: At least 60 shocks or 3 hours of operating time

These are electrodes for iPAD devices. Available for both adults and children, as well as for the training device.

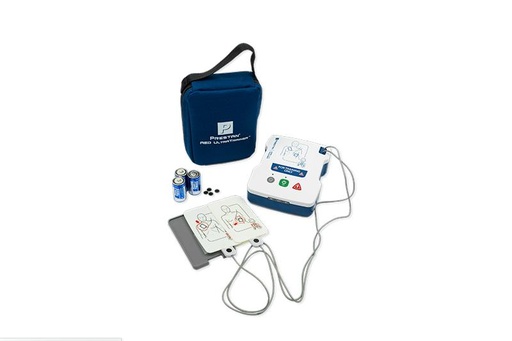

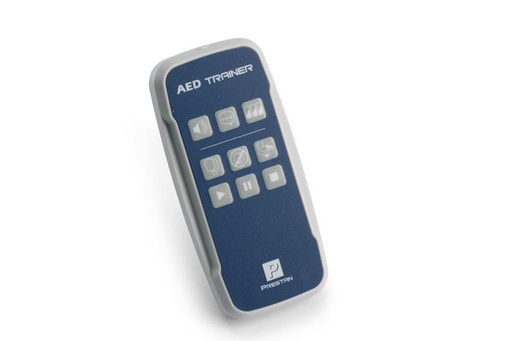

Prestan AED UltraTrainer
The Prestan AED UltraTrainer offers performance features that no other universal AED trainer has and is an exact replica of what current AEDs on the market offer. This compact and lightweight unit provides trainees with a realistic training experience, with training pads that detect when they are applied to a manikin. In addition, the pads are pre-connected and the voice prompts are clear and calm. Instructors can customise their training sessions by switching the compression metronome on or off, or selecting the “ventilate now” command.

Prestan is the first and only universal AED trainer with:
- Dual-graphic (adult/child) training pads
- Pad sensor system
- Pre-connected pads
- Paediatric mode switch
- Paediatric-specific AED voice prompts
- Automatic or semi-automatic shock simulation
- CPR coaching, “ventilate now” voice prompts
- Compression metronome can be switched on and off
- “ventilate now” voice prompts can be switched on and off

Other features:
- Two selectable languages
- Compliant with the 2015 guidelines and upgradable
- Play/pause button
- 5 training scenarios

Product details:

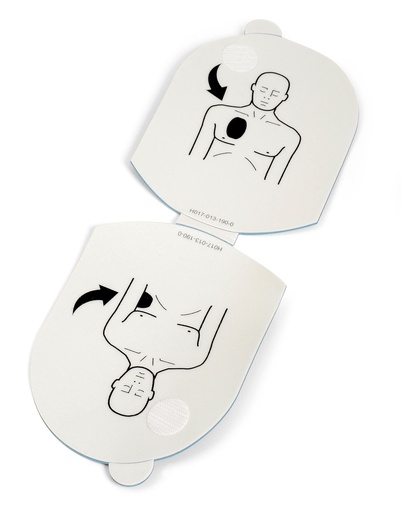

Replacement electrodes for HeartSine devices

Course participants can work independently with the ME PAD Trainer without you, as the instructor, having to constantly intervene in the AED trainer’s sequence.

The new ME PAD Trainer, with its updated software, enables exactly this method of first-aid training. Without the use of any additional aids, the trainer guides participants safely through resuscitation, just as a real AED would.

You do not need a simulator or a resuscitation manikin that simulates human vital parameters. The trainer takes over guidance fully automatically. It gives participants enough time to place the electrodes and then immediately starts a preset scenario including shock delivery and CPR instructions.

- AED ME PAD – training device
- Remote control
- 1 pair of training electrodes
- 4x 1.5 V AA (Mignon) batteries
- 2x 1.5 V AAA (Micro) batteries
- Carry bag
- Operating instructions

Replacement electrodes for AED ME PAD Trainer

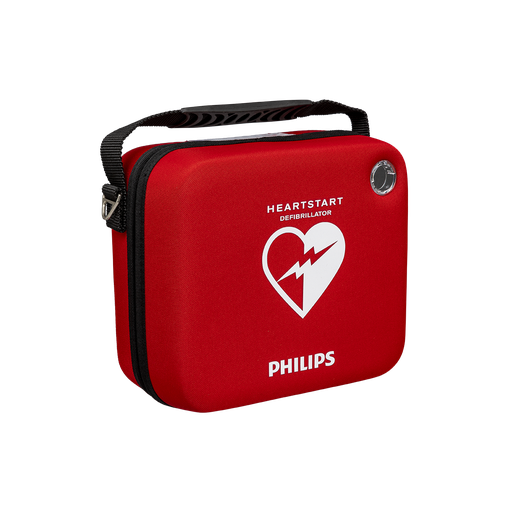

Carrying case for Heartstart HS1 defibrillator, red

Philips’ SMART Biphasic technology enables personalised treatment tailored to the patient’s specific needs and increases survival rates after cardiac arrest. The FRx’s IP55 rating provides maximum protection against dust and water, and its rugged design withstands a weight of over 200 kilograms. In addition, the FRx is waterproof and offers protection against accidental drops.

Features:

Rugged protective carry case
Rugged, reliable defibrillator for use in all environments
Pre-connected SMART Pads that can be used for both adults and children
Wireless data transmission for easy transfer of information
Flashing display indicates the correct position for placing the electrodes on the casualty
CPR coaching guides you through the CPR resuscitation process
SMART Analysis for assessing the patient’s heart rhythm
SMART Biphasic technology enables treatment tailored to the individual patient
4-year battery\

SMART Analysis: Philips has developed a technology that evaluates the patient’s heart rhythm and ensures that the Philips FRx defibrillator delivers a shock only when required. Even if the patient panics during the rescue process and presses the button too hastily, the defibrillator will only deliver a shock if it is needed.

Paediatric function:

To switch the defibrillator to child mode, simply insert the optional Infant/Child Key. The device’s pre-connected SMART Pads II are suitable for both adults and children. This means no time is wasted changing pads. And there are no additional costs for purchasing different electrode sizes for different patient types.

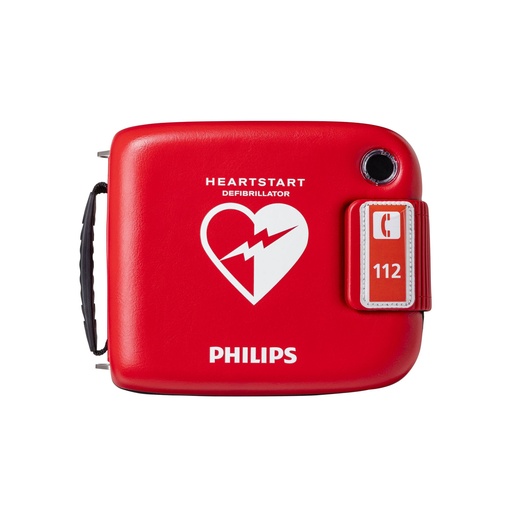

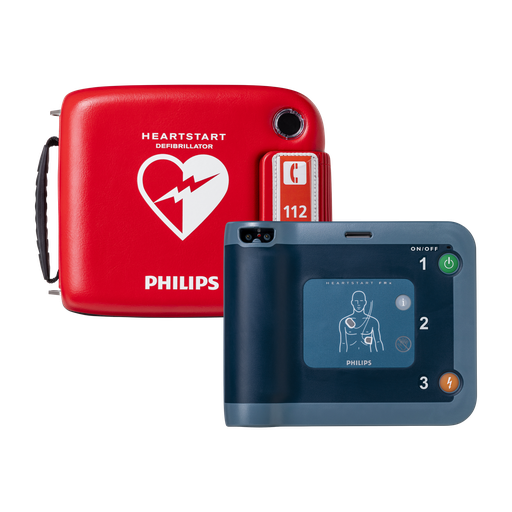

PHILIPS Heartstart FRx Standard Carry Case

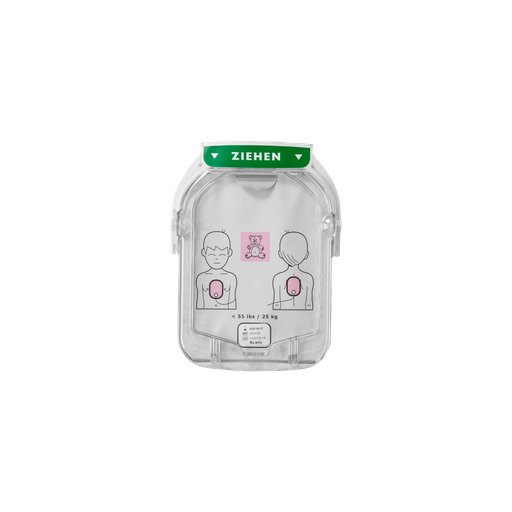

Philips HeartStart HS 1 electrode pads for children

Suitable for use with the Philips HeartStart HS1 AED defibrillator

Suitable for children under 8 years / <25 kg

These pads reduce the energy level from 150 J to 50 J
Shelf life is approx. 18–24 months

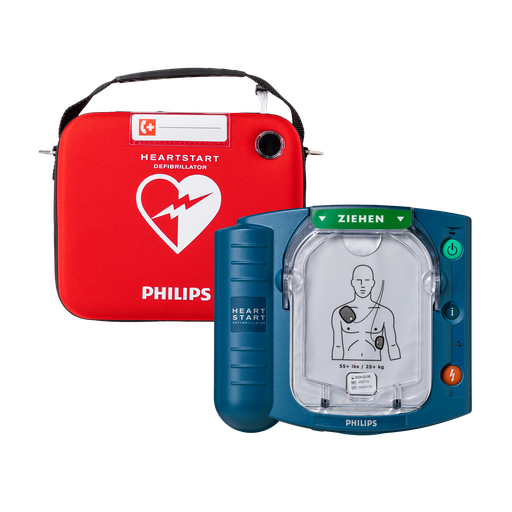

Philips HeartStart HS1 is designed for use by anyone

Philips is a world-leading manufacturer of portable defibrillators for use in airports, aircraft, businesses, public areas and private homes. The Philips HeartStart Home Defibrillator was developed for use by anyone, at any time and in any place, and can be used by virtually anyone in a life-saving situation when every second counts. This award-winning defibrillator has been rated No. 1 for ease of use.

The HS1 defibrillator comes pre-installed in its own carry case, with the battery and electrode pads already connected to the device. Simply pull up the handle on the front of the AED to switch it on, remove the electrode pads and begin defibrillation. Calm, clear voice prompts guide the rescuer through the defibrillation process. In addition, the Philips HeartStart features integrated CPR coaching that guides the rescuer through the correct CPR technique.

Philips SMART Biphasic therapy uses a unique combination of high current – to maximise effectiveness – and a low energy dose – to minimise side effects that can be harmful to a weakened heart. This AED undergoes a 120-point test before it leaves the factory and performs daily self-tests throughout its service life. Overall, the defibrillator carries out more than 80 different self-tests, checking not only the device itself but also the batteries and electrodes.

Cardiopulmonary resuscitation is crucial to increase the patient’s chances of survival; therefore, delivering a shock quickly after chest compressions is essential. The Quick Shock feature of this defibrillator reduces the time between the “stand clear” prompt and shock delivery. The SMART Pads detect when they have been removed from the cartridge and applied to the patient. This helps the AED determine exactly where the helper is in the response process, so it can continue to provide step-by-step instructions.

Key features:

IP21 rating
Custom Philips carry case
SMART Biphasic technology
SMART ECG analysis technology
The self-test function ensures that the defibrillator is always ready for use
Clear visual and audible instructions that guide the rescuer through both defibrillation and resuscitation

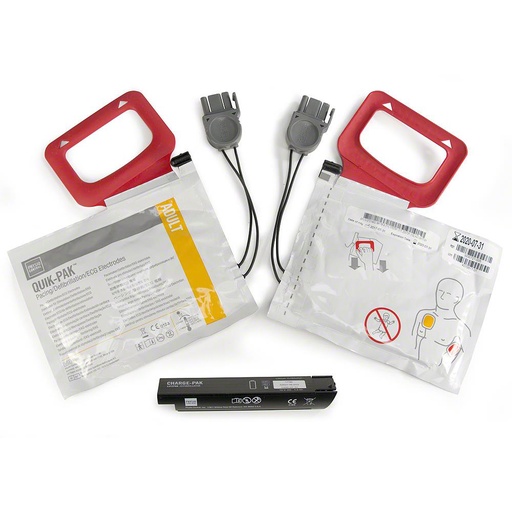

Set with 1 ChargePak & 2 electrode sets for the Physio-Control/Medtronic CR Plus/Express.

Suitable for:
- Physio-Control / Medtronic Lifepak CR Plus
- Physio-Control / Medtronic Lifepak Express

Shelf life: approx. 2 years

Includes:
- 2x electrode set
- 1x Charge-Pak battery charging stick
