Defibrillators

Stat-Padz II electrode for adults.
For ZOLL AED Plus, ZOLL AED PRO.

Wall cabinet for defibrillators with or without alarm.

Product data:

Dimensions: 38 x 38 x 20 cm
Colour: white
Material: metal

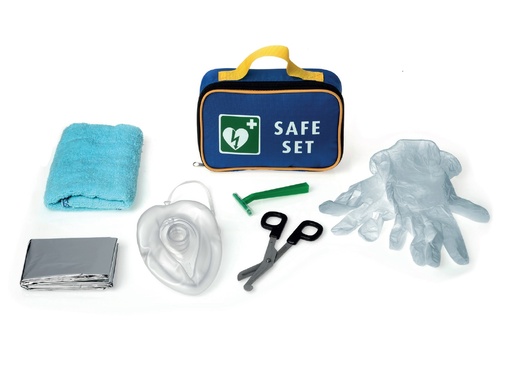

ARKY Safe Set incl. bag for defibrillation preparation

Contents:
- Microfibre cloth
- Emergency blanket
- Resuscitation mask
- Scissors
- Razor
- Gloves

Purpose:
Essential accessories for resuscitation

Included in delivery:

• 1 long-life battery and electrode cassette for adults and children
• Dual carry bag, can also be used as a headrest
• Emergency kit incl. CPR poster, emergency instructions
• Instructions for use, quick start guide

Product description:

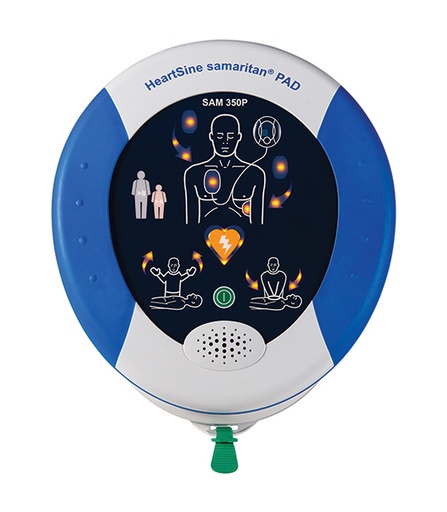

The HeartSine samaritan 350P AED offers unique features:
Compact and powerful

Portable and lightweight. At only 1.1 kg, it weighs less and is up to 56% smaller than other portable defibrillators.

Maximum protection against dust/moisture. The samaritan PAD has an IP56 rating, giving the 350P defibrillator the highest level of water and dust protection in the industry.

Durable. The samaritan PAD 350P withstands shocks and vibrations and has an IP56 rating, the highest industry rating for protection against dust and moisture.

Advanced technology. The samaritan PAD 350P uses dedicated electrode technology, advanced and stable software, and patented biphasic SCOPE* technology (a biphasic waveform that automatically adapts to patient impedance) to assess the rhythm and, where necessary, maximise effective shock delivery.

*Self-Compensating Output Pulse Envelope technology automatically compensates energy, rise time and envelope.
Easy-to-follow visual and audible instructions

User-friendly. The samaritan PAD 350P features easy-to-understand visual and audible prompts that guide the rescuer through the application process, including CPR coaching. Three large, clearly recognisable symbols facilitate the rescue process: apply electrodes, do not touch the patient, and the patient may be touched.

Operation with only 2 buttons. Only two buttons—ON/OFF and SHOCK—are required to operate the device.

Always ready for use. A system status indicator flashes when the entire system is operational and ready for use. The device performs an automatic self-test once a week.

Practical solutions for everyday use

Two components, one expiry date. The combined Pad-Pak cassette contains battery and electrodes, so only one expiry date needs to be monitored.

Lowest total cost of ownership. With a shelf life of four years from the date of manufacture, the Pad-Pak offers significant savings compared with other defibrillators that require separate batteries and electrodes.

Protection for adults and children. The technology integrated into HeartSine PADs and the unique Pediatric-Pak (infant/toddler cassette), intended for children aged 1–8 years (< 25 kg), ensure that the optimal energy is delivered.

Upgradeable on site. Can be upgraded at any time to the latest AHA/ERC guidelines.

Semi-automatic resuscitation defibrillator / AED with real-time monitoring and instructions for chest compressions
Simplest operation thanks to 1-button function
Compact design, lightweight at 1.1 kg
Extremely robust with IP56
Escalating energy protocol 150J, 150J, 200J
Low-maintenance with 4-year interval and exempt from STK
CPR advisory/feedback to support resuscitation quality, visual and acoustic

Scope of delivery:

- 4-year battery and electrode cassette (Pad-Pak™) for adults and children > 8 years or > 25 kg (only one expiry date!)
- Multi-function double carry bag, yellow/blue
- Instructions for use, quick guide
- Certificates and approvals CE 0120, FDA, UL, ISO, exempt from STK, IP56, aviation approval
- Updatable with new AHA / ERC / Illcor guidelines

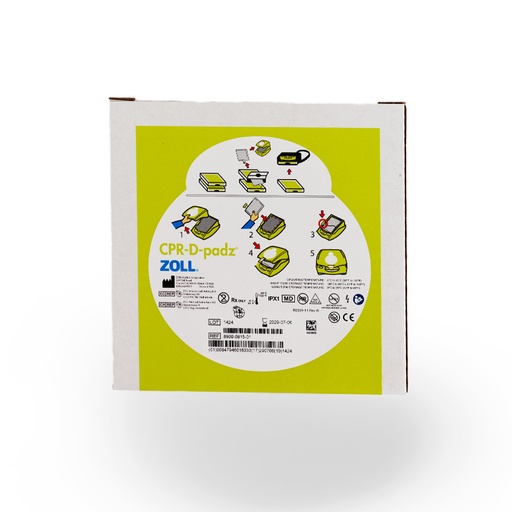

ZOLL CPR-D padz electrodes for ZOLL AED Plus and ZOLL AED Pro

5-year shelf life

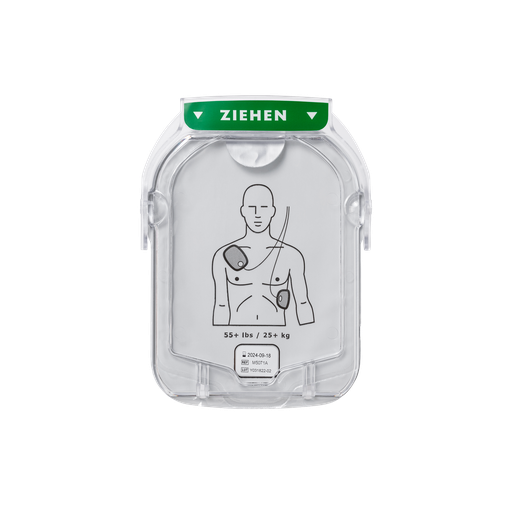

Philips HeartStart HS1 adult electrode pads M5071A

Suitable for the Philips HeartStart HS1 AED defibrillator (Home AED or OnSite AED).

This practical cartridge contains a pair of Philips HS1 adult electrode pads.

Suitable for persons over 8 years of age and over 25 kg.

These electrodes have a shelf life of 2–2.5 years.

Wall cabinet for defibrillators with or without alarm.

Accessories included with the AED:

Adult electrodes (1), disposable battery (1), carry bag (1), user manual (1)

Product description:

Latest-generation AED device – the fully automatic external defibrillator iPAD CU-SP1

EASY TO UNDERSTAND
Automatic volume
Immediately after switching on, the device detects background noise and automatically adjusts the volume of its voice prompts accordingly. Especially in crowded railway stations, at airports or in factory halls with lots of loud ambient noise, this feature can be lifesaving.

READY FOR IMMEDIATE USE
Pre-connected electrodes – cleverly stored
Already connected and well protected, the defibrillation electrodes are located on the underside of the device in an integrated storage compartment. This makes your AED even safer and quicker to use! Are the electrodes new? If used or expired “intelligent” electrodes are connected, the smart defibrillator immediately tells you what to do.

SIMPLE SOLUTION
Adult and paediatric mode
Is the patient a child? Thanks to a simple slide switch, you can quickly change from adult to paediatric mode. The device then works with less energy to protect the smaller heart muscle. Special paediatric electrodes are available optionally.

DOUBLE PROTECTION
Artefact and CPR detection
As an intelligent first-aid defibrillator, the CU-SP1 detects whether the patient is being touched by other people. In that case, it will not deliver a shock. Not only is the emergency patient optimally cared for – you, as a first aider, are also protected! In addition, the iPAD CU-SP1 detects whether you are performing chest compressions to give the emergency patient the best chance of survival.

ALWAYS IN VIEW
The clear status display – whether battery charge level or electrode status – means you can always keep an eye on the functionality of your iPAD on the LCD display! Is your device ready for use? Regular self-tests check that everything is OK. Do the defibrillation electrodes need to be replaced? The display warns you in good time, starting as early as three months before the expiry date.

AFTER USE
Storage and data transfer
The iPAD CU-SP1 stores up to five emergency deployments on an SD card. Would you like to analyse the ECGs on your computer? Simply transfer the data via SD card or via the infrared interface. With the optionally available CU-EX1 software, you can edit and archive the patient data.

Product data:

Defibrillator
Type: Automated external defibrillator
Model: CU-SP1
Manufacturer: CU Medical Systems, Inc.
Waveform: Biphasic truncated exponential pulse, E-cube technology
Energy output: 150 joules for adults, 50 joules for children, impedance compensated
Charging time: Under 8 seconds

Controls
LCD display (electrode and battery status, correct functionality), metronome for chest compressions, voice prompts (automatic volume adjustment to the operating environment) and backlit pictograms, pre-connected electrodes, slide switch for adult and paediatric mode, information button for detailed voice instructions (optionally activatable), shock button, on/off switch

Resuscitation guidelines
Standard preset: 5 cycles with 30 chest compressions and 2 ventilations (according to CPR guidelines 2010)
Individual settings: number of chest compressions, number of ventilations, number of cycles, number of chest compressions per minute, pause duration, activation of detailed guidance (individually adjustable according to future guideline changes)

Self-tests
Automatic self-diagnostic test after switching on and continuous functional tests during use; daily, weekly and monthly self-diagnostic tests
Manual self-diagnostic test after each insertion of the battery

Environmental conditions
Operation and storage: temperature 0 °C to 43 °C, humidity: 5% to 95% (non-condensing)
Transport: temperature -20 °C to 60 °C
Vibration protection: switched on: meets MIL-STD-810G, Fig. 514.6E-1, random test; stand-by: meets MIL-STD-810G, Fig. 514.6E-2, swept sine (helicopter)
Protection class: protected against dust and water jets, class IP55 according to DIN EN 60529: IP55
Drop protection: withstands drops from up to 1.2 metres onto edges, corners or smooth surfaces
ESD: complies with EN 61000-4-2:2001
EMC emissions: meets EN 60601-1-2 limit values, method EN 55011:2007 + A2:2007, Group 1, Class B
EMC immunity: meets EN 60601-1-2 limit values, method EN 61000-4-3:2006 + A1:2008 Level 3 (10 V/m, 80 MHz to 2500 MHz)

Event documentation
Internal memory: recording of up to 5 incidents, up to 3 hours
Data transfer: via SD card or infrared interface
Data analysis: PC software CU-EX1 (optional)

Power supply
Standard battery: 12 V DC; 2.8 Ah LiMnO2, at least 50 shocks or 4 hours operating time, at least 3 years stand-by time

Size and weight
Dimensions: 260 mm x 256 mm x 69.5 mm (width x length x height)
Weight: 2.4 kg (including battery and electrodes)

These are electrodes for iPAD devices. Available for both adults and children.

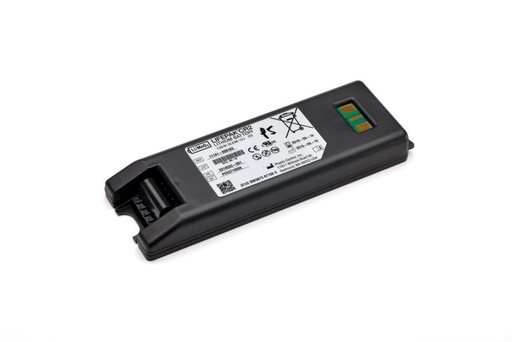

The service life of the Lifepak CR2 battery is 4 years if the AED remains in standby mode. This corresponds to approximately 166 defibrillation shocks at 200 joules or 103 shocks at 360 joules.

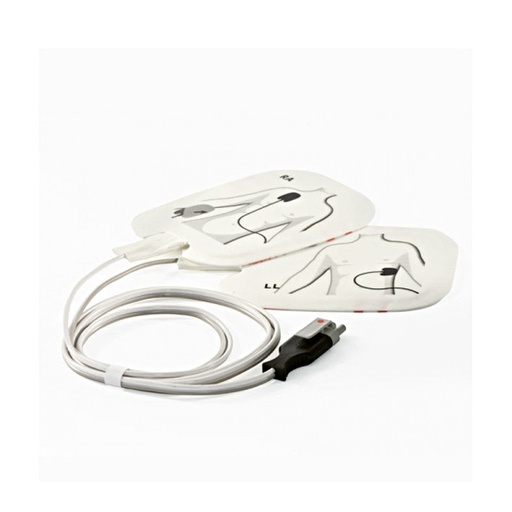

SavePads AED for HeartSave and XD

Self-adhesive defibrillation electrodes for adults incl. 2-pin cable, disposable razor, disposable gloves, instructions for use in German, for use with older devices: PAD, AED, AED-M, 6, 6S, XD, EVO)

Defibrillation electrodes for adults and children from 8 years of age or 20 kg, with electrode recognition (RFID).
Typical electrode shelf life is 2 to 3 years.

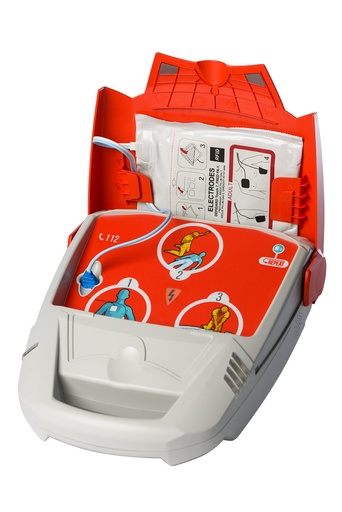

Suitable for the following devices: PA-1/APLC2/APLC1/easyport/AT-101
easy

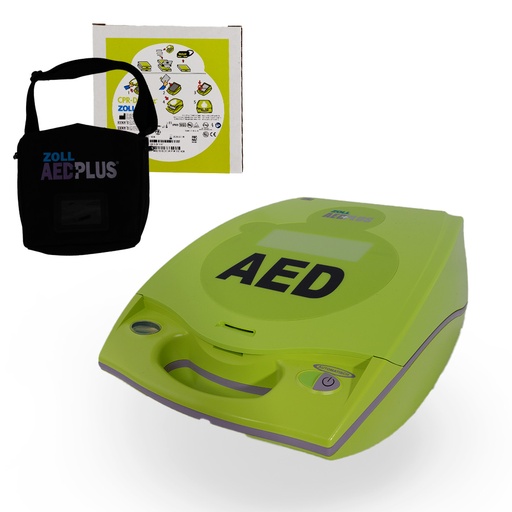

Zoll AED Plus can do more than just defibrillate!

The Zoll AED Plus is a fully automatic defibrillator that not only delivers a shock when required, but also guides you step by step through the CPR process. The electrodes have the added benefit of a built-in sensor that monitors your CPR technique and guides you verbally through the entire process; a metronome enables you to perform chest compressions at the correct rate, and clear voice prompts warn you if your compressions are not deep enough, while also providing positive feedback when you are using the correct CPR technique – something that is urgently needed in what is often a stressful situation.

In addition to voice prompts, the Zoll Plus AED features clear visual pictograms on the inside of the unit with LED lights that guide you through each phase of the resuscitation process. These features of the Zoll Plus AED make it an excellent choice for beginners or lay rescuers.

This AED is not only housed in a strong and robust outer casing, it is also highly resistant to contamination by water and dirt. Both the electrodes and the batteries have a generous service life of 5 years, which means you only need to monitor one expiry date and, with a 7-year manufacturer’s warranty (5 years automatically and an additional 2 years if you register your AED with Zoll), you only need to replace the batteries and electrodes once during its lifetime if the AED has not been used. All of this makes the Zoll Plus AED a low-maintenance defibrillator.

Unlike the semi-automatic model, the fully automatic model does not have a shock button. The defibrillator monitors the patient’s heart rhythm and delivers a shock when required.

Features:

Easy to use, suitable for beginners or lay rescuers
Loud, clear audio and visual prompts to guide the rescuer through both the defibrillation and CPR processes
Built-in metronome to guide the user in the correct chest compression technique
Sensor in the electrodes to monitor the delivery of chest compressions, enabling the AED to provide verbal feedback
High protection rating IP55 – provides resistance to dirt and water ingress
Daily self-test
Long shelf life of 5 years for both the electrode pads and the batteries
Defibrillator recommended by the British Heart Foundation since 2010

Contents:

10 Duracell lithium batteries with a 5-year shelf life
1 pair of CPR-D padz® CPR feedback electrodes (5-year shelf life)
User manual
5+2 year warranty
Carry case

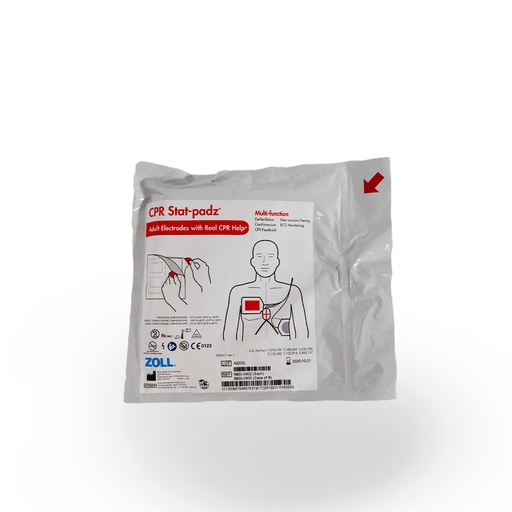

CPR Stat padz electrodes for adults.
For ZOLL AED Plus, ZOLL AED PRO.

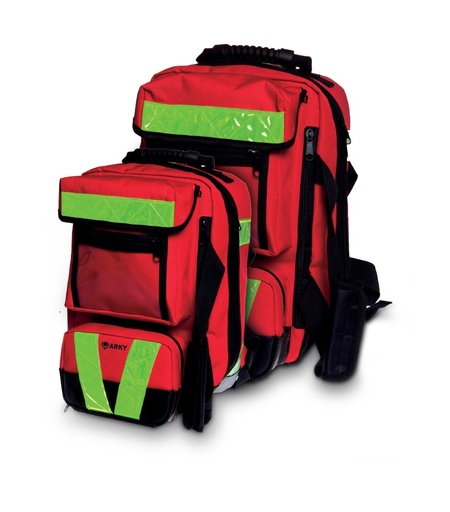

ARKY AED Backpack in red Compact or Large

- High quality
- Developed in collaboration with first responders
- Weather-resistant and water-repellent
- Robust look
- Good visibility

Dimensions:
Model Compact: 31 x 40 x 15 cm
Model Large: 38 x 56 x 19 cm

Options:
- Both models are suitable for AEDs of all brands
- Fast response time in emergencies
- Flexible modular pockets for storage

Standard package device:
Adult electrodes, disposable battery, carry bag, user manual

Product description:

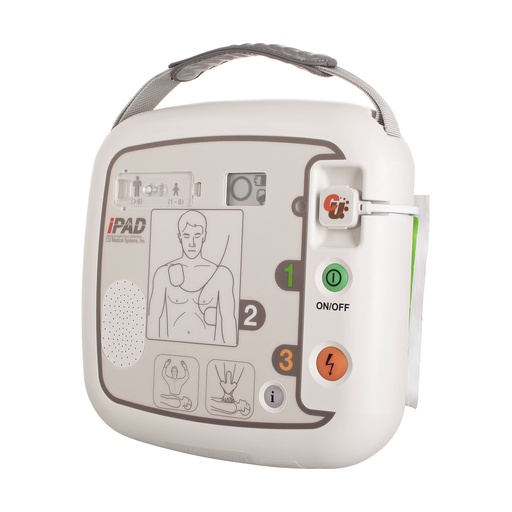

Latest-generation AED device – the semi-automatic external defibrillator iPAD CU-SP1

EASY TO UNDERSTAND
Automatic volume
Immediately after switching on, the device detects background noise and automatically adjusts the volume of its voice prompts accordingly. Especially in crowded railway stations, at airports or in factory halls with lots of loud background noise, this feature can be life-saving.

READY FOR IMMEDIATE USE
Pre-connected electrodes – cleverly stored
Already connected and well protected, the defibrillation electrodes are located on the underside of the device in an integrated storage compartment. This makes your AED even safer and faster to deploy. Are the electrodes new? If used or expired “intelligent” electrodes are connected, the smart defibrillator tells you immediately what to do.

SIMPLE TO SET
Adult and paediatric mode
Is the patient a child? Thanks to a simple slider switch, you can quickly change from adult to paediatric mode. The device then works with less energy to protect the smaller heart muscle. Special paediatric electrodes are available as an option.

DOUBLE PROTECTION
Artefact and CPR detection
As an intelligent first-aid defibrillator, the CU-SP1 detects whether the patient is being touched by other people. In this case, it will not deliver a shock. Not only is the emergency patient optimally cared for – you as the first aider are also protected. In addition, the iPAD CU-SP1 detects whether you are performing chest compressions to give the emergency patient the best chance of survival.

ALWAYS IN VIEW
The clear status display
Whether battery charge level or electrode status – the LCD display lets you keep an eye on your iPAD’s functionality at all times. Is your device ready for use? Regular self-tests check whether everything is OK. Do the defibrillation electrodes need to be replaced? The display warns you in good time, starting three months before the expiry date.

AFTER USE
Memory and data transfer
The iPAD CU-SP1 stores up to five emergency deployments on an SD card. Would you like to analyse the ECGs on your computer? Simply transfer the data via SD card or via the infrared interface. With the optionally available CU-EX1 software, you can edit and archive the patient data.

Product data:

Defibrillator
Type: Semi-automatic external defibrillator
Model: CU-SP1
Manufacturer: CU Medical Systems, Inc.
Waveform: Biphasic truncated exponential pulse, E-cube technology
Delivered energy: 150 joules for adults, 50 joules for children, impedance-compensated
Charge time: Under 8 seconds

Controls
LCD display (electrode and battery status, proper functionality), metronome for chest compressions, voice prompts (automatic volume adjustment to the operating environment) and backlit pictograms, pre-connected electrodes, slider switch for adult and paediatric mode, information button for detailed voice instructions (optionally switchable),
shock button, on/off switch

Resuscitation guidelines
Standard preset: 5 cycles with 30 chest compressions and 2 ventilations (in accordance with the 2010 CPR guidelines) Individual settings
Number of chest compressions, number of ventilations, number of cycles, number of chest compressions per minute, pause duration, activation of the detailed instructions (individually adjustable according to future guideline changes)

Self-tests
Automatic self-diagnostic test after switching on and continuous function tests during use; daily, weekly and monthly self-diagnostic tests Manual self-diagnostic test after each battery insertion

Environmental conditions
Operation and storage: temperature 0 °C to 43 °C, humidity: 5% to 95% (non-condensing)
Transport: temperature -20 °C to 60 °C
Vibration protection: switched on: complies with MIL-STD-810G, Fig. 514.6E-1, random test, stand-by: complies with MIL-STD-810G, Fig. 514.6E-2, swept sine (helicopter)
Protection class: protected against dust and water jets, class IP55 according to DIN EN 60529: IP55
Drop protection: withstands drops from up to 1.2 metres onto edges, corners or smooth surfaces
ESD: complies with EN 61000-4-2:2001
EMC emissions: meets EN 60601-1-2 limit values, method EN 55011:2007, + A2:2007, group 1, class B
EMC immunity: meets EN 60601-1-2 limit values,
method EN 61000-4-3:2006, +A1:2008 level 3 (10 V/m, 80 MHz to 2500 MHz)

Event documentation
Internal memory recording of up to 5 incidents, up to 3 hours Data transfer via SD card or infrared interface Data analysis PC software CU-EX1 (optionally available)

Power supply
Standard battery 12 V DC; 2.8 Ah LiMnO2, at least 50 shocks or 4 hours operating time, at least 3 years stand-by time

Size and weight
Dimensions 260 mm x 256 mm x 69.5 mm
(width x length x height)
Weight 2.4 kg (including battery and electrodes)

This is a lithium battery for the iPAD defibrillator.
