Diagnostics

Otoscope with protected LED ring technology: illumination with 6 LEDs (concentric) – fibre optics are no longer required – swivelling 3x magnifying lens with locking function – insufflation port for pneumatic test – unobstructed field of view with optimum illumination of the examination area – LED service life: approx. 100,000 hours thanks to constant-current control – illuminance: 10,000 lux – colour temperature: approx. 4000 K – dimmable – electronic ON/OFF push-button switch – automatic switch-off after 3 minutes – 2-component handle made of glass fibre-reinforced plastic and aluminium for high stability – with integrated charging technology and lithium-ion battery, rechargeable via the integrated USB port using the supplied USB charger – incl. 10 disposable ear specula each, Ø 2.5 mm and Ø 4 mm – Made in Germany

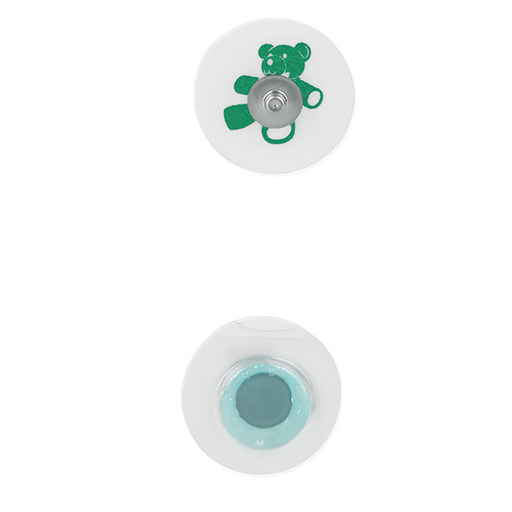

The Mediware paediatric electrodes are made of solid gel and have a snap connector.


Product data:

Material: solid gel and foam adhesive zone
Colour code: white
Connection: snap

Pack sizes:
Bag: 30 pieces
Dispenser box: 10 bags of 30 pieces each

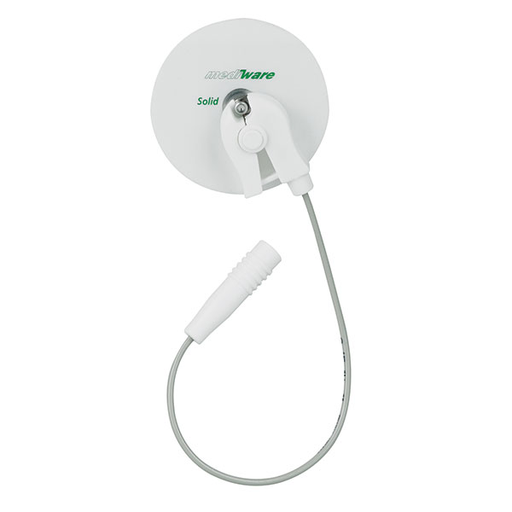

The Mediware clip adapters are individually packed and designed for 4 mm banana plugs with plug-in coupling.

Product data:

Connection: 15 cm long (G 2/15/4K)
Pack sizes: 1 piece, individually packed

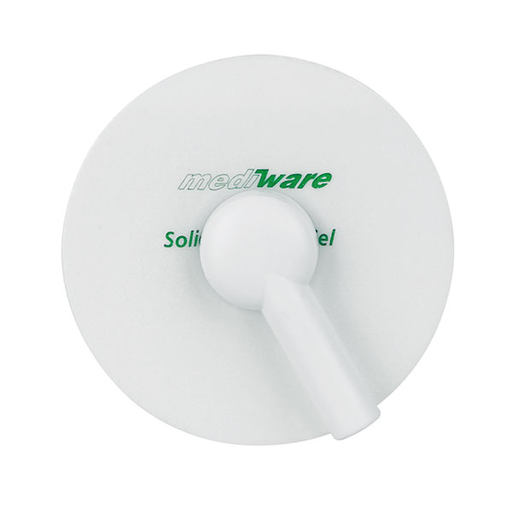

The Mediware snap fastener adapters are individually packed and intended for fitting onto 4 mm banana plugs.

Product data:

Connection: 4 mm banana plug
Pack sizes: 1 piece, individually packed

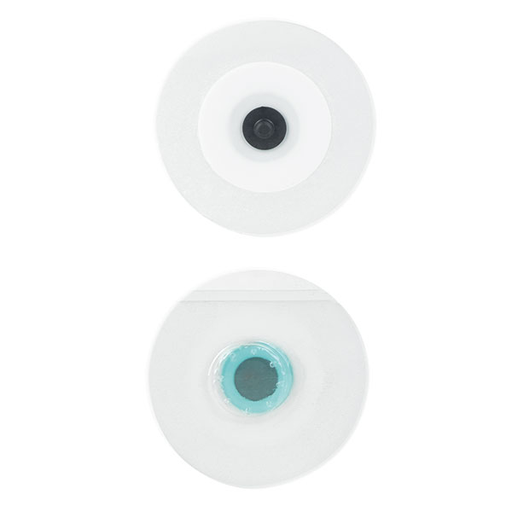

The Mediware stress electrodes are made of solid gel and have a snap connector.
They are ideal for exercise ECG and long-term monitoring. With particularly strong adhesion. Micropore foam backing, carbon electrode. Long shelf life (24 months), radiolucent, also suitable for use in a tomograph.

Product data:

Material: Solid gel
Connector: Snap

Pack sizes:
Bag: 30 pieces
Dispenser box: 10 bags of 30 pieces each

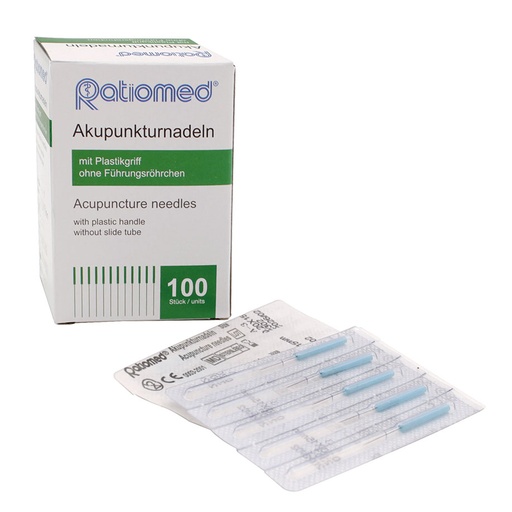

A mature, comprehensive range for the acupuncturist: - individually sterile packed - without guide tube - uncoated

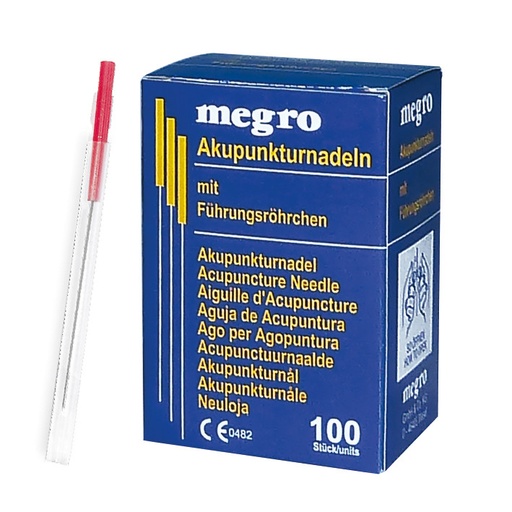

A sophisticated, comprehensive range for the acupuncturist: - individually sterile-packed - with guide tube - uncoated

A mature, comprehensive range for the acupuncturist: - individually sterile-packed - without guide tube - silicone-coated

The Mediware foam electrodes are made of solid gel and feature a snap connector.

Product data:

Colour code: yellow
Diameter: Ø 20 mm

Pack sizes:
Bag: 100 pieces

Fetal pocket Doppler PD 1+ with heart rate display
for midwives, gynaecologists and maternity clinics. PD 1 is small, lightweight and can be used anywhere.
- Output power: < 15 mW/cm² SATA - Audio frequency: 300 Hz - 1 kHz
- Heart rate: 60 - 210 bpm
- Battery: 9-volt E-block alkaline
- Battery life: > 9 hours
- Integrated speaker and headphone socket
- Dimensions: 150 x 75 x 33 mm
- Weight: 350 g
- Scope of delivery: incl. carry bag, ultrasound gel and battery
- Supplied without probes
- Type B - IEC 60601-1-1990

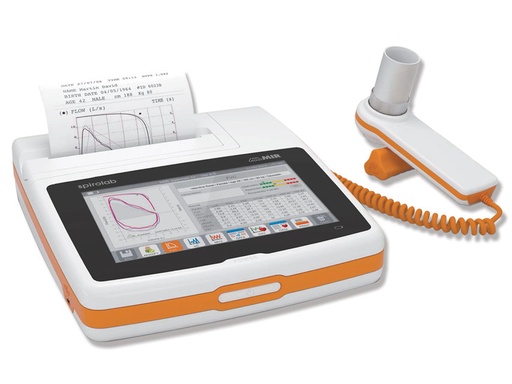

Fast, easy-to-use and durable diagnostic spirometer, made in Italy.

Unbeatable features
- Comparison of FVC, VC, MVV and PRE/POST bronchodilator results with a wide range of selectable parameters
- Long-life battery
- 7” colour touchscreen display
- Direct connection to an external USB PostScript printer
- 10,000 spirometry tests
- Wireless real-time testing on a PC via Bluetooth®
- Fast and quiet built-in printer with customisable print format
- Selectable internal software languages: GB, FR, IT, ES, DE, PT

The Flow MIR® disposable flowmeter complies with the ATS/ERS standard

Guaranteed 100% hygiene, no cross-contamination.
No calibration required.
Also suitable for children without an adapter.

Suitable for children.
Patented child incentive directly on the screen.

Winspiro PRO® high-performance PC software for spirometry and oximetry.
Multilingual software: GB, FR, IT, ES, DE, PT, PL, NL, LV, SE, CZ, RU, TR, JP, CN.

Scope of delivery:
- Spirolab 7"
- Carrying bag
- Winspiro PRO® software
- Battery charger
- USB port and cable
- 1 roll of thermal paper
- Reusable turbine
- Nose clip
- CD manual: GB, FR, IT, ES, DE, PT


Product data:

SPIROMETRY SPECIFICATIONS:
- Power supply: battery
- Autonomy: approx. 10 hours
- Temperature sensor: semiconductor (0–45 °C)
- Flow sensor: bidirectional digital turbine
- Flow range: ±16 l/s
- Volume accuracy: ±3% or 50 ml
- Flow accuracy: ±5% or 200 ml/s
- Dynamic resistance: <0.5 cm H2O/L/s
- Connectivity: USB 2.0, Bluetooth® 2.1
- Display: 7-inch touchscreen LCD with a resolution of 800 x 480 pixels
- Mouthpieces: Ø 30 mm
- Dimensions: 220 x 210 x 51 mm (8.66 x 8.26 x 2 inches)
- Weight: 1450 g (incl. battery)
- Electrical protection: Class II
- Standards: Electrical safety standard EN 60601-1
- Electromagnetic compatibility EN 60601-1-2
- Spirometry parameters: FVC, FEV1, FEV1/FVC, FEV1/VC, PEF, FEF25, FEF50, FEF75, FEF25-75, FEF75-85, lung age, extrapolated volume, FET, time to PEF, FEV0.5, EV0.5/FVC, FEV0.75, FEV0.75/FVC, FEV2, FEV2/FVC, FEV3, FEV3/FVC, FEV6, FEV1/FEV6, FEV1/PEF, FEV1/FEV0.5, FIVC, FIV1, FIV1/FIVC, PIF, FIF25, FIF50, FIF75, FEF50/FIF50, VC, IVC, IC, ERV, IRV, RF, VE, VT, tI, tE, VT/tI, tE/tTOT, MVV (measured), MVV (calculated).


WINSPIRO PRO® SOFTWARE REQUIREMENTS:
Windows 2000, XP, Vista (32/64-bit), 7 (32/64-bit), 8 and 8.1 (32/64-bit), 10 (32/64-bit). RAM 512 MB

Fast, easy-to-use and durable diagnostic spirometer, made in Italy.

Unbeatable features
- Comparison of FVC, VC, MVV and PRE/POST bronchodilator tests with a wide range of selectable parameters
- Long-life rechargeable battery
- 7" colour touchscreen display
- Direct connection to an external USB PostScript printer
- 10,000 spirometry tests or 500 hours of oximetry recording
- Wireless real-time test on PC via Bluetooth®
- Fast and quiet built-in printer with customisable print format
- Selectable internal software languages: GB, FR, IT, ES, DE, PT

Oximetry option: available reusable finger probe for adults and children.

Fast and user-friendly: every function can be activated at the touch of a button.

The Flow MIR® disposable flow sensor complies with the ATS/ERS standard

Guaranteed 100% hygiene, no cross-contamination.
No calibration required.
Also suitable for children without an adapter.

Suitable for children.
Patented paediatric incentive directly on the screen.

Winspiro PRO® high-performance PC software for spirometry and oximetry.
Multilingual software: GB, FR, IT, ES, DE, PT, PL, NL, LV, SE, CZ, RU, TR, JP, CN.

Scope of delivery:
- Spirolab 7"
- Carry bag
- Winspiro PRO® software
- Battery charger
- USB port and cable
- Adult SpO2 sensor
- 1 roll of thermal paper
- Reusable turbine
- Nose clip
- CD manual: GB, FR, IT, ES, DE, PT


Product data:

SPIROMETRY SPECIFICATIONS:
- Power supply: rechargeable battery
- Autonomy: approx. 10 hours
- Temperature sensor: semiconductor (0–45°C)
- Flow sensor: bidirectional digital turbine
- Flow range: ±16 l/s
- Volume accuracy: ±3% or 50 ml
- Flow accuracy: ±5% or 200 ml/s
- Dynamic resistance: <0.5 cm H2O/l/s
- Connectivity: USB 2.0, Bluetooth® 2.1
- Display: 7-inch LCD touchscreen with a resolution of 800 x 480 pixels
- Mouthpieces: Ø 30 mm
- Dimensions: 220 x 210 x 51 mm (8.66 x 8.26 x 2 inches)
- Weight: 1450 g (incl. rechargeable battery)
- Electrical protection: Class II
- Standards: Electrical safety standard EN 60601-1
- Electromagnetic compatibility EN 60601-1-2
- Spirometry parameters: FVC, FEV1, FEV1/FVC, FEV1/VC, PEF, FEF25, FEF50, FEF75, FEF25-75, FEF75-85, lung age, extrapolated volume, FET, time to PEF, FEV0.5, EV0.5/FVC, FEV0.75, FEV0.75/FVC, FEV2, FEV2/FVC, FEV3, FEV3/FVC, FEV6, FEV1/FEV6, FEV1/PEF, FEV1/FEV0.5, FIVC, FIV1, FIV1/FIVC, PIF, FIF25, FIF50, FIF75, FEF50/FIF50, VC, IVC, IC, ERV, IRV, RF, VE, VT, tI, tE, VT/tI, tE/tTOT, MVV (measured), MVV (calculated).

OXIMETRY SPECIFICATIONS:
- SpO2 range: 0–99%
- SpO2 accuracy: ±2% between 70–99% SpO2
- Pulse rate range: 18–300 bpm
- Pulse rate accuracy: ±2 bpm or 2%, whichever is greater
- Memory capacity: up to 500 hours of oximetry
- Oximetry parameters: %SpO2 and pulse rate (min, max, mean), test duration, total SpO2 events, T90% (SpO2 time = 89%), T89% (SpO2 time = 88%), T40 (bradycardia duration with pulse rate <40 bpm), T120 (tachycardia duration with pulse rate >120 bpm).

WINSPIRO PRO® SOFTWARE REQUIREMENTS:
Windows 2000, XP, Vista (32/64 bit), 7 (32/64 bit), 8 and 8.1 (32/64 bit), 10 (32/64 bit). RAM 512 MB

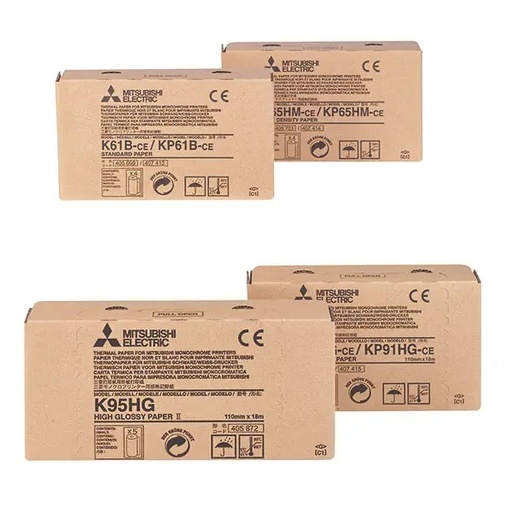

Thermal paper type K 61 B/KP61B-CE
particularly high-resolution and high-contrast, more grey levels, for printer type: 60 E, 61 E, 65 E, 66 E, 68 E, 67 E, 90 E, 91 E, 93 DW / 180

Width: 110 mm
Length: 21 m

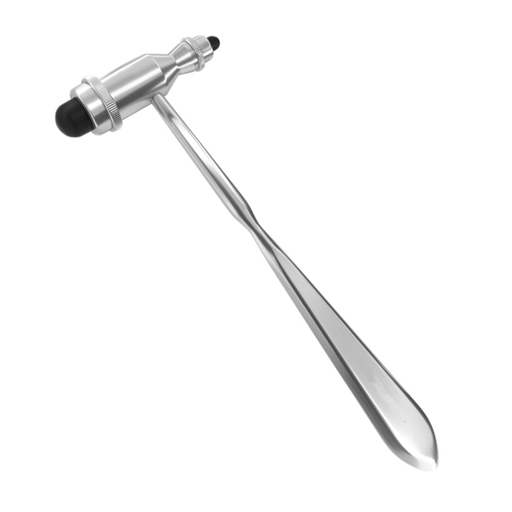

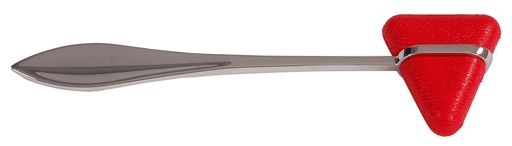

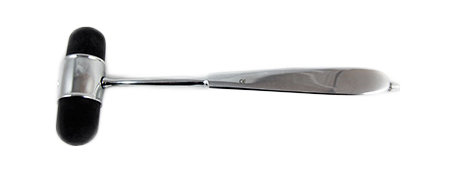

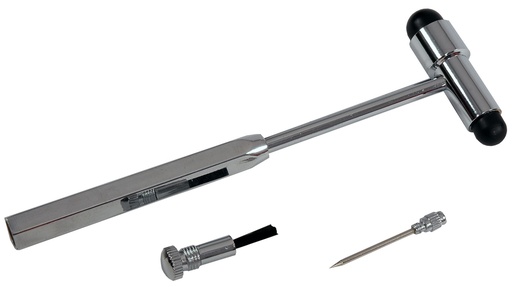

Used to test deep tendon reflexes during a diagnostic assessment. This hammer has a double-sided head with two rounded rubber striking surfaces for greater comfort.

Professional, lightweight aluminium calliper. The measuring jaws have floating tips to ensure accurate and reproducible results. The 65 mm scale is large and easy to read. An adjustment scale for sex and age is included in a multilingual manual.

• Supplied in a high-quality soft carry case

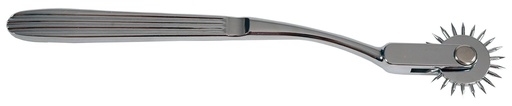

for pain perception

The OMRON M400 blood pressure monitor offers the precise accuracy and reliability in blood pressure measurement you expect from OMRON. The additional functions of the M400 ensure the quality and consistency of the readings, and the supplied universal cuff (for arm circumferences 22–42 cm) fits almost any arm.

In addition, the OMRON M400 features a movement sensor that detects various body movements during measurement and indicates whether the reading may have been affected by movement. You can continuously track your readings in the user memory for 2 people, with 60 memory slots each.

Product data:

- Graphical classification of the measured value
- Clinically validated – tested for reliability and accuracy
- Data memory for 2 users with 60 stored readings each
- Large display
- LED traffic light indicator
- Average value display – calculates the average of 3 consecutive measurements within 10 minutes
- Detects irregular heartbeats
- Morning hypertension indicator

Scope of delivery:

- M400 blood pressure monitor
- Velcro cuff (for arm circumference 22–42 cm)
- Storage case
- Battery set (4xAA-LR06)
- Instruction manual
- Blood pressure passbook
