Diagnostics

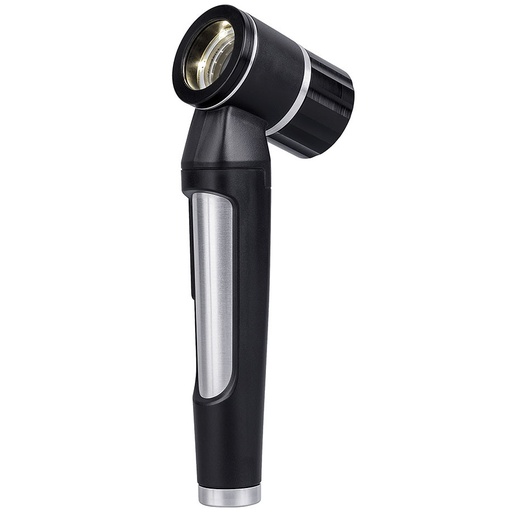

- Innovative pocket-sized dermatoscope
- Illumination: LED ring with 6 LEDs arranged concentrically for sharp-edged, uniform light
- Maintenance-free, as no lamp replacement is required
- Infinitely adjustable zoom range with 10x magnification for a distortion-free image
- Optimised head design
- Dimmable
- Automatic switch-off after 3 minutes
- LED service life: approx. 100,000 hours thanks to constant-current control
- Illuminance: 10,000 lux
- Colour temperature: approx. 4,200 K
- 2-component handle (aluminium / glass-fibre-reinforced plastic)
- Electronic ON/OFF
- Push-button switch
- Power supply: 2 x AAA
- Alkaline batteries included

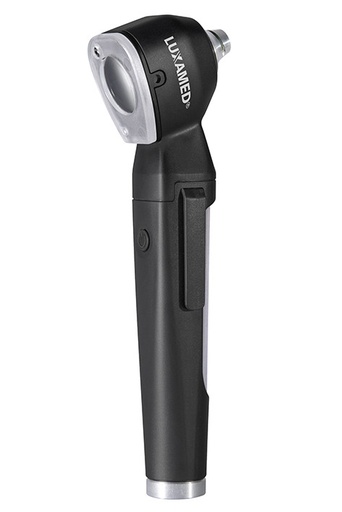

Otoscope with protected LED ring technology: illumination with 6 LEDs (concentric) – fibre optics are no longer required – swivelling 3x magnifying lens with locking function – insufflation port for pneumatic test – unobstructed field of view with optimal illumination of the application area – LED service life: approx. 100,000 hours thanks to constant-current control – illuminance: 10,000 lux – colour temperature: approx. 4000 K – dimmable – electronic ON/OFF push-button switch – automatic switch-off after 3 minutes – 2-component handle made of glass fibre-reinforced plastic and aluminium for high stability – incl. 10 disposable ear specula each, Ø 2.5 mm and Ø 4 mm, as well as 2 AAA alkaline batteries – Made in Germany

Otoscope with protected LED ring technology: illumination with 6 LEDs (concentric) – fibre optics are no longer required – swivelling 3x magnifying lens with locking function – insufflation port for pneumatic test – unobstructed field of view with optimum illumination of the examination area – LED service life: approx. 100,000 hours thanks to constant-current control – illuminance: 10,000 lux – colour temperature: approx. 4000 K – dimmable – electronic ON/OFF push-button switch – automatic switch-off after 3 minutes – 2-component handle made of glass fibre-reinforced plastic and aluminium for high stability – with integrated charging technology and lithium-ion battery, rechargeable via the integrated USB port using the supplied USB charger – incl. 10 disposable ear specula each, Ø 2.5 mm and Ø 4 mm – Made in Germany

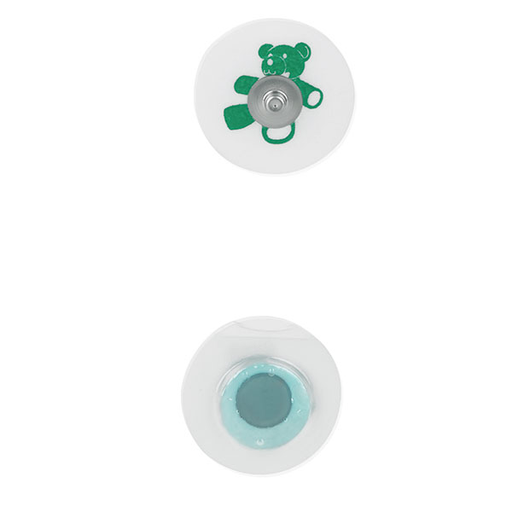

The Mediware paediatric electrodes are made of solid gel and have a snap connector.


Product data:

Material: solid gel and foam adhesive zone
Colour code: white
Connection: snap

Pack sizes:
Bag: 30 pieces
Dispenser box: 10 bags of 30 pieces each

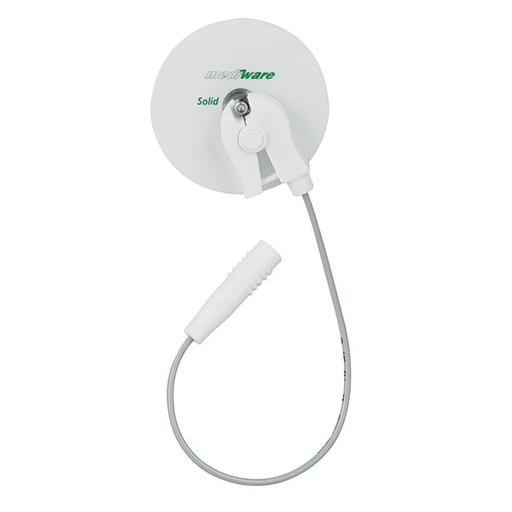

The Mediware clip adapters are individually packed and designed for 4 mm banana plugs with plug-in coupling.

Product data:

Connection: 15 cm long (G 2/15/4K)
Pack sizes: 1 piece, individually packed

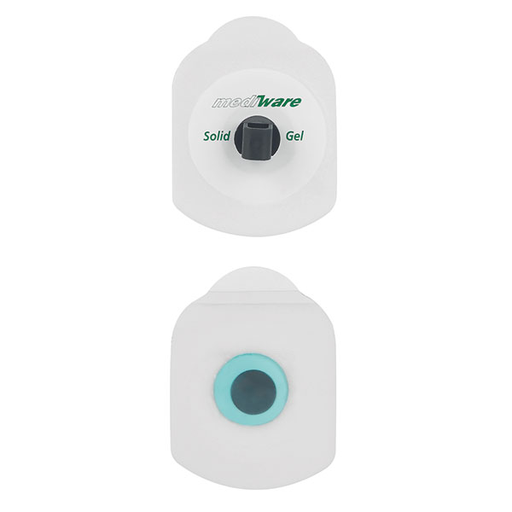

The Mediware rectangular electrodes Quick SPOT are made of solid gel and come with an adapter for optimal signal acquisition, for direct connection of the cable plug.

Product data:

Material: solid gel
Colour code: black
Connection: direct cable plug connection

Pack sizes:
Bag: 30 pieces
Dispenser box: 10 bags of 30 pieces each

The Mediware snap fastener adapters are individually packed and intended for fitting onto 4 mm banana plugs.

Product data:

Connection: 4 mm banana plug
Pack sizes: 1 piece, individually packed

Product details

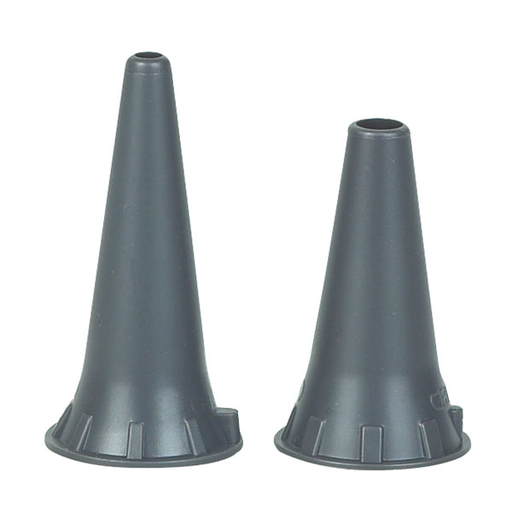

For single use, hygienic and safe. Secure fit on the otoscope, controlled quality with no sharp edges. Opening diameter 2.5 mm or 4 mm. Supplied in a dispenser pack of 250 pieces.
Ideally suited to our Mediware fibre-optic pocket otoscopes.
Also compatible with:

Heine Alpha
Heine Beta
Heine Mini I 2000 + FO
Heine Mini 3000 + FO
KaWe Picolight
KaWe Combilight FO30
KaWe Eurolight FO30
Riester RI-Mini

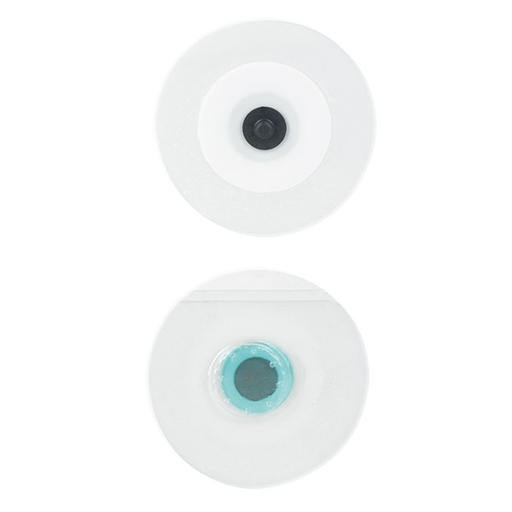

The Mediware stress electrodes are made of solid gel and have a snap connector.
They are ideal for exercise ECG and long-term monitoring. With particularly strong adhesion. Micropore foam backing, carbon electrode. Long shelf life (24 months), radiolucent, also suitable for use in a tomograph.

Product data:

Material: Solid gel
Connector: Snap

Pack sizes:
Bag: 30 pieces
Dispenser box: 10 bags of 30 pieces each

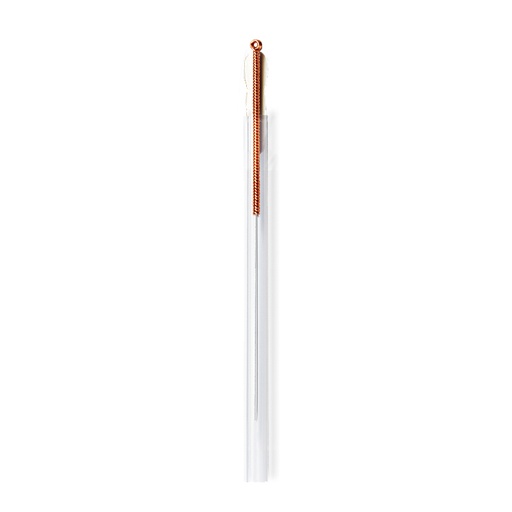

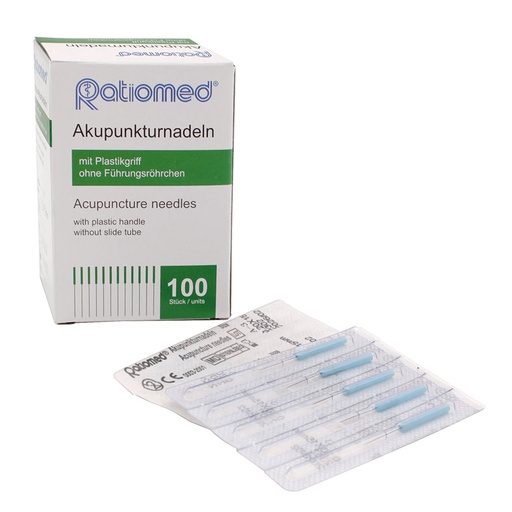

A mature, comprehensive range for the acupuncturist: - individually sterile packed - without guide tube - uncoated

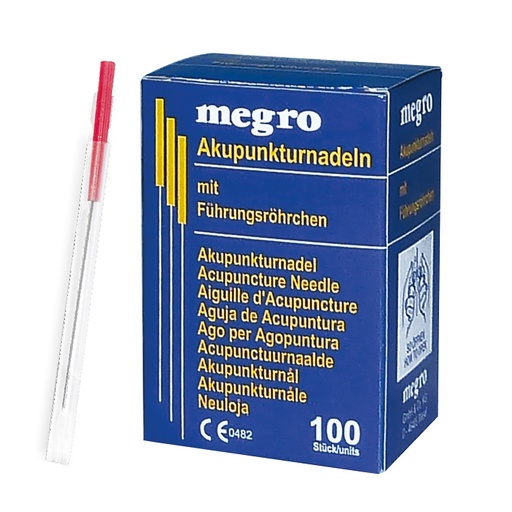

A mature, comprehensive range for acupuncturists: - individually sterile packed - with guide tube - uncoated - contains nickel

A sophisticated, comprehensive range for the acupuncturist: - individually sterile-packed - with guide tube - uncoated

A mature, comprehensive range for the acupuncturist: - individually sterile-packed - without guide tube - silicone-coated

The Mediware foam electrodes are made of solid gel and feature a snap connector.

Product data:

Colour code: yellow
Diameter: Ø 20 mm

Pack sizes:
Bag: 100 pieces

Fetal pocket Doppler PD 1+ with heart rate display
for midwives, gynaecologists and maternity clinics. PD 1 is small, lightweight and can be used anywhere.
- Output power: < 15 mW/cm² SATA - Audio frequency: 300 Hz - 1 kHz
- Heart rate: 60 - 210 bpm
- Battery: 9-volt E-block alkaline
- Battery life: > 9 hours
- Integrated speaker and headphone socket
- Dimensions: 150 x 75 x 33 mm
- Weight: 350 g
- Scope of delivery: incl. carry bag, ultrasound gel and battery
- Supplied without probes
- Type B - IEC 60601-1-1990

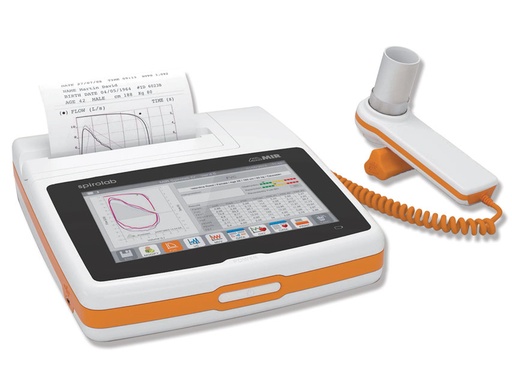

Fast, easy-to-use and durable diagnostic spirometer, made in Italy.

Unbeatable features
- Comparison of FVC, VC, MVV and PRE/POST bronchodilator results with a wide range of selectable parameters
- Long-life battery
- 7” colour touchscreen display
- Direct connection to an external USB PostScript printer
- 10,000 spirometry tests
- Wireless real-time testing on a PC via Bluetooth®
- Fast and quiet built-in printer with customisable print format
- Selectable internal software languages: GB, FR, IT, ES, DE, PT

The Flow MIR® disposable flowmeter complies with the ATS/ERS standard

Guaranteed 100% hygiene, no cross-contamination.
No calibration required.
Also suitable for children without an adapter.

Suitable for children.
Patented child incentive directly on the screen.

Winspiro PRO® high-performance PC software for spirometry and oximetry.
Multilingual software: GB, FR, IT, ES, DE, PT, PL, NL, LV, SE, CZ, RU, TR, JP, CN.

Scope of delivery:
- Spirolab 7"
- Carrying bag
- Winspiro PRO® software
- Battery charger
- USB port and cable
- 1 roll of thermal paper
- Reusable turbine
- Nose clip
- CD manual: GB, FR, IT, ES, DE, PT


Product data:

SPIROMETRY SPECIFICATIONS:
- Power supply: battery
- Autonomy: approx. 10 hours
- Temperature sensor: semiconductor (0–45 °C)
- Flow sensor: bidirectional digital turbine
- Flow range: ±16 l/s
- Volume accuracy: ±3% or 50 ml
- Flow accuracy: ±5% or 200 ml/s
- Dynamic resistance: <0.5 cm H2O/L/s
- Connectivity: USB 2.0, Bluetooth® 2.1
- Display: 7-inch touchscreen LCD with a resolution of 800 x 480 pixels
- Mouthpieces: Ø 30 mm
- Dimensions: 220 x 210 x 51 mm (8.66 x 8.26 x 2 inches)
- Weight: 1450 g (incl. battery)
- Electrical protection: Class II
- Standards: Electrical safety standard EN 60601-1
- Electromagnetic compatibility EN 60601-1-2
- Spirometry parameters: FVC, FEV1, FEV1/FVC, FEV1/VC, PEF, FEF25, FEF50, FEF75, FEF25-75, FEF75-85, lung age, extrapolated volume, FET, time to PEF, FEV0.5, EV0.5/FVC, FEV0.75, FEV0.75/FVC, FEV2, FEV2/FVC, FEV3, FEV3/FVC, FEV6, FEV1/FEV6, FEV1/PEF, FEV1/FEV0.5, FIVC, FIV1, FIV1/FIVC, PIF, FIF25, FIF50, FIF75, FEF50/FIF50, VC, IVC, IC, ERV, IRV, RF, VE, VT, tI, tE, VT/tI, tE/tTOT, MVV (measured), MVV (calculated).


WINSPIRO PRO® SOFTWARE REQUIREMENTS:
Windows 2000, XP, Vista (32/64-bit), 7 (32/64-bit), 8 and 8.1 (32/64-bit), 10 (32/64-bit). RAM 512 MB

Fast, easy-to-use and durable diagnostic spirometer, made in Italy.

Unbeatable features
- Comparison of FVC, VC, MVV and PRE/POST bronchodilator tests with a wide range of selectable parameters
- Long-life rechargeable battery
- 7" colour touchscreen display
- Direct connection to an external USB PostScript printer
- 10,000 spirometry tests or 500 hours of oximetry recording
- Wireless real-time test on PC via Bluetooth®
- Fast and quiet built-in printer with customisable print format
- Selectable internal software languages: GB, FR, IT, ES, DE, PT

Oximetry option: available reusable finger probe for adults and children.

Fast and user-friendly: every function can be activated at the touch of a button.

The Flow MIR® disposable flow sensor complies with the ATS/ERS standard

Guaranteed 100% hygiene, no cross-contamination.
No calibration required.
Also suitable for children without an adapter.

Suitable for children.
Patented paediatric incentive directly on the screen.

Winspiro PRO® high-performance PC software for spirometry and oximetry.
Multilingual software: GB, FR, IT, ES, DE, PT, PL, NL, LV, SE, CZ, RU, TR, JP, CN.

Scope of delivery:
- Spirolab 7"
- Carry bag
- Winspiro PRO® software
- Battery charger
- USB port and cable
- Adult SpO2 sensor
- 1 roll of thermal paper
- Reusable turbine
- Nose clip
- CD manual: GB, FR, IT, ES, DE, PT


Product data:

SPIROMETRY SPECIFICATIONS:
- Power supply: rechargeable battery
- Autonomy: approx. 10 hours
- Temperature sensor: semiconductor (0–45°C)
- Flow sensor: bidirectional digital turbine
- Flow range: ±16 l/s
- Volume accuracy: ±3% or 50 ml
- Flow accuracy: ±5% or 200 ml/s
- Dynamic resistance: <0.5 cm H2O/l/s
- Connectivity: USB 2.0, Bluetooth® 2.1
- Display: 7-inch LCD touchscreen with a resolution of 800 x 480 pixels
- Mouthpieces: Ø 30 mm
- Dimensions: 220 x 210 x 51 mm (8.66 x 8.26 x 2 inches)
- Weight: 1450 g (incl. rechargeable battery)
- Electrical protection: Class II
- Standards: Electrical safety standard EN 60601-1
- Electromagnetic compatibility EN 60601-1-2
- Spirometry parameters: FVC, FEV1, FEV1/FVC, FEV1/VC, PEF, FEF25, FEF50, FEF75, FEF25-75, FEF75-85, lung age, extrapolated volume, FET, time to PEF, FEV0.5, EV0.5/FVC, FEV0.75, FEV0.75/FVC, FEV2, FEV2/FVC, FEV3, FEV3/FVC, FEV6, FEV1/FEV6, FEV1/PEF, FEV1/FEV0.5, FIVC, FIV1, FIV1/FIVC, PIF, FIF25, FIF50, FIF75, FEF50/FIF50, VC, IVC, IC, ERV, IRV, RF, VE, VT, tI, tE, VT/tI, tE/tTOT, MVV (measured), MVV (calculated).

OXIMETRY SPECIFICATIONS:
- SpO2 range: 0–99%
- SpO2 accuracy: ±2% between 70–99% SpO2
- Pulse rate range: 18–300 bpm
- Pulse rate accuracy: ±2 bpm or 2%, whichever is greater
- Memory capacity: up to 500 hours of oximetry
- Oximetry parameters: %SpO2 and pulse rate (min, max, mean), test duration, total SpO2 events, T90% (SpO2 time = 89%), T89% (SpO2 time = 88%), T40 (bradycardia duration with pulse rate <40 bpm), T120 (tachycardia duration with pulse rate >120 bpm).

WINSPIRO PRO® SOFTWARE REQUIREMENTS:
Windows 2000, XP, Vista (32/64 bit), 7 (32/64 bit), 8 and 8.1 (32/64 bit), 10 (32/64 bit). RAM 512 MB
