All measures and examinations for the detection or diagnosis of a disease is referred to as diagnostics. Beginning with the patient's medical history, the diagnostic process continues with physical diagnostics. In order to be able to make a clear diagnosis, mere physical diagnoses are often not sufficient and apparative diagnostic procedures such as laboratory chemical examinations, imaging procedures or special diagnostic equipment must be used. At Meddax24 you will find all the accessories in our online store that you need for general diagnostics, naturopathy, family planning or specialized diagnostics in the doctor's office and clinic: For example, you can get stethoscopes, diagnostic lamps and devices or acupuncture needles easily and conveniently with a click.
Basis Preisliste Netto
Sort By: Featured
KERN Personal scale MPE 250K100HM with stand and height measuring rod
Personal scale MPE 250K100HM with stand and height measuring rod incl. EUR 69.00 calibration costs

- Calibrated to Class III
- Medical approval in accordance with 93/42/EEC
- Rear secondary display
- Telescopic height measuring rod integrated in the stand, measuring range 88–200 cm
- Robust design for daily use in professional environments
- Hygienic and easy to clean
- Safe, non-slip positioning thanks to height-adjustable rubber feet. Spirit level for precise levelling of the scale as standard
- Large, non-slip weighing platform
- Vibration-free weighing: vibrations are filtered out to determine a stable weight value, ideal for patients who cannot stand still
- Data-hold function: when weighing is stable, the weight display is “frozen” for 10 seconds, giving enough time to read the result at ease
- Mother-and-child function: the mother’s weight determined by weighing is set to zero at the press of a button. The mother and child are then weighed together. The child’s weight is displayed directly. Particularly comfortable for small children, who can be weighed safely and securely in the mother’s arms
- BMI function for determining normal weight/overweight
- 2 rollers for convenient transport of the scale
- Fine display: at the touch of a button, readability can be increased by 1 digit for 5 seconds

Product data:

Maximum capacity: 250 kg
Graduation: 100 g
LCD display: digit height 25 mm
Dimensions of weighing platform (W x D x H): 365 mm x 360 mm x 80 mm
Dimensions of display unit (W x D x H): 200 mm x 128 mm x 55 mm
Incl. batteries (6 x 1.5 V AA) - mains adapter (external) as standard
RS232 data interface as standard
Net weight: approx. 12 kg
()
658.07 € 658.07 EUR

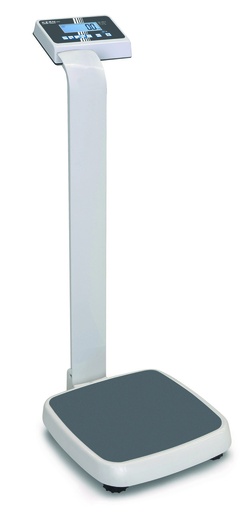

KERN Personal scale MPE 250K100PM with stand
Personal scale MPE 250K100PM with stand incl. EUR 51.00 calibration costs

- Calibrated to Class III
- Medical approval according to 93/42/EEC
- Rear secondary display
- Robust design for daily use in professional environments
- Hygienic and easy to clean
- Safe, non-slip positioning thanks to height-adjustable rubber feet. Spirit level for precise levelling of the scale as standard
- Large, non-slip platform
- Vibration-free weighing: vibrations are filtered out to determine a stable weight value, ideal for patients who cannot stand still
- Automatic Data Hold function: when weighing is stable, the weight display is “frozen” for 10 sec. This leaves enough time to read the weight at ease
- Mother-and-child function: the mother’s weight determined by weighing is set to zero at the touch of a button. The mother and child are then weighed together. The child’s weight is now displayed directly. Particularly comfortable for small children, as they can be weighed safely and securely in the mother’s arms
- BMI function to determine normal weight/overweight
- 2 rollers for convenient transport of the scale
- Fine display: at the press of a button, readability can be increased by 1 digit for 5 seconds

Product data:

Capacity: 250 kg
Graduation: 100 g
LCD display: digit height 25 mm
Weighing platform dimensions (W x D x H): 365 mm x 360 mm x 80 mm
Display unit dimensions (W x D x H): 200 mm x 128 mm x 55 mm
Incl. batteries (6 x 1.5 V AA)
Mains adapter (external) as standard
RS232 data interface as standard
Net weight: approx. 12 kg
()
604.52 € 604.52 EUR

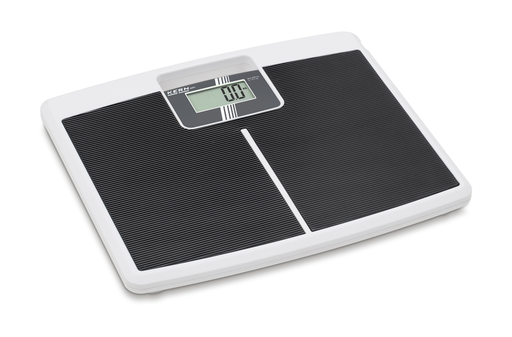

KERN Personal scale MPI 200K-1
Personal scale with an extra-large, low-profile weighing platform for easy step-on access and maximum safety

This personal scale is the ideal measuring instrument for elderly care, paramedical use or private use, including weighings in the obese range up to 200 kg
Very large weighing platform
Hygienic and easy to clean
The scale can be conveniently carried using the handle and stored in a space-saving way
Extra-flat design makes stepping on easier
Extra-large platform with a non-slip, abrasion-resistant plastic surface
Very easy to use: tap – step on – read
Integrated AUTO-OFF function to save battery power
Unit switch from kg to lb possible
Large display, makes reading easier
Supplied in an individual designer packaging

Technical data:

Weighing range (max): 200 kg
Readability (d): 0.1 kg
Units: kg, lb
Dimensions of weighing platform (W x D x H): 433 x 370 x 34.5 mm
Battery operating time: 20 h
Net weight: 3.024 kg
Scale type: single-range scale
()
97.46 € 97.46 EUR

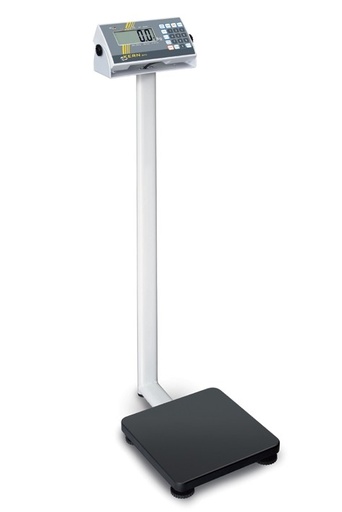

KERN Personal scale MPS 200K100PM with stand
Personal scale MPS 200K100PM with stand incl. EUR 51.00 verification costs

- verified to Class III
- medical approval in accordance with 93/42/EEC
- sturdy steel weighing platform with non-slip and abrasion-resistant surface
- easy and hygienic to clean
- safe, non-slip positioning thanks to height-adjustable rubber feet
- Dynamic Weighing function to determine a stable weighing value, ideal for patients who cannot stand still
- Data Hold function: when the weighing stabilises, the weight display is automatically “frozen” until the Hold button is pressed
- intuitive operation via keypad
- PRE-TARE function for 5 weight values
- BMI function to determine normal weight/overweight
- battery and mains operation possible
- wall bracket for wall mounting of the display unit included as standard

Product data:

Capacity: 200 kg
Graduation: 100 g
LCD display: digit height 25 mm
Dimensions of weighing platform (W x D x H): 275 x 295 x 58 mm
Dimensions of display unit (W x D x H): 210 x 110 x 50 mm
Overall dimensions incl. stand (W x D x H): 275 x 430 x 1015 mm
Battery operation possible, 6 x 1.5 V AA (not included), operating time approx. 57 hrs
Mains adapter (external) included as standard
RS232 data interface included as standard
Net weight: approx. 6 kg
()
781.83 € 781.83 EUR

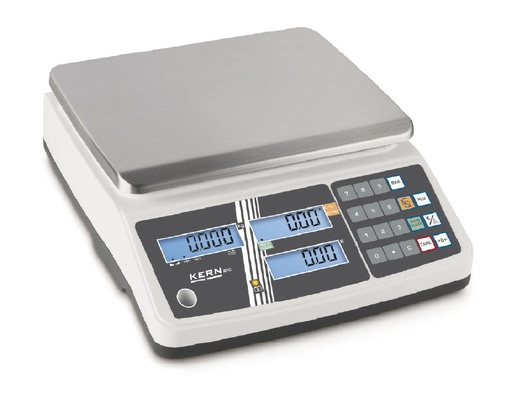

KERN Price computing scale RPB 15K2DM
- New: modern, ergonomic design and an even more compact housing, supporting efficient work and saving space
- Secondary display on the rear of the scale, as standard (only for models without column display)
- Three displays for: weight (legal-for-trade), unit price, total price
- Change calculation
- Unit price switchable from €/kg to €/100 g
- Memory (PLU) for 10 item prices
- Auto-clear key: the set unit price is automatically cleared when the scale is unloaded

Application examples:
Retail shops
Markets (mobile)
Farm shops
Fruit and vegetable sales for pick-your-own customers

Product data:

Design:
Housing dimensions (W×D×H): 310 mm x 270 mm x 65 mm
Rotating levelling feet: yes
Housing material: plastic
Overall dimensions, fully assembled (W×D×H): 310 mm x 270 mm x 65 mm
Spirit level: yes
Weighing plate material: stainless steel
Weighing surface (W×D): 204 mm x 263 mm

Measuring system:
Readability [d]: 2 g / 5 g
Warm-up time: 10 min / 10 min
Number of weighing ranges: 2
Resolution: 3 3,000
Resolution (legal-for-trade): 6000
Resolution (non-legal-for-trade): 6000
Eccentric loading at 1/3 Max: 10 g / 25 g
Stabilisation time under laboratory conditions: 2 s
Recommended calibration weight: 15 kg (M1)
Calibration options: calibration with external weight
Linearity: 6 g / 15 g
Repeatability: 2 g / 5 g
()
229.91 € 229.91 EUR

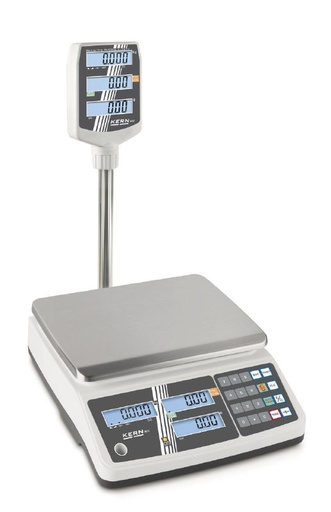

KERN Price computing scale with elevated display RPB 15K2DHM
- New: modern, ergonomic design and an even more compact housing, supporting efficient working and saving space
- High-visibility backlit display, rotatable on stand, stand height approx. 480 mm, only -HM, not retrofittable
- Three displays for: weight (verifiable), unit price, sales price
- Change calculation
- Unit price switchable from €/kg to €/100 g
- Memory (PLU) for 10 item prices
- Auto-clear button: the set unit price is automatically cleared when the scale is unloaded

Application examples:
Retail shops
Mobile markets
Farm shops
Fruit and vegetable sales for pick-your-own customers

Product data:

Design
Housing dimensions (W×D×H): 310 mm x 270 mm x 65 mm
Rotatable levelling feet: yes
Housing material: plastic
Overall dimensions, fully assembled (W×D×H): 310 mm x 270 mm x 545 mm
Spirit level: yes
Weighing pan material: stainless steel
Stand height: 48 cm
Weighing surface (W×D): 204 mm x 263 mm

Measuring system:
Readability [d]: 2 g / 5 g
Warm-up time: 10 min / 10 min
Number of weighing ranges: 2
Resolution: 3 3,000
Resolution (verifiable): 6000
Resolution (non-verifiable): 6000
Off-centre load at 1/3 Max: 10 g / 25 g
Stabilisation time under laboratory conditions: 2 s
Recommended adjustment weight: 15 kg (M1)
Adjustment options: adjustment with external weight
Linearity: 6 g / 15 g
Repeatability: 2 g / 5 g
()
257.04 € 257.04 EUR
KERN Robust and high-resolution platform scale
- High mobility thanks to compact, low-profile design, suitable for use at multiple locations (laboratory, quality control, order picking etc.)
- Platform: stainless steel weighing plate, painted steel base, silicone-coated aluminium load cell, dust and splash water protection IP65
- Spirit level and foot screws for precise levelling of the scale as standard, ensuring maximum weighing accuracy
- Percentage determination: enables weighing in to a preset value (100%) and determining deviations from this target value
- Weighing with tolerance range (checkweighing): an optical and acoustic signal supports portioning, dosing or sorting
- Hold function: in unstable weighing conditions, a stable weight value is calculated by averaging
- Table stand incl. wall bracket for the display unit as standard
- Weigh instead of counting! The easy-to-use counting function allows quick recording of large quantities of small parts – saving time and costs!
- Querying and remote control of the scale via external control devices or computer using the KERN Communication Protocol (KCP). KCP is a standardised interface command set for KERN scales and other instruments, enabling retrieval and control of all relevant parameters and device functions. KERN devices with KCP can therefore be easily integrated into computers, industrial controllers and other digital systems. The KCP protocol is largely compatible with the MT-SICS protocol. Only possible via RS-232 data interface; further interfaces available on request
- Protective work cover included in delivery

Product data:

Design
Dimensions of display unit (W×D×H): 268 mm x 115 mm x 80 mm
Dimensions of weighing plate (W×D×H): 300 mm x 300 mm x 110 mm
Rotating foot screws: yes
Cable length display unit: 3 m
Spirit level: yes
Material of weighing plate: stainless steel
Stand height: 33 cm
Wall bracket: yes
Weighing surface (W×D): 300 mm x 300 mm

Functions:
Vibration-free weighing (animal weighing programme): yes
Percentage determination: yes
Weighing with tolerance range: yes
Counting function: yes

Measuring system
Readability [d]: 1 g / 2 g
Warm-up time: 10 min / 10 min
Resolution: 3 3,000
Off-centre load at 1/3 Max: 5 g / 10 g
Stabilisation time under laboratory conditions: 2 s
Recommended adjustment weight: 6 kg (M1)
Adjustment options: adjustment with external weight
Linearity (in points): 3
Linearity: 3 g / 6 g
Repeatability: 1 g / 2 g
Tare range: -6 kg
Weighing range [Max]: 3 kg / 6 kg
Weighing units: g kg lb oz
()
357.00 € 357.0 EUR

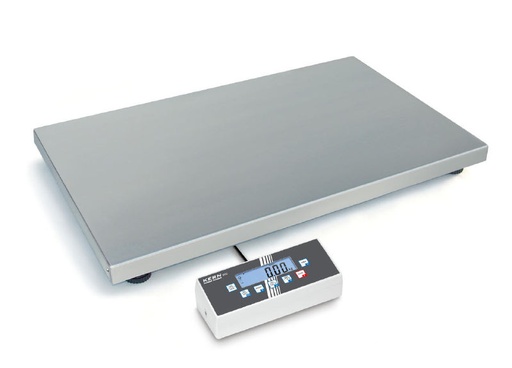

KERN Robust and high-resolution platform scale EOC 100K-2XXL
- High mobility thanks to compact, low-profile design, suitable for use at multiple locations (laboratory, quality inspection, order picking, etc.)
- Platform: stainless steel weighing plate, painted steel base, silicone-coated aluminium load cell, dust and splash-water protection IP65
- Spirit level and levelling feet for precise levelling of the scale as standard, ensuring maximum weighing accuracy
- Percentage determination: enables weighing-in to a preset value (100%) and determining deviations from this target value
- Weighing with tolerance range (checkweighing): an optical and acoustic signal supports portioning, dosing or sorting
- Hold function: in unstable weighing conditions, a stable weight value is calculated by averaging
- Table base incl. wall bracket for the indicator as standard
- Weigh instead of count! The simple operation of the counting function enables fast recording of large quantities of small parts – saving time and costs!
- Querying and remote control of the scale via external control devices or computer using the KERN Communication Protocol (KCP). KCP is a standardised set of interface commands for KERN scales and other instruments, allowing retrieval and control of all relevant parameters and device functions. This makes it easy to connect KERN devices with KCP to computers, industrial controllers and other digital systems. The KCP protocol is largely compatible with the MT-SICS protocol. Only possible via RS-232 data interface; further interfaces available on request
- Protective work cover included in the scope of delivery

Product data:

Design
Dimensions of indicator (W×D×H): 268 mm x 115 mm x 80 mm
Dimensions of weighing plate (W×D×H): 950 mm x 500 mm x 60 mm
Swivelling levelling feet: yes
Indicator cable length: 2.700 m
Spirit level: yes
Material of weighing plate: stainless steel
Stand height: 33 cm
Wall bracket: yes
Weighing surface (W×D): 950 mm x 550 mm

Functions
Vibration-free weighing (animal weighing programme): yes
Percentage determination: yes
Weighing with tolerance range: yes
Counting function: yes

Measuring system
Readability [d]: 20 g / 50 g
Warm-up time: 10 min / 10 min
Resolution: 3 3,000
Eccentric load at 1/3 Max: 100 g / 250 g
Stabilisation time under laboratory conditions: 2 s
Recommended calibration weight: 150 kg (M1)
Calibration options: calibration with external weight
Linearity (in points): 3
Linearity: 60 g / 150 g
Repeatability: 20 g / 50 g
Tare range: -150 kg
Weighing capacity [Max]: 60 kg / 150 kg
Weighing units: g kg lb oz
()
671.16 € 671.16 EUR

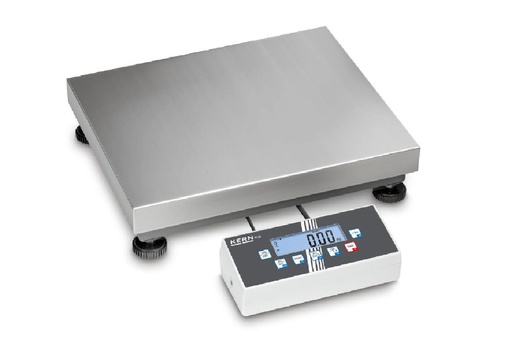

KERN Robust and high-resolution platform scale EOC 30K-3L
- High mobility thanks to the compact, low-profile design, suitable for use at multiple locations (laboratory, quality inspection, order picking etc.)
- Platform: stainless steel weighing plate, painted steel substructure, silicone-coated aluminium load cell, dust and splash water protection IP65
- Spirit level and levelling feet for precise levelling of the scale as standard, ensuring maximum weighing accuracy
- Percentage determination: enables weighing in to a preset value (100%) and determining deviations from this target value
- Weighing with tolerance range (checkweighing): an optical and acoustic signal supports portioning, dosing or sorting
- Hold function: in unstable weighing conditions, an average value is calculated to obtain a stable weight reading
- Table stand incl. wall bracket for the indicator as standard
- Weigh instead of count! The easy-to-use counting function enables fast recording of large quantities of small parts – saving time and costs!
- Querying and remote control of the scale via external control devices or computers using the KERN Communication Protocol (KCP). KCP is a standardised set of interface commands for KERN scales and other instruments, enabling retrieval and control of all relevant parameters and device functions. KERN devices with KCP can therefore be easily integrated into computers, industrial controllers and other digital systems. The KCP protocol is largely compatible with the MT-SICS protocol. Only possible via RS-232 data interface; further interfaces available on request
- Protective work cover included in the delivery

Product data:

Design
Dimensions of indicator (W×D×H): 265 mm x 110 mm x 70 mm
Dimensions of weighing plate (W×D×H): 500 mm x 400 mm x 120 mm
Swivelling levelling feet: yes
Indicator cable length: 3 m
Spirit level: yes
Material of weighing plate: stainless steel
Stand height: 33 cm
Wall bracket: yes
Weighing surface (W×D): 500 mm x 400 mm

Functions
Vibration-free weighing (animal weighing programme): yes
Percentage determination: yes
Weighing with tolerance range: yes
Counting function: yes

Measuring system
Readability [d]: 5 g / 10 g
Warm-up time: 10 min / 10 min
Resolution: 3 3,500
Off-centre load at 1/3 Max: 25 g / 50 g
Stabilisation time under laboratory conditions: 2 s
Recommended adjustment weight: 30 kg (M1)
Adjustment options: adjustment with external weight
Linearity (in points): 3
Linearity: 15 g / 30 g
Repeatability: 5 g / 10 g
Tare range: -30 kg
Weighing capacity [Max]: 15 kg / 35 kg
Weighing units: g kg lb oz
()
437.33 € 437.33 EUR

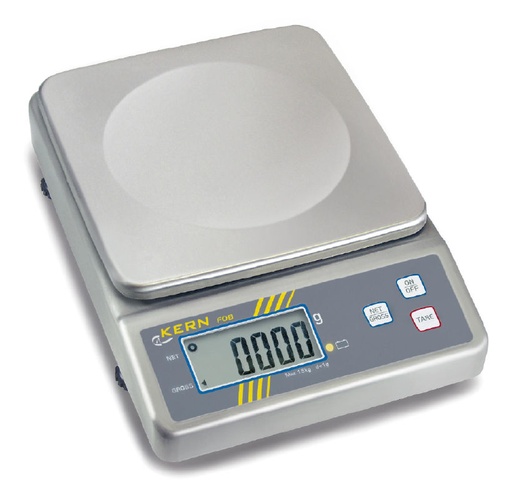

KERN Stainless steel bench scale FOB 6K2 up to 6 kg (2 g)
- NEW: Innovative checkweighing with tolerance range: the display colour changes depending on the weighing result (too light/OK/too heavy), supporting portioning, dosing and sorting
- Stainless-steel version of housing and weighing plate. Easy to clean thanks to smooth surfaces
- Increased moisture protection through waterproof silicone sealing of load cell, electronics and solder joints
- High mobility: thanks to compact, flat design suitable for use at multiple locations (kitchen, sales area, market stall, food laboratory, etc.)
- Net/gross weight: switch at the touch of a button to check the already loaded weighing range
- Supports your HACCP-compliant quality system

Application examples:
- Weighing ingredients and spices in catering/food service
- Portioning dough, meat, fish, poultry, salad plates in canteens, etc.
- Filling tins, etc.
- Checking pre-packaged products
- Safe, non-slip positioning thanks to rubber feet
- Check the already loaded weighing range at the touch of a button (net/gross weight)

Product data:

Design:
Housing dimensions (W×D×H): 180 mm x 235 mm x 60 mm
Rotating levelling feet: yes
Housing material: stainless steel
Spirit level: yes
Weighing plate material: stainless steel
Weighing surface (W×D): 175 mm x 165 mm

Measuring system:
Readability [d]: 2 g
Warm-up time: 10 min
Resolution: 3000
Off-centre load at 1/3 Max: 6 g
Stabilisation time under laboratory conditions: 2 s
Recommended calibration weight: 5 kg (M2)
Calibration options: calibration with external weight
Linearity: 4 g
Repeatability: 2 g
Weighing capacity [Max]: 6 kg
Weighing units: g lb oz
Weighing system: strain gauge load cell (DMS)
()
204.68 € 204.68 EUR

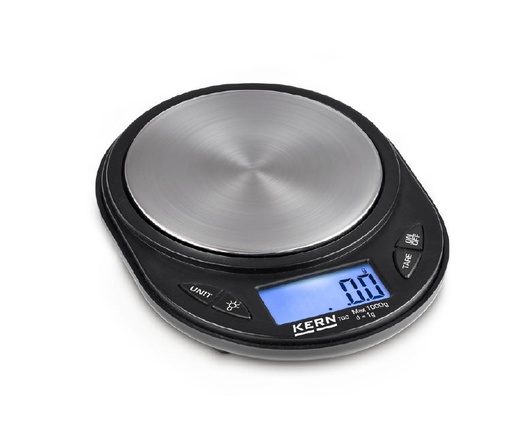

KERN TGC Precision pocket balance with large stainless steel weighing plate
- High-resolution pocket scale with particularly fast response and settling time, enabling very efficient operation
- Extra-slim design
- Impact-resistant plastic cover for pressure and dust protection. Can also be used as a weighing container
- Stainless steel weighing plate, hygienic and easy to clean

Product data:
Housing dimensions (W×D×H): 100 mm x 130 mm x 18 mm
Housing material: Plastic
Weighing plate material: Stainless steel
Weighing surface (d): 81 mm
Display digit height: 12 mm
Battery: 2xCR2032
Battery operating time: 33 h
()
From 95.06 € 0.0 EUR

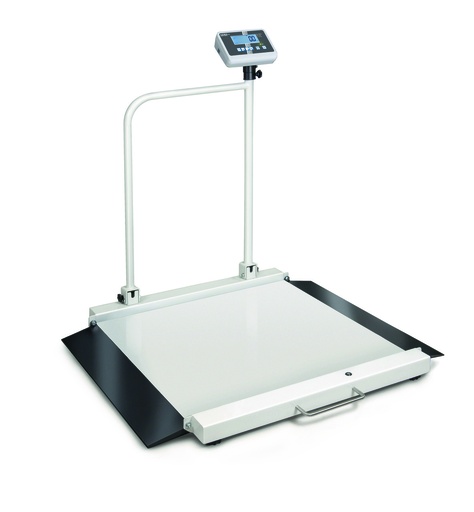

KERN Wheelchair scale with handrail
Wheelchair scale with two integrated access ramps for convenient rolling on –
with legal-for-trade verification and medical approval for professional, inpatient use in
medical diagnostics

Verification class III (verification included, price €56, incl.)

-Medical approval in accordance with 93/42/EEC

-Especially suitable for weighing patients in wheelchairs, thanks to the low-profile platform that can be accessed from both sides

-The large steel weighing platform is also ideally suited for weighing bariatric patients

-Spirit level for precise levelling of the scale as standard

-Hold function: For patients who are unsteady while standing or sitting, a stable weight value is determined by averaging and “frozen”. This leaves enough time to attend to the patient and then read the weight value at leisure

-MWA 300K-1PM:
This set includes the wheelchair scale MWA 300K-1M and the KERN MWA-A01 handrail
(including stand for ergonomically favourable mounting of the evaluation device), which offers the patient maximum safety when rolling onto or stepping onto the weighing platform

-The two access ramps and the handrail can be folded in with just a few simple steps, e.g. for convenient transport


Technical data:

-Readability/verification interval: 0.1 kg

-Large backlit LCD display, digit height 25 mm

-Dimensions of evaluation device: W×D×H 200×128×55 mm

-Overall dimensions, without handrail W×D×H 1180×1000×1130 mm

-Cable length of evaluation device approx. 180 cm

-Battery operation possible, 6×1.5 V AA, not included, operating time up to 20 h

-Mains adapter (external) as standard

-Net weight approx. 57.6 kg
()
1,811.18 € 1811.18 EUR
KERN Wheelchair scale without handrail
Wheelchair scale with two integrated access ramps for convenient roll-on weighing –
with legal-for-trade calibration and medical approval for professional, stationary use in
medical diagnostics

Verification class III (calibration, price €56, incl.)

- Medical approval according to 93/42/EEC

- Particularly suitable for weighing patients in wheelchairs, thanks to the low-profile platform that can be accessed from both sides

- The large steel weighing platform is also ideal for weighing bariatric patients

- Spirit level for precise levelling of the scale included as standard

- Hold function: For patients who are unsteady when standing or seated, a stable weight value is determined via averaging and “frozen”. This leaves sufficient time to attend to the patient and then read the weight value at leisure


Technical data:

- Readability / verification interval: 0.1 kg

- Large backlit LCD display, digit height 25 mm

- Dimensions of the indicator unit: W×D×H 200×128×55 mm

- Overall dimensions, without support handle: W×D×H 1180×1000×1130 mm

- Indicator unit cable length approx. 180 cm

- Battery operation possible, 6×1.5 V AA, not included, operating time up to 20 h

- Mains adapter (external) included as standard

- Net weight approx. 57.6 kg
()
1,938.51 € 1938.51 EUR

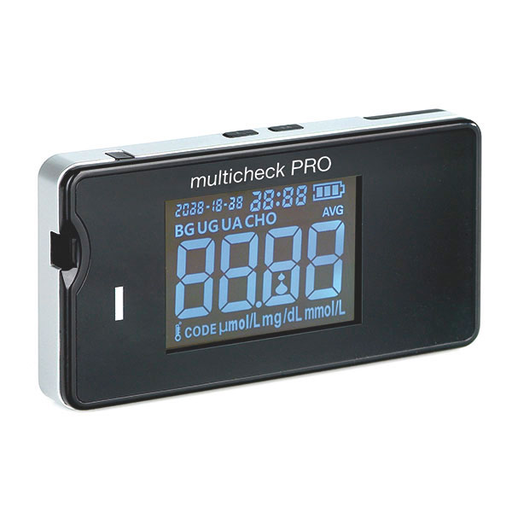

LIFETOUCH MultiCHECK Pro Triple diagnostic set
Lifetouch Multicheck Pro

Triple diagnostic set for personal self-monitoring and for medical practices.
Now measure reliably directly from whole blood:

Blood glucose – for diabetics
Uric acid – for kidney problems, over-acidification and gout
Cholesterol – for risk of infarction and metabolic disorders

Complete set consisting of:
Meter, incl. batteries, instructions, lancing device, lancets, pouch as well as 25 blood glucose test sensors

Clinically tested, ideal for personal monitoring and for medical practices. Compact and handy like a smartphone.

Product data:

Power: 2 x AAA long-life batteries

Measurement environment:
Temperature: +10 °C to +40 °C
Humidity: 10% to 90%
Storage: -20 °C to +55 °C

Measurement time:
Cholesterol: 15 seconds
Uric acid: 5 seconds
Blood glucose: 5 seconds
Measurement principle: glucose oxidase biosensor technology
Calibration code: 1 to 49

Measuring ranges:
Cholesterol: 100 to 400 mg/dl
Uric acid: 1.5 to 20 mg/dl
Blood glucose: 20 to 800 mg/dl
Haematocrit: 20 to 60%
Sample volume: 2 µL capillary whole blood or venous blood
Display units: mg/dl, mmol/l
Weight: 110 g
Dimensions: 111 x 59 x 16 mm
Warranty: 5 years
()
100.23 € 100.23 EUR
LITTMANN Cardiology IV Diagnostic Stethoscope Black Edition
Outstanding acoustics with enhanced perception of high-frequency sounds (large side, increased pressure). The 3M Dual Frequency diaphragm technology allows stethoscope users to control the diaphragm by varying the pressure applied to the chestpiece, enabling different frequency ranges to be heard. Light pressure emphasises low frequencies; slightly firmer pressure emphasises higher frequencies. The paediatric side of the chestpiece can be converted into a traditional open bell by simply removing the Dual Frequency diaphragm and replacing it with the supplied non-chill ring. The integrated dual-lumen tubing system combines two sound paths within one tube, eliminating the distracting friction noises of traditional dual tubing. Durable, dirt-repellent tubing material free from natural rubber latex and plasticisers. Optimal fit and wearing comfort thanks to individually adjustable headset with soft eartips. Total length: 69 cm, total weight: 177 g, chestpiece weight: 87 g, diaphragms: Ø 43 mm and 33 mm.
()
From 244.06 € 0.0 EUR

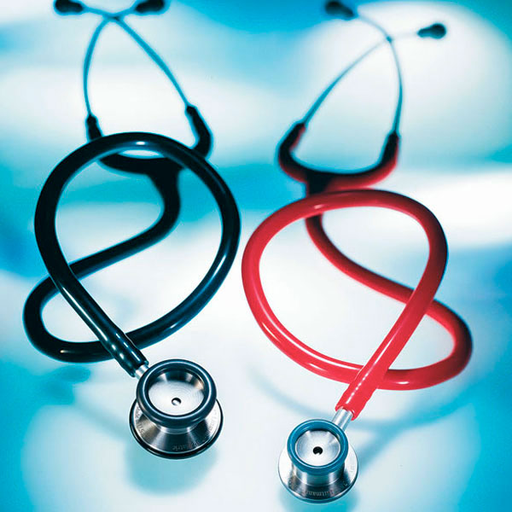

LITTMANN Classic II Stethoscope, Type Infant
Membrane: 30 mm Ø

Funnel: 23 mm Ø

Weight: 85 g

Length: 71 cm
()
From 124.24 € 0.0 EUR

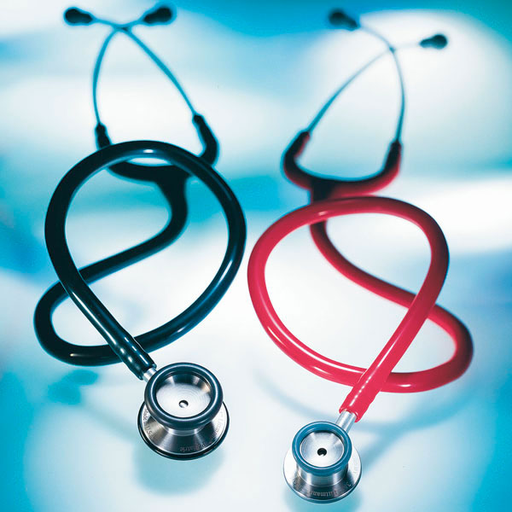

LITTMANN Classic II Stethoscope, Type Paediatric
Membrane: 35 mm Ø

Funnel: 30 mm Ø

Weight: 100 g

Length: 71 cm
()
From 124.24 € 0.0 EUR

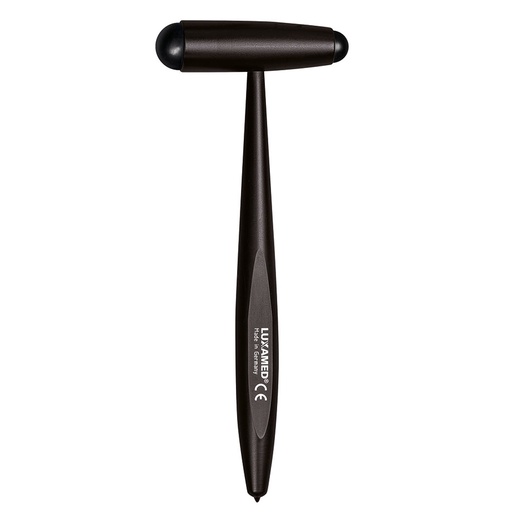

LUXAMED Reflex hammer according to Buck
Optimal weight distribution
Powder-coated
Neurological sensory tip
Without brush
Weight: 90 g
Length: 18 cm
()
From 24.91 € 0.0 EUR
Vertrag widerrufen
