Strong – reliable – economical

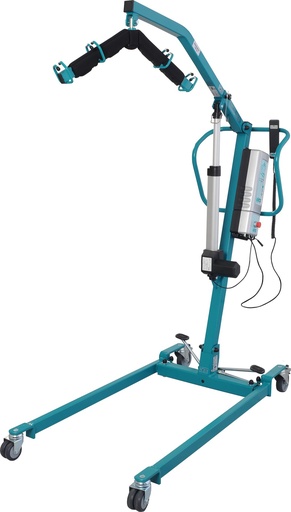

The mobile standard and active mini lift aks-mini dualo® completes the aks lift family. The dual principle focuses on greater flexibility and freedom of choice. The mini lift meets all the requirements of a “full-size” lift, but is more manoeuvrable and easier to handle thanks to its more compact dimensions.

The advantages of the dualo® mini
• Multifunctionality: optimum use of the versatile functions of a standard and/or stand-up lift, such as lifting, transferring and assisting people to stand up; picking up from the floor in a lying position is possible
• max. load capacity 150 kg
• Flexibility: easy conversion from standard lift to active lift and vice versa; simplified plug-in function thanks to stainless steel square tubes
• Freedom of choice: Take your time. If you decide, for example, on a standard lift, you can retrofit the active lift stand-up arm and the corresponding equipment at any time

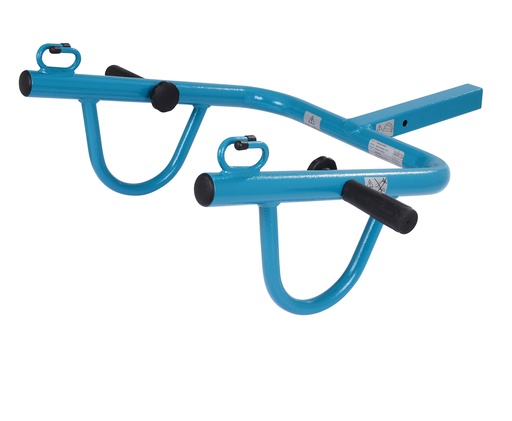

• the stand-up arm also has side grips for greater comfort and support
• Cost-effectiveness and efficiency: lower purchase costs and high utilisation frequency; needs-based use as a dual lift is particularly useful in care facilities
• ideal for small rooms and narrow doorways
• mechanical emergency lowering, emergency stop switch in the event of electrical faults, visual and audible warning to prevent deep discharge
• high stability thanks to mechanical spreading of the chassis via foot pedal, two lockable castors

Options and accessories

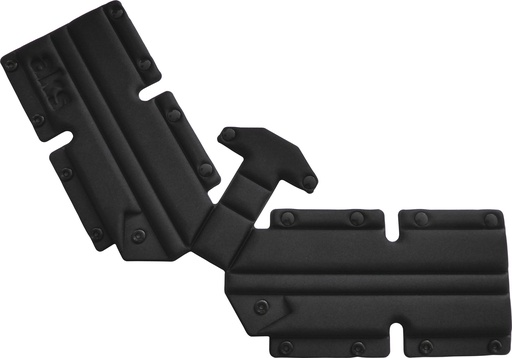

• various lift slings and spreader bars, spreader bar padding, charger, spare battery, aks lift scales, see from p. 16 onwards
• additional aks battery pack with separate wall charging station promotes independence in daily care.

Consisting of:
87113 aks-mini dualo lift base
87190 aks-mini dualo standard lifting arm
79720 aks standard transport spreader bar, water blue

Flexible – economical – safe
The dual principle focuses on greater flexibility and freedom of choice. Particular emphasis has been placed on increased comfort, safety and multifunctionality. The aks-dualo® is used to transfer and raise a person in combination with aks lifting slings for care at home or in a residential/nursing home.

The advantages of the aks-dualo®
• Multifunctionality: optimum use of the versatile functions of a standard lifter and/or a stand-up lifter, such as lifting, transferring and raising people (Fig. 1, 4), picking up directly from the floor, assistance with hygiene, ideal for small spaces and narrow doors
• Flexibility: easy conversion of the standard lifter into an active lifter and vice versa (Fig. 2, 3), simplified plug-in connection thanks to stainless steel square tubes
• Freedom of choice: Take your time. If you decide, for example, on a standard lifter, you can retrofit the stand-up arm of the active lifter and the corresponding equipment at any time
• Cost-effectiveness and efficiency: lower purchase costs and high utilisation rate, needs-based use as a dual lifter – particularly useful in care facilities
• mechanical emergency lowering, emergency stop switch, visual and audible warning against deep discharge
• high stability thanks to mechanical spreading of the chassis via foot lever, two lockable castors

Consisting of:
87012 aks-dualo lifter base
87090 aks-dualo lifting arm standard
79720 aks standard transport spreader bar, water blue

Options and accessories
• various lifting slings and spreader bars, spreader bar padding, charger, replacement battery, aks lifter scales
• additional aks battery pack with separate wall-mounted charging station promotes independence in daily care

with standard lifting arm, WITHOUT spreader bar and WITHOUT sling

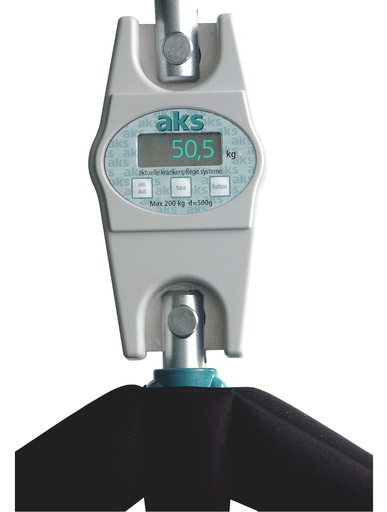

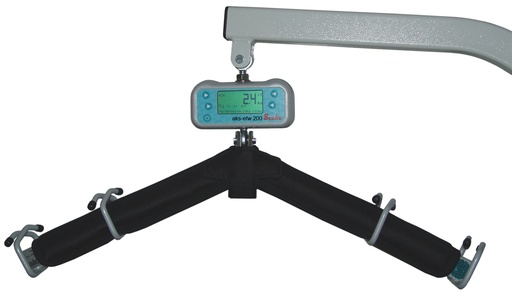

Weighing patients is part of everyday care practice.
It is particularly practical to use scales that are connected directly to the assistive device, i.e. the patient hoist.
aks offers two weighing units in combination with the various aks standard hoists.

Ideal aid for weight monitoring
• easy to use: on/off function, tare button, hold
• flexible use: can be used with an adapter for all aks hoists
(with aks-foldo® the scale cannot be used in the swivelled position)
• display indications: readability in 500 g increments,
“E” when the weighing range is exceeded; “LO” when the battery is low
• energy-saving function: automatic switch-off after approx. four minutes
• max. weighing capacity: 150 kg
• cost-effective standard solution for everyday care use

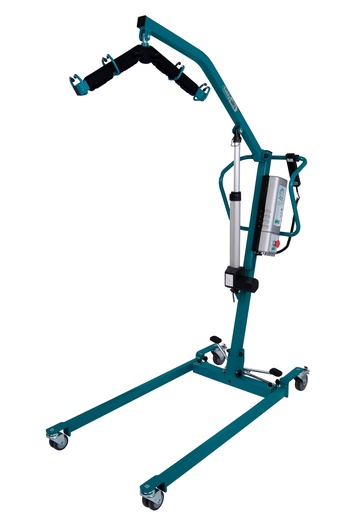

The XS among the aks standard hoists

The aks-micro foldy® has been made even smaller, even more manoeuvrable and designed for functionality.

Advantages of the aks-micro foldy®
• compact dimensions, even smaller than the aks-mini foldy®
• ideal for very tight spaces and very narrow doorways
• for small adults and children up to a maximum body weight of 130 kg
• plug-in mast, easy to remove without tools (Figure 2)
• ideal travel companion and easy to store away
• simple, straightforward operation
• hand control with large buttons
• mechanical base widening via foot pedal
• high stability thanks to robust construction
• low under-bed clearance, also suitable for aks scissor beds
• increased safety thanks to mechanical emergency lowering and emergency stop switch (Figure 1) in the event of electrical faults
• visual and acoustic warning to prevent deep discharge of the batteries when operating the hand control
• independence from the mains power supply thanks to battery operation

Options and accessories
• more flexibility and autonomy with the aks battery pack with separate wall-mounted charging station
• aks hoist slings and spreader bars available separately – NOT included in the scope of delivery

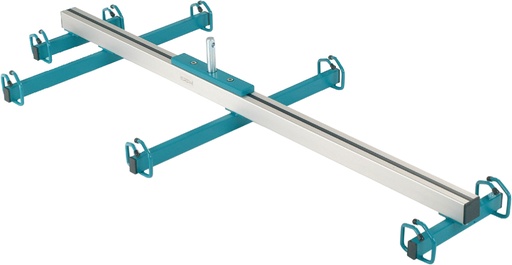

Standard transport handle including padding for the models aks-dualo and aks-mini dualo

Transport belt for item 17463-01

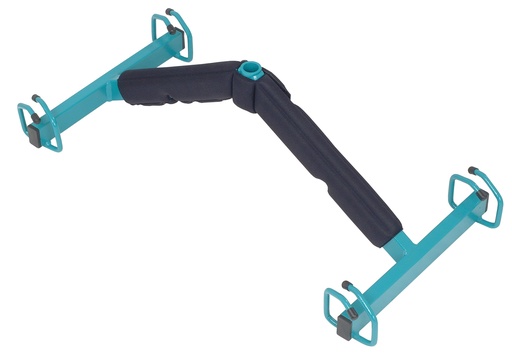

Standard transport bracket including padding for aks foldy

Transport belt for item 17426-01

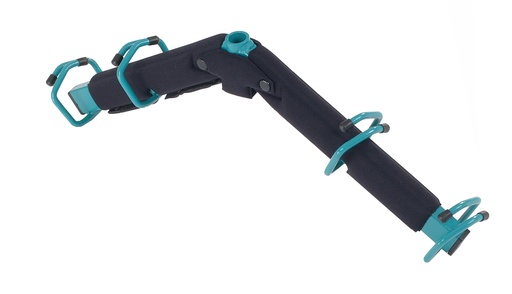

Standard transport handle including padding for the model aks micro foldy

Transport belt for item 17448-01

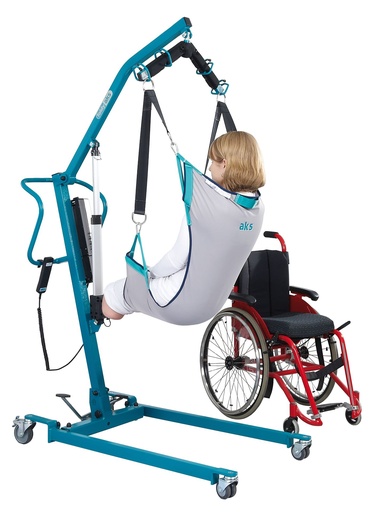

The universal comfort sling is made of flexible woven fabrics that adapt to the patient’s body.
This sling is intended for use in dry environments and is suitable for lifting patients with leg amputations.
A handle loop for manoeuvring the patient in the sling is fitted in the head/shoulder area.

Product data:

Standard: DIN EN ISO 10535:2007-04
Maximum load: 150 kg

Material composition:
Loop material: polyester webbing;
Attachment strap: polyester webbing;
Rings, carabiners: steel;
Outer fabric: 100% polyester;
Reinforcement below the loops:
Aluminium strips

Independence in daily care, especially in nursing and care homes

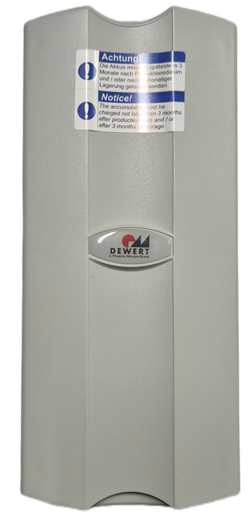

Features of the spare battery pack
• Independent of the mains power supply, always a charged battery to hand
• effortless replacement of the spare battery pack (Figure 4)
• easy wall mounting near a socket
• suitable for all aks lifters except aks-foldo®, aks-torneo® II and aks-goliath®
• visual charge status indication via two LEDs

Technical data

• Wall charging station: Charging time: approx. 3–14 hrs/overcharge-protected; Input: AC 230 V/50 Hz; Output: DC 24 V/Imax = 4A
• Spare battery pack: Operating voltage 2 x 12 V; Capacity 4.5 Ah

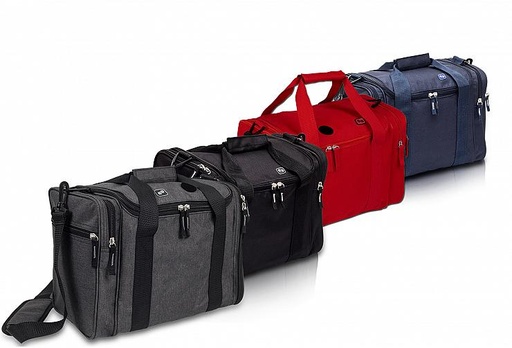

Large, multifunctional first-aid bag with flexible internal layout depending on the area of use, whether in home care services, for first aid in sports accidents or similar.
The large main compartment and two outer pockets with side compartments offer sufficient space for medical supplies.

Features:
- large main compartment with:
- adjustable compartment division with hook-and-loop dividers
- side elastic loops for storing supplies
- 2 outer pockets, each with:
- 6 mesh compartments
- 6 elastic loops
- side compartment
- hand loops
- detachable, padded shoulder strap

Scope of delivery:
Without any additional accessories shown.

Product data:

Colour: blue
Weight: approx. 750 g
Dimensions (W x H x D): 34.5 x 25.5 x 20 cm
Volume: approx. 17.5 litres
Material: polyester

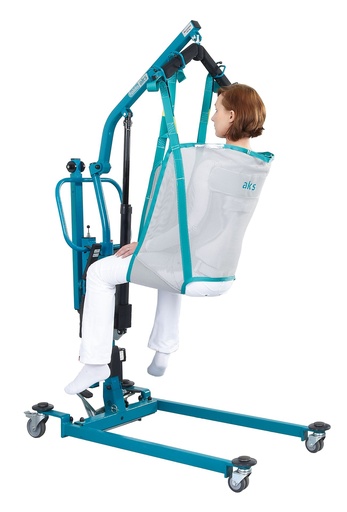

This sling, made from an extremely tear-resistant polyester mesh,
absorbs hardly any water, therefore dries again very
quickly, and was specially designed for use
in the bathroom and wet areas. The leg supports
are padded with foam. This reinforcement
ensures a wrinkle-free fit with high pressure relief
for the thighs.
Technical data
Standard: DIN EN ISO 10535:2007-04
Maximum load: 150 kg

Material composition:
Loop material: polyester webbing;
Outer fabric: 100% polyester mesh;
Padding (leg supports): 100% PE foam;
Hook-and-loop fastener: 100% nylon

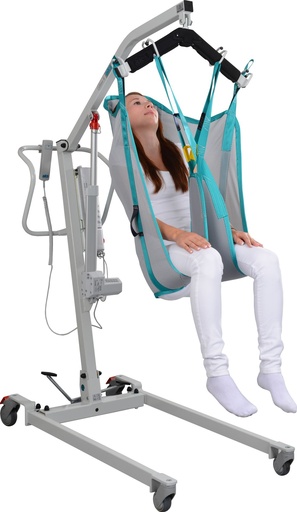

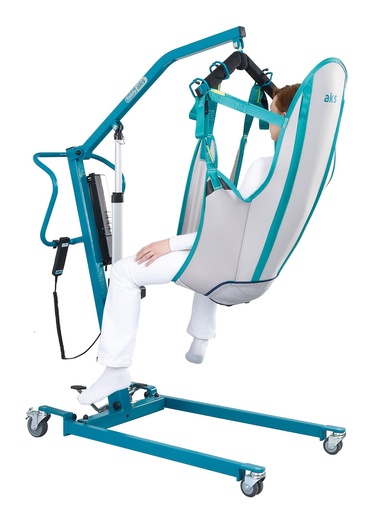

The sling made of snag-resistant polyester mesh dries quickly and is particularly helpful for less mobile people with personal hygiene in the bathroom.

Technical data
Standard: DIN EN ISO 10535:2007-04, maximum load: 150 kg

Material composition:
Loop material: polyester webbing;
Outer fabric: 100% polyester mesh;
Padding (leg supports): 100% PE foam;
Padding (back): 100% PE foam;
Back reinforcement: aluminium strips

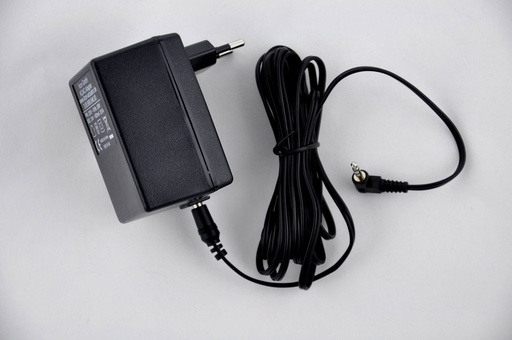

Charger for item 17455-01
