Large-cell anti-decubitus alternating pressure system – standard class

This large-cell anti-decubitus alternating pressure system from the aks standard class is suitable for pressure ulcers up to Grade II. It enables positioning of patients in need of care with a body weight of 40 to 120 kg. Lock-in plug-in connections ensure safe use.

The standard class already starts with a large-cell mattress overlay system, which provides comfortable pressure relief for the patient through alternating pressure.

The advantages of the aks-saniflow® II
• Mattress overlay system
• Easy operation: infinitely variable pressure adjustment according to patient weight, sturdy foldable metal brackets for attachment to the bed, easy filter replacement
• Visual indicator when the desired pressure is reached
• Visual alarm in case of pressure loss (e.g. leakage)
• Highly elastic foam strip on the underside and soft feet for noise decoupling
• Cycle time 12 minutes
• Alternating two-chamber system for intermittent pressure relief
• 17 cells, individually replaceable
• Cell height 13 cm
• Nylon/PVC mattress cover secured to the mattress overlay with press studs at the head and foot end, waterproof
• With flaps for fastening to the foam mattress base
• Quick deflation of the mattress via end plug with pull ring
• Secure lock-in connection of the hoses to the pump unit

Patient weight 40–120 kg
Pressure ulcer grade up to and including Grade II
(according to EPUAP)

Product data:

Mattress overlay:
Dimensions – 13 x 90 x 200 cm
Weight – 4.9 kg
Cells/air chambers – 17

Pump unit:
Dimensions – 28 x 20.5 x 10 cm
Weight – 1.1 kg

Pain patients can be positioned gently in static mode

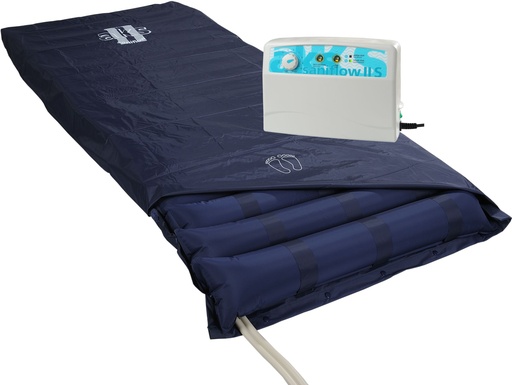

This large-cell alternating pressure anti-decubitus system from the aks standard class is suitable for pressure ulcers up to grade II. It enables the positioning of patients in need of care with a body weight of 40 to 120 kg. Pain patients can be positioned gently in static mode. Locking plug-in connections ensure safe use.

Advantages: see description of the aks-saniflow® II
Additional functions of the aks-saniflow® II S
• Switch for static mode
• Visual and audible alarm in case of pressure loss (e.g. leakage)
• Switch to reset the audible alarm

Patient weight: 40–120 kg
Pressure ulcer grade: up to and including grade II (according to EPUAP)

Product data:

Mattress overlay:
Dimensions: 13 x 90 x 200 cm
Weight: 4.9 kg
Cells/honeycomb: 17

Pump unit:
Dimensions: 28 x 20.5 x 10 cm
Weight: 2.3 kg

Installation aid for item 17586-01

Innovative lifting care bed frame
with rock-solid arguments

Standard sizes with 29 V SMPS technology
Lying surface: wooden sprung slats, 90/100 x 190/200 cm,
electrically adjustable, supplied on a transport and storage aid

The lifting care bed frame was developed for use at home
within an existing bed frame.
The practical alternative to the classic nursing bed.
The homely environment is retained, comfort
increases and daily care is noticeably made easier.

Advantages of the aks-B4 compact lifting care bed frame
• easy to integrate into an existing bed at home
• increased lying comfort thanks to a four-section lying surface
with electrically adjustable height, backrest and leg rest;
the foot section with knee-break can be electrically adjusted
in any position by the patient using the hand control
without nursing assistance – patent protected!
• low entry height and large height-adjustment range
for optimal adaptation to the working height
for back-friendly working
• stable metal frame with sprung slats
• stable stand with only 116 cm length and 81 cm width
of the symmetrically centrally positioned scissor-lift subframe,
variable fixing to the bed conversion frame
with two drilled holes for screws, thus
tilt stability achieved, manufactured to EN 60601-2-
52:2010
• easy assembly and transport: subframe removable without
tools, upper frame can be dismantled into two parts
• flexibility when attaching the lifting pole thanks to two
mounting points
• adjustable via mattress retainers
• ergonomic hand control with large buttons,
integrated lock function and testing of single-fault safety
possible
• SMPS 29 V: The switch-mode power supply provides safety through
overload protection and voltage stability with variable
input voltage
• supplied on a transport and storage aid

Options and accessories
• lying surface widening kit to 100 cm
• extended side rails, plug-in with
special bracket
• easier assembly by one person using the
assembly aid

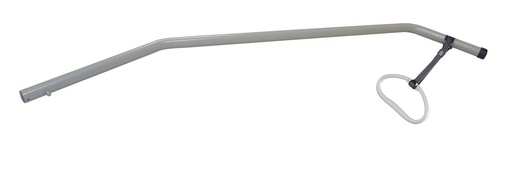

• lifting pole with grab handle and strap

Functional strength for the
existing bed at home
In familiar surroundings – at home, in your own bed –
the benefits of a nursing bed can also be used for heavyweight
persons without major effort.
The lifting care bed frame is inserted into the existing
bed and is immediately ready for use, with
all the advantages of a nursing bed.

The advantages of the lifting care bed frame
• increased lying comfort thanks to four-section lying surfaces,
height and head section electrically adjustable
• maximum functionality: foot section with knee bend can be electrically adjusted from the lifting care bed frame via the handset without nursing assistance – patent protected!
• stable construction with powerful single scissor lift

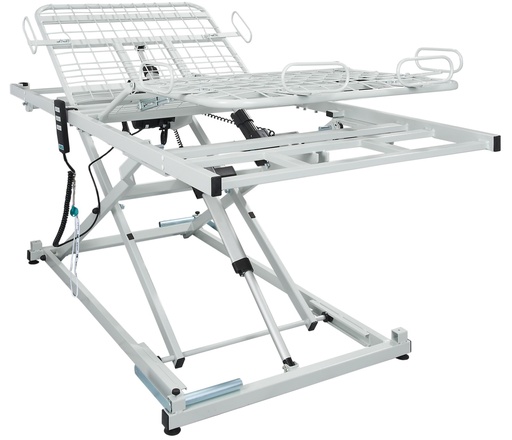

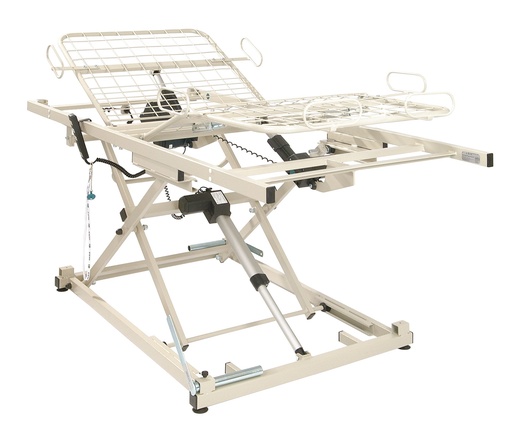

(aks-B4 L and B4 XL) and metal lying surface
• high stability for demanding bariatric care applications
thanks to robust metal lying surface and specially

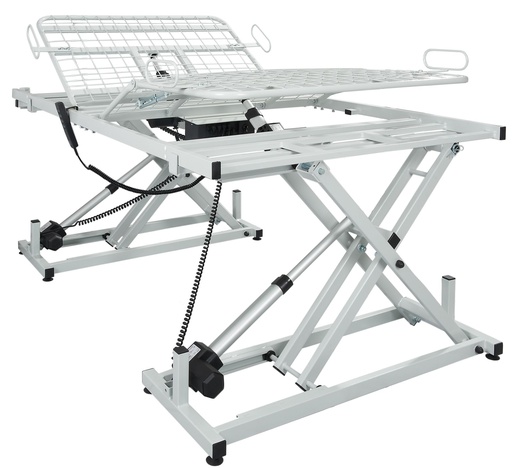

developed double scissor lift (aks-B4 XXL)
• easy to fit into the existing bed at home or in
a care home
• mains disconnection: this safety system disconnects
the lifting care bed frame on all poles from the mains power supply when the handset is not operated.
• ergonomic handset with large buttons,
integrated lock function and testing of single-fault safety
possible
• special colour RAL 7035, light grey

Options and accessories

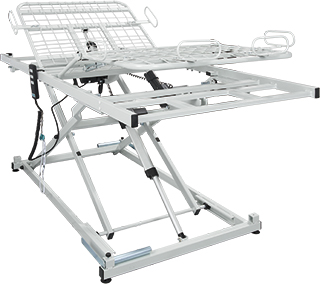

• lifting pole with grab handle in reinforced version made of
square tube from 120 cm lying surface width
• side rails with special bracket
• raised side rails with special bracket

The functional strength for your existing bed at home
In a familiar environment – at home, in your own bed – the benefits of a care bed can also be used for heavyweight persons without great effort. The lifting care bed frame is inserted into the existing bed and is immediately ready for use, offering all the advantages of a care bed.

Advantages of the lifting care bed frame
• increased lying comfort thanks to four-section lying surfaces; height and backrest electrically adjustable
• maximum functionality: leg section with knee break can be electrically adjusted from the lifting care bed frame via the handset without caregiver assistance – patent protected!
• stable construction with powerful single scissor lift (aks-B4 L and B4 XL) and metal lying surface
• high stability for challenging heavyweight care situations thanks to a robust metal lying surface and specially developed double scissor lift (aks-B4 XXL)
• easy to fit into an existing bed at home or in a care home
• mains disconnection: this safety system disconnects the lifting care bed frame from the power supply on all poles when the handset is not being operated
• ergonomic handset with large buttons, integrated locking function and the option to test first-fault safety
• special colour RAL 7035, light grey

Options and accessories
• lifting pole with grab handle in reinforced design made of square tubing for lying surface widths from 120 cm
• side rails with special bracket
• raised side rails with special bracket

The functional strength for your
existing bed at home
In a familiar environment – at home, in your own bed –
the advantages of a nursing care bed can also be used for
heavier persons without much effort.
The lifting care bed base is inserted into the existing
bed and is immediately ready for use, with
all the advantages of a nursing care bed.

The advantages of the lifting care bed base
• increased lying comfort thanks to four-section lying surfaces;
height and head section electrically adjustable
• maximum functionality: foot section with knee-break can be
electrically adjusted from the lifting care bed base via
handset, without nursing assistance – patent protected!
• stable construction with powerful single scissor lift
(aks-B4 L and B4 XL) and metal lying surface
• high stability for challenging care situations involving heavier persons
thanks to the robust metal lying surface and specially
developed double scissor lift (aks-B4 XXL)
• easy to install in the existing bed at home or in a
care home
• mains cut-off: this safety system disconnects
the lifting care bed base from the mains on all poles when
the handset is not being operated.
• ergonomic handset with large buttons,
integrated lock function and the possibility to test first-fault safety
• special colour RAL 7035, light grey

Options and accessories
• lifting pole with grab handle in reinforced version made of
square tubing from 120 cm lying surface width
• side rails with special bracket
• raised side rails with special bracket

Set consists of 4 side rail bars and 1 mattress platform extension

Set consists of 4 side rail bars, 1 mattress base extension and 1 lower frame extension

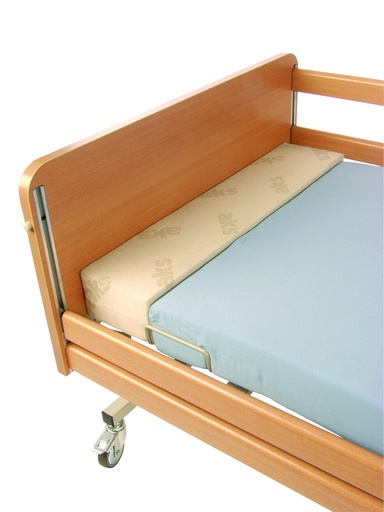

Bed extension for item 17582-02

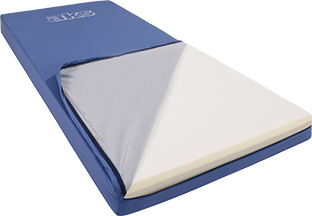

aks has expanded its anti-decubitus portfolio with the aks-duoplot soft-positioning foam mattress. Many benefits are combined in the two foam layers.

To meet the demands of everyday care, we also offer the aks-duoplot mattress in a 14 cm height, with or without edge zone reinforcement (RV).

Height extension set (14 cm) for the B4 compact lifting care bed base to improve underclearance for use with a mobile patient hoist

Height extension set for item 17586-01

Fitted cover for foam mattresses by AKS

Fitted cover for item 17401-01, 17399-01, 17365-01

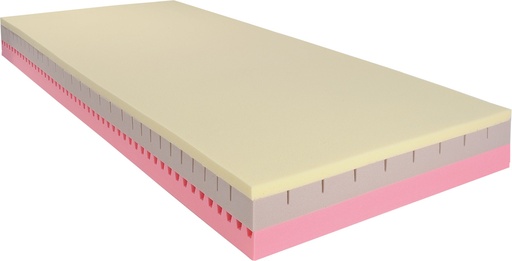

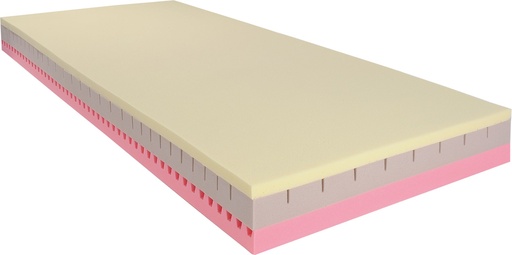

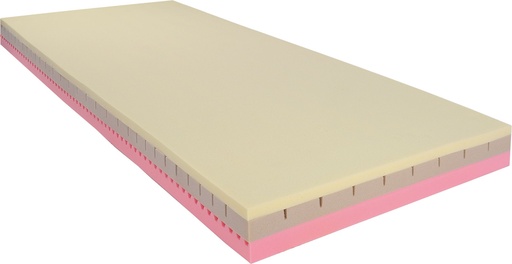

Anti-decubitus and pressure-relief foam mattresses for special sizes and bariatric applications
As a consistent complement to the aks nursing beds for heavy and very heavy patients, these mattresses meet the specific requirements arising from this field of use. The foams used are perfectly selected for safe positioning.

The advantages of the aks-HD 85
• Selection and construction are adapted to the requirements of patients of varying weight
• Mattresses can be used in the corresponding aks nursing beds from the special sizes and bariatric range with the same designation (L, XL, XXL) without the need for side rail extensions
• with aks-inkoair® mattress cover
• three-layer construction for optimal pressure relief for the patient
• top layer: high-tech visco foam, high density, low compression hardness
• middle layer: high-quality cold foam
• bottom layer: PU foam base
• many standard and special sizes available

Patient weight
aks-HD 85 L 40–150 kg
aks-HD 85 XL 40–200 kg
aks-HD 85 XXL 40–300 kg
Pressure ulcer grade up to and including Grade II
(according to EPUAP)

Anti-decubitus and soft positioning foam mattresses for special sizes and bariatric use
As a consistent complement to the aks nursing beds for heavy and very heavy patients, these mattresses meet the special requirements arising from this field of use. The foams used are perfectly selected for safe positioning.

The advantages of the aks-HD 85
• Selection and construction have been adapted to the requirements of patients of different weights
• Mattresses can be used in the corresponding aks nursing beds from the special-size and bariatric range with the same designation (L, XL, XXL) without the need for side rail height extensions
• with aks-inkoair® mattress cover
• three-layer construction for optimal pressure relief for the patient
• top layer: high-tech visco foam, high density, low compression hardness
• middle layer: high-quality cold foam
• bottom layer: PU foam base layer
• many standard and special sizes available

Patient weight
aks-HD 85 L 40–150 kg
aks-HD 85 XL 40–200 kg
aks-HD 85 XXL 40–300 kg
Pressure ulcer grade up to and including Grade II
(according to EPUAP)

Anti-decubitus and soft positioning foam mattresses for special sizes and bariatric use
As a consistent addition to the aks care beds for heavy and very heavy patients, these mattresses meet the specific requirements arising from this field of use. The foams used are perfectly selected for safe positioning.

The advantages of the aks-HD 85
• Selection and construction have been adapted to the requirements of patients of varying weight
• Mattresses can be used in the corresponding aks care beds from the special size and bariatric range with the same designation (L, XL, XXL) without the need for a side rail height extension
• with aks-inkoair® mattress cover
• three-layer construction for optimal pressure relief for the patient
• top layer: high-tech visco foam, high density, low compression hardness
• middle layer made of high-quality cold foam
• bottom layer as a base made of PU foam
• many standard and special sizes available

Patient weight
aks-HD 85 L 40–150 kg
aks-HD 85 XL 40–200 kg
aks-HD 85 XXL 40–300 kg
Pressure ulcer grade up to and including Grade II
(according to EPUAP)

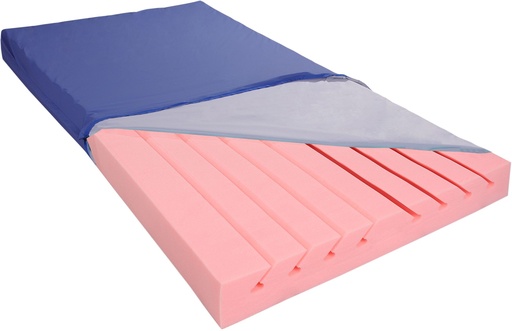

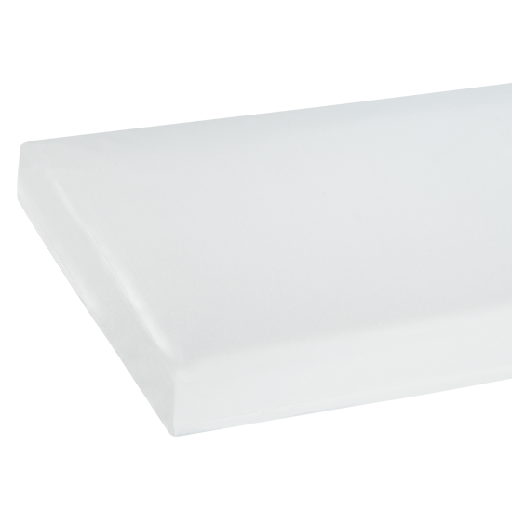

Mattress cover for AKS foam mattresses

Mattress cover for item 17403-01 and 17402-01

Please make sure when placing your order to select whether you require an assembly service for the bed or not (variant selection – with or without assembly):
If you order the bed with assembly service, an installation appointment must be arranged via our customer support. Due to capacity constraints, an installation date shortly after delivery cannot always be guaranteed, so please allow for possible waiting time between delivery and assembly.
Please also note that the bed is delivered by the manufacturer “kerbside” only – delivery to the place of installation is not normally included. For the agreed assembly appointment, it must be ensured that the bed to be assembled is already at its final installation location and that the premises have been suitably prepared for installation in terms of space and cleanliness.

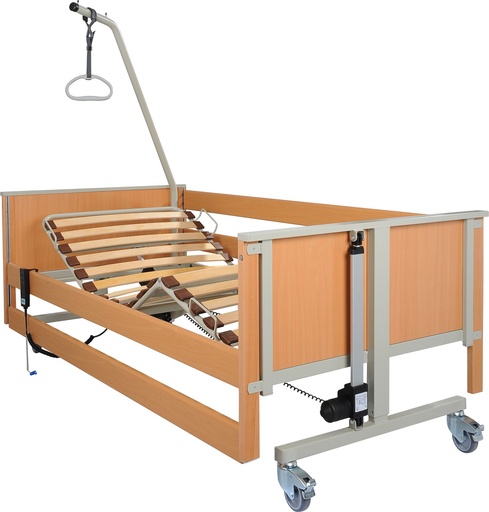

Product description:

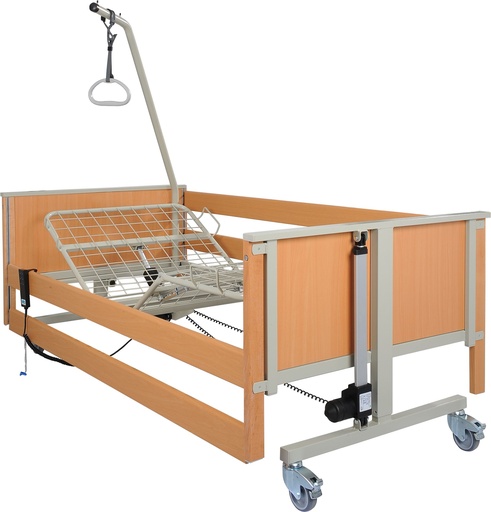

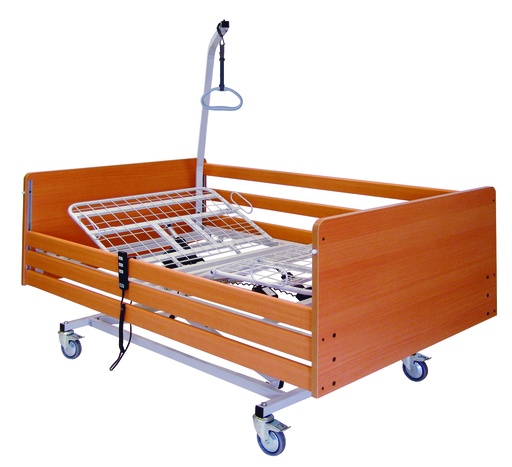

Benefits of the aks-L4
• high flexibility thanks to a four-section lying surface
• metal mesh base or wooden sprung slats
• backrest and thigh section electrically adjustable
• stable stand thanks to 4 castors with individual wheel brakes
• integrated, anti-twist side rails on both sides (with user protection), can also be fitted separately after assembly
• easy handling: low weight, easy assembly and disassembly by one person; headboard and footboard particularly light yet stable
• ergonomic handset with large buttons, integrated lock function and option to test initial fault safety
• SMPS 29 V: the switch-mode power supply provides safety through overload protection and voltage stability with variable input voltage
• easy transport and storage thanks to the transport and storage aid
• incl. bed lifting pole and grab handle

Options and accessories
• side-rail extension, e.g. for use with high-cell mattresses over 15 or 17 cm, depending on the type of lying surface
• side-rail padding
• bed and mattress extension for the care of tall patients

Product data:

Lying surface (W x L in cm): 90 x 200
Overall dimensions (W x L in cm): 104.5 x 219
