Examination Lights

Examination lamps are used in medicine for the closer examination of wounds and injuries. Here, perfect illumination of the working area is fundamental, for example, in order to be able to distinguish tissue structures from one another. Due to the wide range of interventions in the various specialties, examination lamps require a great deal of flexibility in order to meet the special requirements. Especially during a surgical treatment, the operating lamp is extremely important. In our online store you will find various designs of examination lamps. Our range offers a wide selection of different light outputs, lamp sizes and mounting options.

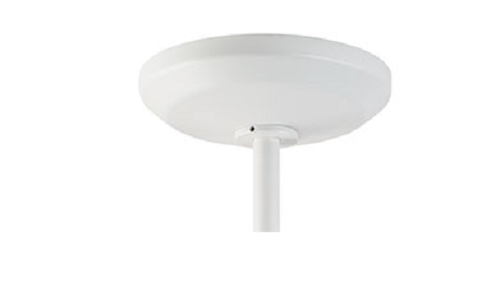

SERVO Canopy for ceiling light (cover plate)
Product data:

Canopy for ceiling light (cover plate).
()
94.70 € 94.7 EUR

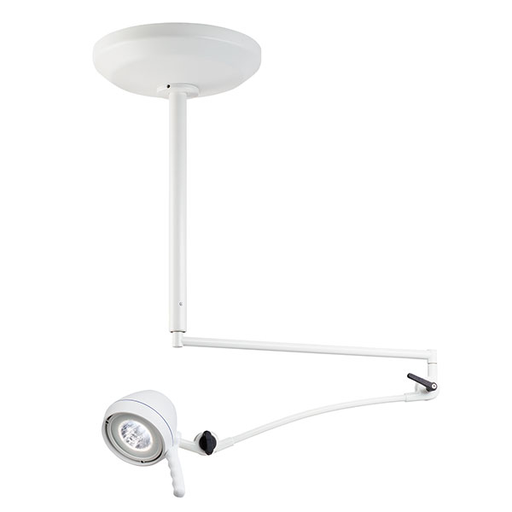

SERVOPRAX LED examination light Ceiling model with articulated arm, without canopy (cover plate)
Product data:

• Examination light with central reflector for long-term economical use in hospitals and medical practices

• The new LED illuminant, in combination with a specially developed reflector, provides focused illumination

• Maintenance-free thanks to an increased illuminant service life of up to 30,000 h

• Very low heat generation thanks to the double-walled light head housing and integrated ventilation slots on the light head Colour: white

Light source: LED central reflector 18 V / 12 W

Light output: approx. 55,000 lux (at 0.5 m distance)

approx. 12,750 lux (at 1.0 m distance)

Light field Ø: approx. 100 mm (at 0.5 m distance)

approx. 200 mm (at 1.0 m distance)

Colour temperature: approx. 4,300 Kelvin ± 200 For ceiling height 2.70 m
()
861.80 € 861.8 EUR

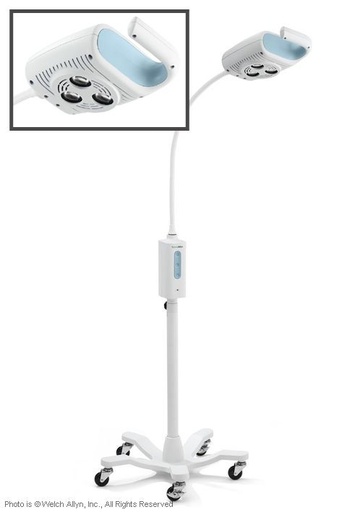

WELCHALLYN GS 600 LED examination and treatment light with mobile stand
GS 600 LED examination and treatment light with mobile stand
Light for minor examinations in any healthcare setting. - 3 white LEDs with 5,500 Kelvin provide excellent white light, optimally illuminating the area to be examined, showing tissue in true colour and ensuring uniform illumination - no dark areas, no “hot spots” and no heat build-up - better for the environment: low operating costs as no bulbs need replacing and less energy is consumed - infection control: touch-free on/off switching with dimming significantly reduces the risk of infection through cross-contamination and makes cleaning easier Technical data: - Light intensity at working distance: 50,000 lux at 30 cm, 45,000 lux at 50 cm - Spot size at working distance: 18 cm at 30 cm, 15 cm at 50 cm - Reach of mobile stand: 79 cm - Lamp head (H x W x D): 34.5 x 19.2 x 8.6 cm - Control unit (H x W x D): 27.5 x 10 x 8 cm - Mobile stand (H x Ø): 61 x 53 cm - Weight: 7.87 kg - Power supply: Input: 100–240 V ~ 50–60 Hz, 0.65 A max. - 3-core mains cable 2.5 m long - Operating life: 50,000 hours
()
1,382.78 € 1382.78 EUR

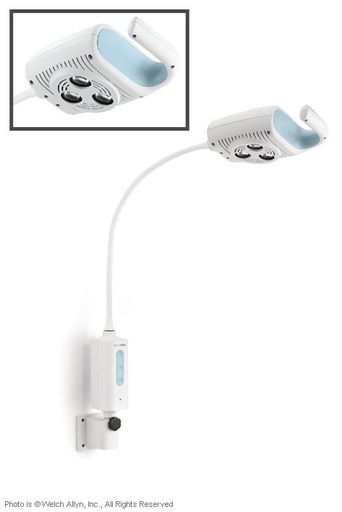

WELCH ALLYN GS 600 LED examination and treatment light with table/wall mount
GS 600 LED examination and treatment light with desk/wall mounting
Light for minor examinations in any healthcare environment.
- 3 white LEDs with 5,500 Kelvin provide excellent white light, optimally illuminating the examination area, rendering tissue colours true to life and ensuring even illumination – no dark spots, no “hot spots” and no heat build-up
- Better for the environment: low operating costs, as no lamps need to be replaced and less energy is used
- Infection control: touch-free on/off switching with dimming significantly reduces the risk of infection from cross-contamination and makes cleaning easier

Technical data:
- Light intensity at working distance: 50,000 lux at 30 cm, 45,000 lux at 50 cm
- Spot size at working distance: 18 cm at 30 cm, 15 cm at 50 cm
- Wall reach: 79 cm
- Lamp head (H x W x D): 34.5 x 19.2 x 8.6 cm
- Control unit (H x W x D): 27.5 x 10 x 8 cm
- Mobile stand (H x Ø): 61 x 53 cm
- Weight: 2.93 kg
- Power supply: Input: 100–240 V ~ 50–60 Hz, 0.65 A max.
- 3-core mains cable, 2.5 m long
- Operating life: 50,000 hours
()
1,100.75 € 1100.75 EUR

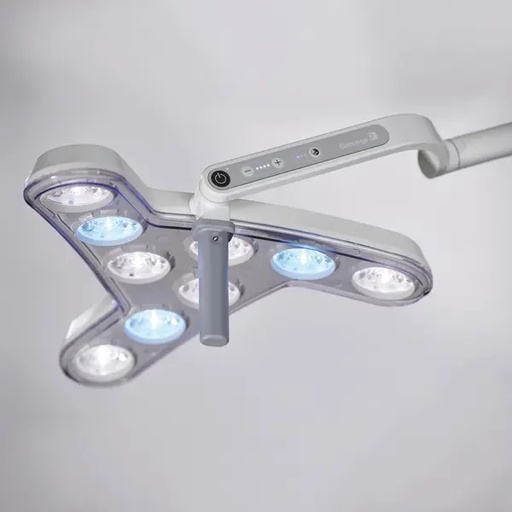

DERUNGS Treatment Light TRIANGO Focus 100-3 C, Ceiling Light
The latest premium product from the Swiss quality brand Derungs. With 100,000 lux at one metre, it is the most powerful medical examination light. It is suitable for treatments or in-depth examinations.

Exceptional: large homogeneous light field, perfect colour rendering properties
Reliable: arm system with stable positioning
Customisable: 3 different light colours, dimmable and optionally focusable light field
Versatile minor surgery light: further versions for wall or ceiling mounting available on request, duo version with two lamp heads
Hygienic: removable, sterilisable and easy-to-clean, robust housing

The lights are supplied as a ready-to-install set.
The ceiling tube (for ceiling heights up to 325 cm) can be individually shortened in length; the standard mounting ring (for concrete ceilings) and canopy are included in the scope of delivery.
For difficult installation locations, a ceiling anchoring ring is available as an option.

Technical data:

Light output: 100,000 lux @ 1.0 m
Colour temperature: 4,300 K
Illuminated field @ 1.0 m: Ø 18 / 23 / 28 cm
Colour rendering index: Ra > 95
Operation: membrane keypad on the gimbal joint
Tested safety: EN 60601-1, EN 6601-2-41
Weight: 15.9 kg
()
4,291.14 € 4291.14 EUR
DR.MACH Ceiling Anchor Ring for Mach LED 130 F Examination Light
The ceiling anchoring ring TK 270 from DR.MACH is used for ceiling mounting of the Mach LED 130 F examination light. Mounting height up to 3 m.

Please state the exact mounting height (finished floor to underside of solid ceiling) when placing your order and, if available, also the room height (finished floor to underside of suspended ceiling).
()
108.86 € 108.86 EUR
DR.Mach LED 120 Examination Light Ceiling Model, with SWING arm
DR.Mach LED 120 examination light, ceiling model, with SWING arm, for room heights up to 3 m, incl. power supply unit mounted on the flange

Please state the exact mounting height (finished floor to underside of solid ceiling) when placing your order and, if applicable, the room height (finished floor to underside of suspended ceiling) as well! Ceiling anchoring ring TK 270 (MAC 1500000270) is not included with the light and must be ordered separately.

Fixed focus, colour rendering Ra = 95, 12 LEDs, light field diameter 15 cm, colour temperature 4,500 K, on/off switch and brightness control on the luminaire housing, incl. power supply unit 110–240 V, illuminance: 40,000 lux / distance 1 m
()
2,130.10 € 2130.1 EUR

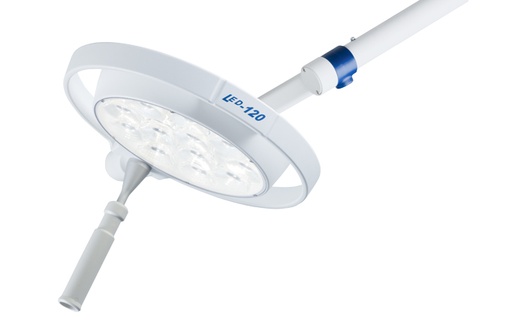

DR.Mach LED 120 F (focusable) Examination Light Ceiling Model
50,000 lux (at a distance of 1 m), light field diameter 13–18 cm

With SWING arm for room heights up to 3 m, incl. power supply unit mounted on the flange

Please state the exact mounting height (finished floor to underside of solid ceiling) when placing your order and, if applicable, the room height (finished floor to underside of suspended ceiling). Ceiling anchoring ring TK 270 (MAC 1500000270) is not supplied with the light and must be ordered separately.

Colour rendering Ra = 95, 12 LEDs, light field diameter 13–18 cm, colour temperature 4,500 K, on/off switch and brightness control on the luminaire body, incl. power supply unit 100–250 V, illuminance: 50,000 lux / distance 1 m
()
2,083.10 € 2083.1 EUR

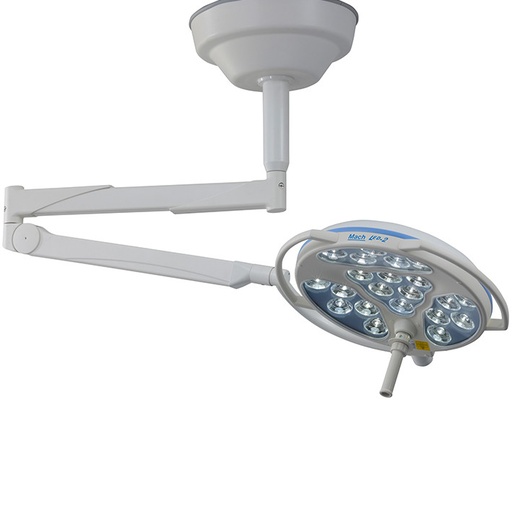

DR.MACH LED 2sc (Single Colour) OT Light Ceiling Model
Mach LED 2sc (Single Colour) surgical light, ceiling-mounted model, with central spring arm, for mounting height under 2.80 m, without power supply unit.
Please state the exact mounting height (finished floor to underside of solid ceiling) when placing your order and, if available, the room height (finished floor to underside of suspended ceiling). The ceiling anchoring ring TK 270 (MAC 1500000270) is not included with the light and must be ordered separately. Incl. light field merging, 21 LEDs, colour rendering Ra = 95, light field diameter 17–28 cm, with sterilisable handle sleeve, illuminance: 115,000 lux / distance 1 m. Please order the power supply unit separately.
()
6,581.30 € 6581.3 EUR

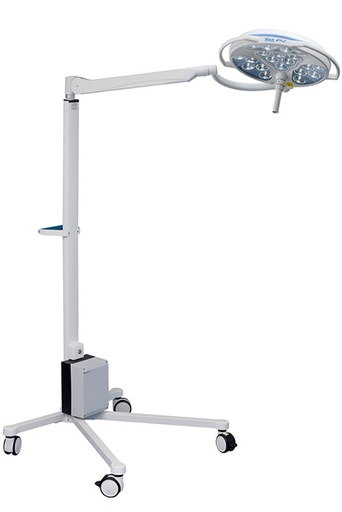

DR.MACH LED 2sc (Single Colour) OT Light Stand Model, on stand with four feet
Mach LED 2sc (Single Colour) surgical light, stand model, on stand with four-legged base incl. power supply
incl. light field merging, 21 LEDs, colour rendering Ra = 95, light field diameter 17–28 cm, with sterilizable handle sleeve, illuminance: 115,000 lux / distance 1 m
()
8,901.20 € 8901.2 EUR

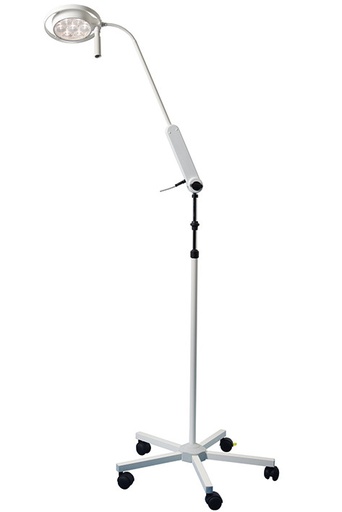

DR.MACH Mach LED 115 Examination Light Stand Model
Mach LED 115 examination light, stand model on a 5-leg stand with one-hand height adjustment.

Product data:

On/off switch
7 LEDs
Colour temperature 4500 K
Illuminance: 60,000 lux / distance 0.5 m
Electronic power supply 100–240 V
Brightness control
Fixed focus
()
1,050.65 € 1050.65 EUR

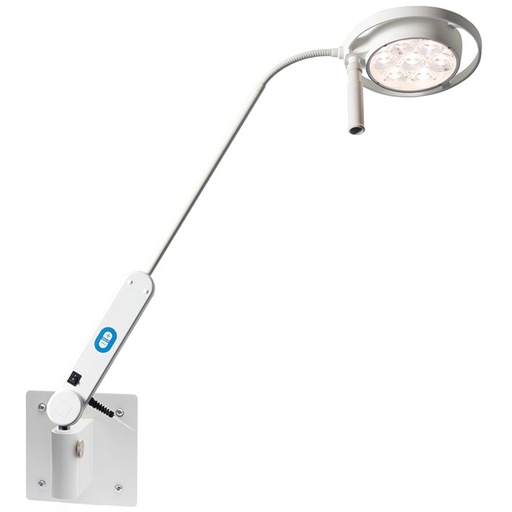

DR.MACH Mach LED 115 Examination Light Wall Model
Mach LED 115 examination light, wall-mounted model, with wall bracket
with electronic power supply 100–240 V, brightness control, fixed focus, on/off switch, 7 LEDs, colour temperature 4500 K, illuminance: 60,000 lux / distance 0.5 m
()
1,063.50 € 1063.5 EUR

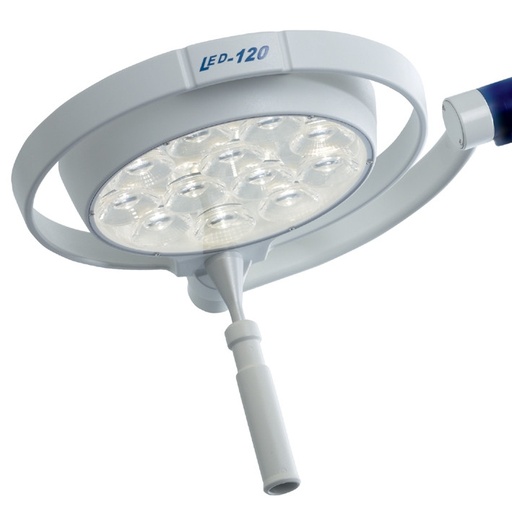

DR.MACH Mach LED 120 Examination Light on 5-Foot Stand
Mach LED 120 examination light with fixed focus on a 5-foot stand and brightness adjustment on the lamp housing. The examination light is supplied complete with stand and power supply.

Product data:

Colour rendering Ra = 95, 12 LEDs
Light field diameter: 17 cm
Illuminance: 30,000 lux / distance 1 m
()
1,650.05 € 1650.05 EUR

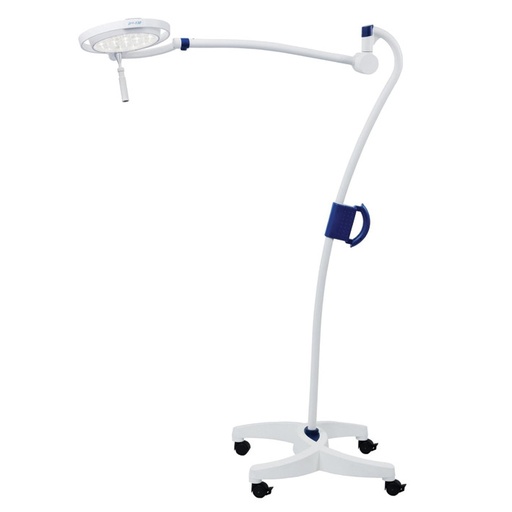

DR.MACH Mach LED 130 Examination Light
Mach LED 130 examination light, stand model, on SWING stand, with four-legged base, short arm joint, incl. power supply unit on the base. On/off switch and brightness control on the luminaire body.

Product data:

Colour rendering Ra = 95, fixed focus, 19 LEDs
Light field diameter 17 cm
Illuminance: 50,000 lux / distance 1 m
()
2,439.50 € 2439.5 EUR
DR.MACH Mach LED 130 Examination Light Wall Model, on SWING wall arm
Mach LED 130 examination light, wall-mounted model, on SWING wall arm, incl. power supply unit mounted in the wall bracket
Colour rendering Ra = 95, fixed focus, 19 LEDs, light field diameter 17 cm, on/off switch and brightness control on the light head, illuminance: 60,000 lux / distance 1 m
()
2,033.88 € 2033.88 EUR

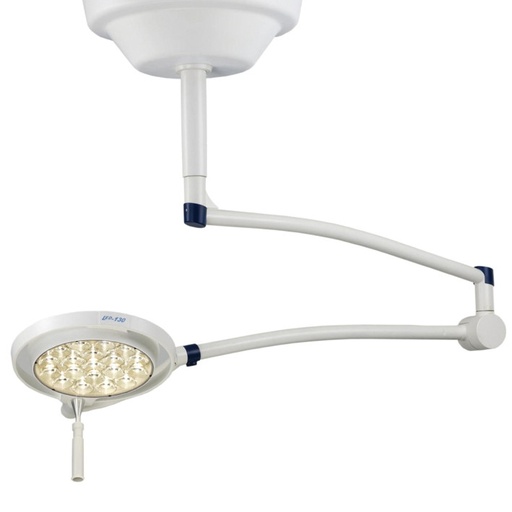

DR.MACH Mach LED 130 Examination Light with SWING ceiling arm Ceiling Model
Mach LED 130 examination light, ceiling model, with SWING ceiling arm, for mounting heights up to 3 m, incl. power supply unit. On/off switch and brightness control on the luminaire head. Please state the exact mounting height (finished floor to underside of solid ceiling) when placing your order and, if applicable, the room height (finished floor to underside of suspended ceiling).

Ceiling anchoring ring TK 270 (1500000270) is not included with the light and must be ordered separately.

Product data:

Colour rendering Ra = 95
Light field diameter 17 cm, fixed focus with 19 LEDs
Illuminance: 60,000 lux / distance 1 m
()
2,373.80 € 2373.8 EUR
DR.MACH Mach LED 130 F (focusable) Examination Light Ceiling Model
Mach LED 130 F (focusable) examination light, ceiling-mounted model with SWING ceiling arm, for mounting heights up to 3 m, incl. power supply unit. On/off switch and brightness control on the luminaire body. When placing your order, please state the exact mounting height (finished floor to underside of solid ceiling) and, if applicable, the room height (finished floor to underside of suspended ceiling).

Ceiling anchoring ring TK 270 (1500000270) is not included with the light and must be ordered separately.

Product data:

Colour rendering Ra=95
Light field diameter 14–25 cm, 19 LEDs,
Illuminance: 70,000 lux / distance 1 m
()
2,635.93 € 2635.93 EUR
