Laboratory Equipment

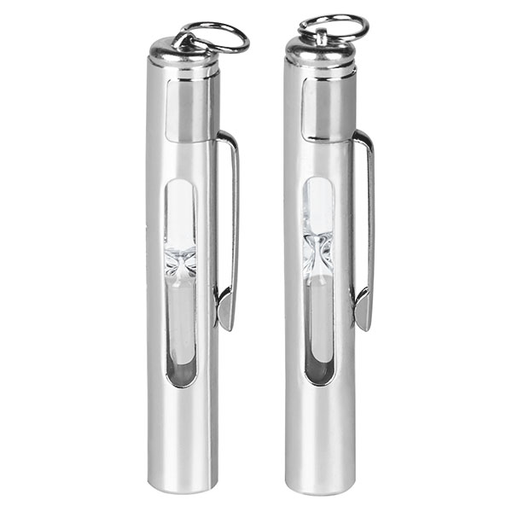

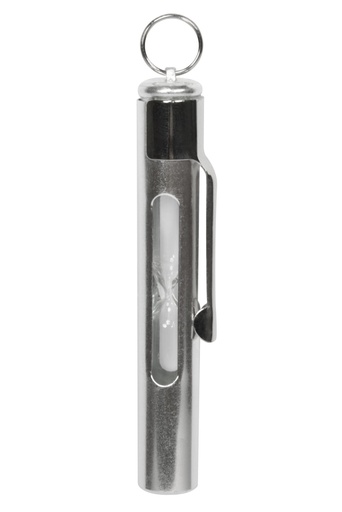

Pulse timer with metal case and clip

Features:
Length: 65 mm
Time: 15 seconds for measuring pulse rate

Thermal printer paper (5 rolls)
for Clinitek 50, 100, 500, Clinitek Status, Clinitek Advantus, DCA and INNOVANCE PFA-200

In a metal housing with ring and clip.

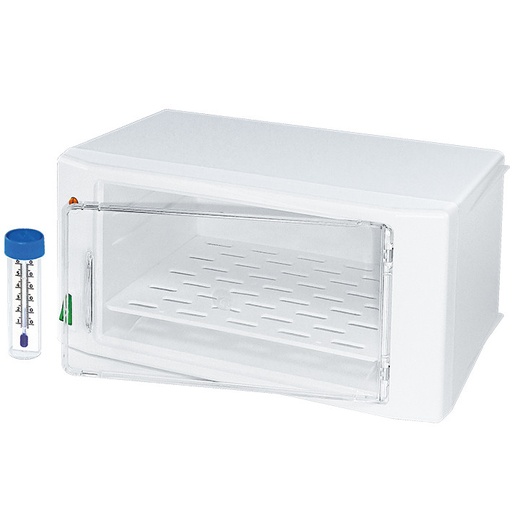

The ideal mini incubator for the small laboratory.
For incubating 18 dip-slide culture media or 12 Petri dishes, or several blood culture bottles. The fixed temperature (35 °C) can be adjusted at any time from 25 to 45 °C. With full-view Plexiglas door, easy to clean, compact stable housing, CE-compliant, maintenance-free. Includes an insert plate.

Product data:

External: W 310 x H 155 x D 168 mm
Internal: W 220 x H 120 x D 150 mm
Weight: 1.1 kg
Power: 26 W / 220 volts
Temperature: 25–45 °C (preset to 35 °C)
Accuracy: ± 1.0 °C

Matching data transfer software UriConnect Pro can be reordered free of charge (please make sure to specify the practice management software used).

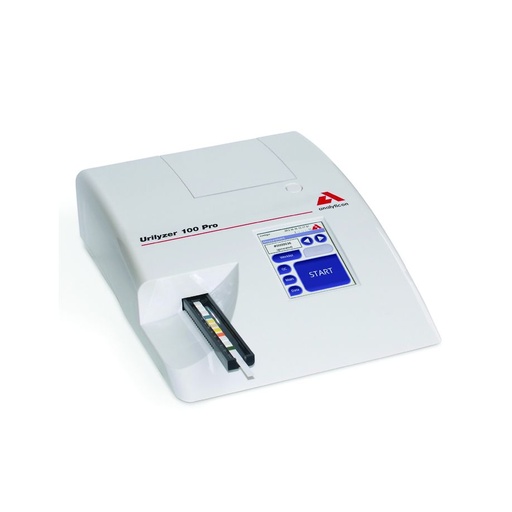

Compact, intuitive reader for semi-automated urine analysis using CombiScreen® 11 SYS PLUS, 7 SYS, 5 SYS PLUS and mALB/CREA test strips. Clean and safe automatic start of measurement via strip detection, convenient colour touchscreen and integrated Easy-Load printer. Optimised user management prevents unauthorised use. Extended connectivity options (HL 7, Ethernet, POCT1-A2) and quality control that supports the user in meeting the requirements of Rili-BÄK Part B2. Connection to the practice management software via UriConnect® Pro for transferring measurement data to the patient record.

Memory capacity: up to 3000 patient tests.

Scope of delivery: Urilyzer® 100 Pro reader, quick guide with QR code linking to the manual, thermal printer paper roll 57 mm x 25 m, 2 strip holders, control strip, mains power cable, adapter 100–240 V, 50/60 Hz.

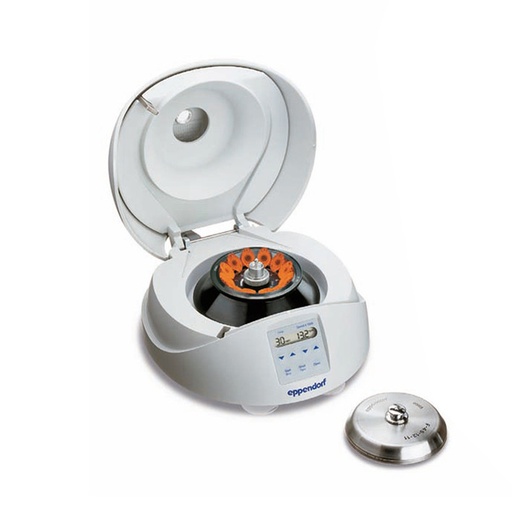

The powerful and user-friendly MiniSpin microcentrifuge is so compact that every workstation can be equipped with a personal centrifuge.

Product data:

- MiniSpin centrifuge with F-45-12-11 rotor
- Microcentrifuge
- Speed control from 800 rpm to 13,400 rpm
- RCF 12,100 x g, 230 V/50–60 Hz
- incl. standard rotor F-45-12-11 (aluminium)
- 12 holes
- Angle 45°
- For 1.5/2.0 ml reaction tubes with max. Ø 11 mm
- Complete with lid (stainless steel) and rotor nut
- Dimensions (W x D x H): 22.6 x 23.9 x 13 cm
- Height 25 cm (with lid open)
- Weight 4.3 kg

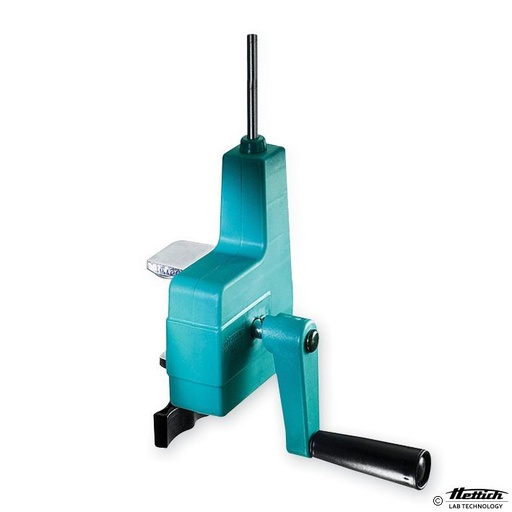

Manual centrifuge without rotor
The flexible, handy centrifuge can be easily attached to any tabletop using a clamping device and operated without electricity. Thanks to its self-lubricating gear, it is virtually maintenance-free. - compatible rotors: 1014 and 1025 - Dimensions (H x W x D): 285 x 140 x 175 mm - Weight: approx. 0.9 kg

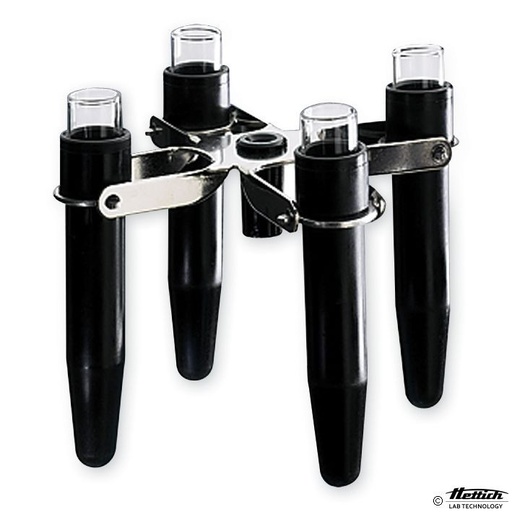

Swing-out rotor for 4 x 15 ml for HET 1011
complete with sleeves for hand centrifuge 1011

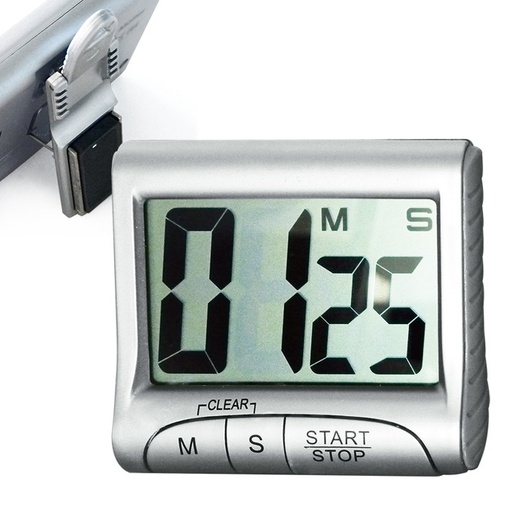

Digital timer with large display, silver
- with audible signal - digital egg timer, kitchen clock, timer, clock, alarm clock, kitchen timer - with 4-digit LCD display - magnetic, with clip or free-standing - up to 99 minutes running time - dimensions: approx. 8 x 7 x 2.5 cm (L x W x D) - material: plastic - power supply: 1x AAA battery (included)

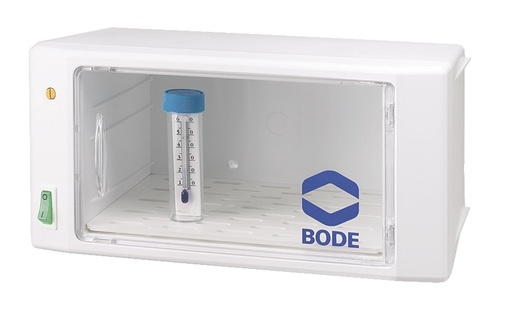

Characteristics
- practical and cost-effective option for rapid incubation of culture media, providing more up-to-date results for biological tests
- high operational reliability thanks to ease of use and stable temperature control

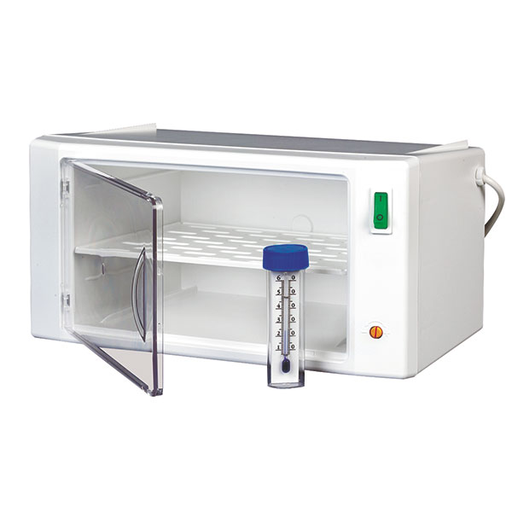

The temperature can be set using the adjustment dial.
Then you read it on the thermometer.

Internal (W/H/D): 220 x 120 x 150 mm

External (W/H/D): 310 x 155 x 168 mm

Weight: 1.1 kg

Power: 26 W / 220 V

Temperature: 25–45 °C (fixed set to 35 °C)

Accuracy: ± 1.0 °C

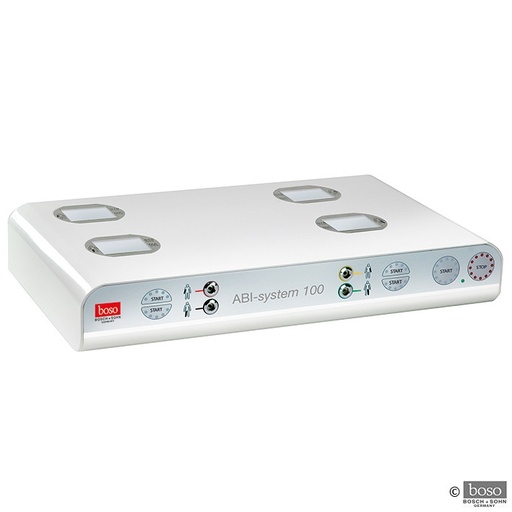

boso ABI-system 100
Fast and precise determination of the ankle–brachial index. The ABI enables early detection of PAD (peripheral arterial occlusive disease) with high sensitivity. The boso ABI-system 100 determines this key value without Doppler.
- simultaneous measurement of systolic blood pressure on all 4 limbs
- intelligent inflation system and controlled deflation speed
- no distortion due to blood pressure fluctuations

Scope of delivery: device, 2 nylon arm cuffs (arm circumference 22–42 cm) incl. tube, 2 nylon leg cuffs (leg circumference 18–38 cm) incl. tube, mains power supply, USB connection cable, application software with database for patient management

Adapter for 5 round-bottom tubes 2–7 mL, 12.5 mm × 100 mm, for 100 mL round bucket in rotor A-4-38, 2 pieces

This is a very compact, small spectrophotometer with the option of carrying out measurements in the UV and VIS range. In a spectral range from 200 nm to 830 nm, single-wavelength measurements can be performed or absorbance spectra can be recorded.

Product data:

- BioSpectrometer basic
Compact spectrophotometer for applications in cell and molecular biology as well as biochemistry

- Eppendorf uCuvette G1.0
Microvolume cuvette for photometric quantification of nucleic acids and proteins (A 280 nm) as well as for colorimetric protein assays; can be used with the Eppendorf BioPhotometer plus and the BioSpectrometer

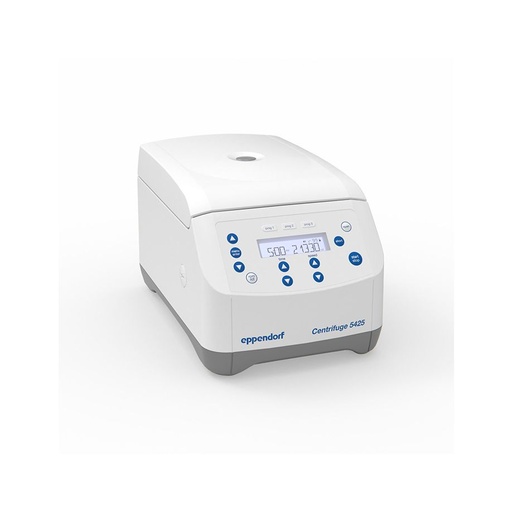

The Centrifuge 5425 is the new laboratory standard. With a capacity for 24 vessels and a speed of up to 21,300 x g, it is perfectly suited for all modern molecular biology applications using Eppendorf and PCR tubes. The Centrifuge 5425 is used to separate liquid mixtures of substances with different densities, in particular for the processing and analysis of samples from the human body as part of an in vitro diagnostic application, to enable use of the in vitro diagnostic device in accordance with its intended purpose. This centrifuge, including its components, is an in vitro diagnostic device within the meaning of Directive 98/79/EC of the European Parliament and of the Council of 27 October 1998. Eppendorf centrifuges are intended exclusively for indoor use and for operation by trained specialist personnel.

- whisper-quiet microcentrifuge for stress-free work
- aerosol-tight Eppendorf QuickLock® lids for easy and safe handling
- outstanding software features (e.g. 10 acceleration and braking ramps, 3 programme buttons, short function without having to keep the button pressed)
- extended rotor programme (e.g. 5.0 mL rotor, swing-bucket rotor for PCR strips)
- OptiBowl® design for quiet operation, even without the rotor lid
- ergonomic lid operation with just one finger
- automatic lid opening at the end of the run – prevents sample warming and enables easy access to the samples

Product data:
- maximum rotor capacity: 10 x 5.0 mL tubes
- Max. RCF: 21,300 x g
- Max. speed: 15,060 rpm
- Mains connection: 230 V, 50–60 Hz
- Dimensions (W x D x H): 24 x 39 x 24 cm
- Height (with lid open): 48 cm
- Weight without accessories: 15.6 kg

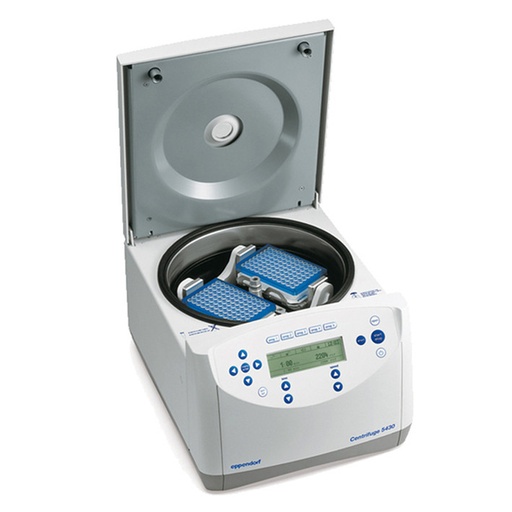

Centrifuge 5430 without rotor, with membrane keypad
48-place microcentrifuge for 1.5/2.0 ml reaction tubes, up to 30,130 x g / 17,500 rpm, 230 V / 50–60 Hz, choice of 12 different rotors, e.g. MTP rotor, Falcon rotor, automatic rotor recognition, stores up to 50 routine programmes, menu-guided operation in 4 languages (English, German, French, Spanish), backlit LCD display, automatic lid opening at the end of the run, dimensions (W x D x H): 33 x 42 x 25 cm, height with lid open: 56 cm, weight: 29 kg

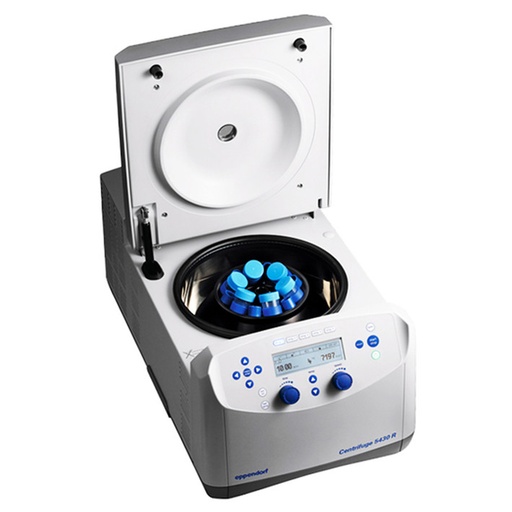

Centrifuge 5430 with FA-45-30-11 rotor, aerosol-tight, with membrane keypad
48-place microcentrifuge for 1.5/2.0 ml reaction vessels, up to 30,130 x g / 17,500 rpm, 230 V/50–60 Hz, with FA-45-30-11 rotor, choice of 12 different rotors, e.g. MTP rotor, Falcon rotor, automatic rotor recognition, stores up to 50 routine programmes, menu-guided operation in 4 languages (English, German, French, Spanish), backlit LCD display, automatic lid opening at the end of the run, dimensions (W x D x H): 38 x 64 x 29 cm, height with lid open: 63 cm, weight: 56 kg

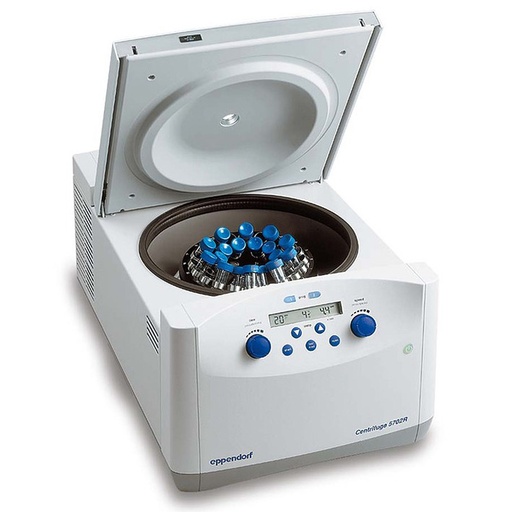

Centrifuge 5702 RH without rotor, refrigerated and heated
230 V / 50–60 Hz, as Centrifuge type 5702, active heating adjustable from -9°C to +42°C, ready for immediate operation thanks to standby warming/cooling, temperature at steady state at 4°C and at 37°C ± 1°C, dimensions (W x D x H): 38 x 58 x 26 cm, height with lid open: 60 cm, weight: 36 kg

Centrifuge 5702 R, rotary knobs, refrigerated, with
Rotor A-4-38 incl. adapters for 13/16 mm
blood collection tubes, 2 sets with 2
adapters, 230 V/50–60 Hz (EU)

Product features:
- Maximum capacity for round-bottom tubes
per rotor: 16 × 13 mm / 16 × 16 mm
Technical specifications:
- Dimensions (W × D × H): 38 × 58 × 27
cm / 15 × 22.9 × 10.6 in
- Weight without accessories: 35 kg / 77.4 lb
- Mains connection: 230 V, 50–60 Hz
