Incubators and Heating Cabinets

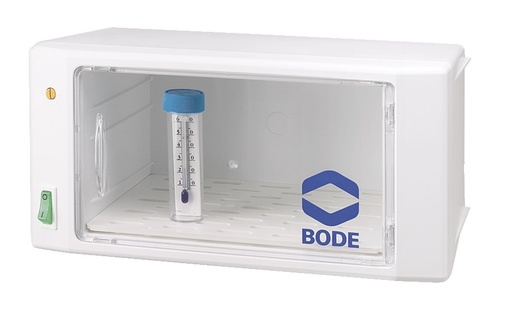

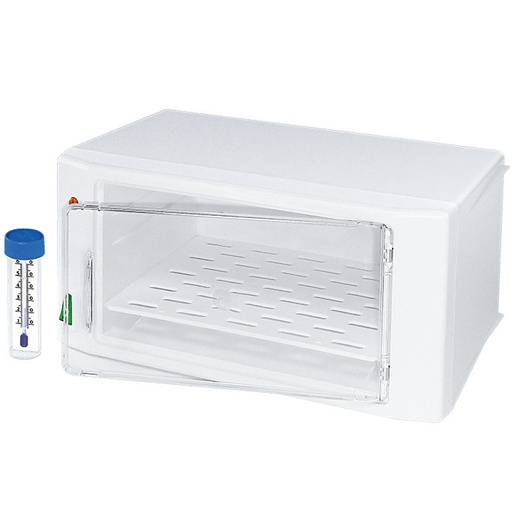

The ideal mini incubator for the small laboratory.
For incubating 18 dip-slide culture media or 12 Petri dishes, or several blood culture bottles. The fixed temperature (35 °C) can be adjusted at any time from 25 to 45 °C. With full-view Plexiglas door, easy to clean, compact stable housing, CE-compliant, maintenance-free. Includes an insert plate.

Product data:

External: W 310 x H 155 x D 168 mm
Internal: W 220 x H 120 x D 150 mm
Weight: 1.1 kg
Power: 26 W / 220 volts
Temperature: 25–45 °C (preset to 35 °C)
Accuracy: ± 1.0 °C

Characteristics
- practical and cost-effective option for rapid incubation of culture media, providing more up-to-date results for biological tests
- high operational reliability thanks to ease of use and stable temperature control

The temperature can be set using the adjustment dial.
Then you read it on the thermometer.

Internal (W/H/D): 220 x 120 x 150 mm

External (W/H/D): 310 x 155 x 168 mm

Weight: 1.1 kg

Power: 26 W / 220 V

Temperature: 25–45 °C (fixed set to 35 °C)

Accuracy: ± 1.0 °C

CO2 In-Line Pressure Regulator
(for Galaxy incubators)

The CO2 incubator Galaxy 170 S is characterised by its large capacity of 170 litres, highest quality and excellent performance. It can be positioned to save space or alternatively stacked. The Galaxy 170 S is ideal for a wide range of incubation applications.

Product data:

- Usable chamber volume: 170 litres
- CO2 inlet with HEPA filter
- Chamber lining: CrNi stainless steel, DIN 1.4301 (304L) with rounded corners, free of welded seams
- Shelves: Four CrNi stainless-steel shelves (expandable to 8)
- Access port: 1 piece, 25 mm
- Communication: RS-232 interface
- Building alarm/BMS relay connection integrated
- Temperature range: 4°C above ambient temperature up to 50°C
- Temperature sensor: PT-100 sensor technology
- High-temperature decontamination: 4 h at 120°C
- CO2 control range: 0.2% to 20%
- CO2 sensor: infrared technology, with manual calibration
- Alarm: audible alarm, visual alarm
- Air circulation: via convection flow to minimise contamination and sample drying (no fan!), for condensation-free inner walls
- Humidity (passive): humidity level of 95% RH
- Safety: self-monitoring of temperature and CO2 sensors
- Audible and visual alarm
- Display: large LED display
- Electrical ratings: 220 V, 50/60 Hz, 500 VA
- Power consumption: < 80 W/h at 37°C and 5% CO2
- Dimensions: 687 x 680 x 845 mm (W x D x H)
- Weight: 89 kg net
- Door hinge: left
- CO2 pressure required: 0.35 bar

Product name:

The Galaxy 170 R CO2 incubator is characterised by its large 170-litre capacity, top quality and excellent performance. It can be positioned to save space or alternatively stacked. The Galaxy 170 R is ideally suited for specialised and traditional incubation applications.
The Galaxy 170 R also offers integrated control for easy programming via the display and for data logging.

Product data:

-Usable chamber volume: 170 litres
-BMS relay
-Access port
-Integrated data logging
-Sealed internal glass doors
-CO2 range: 0.2–20%
-Weight: 89.9 kg
-Dimensions: 68.6 x 67.8 x 84.3 (W x D x H)

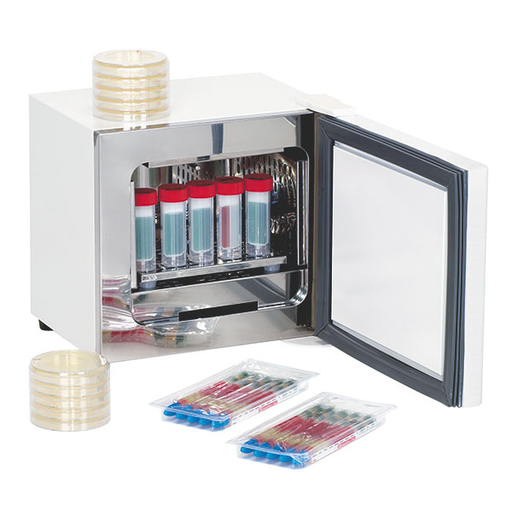

Compact warming cabinet for practice and laboratory use
The Labocult warming cabinet features digital control with timer switch-off function and an easy-to-read LED display for simple temperature monitoring. The display and control membrane are washable, easy to operate and, in addition to the on/off switch, include indicator lights for function and alarm. Temperatures from 5 °C above ambient temperature up to 50 °C can be set in precise increments of 0.1 °C. The Labocult housing is made of painted sheet steel; the interior is made of stainless chrome steel and has a usable depth of 20 cm. The digital control ensures a short heat-up time and, at a temperature of 37 °C, has an accuracy of ±1 °C.

Included in delivery:
Shelf (can be used for plates & dip slides**)
Mains cable

The current regulation for laboratory incubators states that culture media must no longer be in direct contact with the base surface. The shelf prevents this contact.

Technical data
Voltage: 200–240 volts
Frequency: 50 Hz
Power consumption: max. 300 watts / typically 80 watts
Temperature setting: max. 50 °C (minimum 5 °C above ambient temperature)
Accuracy: +/- 1 °C
Timer: 0–9999 minutes
Internal (W/H/D): 230 x 160 x 200 mm
External (W/H/D): 330 x 300 x 300 mm
Weight: 9 kg

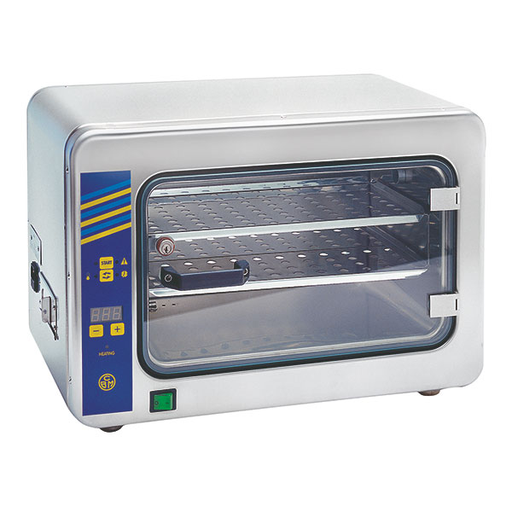

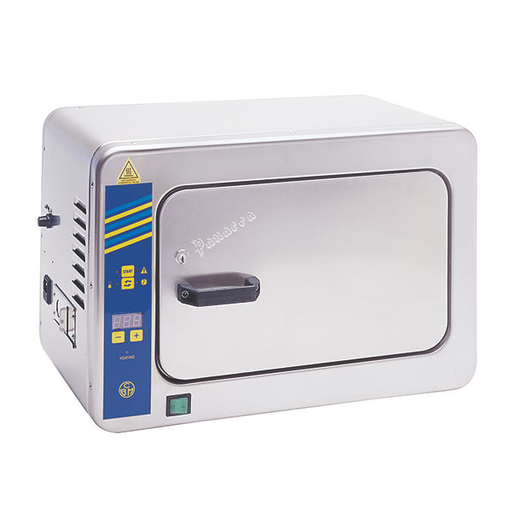

Ideal for preheating solutions and instruments.

• Can also be used as an incubator
• Entirely stainless steel, fibreglass insulation
• Display for time and temperature
• Electronic temperature control
• Power: 500 W / 220 V
• Temperature adjustable from 140° to 200°C
• Time interval adjustable from 0 to 120 minutes
• With temperature and fault alarm indicator
• Lockable front door, with wall-mounting accessories
• Includes 2 stainless steel trays. Dimensions:

External: 560 x 370 x 380 mm
Internal: 385 x 235 x 218 mm

The housing is made of stainless steel inside and out.
With electronic temperature control, display showing the temperature and operating time.
Alarm in case of malfunction and temperature drop, lockable door, with mounting option for wall installation. With 2 stainless steel shelves.

Technical data:

Internal dimensions (W/H/D): 385 x 235 x 218 mm
External dimensions (W/H/D): 560 x 370 x 380 mm
Capacity: 20 l

Power: 100 watts / 220 V

Weight: 12.3 kg

Temperature control: +30 °C to 70 °C

Operating time: 0–120 minutes or continuous operation

Replacement thermometer for mini laboratory incubator
