Defibrillator Accessories

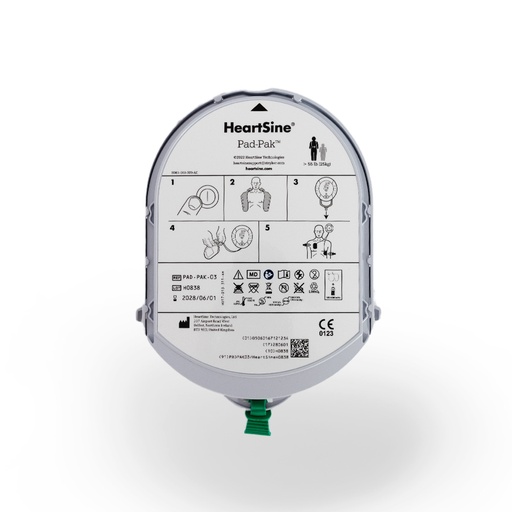

Heartsine Samaritan PadPak battery and electrode pads

The Heartsine AED uses a PadPak module to replace the battery and electrode pads. This 2-in-1 module makes it easier to use the AED after the AED has been used. This module is suitable for use on adult patients who weigh more than 25 kg or are older than 8 years. The battery and electrode pads are always pre-installed in the AED. This saves time when the AED is used. The placement of the electrode pads is shown on the packaging and on the AED.

Shelf life of the electrode pads
The shelf life of the Heartsign Samaritan electrode pads is approx. 4 years. You will find the expiry date on the PadPak module. Electrode pads contain a conductive gel that can dry out. If the electrode pads have dried out during use of the AED, this can have negative effects on the patient. It is therefore important that you connect an unopened PadPak that has not yet expired.

Features

Pre-connected
Self-adhesive
Approx. 4 years shelf life
Temperature between 0°C and 50°C
Non-polarised
Latex-free

Suitable for the following devices:

Heartsine Samaritan 300P
Heartsine Samaritan 350P
Heartsine Samaritan 360P
Heartsine Samaritan 500P

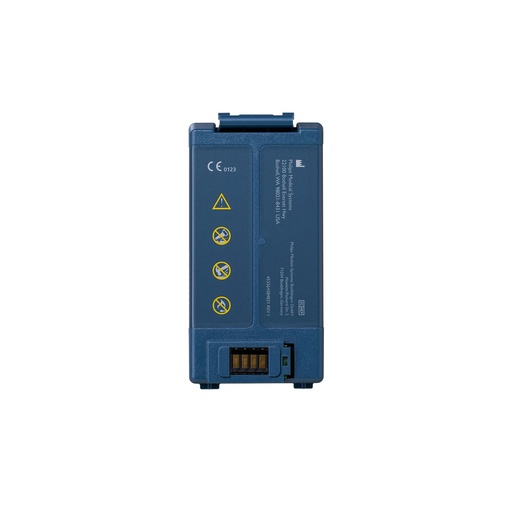

M5070A battery for the Heartstart HS1, Heartstart Home and Heartstart FRx defibrillator models. This lithium manganese dioxide battery is non-rechargeable and has a service life of approx. 4 years.

TECHNICAL FEATURES OF THE PHILIPS HS1/FRX BATTERY

Date on the battery: production date + latest installation date
Material: Li/MnO2
Service life: approx. 4 years
V/Ah: 9 V – 4.2 Ah
Type: M5070A

When the M5070A lithium battery is depleted, the defibrillator signals this with an audible alert. The status indicator then changes to red and the blue “I” button starts flashing. Pressing it provides spoken information on the status of your Heartstart defibrillator. A depleted battery still has minimal remaining capacity and can therefore still be used for an emergency deployment.

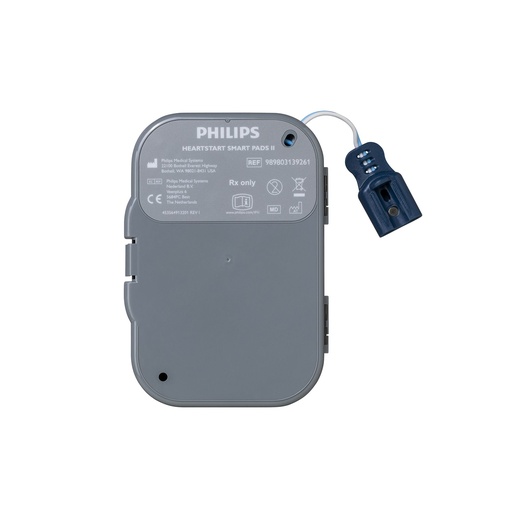

PHILIPS HEARTSTART FRX ELECTRODES SMART PADS II
The Philips Heartstart FRx electrodes are stored in a plastic package. These electrodes can be stored pre-connected. Correct placement is shown both on the packaging and on the electrodes themselves.

TECHNICAL DETAILS OF THE ELECTRODES
- Pre-connected
- Self-adhesive
- Latex-free
- Shelf life approx. 2 years
- Pacemaker detection
- Storage temperature between 0°C and 50°C
- Electrode cable length: 121.9 cm

THE PHILIPS HEARTSTART FRX SMART PADS ARE ALSO COMPATIBLE WITH:
- Philips Heartstart FR
- Philips Heartstart FR2
- Philips Heartstart FR3
- Philips Hearstart XL
- Philips Hearstart MRx

SHELF LIFE OF THE FRX ELECTRODES
Due to the conductive gel layer, electrodes have an expiry date. After this date, the electrodes must no longer be used, as the gel layer can dry out and conductivity is reduced as a result. The Heartstart FRx electrodes have a shelf life of approx. 2 years. The expiry date is stated on the electrode packaging.

USE IN CHILDREN:
For children younger than 8 years and weighing less than 25 kg, special paediatric electrodes are normally used. For the Heartstart FRx, a paediatric key has been developed; this is inserted into the defibrillator during paediatric resuscitation to activate paediatric mode, allowing the normal Smart Pads II electrodes to also be used for children. The shock level is reduced automatically.

Defib Electrode Adults

Suitable for:
FRED easy, DG4000, DG5000

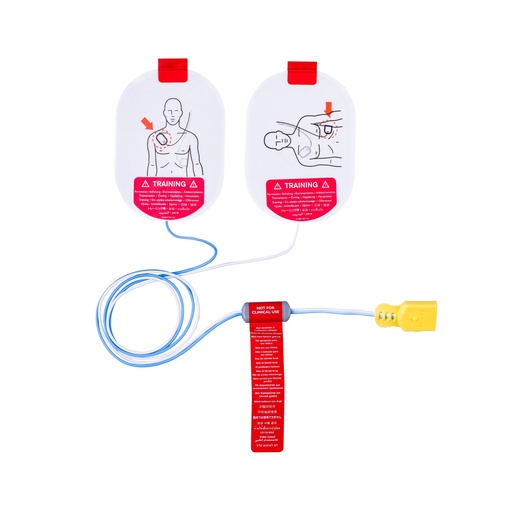

Replacement pads for the Philips Heartstart FRx training device

Training electrodes for the Philips Heartstart FRx training device

Battery for Primedic HeartSave PAD.

Shelf life: approx. 3 years

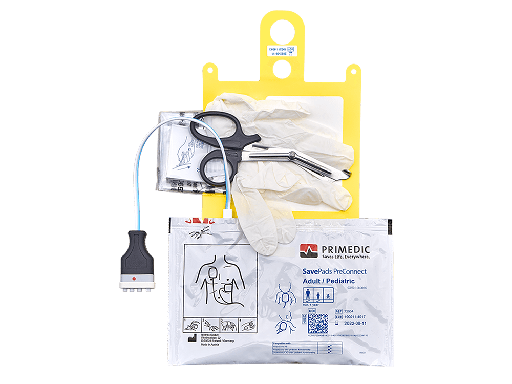

Defibrillation electrode set for adults/children
pre-connectable
Shelf life 2.5–3 years

The Primedic HeartSave electrode set is suitable for use on adults, but also for young patients. The correct placement of the electrode set for adult patients is shown on the packaging.

Due to the conductive gel layer, electrodes have an expiry date. After this date, the electrodes must no longer be used, as the gel layer can dry out and conductivity will decrease as a result. Please ensure that the defibrillator is always supplied with a pair of electrodes that is within its expiry date.

Technical details of the electrodes:

Self-adhesive
Latex-free
Approx. 3-year shelf life
Storage temperature between 0°C and 50°C

Suitable for:

Primedic HeartSave AS
Primedic HeartSave AED
Primedic HeartSave AED-M
Primedic HeartSave PAD

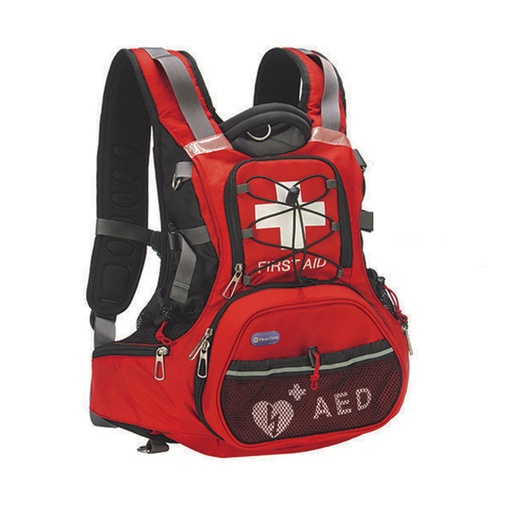

AED backpack for storing the samaritan® PAD 350P, samaritan® PAD 360P, samaritan® PAD 500P

The backpack is supplied without contents.

For SAM 350 - SAM 360 - SAM 500 training devices incl. 1 training electrode

The Heartsine Samaritan PAD-Pak-04 is suitable for children up to a weight of 25 kg or up to 8 years of age. The correct electrode placement is shown both on the packaging and on the defibrillator.

Self-adhesive
Shelf life approx. 4 years
Storage temperature between 0°C and 50°C
Latex-free

SUITABLE FOR THE FOLLOWING DEFIBRILLATORS:

Heartsine Samaritan PAD 300P
Heartsine Samaritan PAD 350P
Heartsine Samaritan PAD 360P
Heartsine Samaritan PAD 500P

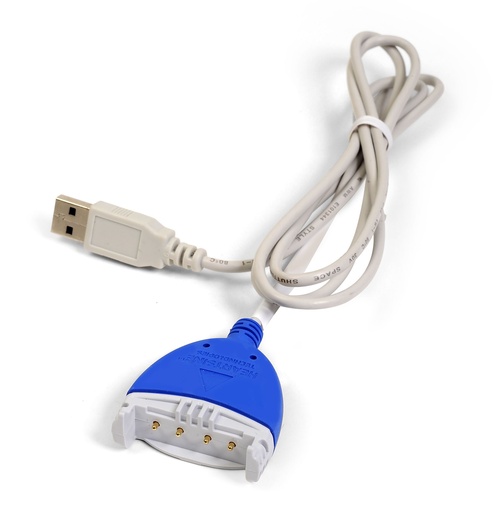

USB cable for transferring defibrillator data to a PC.

Battery for the Physio Control Lifepak 1000 defibrillator. The battery has an approximate service life of 5 years. Please note that the capacity may be significantly lower in older devices, due to the defibrillator’s internal battery gradually depleting (from around 8–10 years).

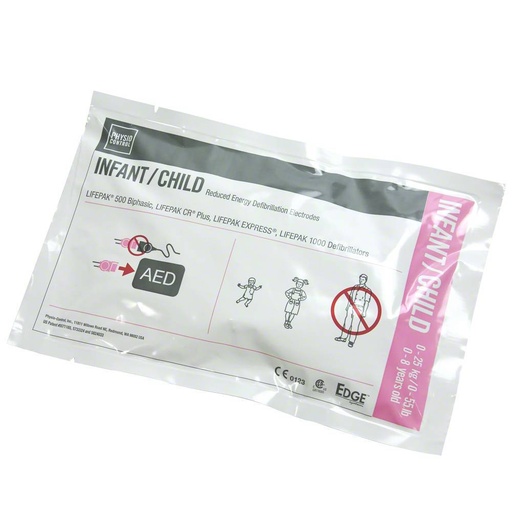

The Physio-Control Lifepak paediatric electrode set is used for defibrillating children aged 1–8 years or with a body weight under 25 kg. As soon as the paediatric electrodes are connected to the defibrillator, the shock level is automatically reduced. The exact positioning of the electrodes is shown both on the packaging and on the electrodes themselves.

Due to the conductive gel layer, electrodes have an expiry date. After this date, the electrodes must no longer be used, as the gel layer can dry out and conductivity will decrease. Please ensure that the defibrillator is always supplied with a pair of electrodes that are within date. Physio-Control Lifepak paediatric electrodes have a shelf life of approx. 1.5–2 years. The exact expiry date can be found on the front of the packaging.

Technical details:

Self-adhesive
Latex-free
Approx. 1.5–2 years shelf life
Storage temperature between 15°C and 35°C (max. 7 days at -30/65°C)

Suitable for:

Physio-Control Lifepak 500 (biphasic)
Physio-Control Lifepak 1000
Physio-Control Lifepak CR Plus
Physio-Control Lifepak Express

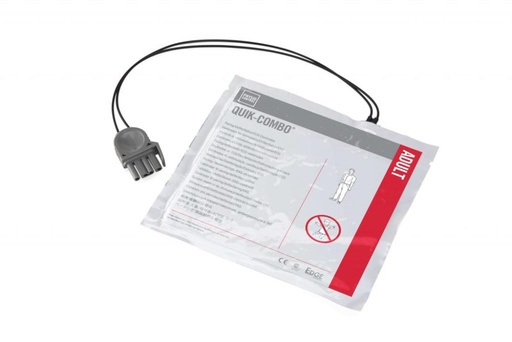

Physio-Control Quik-Combo electrodes are suitable for use on adults. They can be stored pre-connected (already attached). Correct placement of the electrode set is shown on the packaging.

Due to the conductive gel layer, electrodes have an expiry date. After this date, the defibrillator electrodes must no longer be used, as the gel layer can dry out and conductivity may decrease. Physio-Control Quik-Combo adult electrodes have a shelf life of approx. 2 years.

Technical details:

Pre-connected
Self-adhesive
Latex-free
Shelf life approx. 2 years
Storage temperature between 15°C and 35°C (max. 7 days at -30/65°C)

Suitable for:

Physio-Control / Medtronic Lifepak 12
Physio-Control / Medtronic Lifepak 500
Physio-Control / Medtronic Lifepak 1000
Physio-Control / Medtronic Lifepak 20/20e

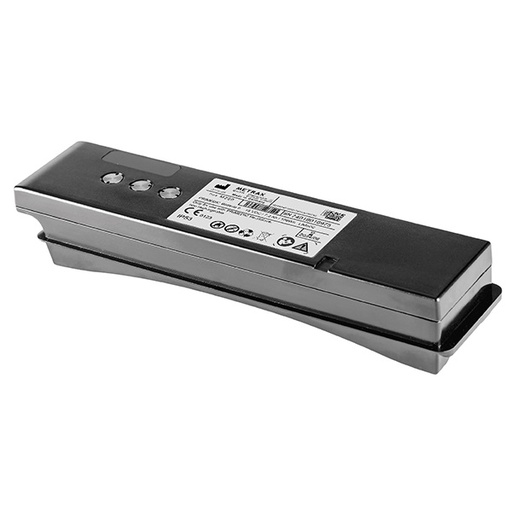

PRIMEDIC Heartsave Y/YA lithium battery

Accessories for FRED easyport Plus Trainer (25150-01) and training electrodes (25151-01)

Universal electrodes for the ZOLL AED 3. Suitable for both adult resuscitation and paediatric resuscitation.
