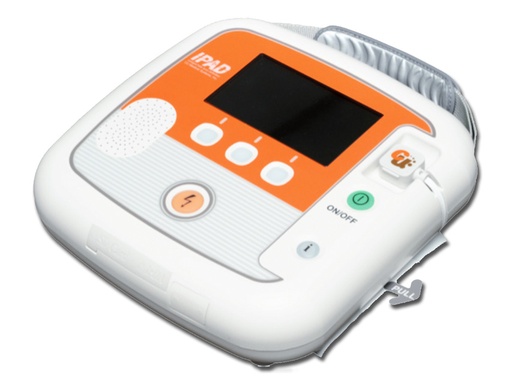

CU-SP2 is the latest generation of intelligent public access defibrillators with innovative features:
Automatic volume adjustment
It detects ambient noise and automatically adjusts the volume of the voice prompts so they remain audible over background noise.
Smart Pads – intelligent storage
The pre-installed “Smart” electrode pads are located in an easily accessible compartment on the underside of the device, ensuring the fastest possible deployment. In addition, the front visual indicator shows whether the connected pads are within their shelf life. The indicator changes when the pads have only 3 months remaining before expiry, giving you time to arrange replacements. It changes again once the expiry date is reached.
CPR detection
CPR is crucial to ensure the victim has the best chance of survival. iPAD CU-SP2 detects whether CPR is being performed and provides corresponding prompts; otherwise it prompts the responder to perform it.
Easy communication with CU-EX1 software
It enables viewing and analysing information such as power-on duration, the victim’s heart rhythm and delivered shocks. The iPAD CUSP2 stores 3 events in internal memory (up to 17 hours per event).
16 languages available (to be specified when ordering)
Selectable software languages: USA, GB, FR, IT, ES, DE, PT, NL, SE, PL, DK, NO, CZ, GR, AE, KR, IL. Supplied with SAVE PADS for adults, carry case, lithium disposable battery, paper manual (GB, IT) and CD manual in the above languages, except PL and GR.
Defibrillator
• Operating mode: Semi-automatic
• Waveform: E-cube biphasic (truncated exponential type)
• Energy: Fixed 150 J
- Adult: rated 150 J at 50 ohm load
- Infant/Child: nominal 50 joules at 50 ohm
• Charge control: Controlled by an automated patient analysis system
• Charging time: within 10 seconds from the voice prompt “a shock is required”
• Sealing:
- protected against water jets IPX5 in accordance with IEC60529 (IP55)
- dust-protected IP5X in accordance with IEC60529
User interface
• User support: Detailed voice prompts and flashing indicators
• CPR instruction: Voice prompts for performing CPR for adults and children
• Controls: On/Off button, “i” button, shock button
• Display: LCD display (device status, battery status, pad status)
• Sensing: pad expiry date, pad connection status
CPR monitoring
• Automatic volume adjustment
Data recording and transfer
• IrDA port: Wireless transfer of event data to PC, to SD card
• Internal memory (NAND flash): ECG, event
• Storage capacity: Multiple recording of 5 events / max. 3 hours
• Data review PC program: CU-EX1
Patient analysis system
• Patient analysis: Shockable rhythms – ventricular fibrillation, tachycardia
• Sensitivity/specificity complies with the AAMI DF80 guideline
High-capacity disposable battery
• Type: DC 11.1 V 1.9 Ah, Li-ion rechargeable
• Capacity: At least 60 shocks or 3 hours of operating time
