Floor Lamps

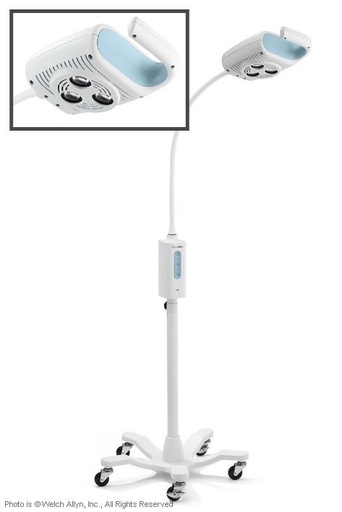

GS 600 LED examination and treatment light with mobile stand
Light for minor examinations in any healthcare setting. - 3 white LEDs with 5,500 Kelvin provide excellent white light, optimally illuminating the area to be examined, showing tissue in true colour and ensuring uniform illumination - no dark areas, no “hot spots” and no heat build-up - better for the environment: low operating costs as no bulbs need replacing and less energy is consumed - infection control: touch-free on/off switching with dimming significantly reduces the risk of infection through cross-contamination and makes cleaning easier Technical data: - Light intensity at working distance: 50,000 lux at 30 cm, 45,000 lux at 50 cm - Spot size at working distance: 18 cm at 30 cm, 15 cm at 50 cm - Reach of mobile stand: 79 cm - Lamp head (H x W x D): 34.5 x 19.2 x 8.6 cm - Control unit (H x W x D): 27.5 x 10 x 8 cm - Mobile stand (H x Ø): 61 x 53 cm - Weight: 7.87 kg - Power supply: Input: 100–240 V ~ 50–60 Hz, 0.65 A max. - 3-core mains cable 2.5 m long - Operating life: 50,000 hours

DR.Mach LED 120 examination light, ceiling model, with SWING arm, for room heights up to 3 m, incl. power supply unit mounted on the flange

Please state the exact mounting height (finished floor to underside of solid ceiling) when placing your order and, if applicable, the room height (finished floor to underside of suspended ceiling) as well! Ceiling anchoring ring TK 270 (MAC 1500000270) is not included with the light and must be ordered separately.

Fixed focus, colour rendering Ra = 95, 12 LEDs, light field diameter 15 cm, colour temperature 4,500 K, on/off switch and brightness control on the luminaire housing, incl. power supply unit 110–240 V, illuminance: 40,000 lux / distance 1 m

50,000 lux (at a distance of 1 m), light field diameter 13–18 cm

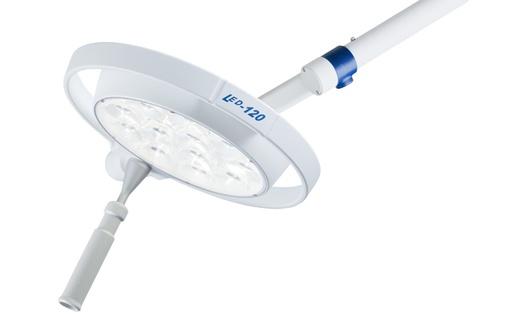

With SWING arm for room heights up to 3 m, incl. power supply unit mounted on the flange

Please state the exact mounting height (finished floor to underside of solid ceiling) when placing your order and, if applicable, the room height (finished floor to underside of suspended ceiling). Ceiling anchoring ring TK 270 (MAC 1500000270) is not supplied with the light and must be ordered separately.

Colour rendering Ra = 95, 12 LEDs, light field diameter 13–18 cm, colour temperature 4,500 K, on/off switch and brightness control on the luminaire body, incl. power supply unit 100–250 V, illuminance: 50,000 lux / distance 1 m

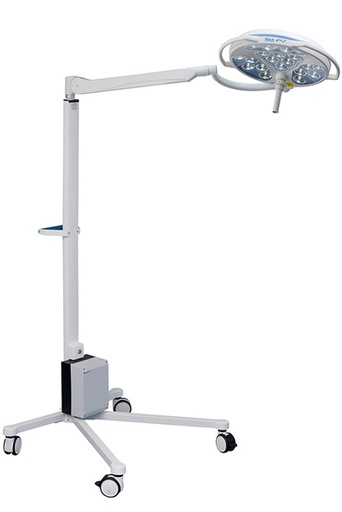

Mach LED 2sc (Single Colour) surgical light, stand model, on stand with four-legged base incl. power supply
incl. light field merging, 21 LEDs, colour rendering Ra = 95, light field diameter 17–28 cm, with sterilizable handle sleeve, illuminance: 115,000 lux / distance 1 m

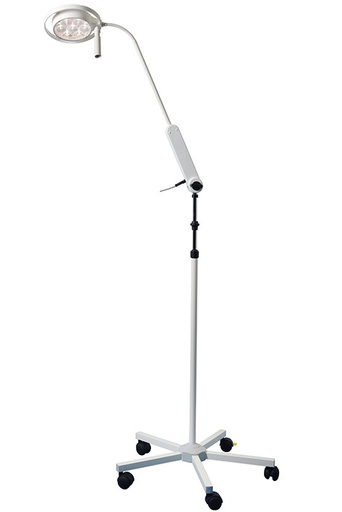

Mach LED 115 examination light, stand model on a 5-leg stand with one-hand height adjustment.

Product data:

On/off switch
7 LEDs
Colour temperature 4500 K
Illuminance: 60,000 lux / distance 0.5 m
Electronic power supply 100–240 V
Brightness control
Fixed focus

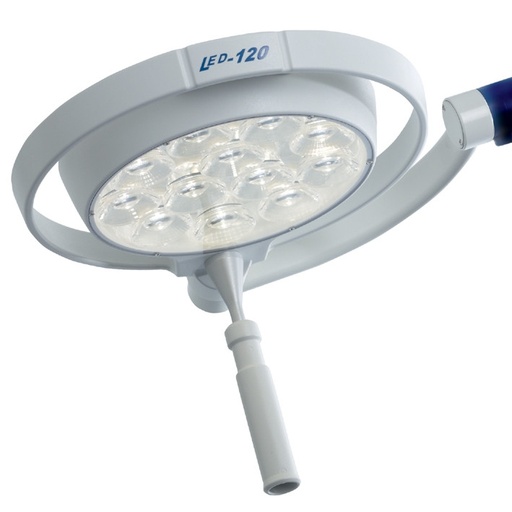

Mach LED 120 examination light with fixed focus on a 5-foot stand and brightness adjustment on the lamp housing. The examination light is supplied complete with stand and power supply.

Product data:

Colour rendering Ra = 95, 12 LEDs
Light field diameter: 17 cm
Illuminance: 30,000 lux / distance 1 m

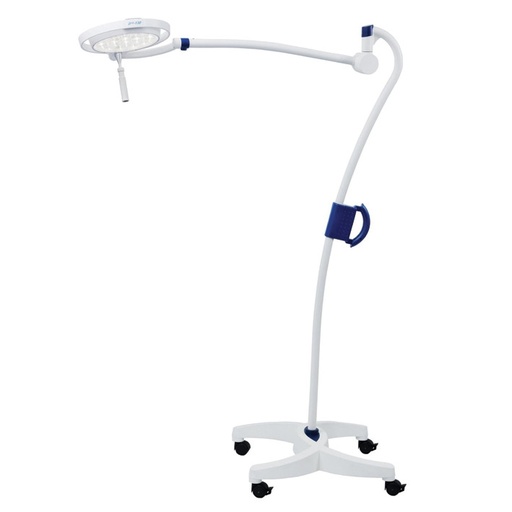

Mach LED 130 examination light, stand model, on SWING stand, with four-legged base, short arm joint, incl. power supply unit on the base. On/off switch and brightness control on the luminaire body.

Product data:

Colour rendering Ra = 95, fixed focus, 19 LEDs
Light field diameter 17 cm
Illuminance: 50,000 lux / distance 1 m

Mach LED 130 examination light, stand model, on SWING stand, with four-legged base, short arm joint, incl. power supply unit on the base. On/off switch and brightness adjustment on the luminaire head.

Product data:

Colour rendering Ra=95
Light field diameter 14–25 cm, 19 LEDs
Illuminance: 70,000 lux / distance 1 m

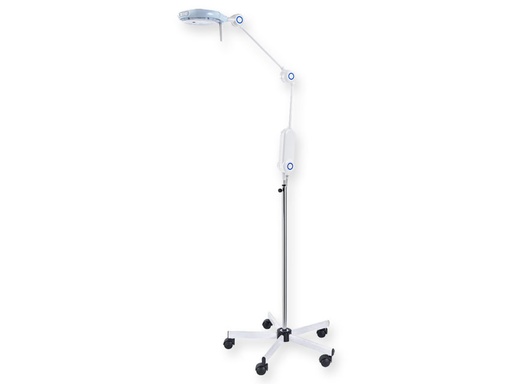

PRIMALED COLD LIGHT LAMP WITH 9 LED LENSES


Attractive design and advanced
technology.



Design: The round and ultra-slim shape of the lamp makes the product ergonomic and suitable for any type of installation, from doctors’ surgeries to intensive care units.



Ergo-Spring: The movement of the articulated tubular arm is servo-assisted by a torsion spring, ensuring smooth movement and stability.



105,000 lux: Unique performance with 105,000 lux at 50 cm.



Light intensity adjustment: six different setting levels via the buttons on the front panel.

4,000–4,500 K colour temperature selection: Comparing the two colour temperatures (K) increases the visibility of details.

Shadow suppression: The radial arrangement of the lenses and the large lamp diameter (195 mm) enable shadow suppression and three-dimensional illumination.

Adjustable inner light: integrates ambient light with traditional focused light.

Sterilisable removable handle: enables optimum asepsis.

Cold light: The reduced emission of IR rays from the LEDs, together with low power consumption, ensures minimal heat output.

60,000-hour LED service life: The upper aluminium dome enables heat exchange, reducing the operating temperature and significantly extending the service life of the individual LEDs.

Interchangeable plugs: The transformer is integrated into the plug for easier and smoother arm movement. Supplied with interchangeable plugs (UK, US, EU).

Fully certified: Complies with the general medical standards IEC 60601-1 and 60601-1-2 as well as the particular standards IEC 60601-2-41, 93/42 EEC and 2007/47 EC, and is CE-marked as a Class I medical device.

Mechanical testing and user safety: Structure made of die-cast aluminium and steel tube. The articulated arm has undergone mechanical tests with 40,000 continuous movements to ensure maximum user safety during use.

Light continuity: The modular design of the LED circuit ensures light continuity even in the event of an LED failure.

The lamp lens has been designed to provide focused and deep illumination.
The light field diameter is 16 cm at 0.5 m.

The following functions are controlled via the membrane keypad buttons:
- on/off
- selection of colour temperatures 4,000 K and 4,500 K
- 6-level light intensity adjustment
- inner light

Made in Italy.

PRIMALED COLD LIGHT LAMP with 9 LED lenses
Attractive design and advanced technology.

• Design: The round and ultra-slim shape of the luminaire makes the product ergonomic and suitable for any type of installation, from doctors’ surgeries to intensive care units.

• Ergo spring: The movement of the articulated tubular arm is assisted by a torsion spring, ensuring smooth operation and stability.

• 80,000 lux: Unique performance with 80,000 lux at 50 cm.

• Light intensity adjustment: Six different adjustment levels via the buttons on the front panel.
4500–5000 K colour temperature selection: Comparing the two colour temperatures (K) increases the visibility of details.

• Shadow reduction: The radial arrangement of the lenses and the large-diameter lamp head (195 mm) enable shadow reduction and three-dimensional illumination.

• Adjustable inner light: Integrates ambient light with traditional focused light.

• Sterilisable removable handle: Enables optimum asepsis.

• Cold light: Reduced emission of IR radiation from the LEDs, as well as low power consumption, ensures minimal heat output.

• Disinfection: The smooth and rounded shape of the dome and structure facilitates cleaning and disinfection.

• 50,000-hour LED lifetime: The upper aluminium dome enables heat exchange, lowering the operating temperature and significantly extending the service life of the individual LEDs.

• Fully certified: Complies with the general medical standards IEC 60601-1 and 60601-1-2 as well as the specific standards IEC 60601-2-41, 93/42 EEC and 2007/43 EC, and is CE marked as a Class I medical device.

• Mechanical testing and user safety: Structure made of die-cast aluminium and steel tubing. The articulated arm has undergone mechanical testing for 40,000 continuous movements to ensure maximum user safety during use.

• Light continuity: The modular design of the LED power circuit ensures light output continuity even in the event of an LED failure.

The following functions are controlled via the membrane keypad buttons:
- on/off
- selection of colour temperatures 5000 K and 4500 K
- 6-level light intensity adjustment
- inner light

EL 10 LED examination light with metal mobile stand
- optimum illumination thanks to particularly homogeneous light - realistic colour rendering thanks to 10-watt high-performance LED (3,000 Kelvin, colour rendering index > 85). Result: red is red, blue is blue - constant brightness and colour rendering of the LED over its entire service life of 30,000 hours - stepless regulation of brightness and light field with one hand: illuminance can be adjusted continuously between 6,500 and 45,000 lux; the light field size can be freely set between 8.5 and 14 cm in diameter, both at a working distance of 30 cm - intuitive and easy adjustment thanks to the high-quality gooseneck - the compact lamp head (Ø approx. 60 mm) enables near-coaxial illumination, especially in difficult application situations - easy cleaning and disinfection thanks to the compact design

- EU / GB / US -
with interchangeable mains plug
- LED lamp 7 watts
- LED lamp service life: 40,000 h
- Illuminance: 31,000 lux
(at a working distance of 0.3 m)
- flexible LED light with 5-legged mobile stand
made of high-quality stainless steel
- modern, slim design
- precise light – comfortable
and adjustable as required
- Mains voltage 220 - 240 V, 50 - 60 Hz
- LED lamp
- Beam angle 24°
- Colour temperature approx. 2700 K
- quick and easy assembly
- with interchangeable mains plug
- Castors: 2x with brake,
1x antistatic and 2x standard

Product data:

- Light field size: 100 mm
(at a working distance of 0.5 m)
- Working area: 125 mm
(at a working distance of 0.5 m)
- Maximum height: 211 cm
- Maximum working range: 170 cm
- Weight (net): 4.7 kg
- Stand tube, stainless steel: 97.5 cm
- Base tube, stainless steel: 30 cm

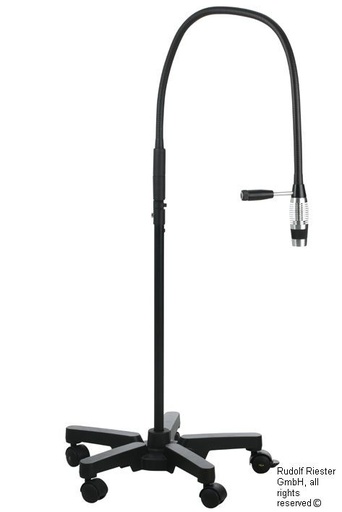

ri-magic LED examination light 230 V, floor stand model
The flexible ri-magic® LED examination light provides optimum illumination of the examination and operating field. Clearly distinguishable colour nuances, strong contrasts and powerful lighting enable faster and easier diagnosis. Unlike halogen or xenon lamps, the LED emits hardly any heat. The floor stand model is supplied with an especially stable, heavy, antistatic stand. Two of the five castors can be locked. - state-of-the-art LED technology, daylight-like and powerful, making it ideal for examinations and minor procedures - lamp lifetime approx. 50,000 hours, no replacement necessary - min. 45,000 lux at a distance of 40 cm, colour temperature 6200 K - significantly less heat generation and energy loss - focusing device at the front of the lamp head for precise adjustment of the size of the illuminated examination field - highly flexible long special arm can be bent in any direction, lamp remains in the selected position - easy-to-use handle with rheostat for stepless adjustment of the light intensity - wide-range power supply for 230 V/120 V

Compact examination light with separately arranged LED modules.

Modern LED technology provides low-shadow illumination and a long operating life with low power consumption.

Illuminance 44,000 lux at a distance of 50 cm and 16,000 lux at a distance of 100 cm.

Thanks to the very good colour rendering values and the homogeneous light field, the tissue is displayed naturally and with high contrast.

• Homogeneous light field
• Very good colour rendering
• Brightness adjustment in 5 levels
• Low heat generation
• Controls integrated into the power supply housing
• 5-leg mobile base with braked castors
• Low-voltage LED with long service life

Product data:

Illuminance at 50 cm distance: 44,000 lx
Illuminance at 100 cm distance: 16,000 lx
Light field diameter at 50 cm distance: 180 mm
Light field diameter at 100 cm distance: 300 mm
Colour temperature: 4000 - 5500 K
Brightness control: electronic, in 5 levels
Mains voltage: 230 V 50 Hz
Power consumption: < 10 W
Height adjustment: 700 - 1850 mm
Flex arm length: 600 mm
Weight: 7 kg

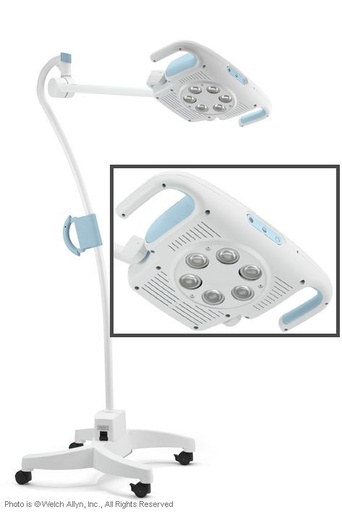

GS 900 large LED examination light with mobile stand
Light for almost any application in hospitals, outpatient clinics and medical practices. - 6 white LEDs with 5,500 Kelvin provide excellent white light that optimally illuminates the area being examined, renders tissue colours accurately and provides uniform illumination - no dark spots, no “hot spots” and no heat build-up - better for the environment: low operating costs as no bulbs need to be replaced and less energy is consumed - infection control: touch-free on/off switching with dimming significantly reduces the risk of infection through cross-contamination and makes cleaning easier Technical data: - Light intensity at working distance: 80,000 lux at 61 cm, 65,000 lux at 100 cm - Spot size at working distance: 28 cm at 61 cm, 23 cm at 100 cm - Reach of mobile stand: 95 cm - Light head (H x W x D): 34.9 x 45.8 x 10.2 cm - Mobile stand (L x W x H): 55.8 x 56.5 x 16.5 cm - Weight: 20.34 kg - Power supply: Input: 100-240 V ~ 50-60 Hz, 1.00 A max. - 3-core mains cable 2.5 m long - Operating life: 50,000 hours
