CHISON ECO 1 VET ULTRASOUND with 1 probe connector (One probe included in the scope of delivery. Please make a selection)
- ultra-compact and ultra-lightweight, easy to transport
- latest LED screen technology; super-bright images enable easy viewing of scans even outdoors
- ergonomic monitor design, 30-degree rotation, adjustable
- ultra-long battery life of up to 2 hours for outdoor scanning
- one-button image enlargement to full-screen mode, easy viewing from a distance
- optimised workflow, easy operation, 6 keys to complete the diagnostic cycle
• Display modes and imaging
B, B / B, 4B, M, B / M, multi-frequency imaging
• Image processing
- compound imaging
- trapezoid imaging
- intelligent I-Image optimisation
- automatic PW tracking
- SRA (Speckle Reduction Algorithm)
- Chroma
- fully digital beamformer
- AIO (Automatic Image Optimisation)
- full-screen display
• User interface
- fold-up control panel and alphanumeric keyboard
- backlit keyboard for good visibility in dark rooms
- interactive backlighting
- indicator lights identify activated keys
- 8 TGC sliders for easy adjustment
- shortcut button for quick adjustment (custom hotkey)
- neat and clear keyboard layout, easy for the clinician to remember
- custom preset
• Optimised workflow, one key for:
- selecting the desired application with automatic preset
- automatically optimising the image (AIO)
- creating a report
- saving still images and CINE loop
- measuring
- printing to a PC printer (laser or inkjet) or video printer
• EASYVIEW™ archiving system
- image archive on hard drive and mobile USB storage
- 3 USB ports
- multiple image formats: BMP, JPG, DCM, CIN, AVI
- cine review: auto, manual (segment for auto review can be set) for 2D, M images
- cine storage capacity (256 frames / 10 s)
Technical data:
Dimensions and weight: 33.5 x 15.5 x h 35 cm (13.2" x 6.1" x h 13.8"); 6 kg
Display: 12" LED, high resolution 1,024 x 768
Power: AC 100–240 V – 50/60 Hz
Accessories:

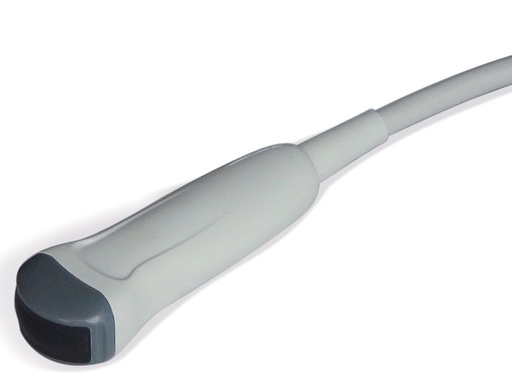

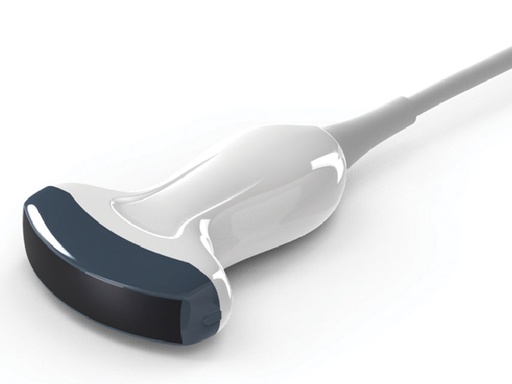

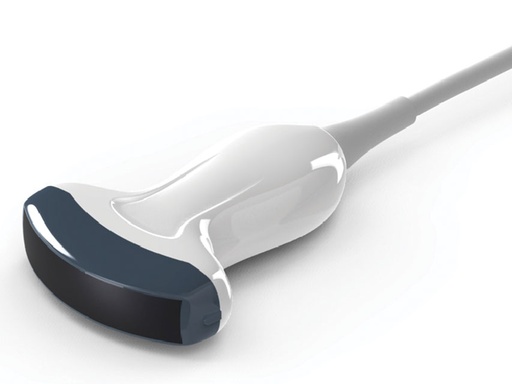

1 probe depending on selection
12" high-resolution LED monitor – B & W
8G memory card
Hot key
PC printer connection
3 USB connections
1 Ethernet port
1 video output, 1 VGA output
1 footswitch connection
Full-screen display
Power supply unit
Standard software package
EasyView image archiving system
THI
