Specialized Diagnostics

Specialized diagnostics must be precise and reliable. That is why you should only rely on the best diagnostic equipment. The focus in our range is particularly on ultrasound diagnostics and the examination of pregnant animals. In this category you will find both transportable ultrasound devices for cows and large animals as well as ultrasound probes with suitable protective covers that you can use in your practice. Ultrasound gel can be ordered in large quantities and then stored on your premises until use. We also offer various electrodes in different sizes for long-term monitoring of heart rates. If you have any questions about our diagnostic products, please feel free to contact us and we will work with you to find the perfect solution for your needs.
Basis Preisliste Netto
Sort By: Featured

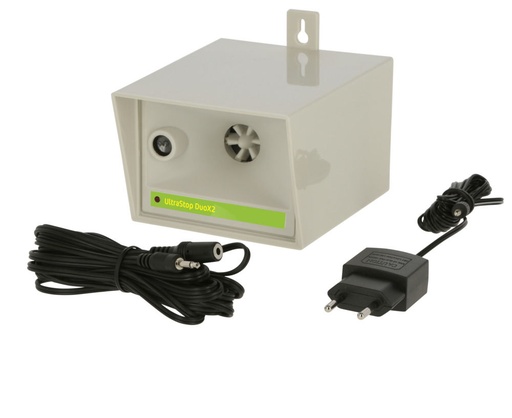

KERBL Ultrasound device DuoX2
• repels mice, rats, cats, martens, pigeons, foxes and other unwanted pests using ultrasound (20,000–65,000 Hz) within a range of 230 m² (outdoor) up to 470 m² (indoor)

• safe for humans
• low power consumption
• with LED indicator for operation monitoring
• 100% non-toxic

• Area of use: suitable for indoor and outdoor use

Product data:

Voltage 100–240 V
Mains frequency 50–60 Hz
High frequency 20,000–65,000 Hz
Effective area 470 m²
Housing material plastic
()
46.10 € 46.1 EUR

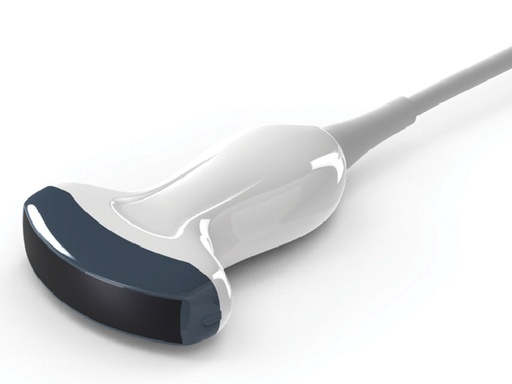

GIMA 3.5 MHz Ultrasound probe CONVEX for Chison ECO 1, ECO 3, ECO 5
Probe for portable Chison ultrasound devices:



- Chison code: C3-A

- Scanning method: Convex
- Main frequency: 3.5 MHz

- Frequency range (MHz): 2.5 - 5.0

- Applications: Abdominal, OB & Gyn, Urology, Paediatric
()
2,082.50 € 2082.5 EUR

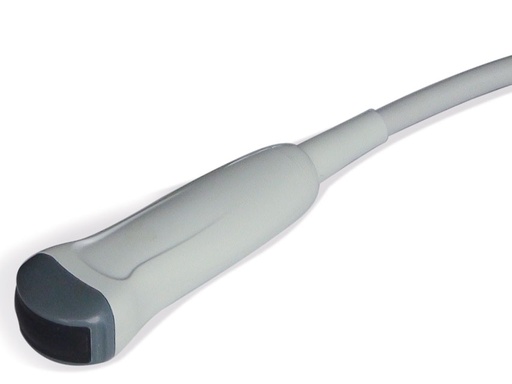

GIMA 6.0 MHz Ultrasound probe Micro-Convex for Chison ECO 1, ECO 3, ECO 5
Probe for portable Chison ultrasound systems:



- Chison code: MC6-A

- Scanning method: micro-convex
- Main frequency: 6.0 MHz

- Frequency range (MHz): 4.5 - 8.0

- Applications: abdominal, paediatric
()
2,082.50 € 2082.5 EUR
GIMA Chison Eco 1 Vet Ultrasound + 1 Probe
CHISON ECO 1 VET ULTRASOUND with 1 probe connector (One probe included in the scope of delivery. Please make a selection)
- ultra-compact and ultra-lightweight, easy to transport
- latest LED screen technology; super-bright images enable easy viewing of scans even outdoors
- ergonomic monitor design, 30-degree rotation, adjustable
- ultra-long battery life of up to 2 hours for outdoor scanning
- one-button image enlargement to full-screen mode, easy viewing from a distance
- optimised workflow, easy operation, 6 keys to complete the diagnostic cycle

• Display modes and imaging
B, B / B, 4B, M, B / M, multi-frequency imaging

• Image processing
- compound imaging
- trapezoid imaging
- intelligent I-Image optimisation
- automatic PW tracking
- SRA (Speckle Reduction Algorithm)
- Chroma
- fully digital beamformer
- AIO (Automatic Image Optimisation)
- full-screen display

• User interface
- fold-up control panel and alphanumeric keyboard
- backlit keyboard for good visibility in dark rooms
- interactive backlighting
- indicator lights identify activated keys
- 8 TGC sliders for easy adjustment
- shortcut button for quick adjustment (custom hotkey)
- neat and clear keyboard layout, easy for the clinician to remember
- custom preset

• Optimised workflow, one key for:
- selecting the desired application with automatic preset
- automatically optimising the image (AIO)
- creating a report
- saving still images and CINE loop
- measuring
- printing to a PC printer (laser or inkjet) or video printer

• EASYVIEW™ archiving system
- image archive on hard drive and mobile USB storage
- 3 USB ports
- multiple image formats: BMP, JPG, DCM, CIN, AVI
- cine review: auto, manual (segment for auto review can be set) for 2D, M images
- cine storage capacity (256 frames / 10 s)

Technical data:

Dimensions and weight: 33.5 x 15.5 x h 35 cm (13.2" x 6.1" x h 13.8"); 6 kg
Display: 12" LED, high resolution 1,024 x 768
Power: AC 100–240 V – 50/60 Hz

Accessories:

1 probe depending on selection
12" high-resolution LED monitor – B & W
8G memory card
Hot key
PC printer connection
3 USB connections
1 Ethernet port
1 video output, 1 VGA output
1 footswitch connection
Full-screen display
Power supply unit
Standard software package
EasyView image archiving system
THI
()
From 3,274.40 € 0.0 EUR

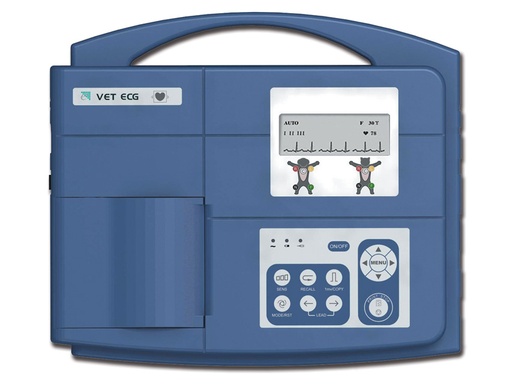

GIMA ECG Ve-100
- Complete digital design
- LCD display waveforms, parameter configuration
- High-resolution thermal printer
- Built-in rechargeable Li-ion battery for 3 hours (AC/DC power supply)
- Fully digital filter to prevent baseline drift; interference suppression for AC and EMG
- Automatic baseline adjustment, optimised print position
- Selectable automatic/manual operation

Technical data:

• Leads: standard 7-lead
• Acquisition mode: single
• Frequency response: 0.05 Hz ~ 150 Hz
• Sensitivity: 2.5, 5, 10, 20 (mm/mV)
• Input impedance: > 10 MΩ
• Filters:
- EMG filter 35 Hz (-3 dB)
- AC/DFT filter 50/60 Hz (-20 dB)
• Recording mode: Auto/Manual
• Safety standard: IEC I/CF
• Power supply:
- AC mains: 100-115-220-240 V, 50/60 Hz
- Built-in rechargeable Li-ion battery: voltage = 14.4 V
- More than 3 hours continuous operation on battery power
• Thermal paper: 5 mm x 30 m
• Paper speed: 25/50 mm/s (± 3%)
• Dimensions: 300 x 260 x 75 mm
• Weight: 2.3 kg (with battery)
• Display: 192 x 64 pixel LCD
• External input/output:
- Input: = 100 kΩ; sensitivity: 10 mm/V ± 5%
- Output: = 100 kΩ; sensitivity: 1 mm/V ± 5%
• Communication interface: RS232

Accessories:

• 5-core veterinary ECG cable (Ø 4 mm, banana plug, IEC)
• Veterinary clip electrodes (set of 5, suitable for Ø 3–4 mm ECG cable)
• 1 paper roll
• Rechargeable lithium battery (2,200 mAh)
• Manual: EN, IT – FR, ES, DE on request
()
From 659.02 € 0.0 EUR
GIMA PC 3000 Multi Parameter Patient Monitor
PC 3000 Multiparameter Patient Monitor:



- 7'' high-resolution TFT colour display, 5-channel waveform display

- Standard parameters: ECG, RESP, SpO2, NIBP, 2-TEMP, PR; arrhythmia and ST segment analysis

- Up to 12,000 sets of parameter data & 60-hour ECG waveform storage and recall

- 1,000-hour graphic and tabular trends for all parameters

- Display of simultaneous 7-channel ECG waveforms

- Protection against interference from defibrillators, HF surgical units

- Measurement modes for adults/children

- Visual and audible alarms; network capability

- Carry handle with bed hook
()
735.87 € 735.87 EUR

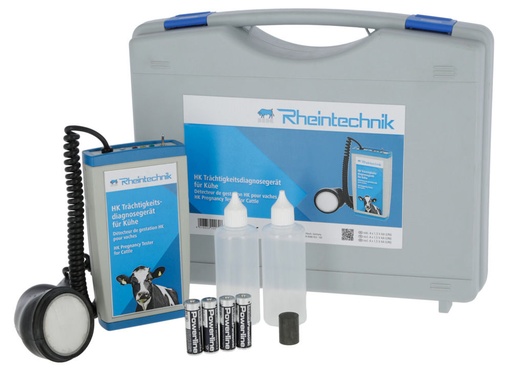

KERBL Pregnancy diagnosis device for cows
• no unpleasant surprises such as pseudopregnancy or an unnoticed loss of the foetus thanks to fast, easy and reliable pregnancy detection from 90 days after insemination using ultrasound

• no prior knowledge or extensive training required

• examination time is usually less than 30 seconds

• no transrectal examination that is unpleasant for the animal is required, and with no risk whatsoever

• the device can be conveniently worn on the belt, keeping both hands free for the measurement

• robust construction in a sturdy plastic case
()
519.68 € 519.68 EUR

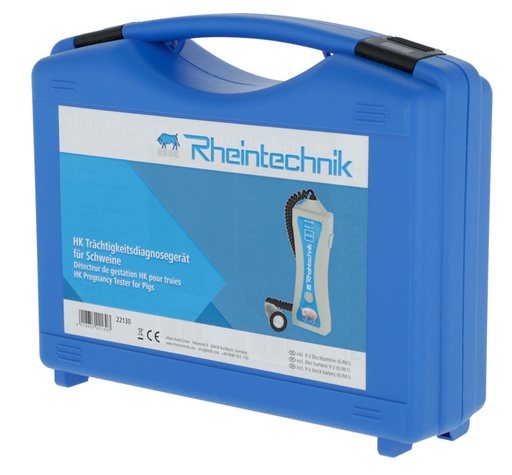

KERBL Pregnancy diagnosis device for pigs
If you want the breeding process in your barn to run smoothly and without unpleasant surprises (false pregnancy, fertility disorders, etc.), and to largely avoid reduced profitability due to non-pregnancy, using the HK pregnancy diagnostic device provides the necessary confidence.

With the pregnancy diagnostic device, you can identify pregnant sows 30 days after the last insemination with over 90% certainty.

The devices are characterised by:

• optional operation with battery or rechargeable battery
• acoustic and visual pregnancy indication

• switching on and off at the touch of a button

• automatic switch-off prevents unnecessary energy consumption

• the removable, robust clip provides a secure hold on the belt

• battery compartment with safety lock is shielded from the rest of the electronics

• safe storage thanks to the supplied case
• supplied without charger
()
415.01 € 415.01 EUR

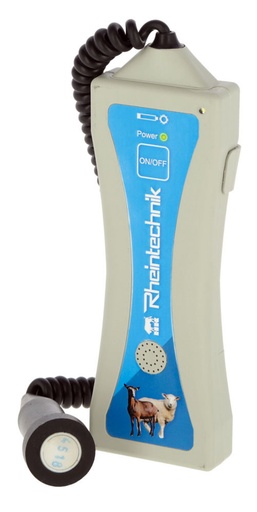

KERBL Pregnancy diagnosis device for sheep, goats, alpacas and Shetland ponies
If you want the breeding process in your barn to run smoothly and without unpleasant surprises (false pregnancy, fertility disorders, etc.), and to largely avoid reduced profitability due to non-pregnancy, using the HK pregnancy diagnostic device gives you the necessary peace of mind.

• Optional operation with battery or rechargeable battery
• On/off switching at the touch of a button
• With automatic shut-off
• The housing is specially protected against moisture ingress
• Acoustic and visual pregnancy indication
• Safe storage thanks to the supplied case
• Supplied without charger and 9 V rechargeable battery

With the pregnancy diagnostic device, you can quickly and reliably detect pregnant sheep or goats from 60 days after the last insemination with over 90% certainty.
()
423.94 € 423.94 EUR
