Painmates

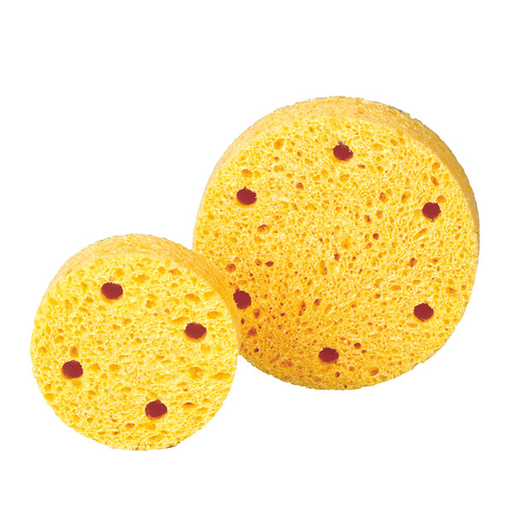

For plastic and metal electrodes used in electrical stimulation therapy. With a slit on the short side. 20 mm thick.

Suitable for suction cups, packed in a polybag.

For example for Bosch / Siemens / Nemectrodyn etc.

For the treatment of chronic and acute pain conditions, mobility impairments, as well as for rehabilitation, and for maintaining, building and training muscles and muscle groups.

- TENS programmes (6 pre-set, 2 freely selectable)
- EMS programmes (5 pre-set, 2 freely selectable)
- integrated application memory (stores up to 30 treatment data records)
- dual-channel device, biphasic asymmetrical rectangular current, DC-neutral

Technical data:

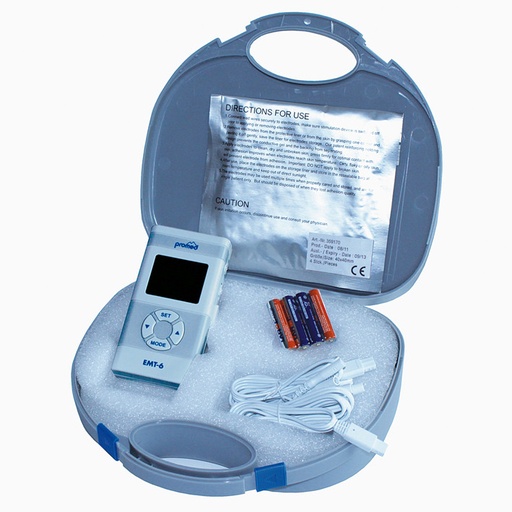

Device type: combined device for TENS & EMS
Channel: 2-channel, isolated between channels
Operating modes: continuous, burst, modulation
Output current: 0–100 mA (at 1,000 ohm load), 100 steps, 1 mA/step
Pulse frequency: 2 Hz – 125 Hz (adjustable)
Pulse width: 50 µs – 330 µs (adjustable)
Therapy duration: 1–60 minutes and continuous
Waveform: bi-phasic rectangular pulse
Power supply: 6.0 V, 4 x AAA batteries
Batteries: type LR41; 1.2 V
Device dimensions: 118 mm x 62 mm x 25 mm (L x W x H) without belt clip
Weight: 115 g (125 g with batteries)

Scope of delivery: EMT-6 device, 2 pairs of self-adhesive electrodes (40 x 40 mm), 2 electrode cables, practical storage case, 4 x batteries, instructions for use

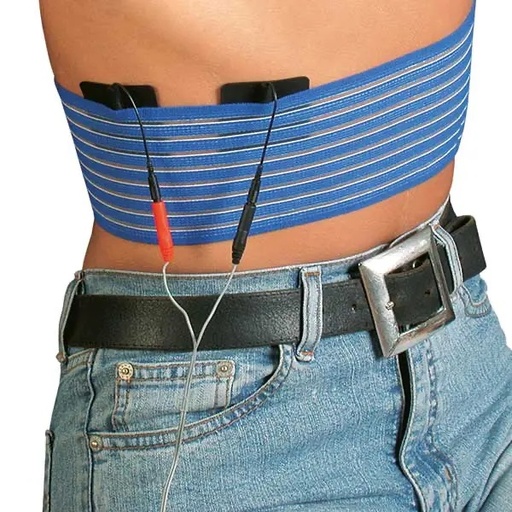

Hook-and-loop fastening strap for securing long-term electrodes, individually.

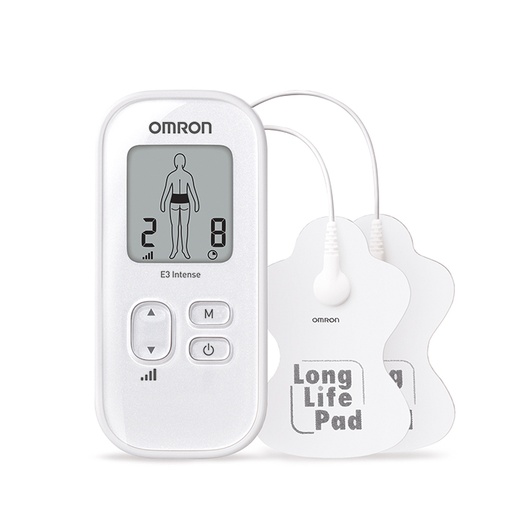

The sleek, easy-to-use E3 Intense pain therapy device from OMRON uses clinically tested TENS technology to relieve and reduce pain symptoms without medication. Gentle electrical impulses, comparable to the body’s natural bioelectricity, stimulate the body’s own pain-relief mechanisms. The triple-action TENS technology helps to block the transmission of pain signals, trigger the release of endorphins and improve blood circulation (as a result of increased muscle contraction and relaxation).

advanced pain relief with 9 different programmes specifically for shoulders, lower back, joints, arms/legs and soles of the feet
for 6 specific body areas
15 different intensity levels
the washable pads can be used up to 150 times
frequency generation: 1–238 Hz
dimensions: 5.2 cm (W) x 11.2 cm (H) x 2.5 cm (D)
weight: approx. 100 g (including batteries)
incl. storage pouch, instructions for use, batteries (2 x AAA 1.5 V), Long-Life pads, pad holder, belt clip and connection cable with safety plug
