Universal Trolleys

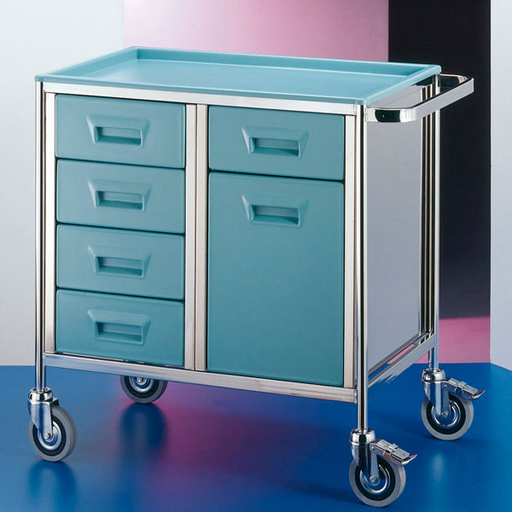

The Model 9066 treatment trolley is made of a sturdy stainless steel frame with 5 drawers and a hinged door. In addition, the trolley features a push handle and an ABS plastic tray. The universal trolley is supplied with 4 swivel castors Ø 125 mm, 2 of which are lockable.

Product data:

Width: 800 mm
Depth: 500 mm
Height: 870 mm
Weight: 44 kg

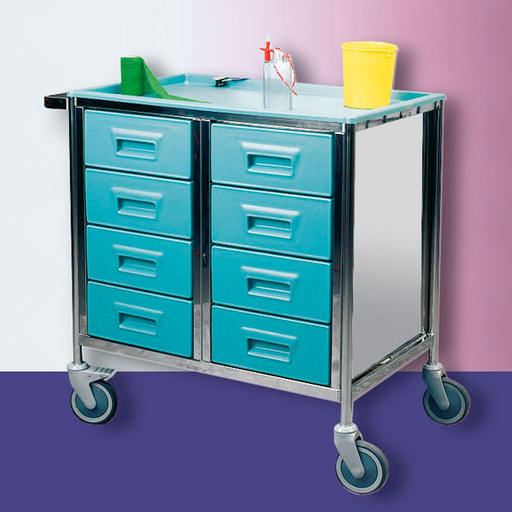

The treatment trolley model 9068 consists of a sturdy stainless steel frame with 8 drawers. The trolley also features a push handle and an ABS plastic tray. The universal trolley is supplied with 4 swivel castors Ø 125 mm, 2 of which are lockable.

Product data:

Width: 800 mm
Depth: 500 mm
Height: 870 mm
Weight: 44 kg

The practice universal trolley consists of a plastic-coated metal frame and, depending on the version, has 2 or 3 removable plastic trays. The trolley is supplied with 4 ball-bearing swivel castors, 80 mm Ø, 2 of which are lockable.

Product data:

Width: 800 mm
Depth: 500 mm
Height: 820 mm
Weight: 18/20 kg

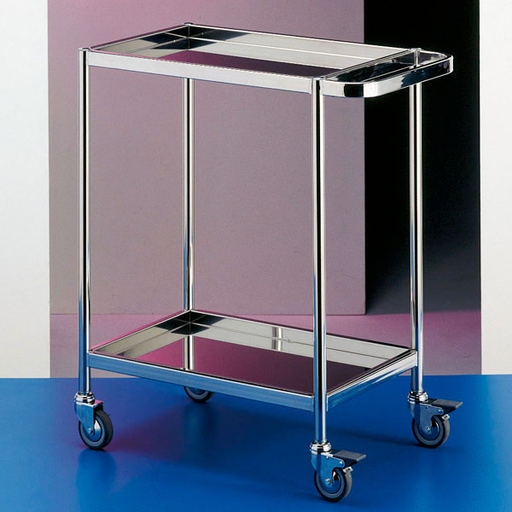

The universal trolley model 9056 consists of a stainless-steel frame and 2 removable stainless-steel trays. The trolley is supplied with 4 swivel castors, 2 of which are lockable.

Product data:

Width: 800 mm
Depth: 500 mm
Height: 870 mm
Weight: 19 kg
Max. load capacity: 50 kg

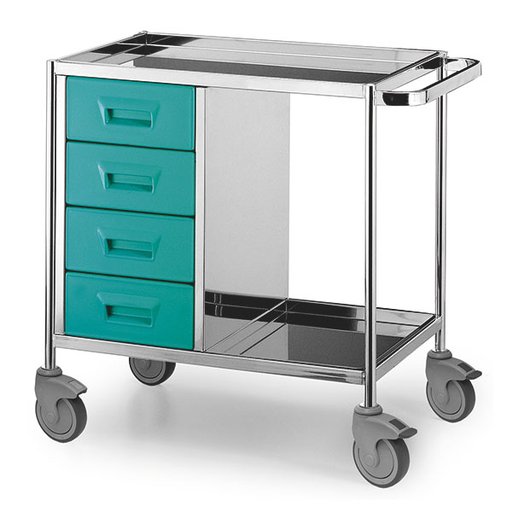

The practice universal trolley model 9062 features 4 plastic drawers and 2 stainless steel trays. The trolley is supplied with 4 castors, 2 of which are lockable.

Product data:

Width: 800 mm
Depth: 500 mm
Height: 870 mm
Weight: 33 kg
Max. load capacity: 50 kg

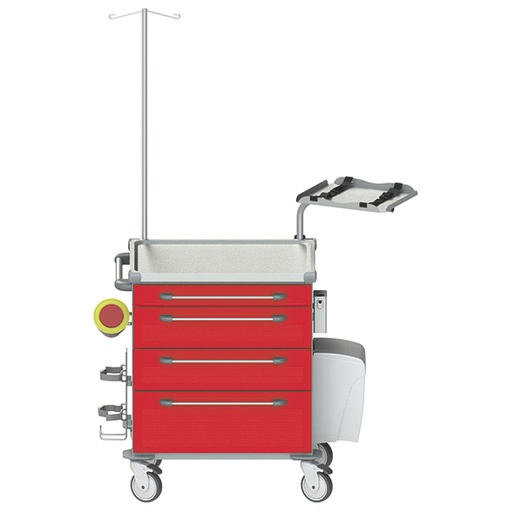

Technical data
Height: 890 mm
Width: 750 mm
Depth: 550 mm
Weight: 70 kg
Max. load capacity: 150 kg

• Vibration-damped steel frame with grey powder coating

• Stainless steel worktop with 12 mm rim and four rounded plastic safety elements (ABS) on the corners

• 4 drawers with replaceable baskets made of high-strength plastic for easy compartmentalisation using simple dividers

• The drawer is clad with a compact surface made of hardened plastic with rounded corners and edges

• Drawer front in signal red

• Drawers with rubber profile for a perfect dust seal

• Drawer runners equipped with telescopic ball-bearing extension and soft-close damping

• Drawer handles and push handle made of stainless steel with plastic clips

• Central locking for secure storage

• The lower part of the trolley is protected by four round spacer elements made of robust impact-resistant plastic (PE)

• High-quality plastic castors with guards - Ø = 125 mm, two castors with integrated brake

Accessories included with the emergency trolley: IV pole, holder for oxygen cylinder and side-mounted waste bin

Available as optional extras:

1. Resuscitation board with holder

2. Holder for sharps container

3. Ampoule opener with holder

4. Stainless steel device holder, swivel-mounted with tensioning straps

For securing rods to 20 x 20 mm square tube or round tube up to Ø 22 mm.

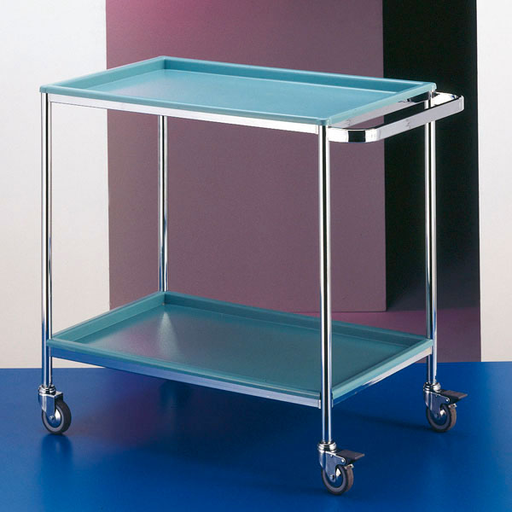

The universal trolley model 9040 consists of a chrome-plated metal frame with push handle. In addition, the trolley features 2 removable ABS plastic trays. The universal trolley is supplied with 4 castors Ø 80 mm, 2 of which are lockable.

Product data:

Width: 600 mm
Depth: 400 mm
Height: 820 mm
Weight: 12 kg

The universal trolley consists of a stainless-steel frame with push handle. The trolley is supplied with 2 removable stainless-steel shelves and 4 castors, 80 mm Ø, 2 of which are lockable.

Product data:

Width: 600 mm
Depth: 400 mm
Height: 820 mm
Weight: 13 kg

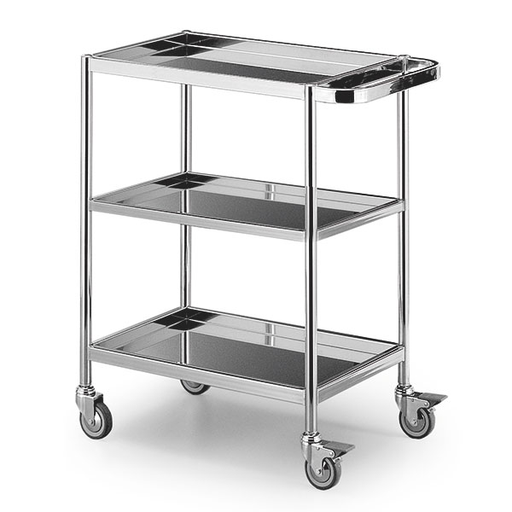

The universal trolley consists of a stainless steel frame with push handle. The trolley is supplied with 3 removable stainless steel shelves and 4 castors, 80 mm Ø, 2 of which are lockable.

Product data:

Width: 600 mm
Depth: 400 mm
Height: 820 mm
Weight: 13 kg

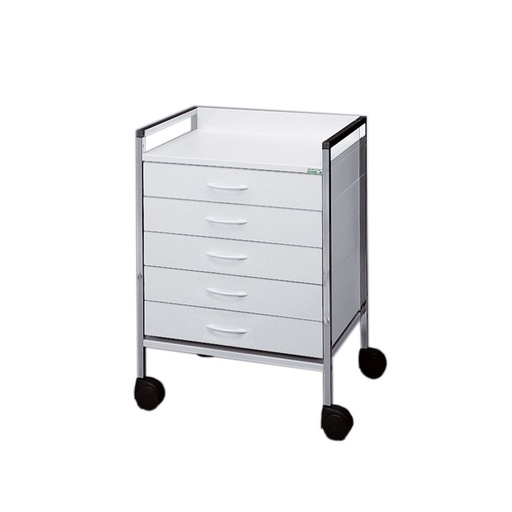

High-gloss chrome-plated square steel tube frame with patented grid system
Very high-quality, five-layer panels, coated on both sides with melamine resin; abrasion-resistant, lightfast and resistant to common chemicals
Smooth-running ball-bearing telescopic drawer runners with latching mechanism

Smooth-running castors Ø 75 mm
Total load capacity up to approx. 50 kg
Panels up to approx. 20 kg
Drawer up to approx. 10 kg
Dimensions: 600 x 451 x 833 mm (W x D x H)

The highlights of the Grande F at a glance:

- Good value for money
- Affordable and environmentally friendly heating with wood
- Large viewing window
- Baking compartment with integrated oven thermometer
- Flat hob top with removable ring
- Rear flue pipe connection
- Cooking and baking without electricity or gas
- Timeless design
- Solid, robust metal construction
- Elegant ceramic cladding
- Cast grey body, heat-resistant painted finish
- Compliant with BImSchV Stage II (no filter or other retrofits required)
- Large firebox / suitable for large logs (up to 45 cm)
- Large door for easy loading of fuel
- Reliable, smooth-running door closing mechanism
- Elaborately sealed construction
- Easy operation
- High heat output with good efficiency
- Airwash system (keeps the viewing window clean for a long time)
- Low flue gas temperature
- Log storage compartment
- Removable ash pan
- No additional fine dust filter required
- High-quality workmanship
- High output
- Suitable for continuous burning

Technical data:

Nominal heat output: kW 12
Efficiency: % 76.91
CO emissions at 13% O2: % 0.0988
Particulate emissions at 13% O2: mg/Nm3 26.40
NOx at 13% O2: mg/Nm3 100.04
OGC at 13% O2: mg/Nm3 67.55
Flue gas value triple: g/s-°C-Pa 9.93-230-12.8
Fuel consumption: kg/h 3.68

Appliance dimensions
Width: mm 614
Depth: mm 597
Height: mm 1040

Oven dimensions
Width: mm 394
Depth: mm 395
Height: mm 256

Combustion chamber dimensions
Width: mm 432
Depth: mm 350
Height: mm 365

Flue pipe connection: mm 150 only possible at the rear (top edge from floor at approx. 93 cm)
Colour: cast grey
Cladding: ceramic
Weight: kg 182
Weight with packaging: kg 202

Packaging dimensions
Width: mm 730
Depth: mm 730
Height: mm 1200

Safety distance to combustible components*:
Minimum distance, in mm
Side=400
Rear=400
Front=1000

* These distances only need to be observed in a combustible situation, e.g. if installed in front of a wooden wall!
