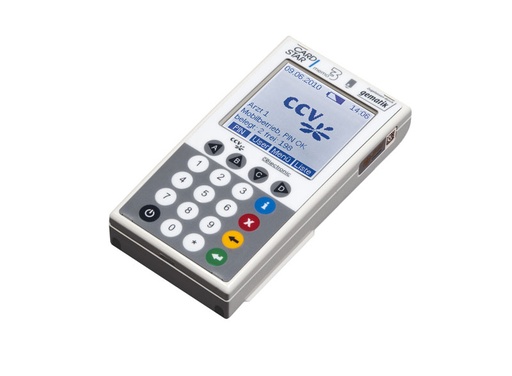

CCV Table Stand for CARD STAR /memo3 Mobile Terminal

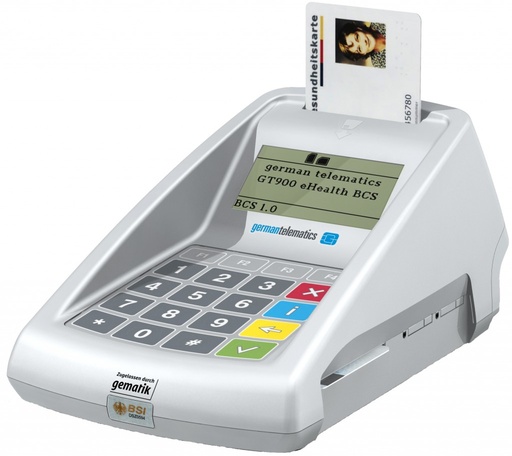

Only approved eHealth terminal manufacturer with disinfectable membrane keypad

- very large, fully graphical display with backlighting for optimal readability
- one-handed eGK/KVK slot
- ergonomic viewing angle to the display to prevent reflections from ceiling lighting in the display window
- one-handed HBA slot, plus two SMC card slots
- one of the most compact eHealth terminals on the market, available in three design variants (white, black or silver)
- Easy-Clean: no gaps or ledges for dust or crumbs on the device keypad
- elegant privacy shield and security for PIN entry
- USB, network and serial interface on-board
- disinfectable membrane keypad to prevent transmission of pathogens via skin contact
- meets all hygiene requirements of the Occupational Health and Safety Act

Technical data

CPU / processor
32-bit high performance RISC / 200 MIPS

Operating system
GT Linux 2.6 X

Memory
32 MB SDRAM 8 MB Flash

Interfaces
USB, LAN, serial; 1 x Full Speed Host, USB 2.0 compatible; 1 x Full Speed Client, USB 2.0 compatible; RJ45 10/100 Mbit/s autonegotiation, Auto MDI/MDIX; RS 232 (9-pin)

Chip cards
eGK, HBA, SMC, SM-KT, KVK, ISO 7816 Class A, B and C cards (5V, 3V, 1.8V)
Support for protocols S=8, S=9, S=10, T=1

Contact units
1 chip-card contact unit (ISO 7816 ID-1) with lowering, card-protecting contacts (eGK and KVK) >200,000 insertion cycles (ID-1 contact unit)
1 chip-card contact unit ISO 7816 ID-1 (HBA)
2 contact units (ISO 7816 ID-000) for SMC-A, SMC-B and SM-KT, automatic card detection with short-circuit and overheating protection

User interface
Large graphical display with backlighting for user guidance
- high-contrast graphics display (monochrome, white backlit)
- 128 x 64 pixel pictograms for status display and for the status message “secure state”
- 20-key input panel for secure PIN entry and navigation
- shielded PIN entry field
- easy-care materials meet high hygiene and clinical requirements
- only eHealth card terminal on the market with a membrane keypad
- easy to disinfect as there are no gaps
- meets all hygiene requirements

Certifications and approvals
Common Criteria EAL3+ certification and confirmation according to SigG by the Federal Office for Information Security, SICCT (in preparation), eHealth-BCS certification by gematik, CE, TÜV IT, MKT+, chip cards (EMV Level 1/ISO7816)

Security
BSI seal for quick visual inspection; drill-through protection in the housing; cryptographically secure firmware update possible for level SICCT (eHealth)

Dimensions and weight
190 x 110 x 90 mm, 670 g without power supply

Colour
White, black or silver

Power supply
Plug-in power supply: input: 100–240 VAC / 50–60 Hz / 5 VDC / 1 A

Card reader
2 chip-card readers for eGK, KVK and HBA; 2 SMC slots

Signature
Prepared for comfort and batch signature

Environmental conditions
Operation: 0° to +50°C; storage: -20° to +60°C; relative humidity: 5% to 95% (non-condensing)

Operating systems
Windows® 98SE, ME, NT, 2000, Server 2003, XP, Vista, MacOSX (in preparation), Linux, Solaris (in preparation)

Compatibility
KVK terminal; MKT/MKT+ terminal; eHealth-BCS terminal; SICCT terminal on the connector (after firmware update)

Country of manufacture
Federal Republic of Germany

Environmental guidelines
RoHS, WEEE

Only mobile chip card terminal with a disinfectable touchscreen

easy to use / disinfectable / multifunctional

- simultaneous reading of eGK / KVK and HBA possible
- inserted cards are read automatically
- user-friendly 4.3” touch display
- specification-compliant display of all a patient’s emergency data possible
- long standby times (up to 300 h)
- replaceable battery
- mobile signature planned for expansion stage 2
- mobile PVS possible
- weight: light at 179 g
- easy synchronisation with your computer
- up to 32 GB data storage with additional Micro SD card
- many useful PVS apps available on request
- connected to all common practice management systems
- intended for the basic rollout with gematik and BSI certification

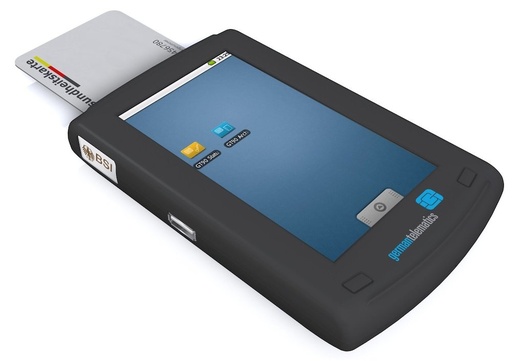

Technical data of the GT90 mobile card terminal

Dimensions / weight
8 cm x 13 cm x 1.6 cm / approx. 179 g (incl. battery)

CPU / processor
ARM / 32-bit high performance RISC / 293 MIPS @ 266 MHz

Operating system
Android 2.1 / Linux 2.6.x

Memory
RAM: 64 MB SDRAM
FLASH: 256 MB Flash
External FLASH memory: 1 x MicroSD HC up to 32 GB (microSD card reader - hinge type)

USB interfaces
1 x Full Speed Host / USB 2.0 compatible / Type A
1 x Full Speed Client / USB 2.0 compatible / Type MicroB

Smart cards
Supported types:
KVK, eGK, HBA, SMC, SM-KT,
ISO 7816 Class A, B and C cards (5 V, 3 V, 1.8 V)
- support for protocols S=8, S=9, S=10, T=0,
T=1
Contact units:
1 x smart card contact unit in accordance with ISO 7816 ID-1 for eGK or KVK
1 x smart card contact unit in accordance with ISO 7816 ID-1 for HBA
1 x contact unit in accordance with ISO 7816 ID-000 for SMC-A or SMC-B
> 100,000 insertion cycles for ID-1 contact units, especially eGK/KVK
- automatic card detection with short-circuit and
overheat protection

Touch-enabled display
4.3” TFT display (resistive touchscreen)
- resolution: 480xRGBx272
- energy-saving LED backlight
- finger operation possible
- stylus available as optional accessory

Housing
compressed, 2-part, inseparable ABS
plastic housing
- disinfectable
- colours: white or black
- battery compartment cover with clip mechanism
- versions with high-quality high-gloss finish possible

Switches
1 x ON/OFF switch with sleep function
2 x control buttons

Optical & acoustic signalling interfaces
1 x multi-colour LED (e.g. red/green) to indicate operating and charging status
1 x built-in speaker + microphone

Power supply
replaceable lithium polymer battery
- charging in the device via Mini USB port

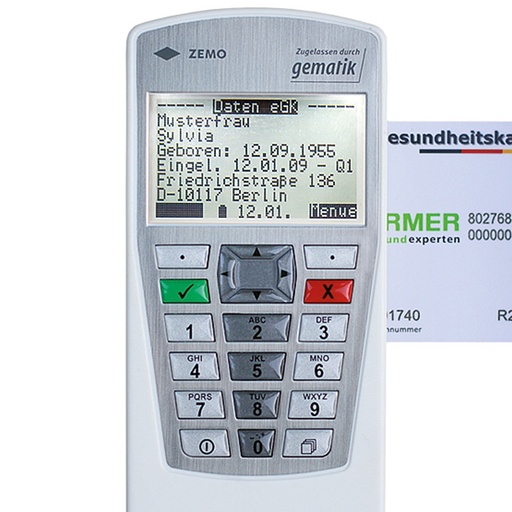

The mobile smart card reader is particularly suitable for emergency services and home visits. Modern, simple and intuitive operation with separate cursor and numeric keys. The designer keypad has a precise pressure point and is comfortable to use. On the large graphic display you can see the most important patient information immediately (as used for floppy-disk billing). The battery status is also displayed. The backlighting makes the display very easy to read. Thanks to its slim design with rounded edges, the VML-GK2 is comfortable to hold and easy to operate with one hand. With the integrated alphabetical name search function or chronological sorting, the required patients can be found immediately. The device is particularly energy-efficient (up to 30,000 insertion cycles with one set of batteries). The VML-GK2 reads all health insurance cards, including the electronic health card. As it has 3 card reader slots and a graphic display, it is prepared for migration to the 2nd stage of the electronic health card. Among other devices, Epson dot-matrix printers can be connected to the VML-GK2 either via serial connection or via the serial-to-parallel adapter (not included in the scope of delivery). The VML-GK2 can also be operated as a stationary reader without modification. In this case, power is supplied via the PC (USB connection cable).

Colour: white/silver
Technical data: 2 large reading units for KVK, eGK (G1 and G2 cards) and HBA
Dimensions: 15.5 x 6.2 x 2.5 cm
Weight: 182 g (incl. batteries)
Display: 5 x 3 cm graphic display with backlighting
Memory: 200 eGK or KVK
Batteries: 2 x 1.5 V Mignon (AA)
Connection: USB, optional RS232 cable (not included in the scope of delivery)
Readers: 2 full-size + 2 SIM

Scope of delivery: VML-GK2 (1+) card reader, manual, USB connection cable, installation CD, 2 Mignon batteries

PLEASE NOTE: not suitable for telematics
