Ceiling Lamps

Product data:

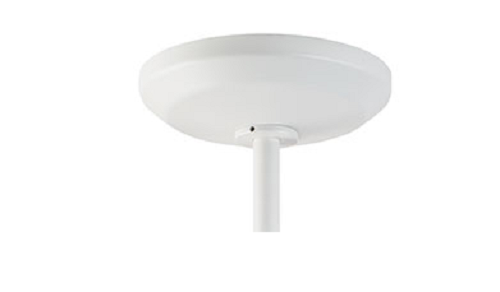

Canopy for ceiling light (cover plate).

Product data:

• Examination light with central reflector for long-term economical use in hospitals and medical practices

• The new LED illuminant, in combination with a specially developed reflector, provides focused illumination

• Maintenance-free thanks to an increased illuminant service life of up to 30,000 h

• Very low heat generation thanks to the double-walled light head housing and integrated ventilation slots on the light head Colour: white

Light source: LED central reflector 18 V / 12 W

Light output: approx. 55,000 lux (at 0.5 m distance)

approx. 12,750 lux (at 1.0 m distance)

Light field Ø: approx. 100 mm (at 0.5 m distance)

approx. 200 mm (at 1.0 m distance)

Colour temperature: approx. 4,300 Kelvin ± 200 For ceiling height 2.70 m

The ceiling anchoring ring TK 270 from DR.MACH is used for ceiling mounting of the Mach LED 130 F examination light. Mounting height up to 3 m.

Please state the exact mounting height (finished floor to underside of solid ceiling) when placing your order and, if available, also the room height (finished floor to underside of suspended ceiling).

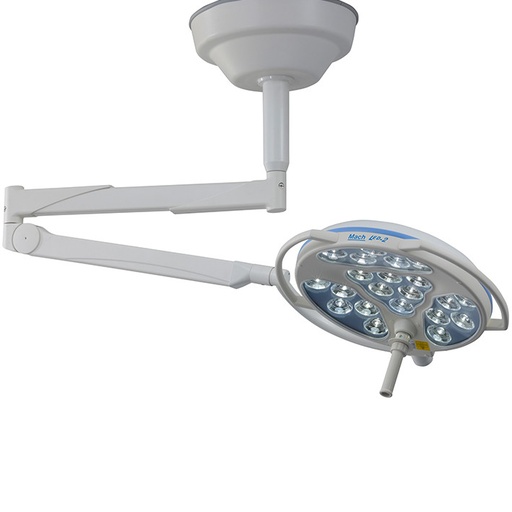

Mach LED 2sc (Single Colour) surgical light, ceiling-mounted model, with central spring arm, for mounting height under 2.80 m, without power supply unit.
Please state the exact mounting height (finished floor to underside of solid ceiling) when placing your order and, if available, the room height (finished floor to underside of suspended ceiling). The ceiling anchoring ring TK 270 (MAC 1500000270) is not included with the light and must be ordered separately. Incl. light field merging, 21 LEDs, colour rendering Ra = 95, light field diameter 17–28 cm, with sterilisable handle sleeve, illuminance: 115,000 lux / distance 1 m. Please order the power supply unit separately.

Mach LED 130 examination light, ceiling model, with SWING ceiling arm, for mounting heights up to 3 m, incl. power supply unit. On/off switch and brightness control on the luminaire head. Please state the exact mounting height (finished floor to underside of solid ceiling) when placing your order and, if applicable, the room height (finished floor to underside of suspended ceiling).

Ceiling anchoring ring TK 270 (1500000270) is not included with the light and must be ordered separately.

Product data:

Colour rendering Ra = 95
Light field diameter 17 cm, fixed focus with 19 LEDs
Illuminance: 60,000 lux / distance 1 m

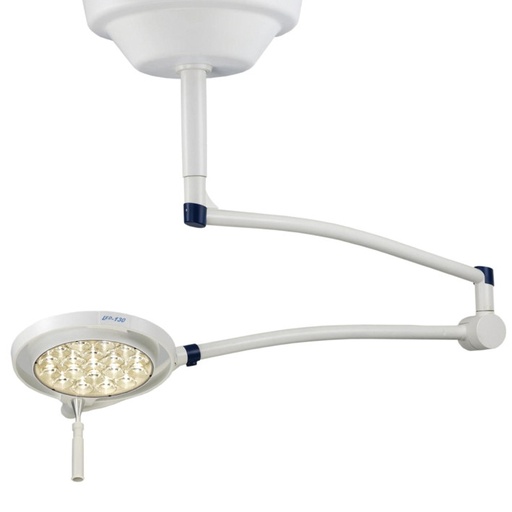

Mach LED 130 F (focusable) examination light, ceiling-mounted model with SWING ceiling arm, for mounting heights up to 3 m, incl. power supply unit. On/off switch and brightness control on the luminaire body. When placing your order, please state the exact mounting height (finished floor to underside of solid ceiling) and, if applicable, the room height (finished floor to underside of suspended ceiling).

Ceiling anchoring ring TK 270 (1500000270) is not included with the light and must be ordered separately.

Product data:

Colour rendering Ra=95
Light field diameter 14–25 cm, 19 LEDs,
Illuminance: 70,000 lux / distance 1 m

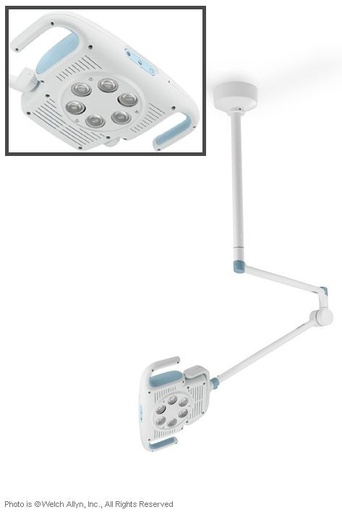

GS 900 large LED examination light for ceiling mounting
Light for almost any application in hospitals, outpatient clinics and doctors’ surgeries. - 6 white LEDs with 5,500 Kelvin provide excellent white light, optimally illuminating the area to be examined, displaying tissue in true colour and ensuring even illumination - no dark spots, no “hot spots” and no heat generation - better for the environment: low operating costs, as no lamps need to be replaced and less energy is consumed - infection control: touch-free on/off switching with dimming significantly reduces the risk of infection through cross-contamination and makes cleaning easier Technical data: - Light intensity at working distance: 80,000 lux at 61 cm, 65,000 lux at 100 cm - Spot size at working distance: 28 cm at 61 cm, 23 cm at 100 cm - Ceiling reach: 175 cm - Height adjustment of light head (ceiling): 95 cm - Light head (H x W x D): 34.9 x 45.8 x 10.2 cm - Power supply: input: 100-240 V ~ 50-60 Hz, max. 1.00 A - 3-core mains cable 2.5 m long - Operating life: 50,000 hours.
