Cabinets

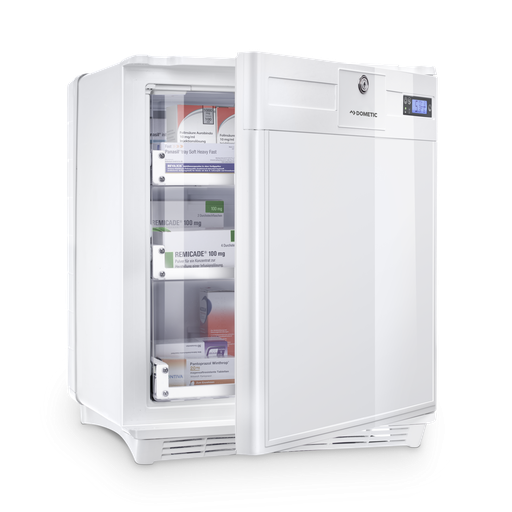

If medicines need to be stored safely even at high ambient temperatures, a refrigerator with a high-performance compressor system is recommended. The appliances in the HC series are equipped with an integrated, illuminated temperature display. High-quality metal drawers on rollers, which can be pulled out to 3/4 of their depth, ensure clear and organised storage. Quality features: integrated thermometer with min./max. value memory, illuminated temperature display, high-quality metal drawers on rollers with 3/4 extension and plastic front, LED interior lighting, door lock, suitable for installation (not possible with sliding hinge). HC 302/HC 502 optionally available in DIN 58345-compliant versions (HC 302D/HC 502D).

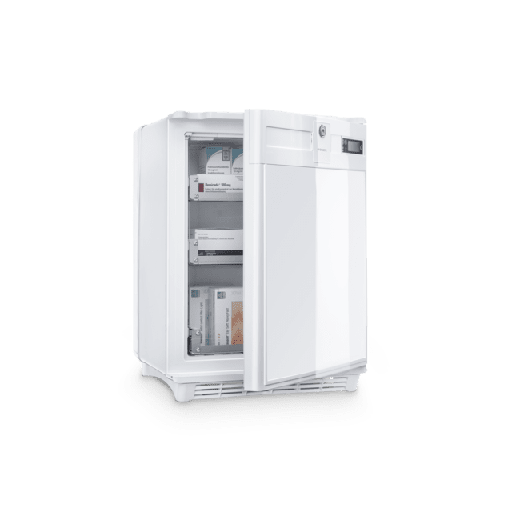

Thanks to its integrated fan, the temperature of the Dometic HC 302FS remains reliably constant. This makes it the perfect solution for hospitals and healthcare centres that store heat-sensitive medicines. The contents are cooled to a temperature between +2 °C and +8 °C. If the door remains open for longer than 20 seconds, an audible warning signal sounds. The HC 302FS is equipped with a door lock for secure storage. The drawers with flexible dividers offer a volume of up to 29 l. The pull-out drawers offer additional convenience.

Technical data:

SKU number 9600049654
Model HC302FS
Model on rating plate HC302FS
Scope of delivery 1 fridge
Cooling technology Compressor

Product depth 450 mm
Product height 580 mm
Product width 422 mm
Net weight 20 kg

Input voltage (AC) 230 V
Rated input power (AC) 70 W
Input frequency 50 Hz

Refrigerant, type R600a
- Contains fluorinated greenhouse gases
Refrigerant quantity 38 g
Noise emission (EN60704-1 & 60704-2-14) 45.00 dB(A)

Colour White
Thermostat control Electronic thermostat
Hinge type Right-hand door hinge
Interior light Yes, LED
Certificates CB, CE

EAN-13 5999024869623
Package depth 504 mm
Package height 640 mm
Package width 475 mm
Package weight 22 kg

- The professional solution for safe storage of vaccines, insulin and other temperature-sensitive medicines at a temperature between 2°C and 8°C
- Constant temperature level thanks to the integrated fan; manual defrosting is almost no longer necessary, as the fan enables optimal air circulation at the cooling fins
- Powerful and energy-efficient compressor cooling, even at high ambient temperatures
- 3 high-quality metal drawers with roller bearings and ¾ extension
- Fully integrated digital thermometer with value memory (min/max)
- Door alarm: acoustic signal if the door remains open for more than 20 seconds
- Door lock for secure storage
- LED interior lighting
- Door handle
- High drawer fronts protect against heat ingress when the door is opened
- Door hinge on the right (NOT reversible)
- Freestanding unit
- Suitable for integration; built-in or under-counter installation possible. (However, as the display is integrated into the door, a furniture door with a sliding hinge cannot be fitted)

Data:
Gross capacity: 49 litres
Weight: 22 kg
Dimensions (H x W x D): 592 x 486 x 494 mm
Connected load: 65 watts
Energy consumption: 0.44 kWh/24h
Housing colour: White

The perfect solution for hospitals and healthcare centres that need to refrigerate temperature-sensitive medicines at a temperature between 2 °C and 8 °C. Integrated ventilation for a reliably constant temperature and an alarm signal if the door remains open for longer than 20 seconds.

Medicines, vaccines and similar items can be safely stored in the silent absorption refrigerators of the DS series. The interior maintains a constant, even temperature, which is monitored by an external thermometer. Practical drawers with a high, transparent front ensure comfortable handling and minimal cold loss when opened. Quality features: external thermometer with min./max. value memory, plastic drawers with 1/2 extension and high, transparent front, LED interior light, door lock, reversible door hinge, suitable for installation (not possible with sliding hinges)

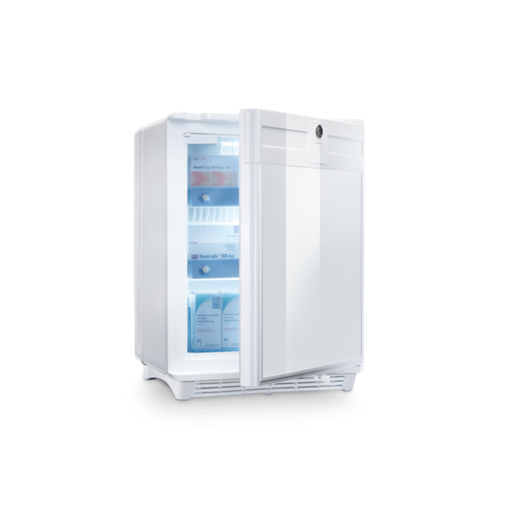

This 27 l miniCool refrigerator is ideal for storing temperature-sensitive medicines.

- Keeps temperature-sensitive medicines between +2 °C and +8 °C thanks to silent absorption cooling.

- An external thermometer shows the cooling performance inside. Integrated ventilation for a reliably constant temperature

- An audible warning signal sounds if the door remains open for longer than 20 seconds

- Usable capacity 27 l

- The door has a lock for secure storage

- Drawers with flexible compartments for organised storage

With reliable constant temperature display supported by integrated ventilation, the Dometic DS 301H is the perfect solution for hospitals and healthcare centres that need to store temperature-sensitive medicines. The contents are cooled to a temperature between 2 °C and 8 °C. An audible warning signal sounds if the door remains open for longer than 20 seconds. The DS 301H is equipped with a door lock for secure storage. The drawers with flexible dividers ensure neat storage of medicines.

Technical data:

SKU number 9600027080
Model DS301HFS
Model on type plate DS301H
Scope of delivery 1 fridge
Cooling technology Absorber

Product depth 393 mm
Product height 580 mm
Product width 422 mm
Net weight 15 kg

Input voltage (AC) 230 V
Rated input power (AC) 65 W
Input frequency 50/60 Hz

R717
Refrigerant quantity 101 g
Noise emission (EN60704-1 & 60704-2-14) 35.00 dB(A)
Noise Class EU20192016 B
Climate class (EN62552) SN

Colour White
Thermostat control Electronic thermostat
Hinge type Right-hand door hinge
Interior light Yes, LED
Certificates CB, CE

EAN-13 5999024867582
Package depth 436 mm
Package height 630 mm
Package width 465 mm
Package weight 16 kg

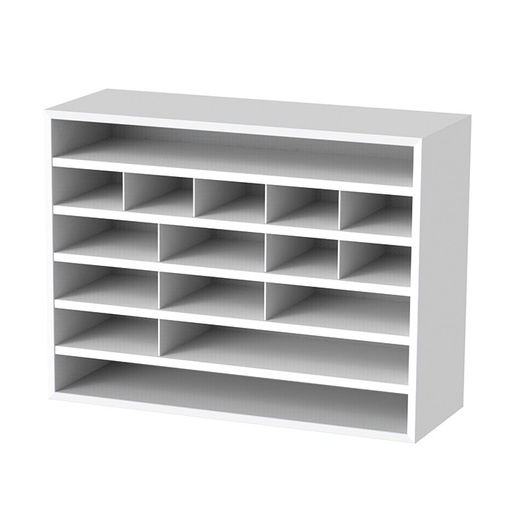

The COMPACT organisational cabinet from HAEBERLE is white and is ideal for storing forms. The cabinet features various compartment dividers and is supplied including wall mounting rails and installation materials. The housing is fully plastic-laminated.

Product data:

Dimensions: W x D x H: 600 x 220 x 450 mm
Colour: white

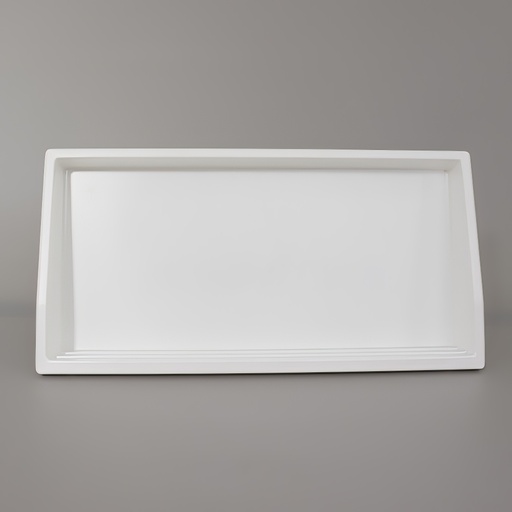

Console (L 375 mm x D 195 mm x H 55 mm) for the Lockweiler medication cabinet.

Device for KS for the Lockweiler medicine cabinet.

Mounting rail for console (L 375 mm x D 195 mm x H 55 mm) for the Lockweiler medication cabinet.

Opiate compartment for the Lockweiler medicine cabinet.

Pull-out shelf for the Lockweiler medicine cabinet.

Shelf for the Lockweiler medicine cabinet.

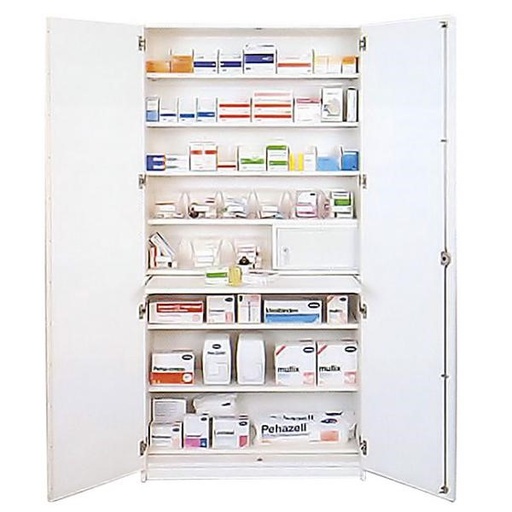

The basic model from LOCKWEILER is ideal for equipping all ward rooms in nursing homes and hospitals, as well as doctors’ surgeries. The basic equipment consists of 8 adjustable flat shelves (wood) with a depth of 300 mm, plus a lockable valuables compartment made of wood. A sturdy pull-out worktop across the full cabinet width makes it easier to sort medicines in and out. The cabinet is fitted with a safety rotary cylinder lock.

Product data:

Dimensions: H 205 x W x 100 x D x 50 cm

Optional accessories:

Refrigerator DS 301H - Art. No.: 19944-01
Mounting device KS - Art. No.: 19954-01
Shelf - Art. No.: 19955-01
Valuables compartment - Art. No.: 19956-01
Opiates compartment - Art. No.: 19957-01
Pull-out shelf - Art. No.: 19959-01
Console - Art. No.: 19960-01
Mounting rail for console - Art. No.: 19961-01

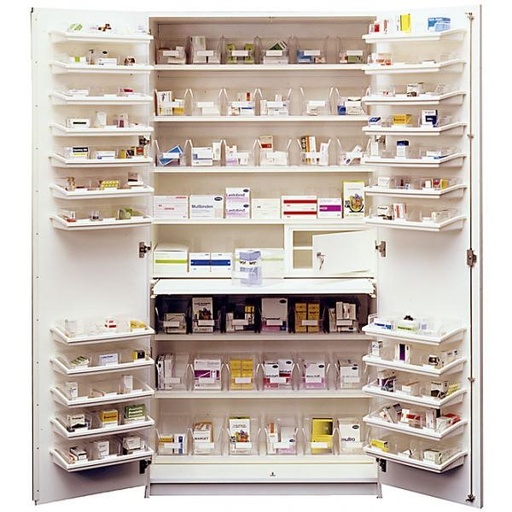

Medicine cabinets with full-door console fitting, lockable.

Basic equipment:

- 8 shelves, 250 mm deep
- 1 pull-out shelf
- wooden valuables compartment
- 24 plastic consoles
- 72 ward boxes, size 5, transparent

Product data:

Dimensions: H 205 x W 100 x D 50 cm

Optional accessories:

Refrigerator DS 301H - Art. No.: 19944-01
Mounting device KS - Art. No.: 19954-01
Shelf - Art. No.: 19955-01
Valuables compartment - Art. No.: 19956-01
Opiates compartment - Art. No.: 19957-01
Pull-out shelf - Art. No.: 19959-01
Console - Art. No.: 19960-01
Console mounting strip - Art. No.: 19961-01

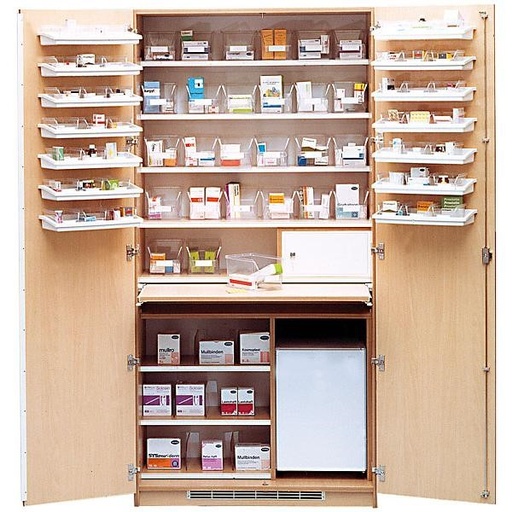

Medicine cabinets with half-height door configuration on brackets, lockable.

Basic equipment:

Upper section:
- 5 shelves, 250 mm deep
- Pull-out shelf
- 14 plastic brackets
- 42 ward boxes size 5, transparent

Lower section:
- Lockable valuables compartment made of wood (above the refrigerator)
- Built-in medicine refrigerator DS 301 H – 28 litres
- Next to it 3 shelves, 350 mm deep

Product data:

Dimensions: H 205 x W 100 x D 57 cm


Optional accessories:

Refrigerator DS 301H - Art. no.: 19944-01
Device KS - Art. no.: 19954-01
Shelf - Art. no.: 19955-01
Valuables compartment - Art. no.: 19956-01
Opiates compartment - Art. no.: 19957-01
Pull-out shelf - Art. no.: 19959-01
Bracket - Art. no.: 19960-01
Mounting strip for bracket - Art. no.: 19961-01

Valuables compartment for the Lockweiler medicine cabinet.

The SERVOCOMFORT stainless-steel medicine cabinet is ideal for outpatient clinics and operating theatres, as it is made from corrosion-resistant stainless steel.
It features lockable glass doors and 3 adjustable shelves.

Optionally, the medicine cabinet is also available with an integrated lockable compartment for medicines.

Dimensions: 1890 x 900 x 400 mm (H x W x D)
Weight: 70 kg
Lockable compartment size: 380 x 380 x 190 mm (H x W x L)

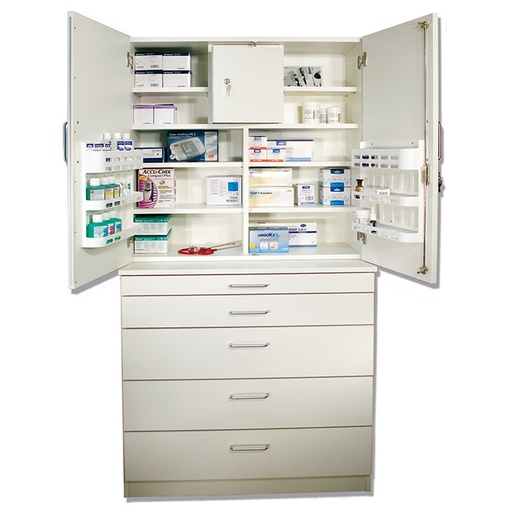

Ideal for dust-free storage of medicines, dressing materials and sterile supplies. Lockable doors prevent unauthorised access. The wide-angle hinges allow the doors to be opened fully. The upper cabinet contains a separately lockable valuables compartment as well as 6 door trays for smaller products. The shelves can be adjusted in height as required. The drawers in the lower cabinet are particularly suitable for dust-free storage of instruments. The cabinet has 5 drawers: 1 x 6 cm, 1 x 11 cm and 3 x 18 cm clear internal height.

Product data:

Surface: white plastic
Dimensions (H x W x D): 180 x 90 x 48 cm.

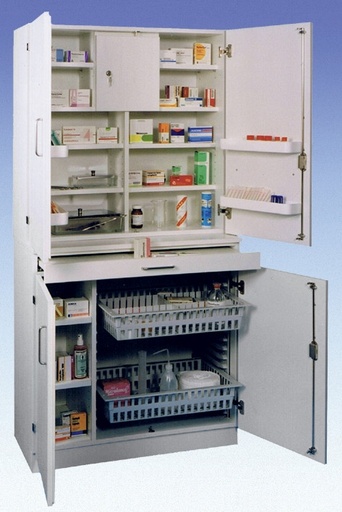

Medicines and dressing supplies cabinet with white wooden doors (Strecke)
Surface: white plastic, wooden doors with wide-angle hinges, upper and lower sections with lockable wooden doors and an additionally lockable valuables compartment, pull-out tray, ISO modular system, 2 baskets as standard, 2 wooden shelves.

Product data:

Dimensions (H x W x D): 180 x 90 x 48 cm
Weight: approx. 80 kg
Colour: white

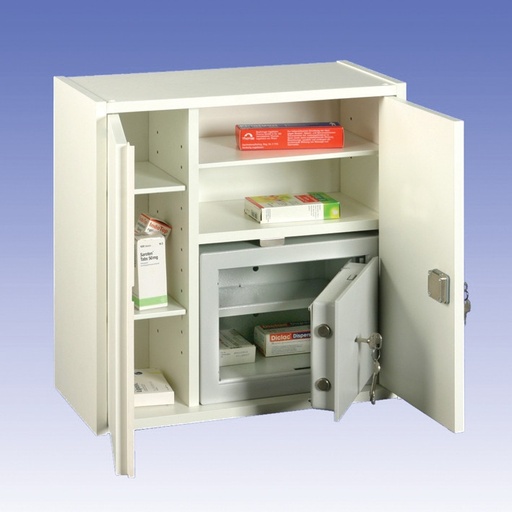

This medicine cabinet from WAGNER is ideal for professional use, as it offers secure, access-controlled storage of medicines and narcotics in Security Group B. The medicine cabinet features a double-bit key lock and is supplied including a safe with 1 shelf. The door and body of the cabinet are double-walled.

Product data:

Internal dimensions of the safe (H x W x D): 16.4 x 23 x 11 cm
Dimensions of the cabinet (H x W x D): 50 x 50 x 23 cm
Colour: white or light grey
