Intubation

Intubation accessories - the crucial equipment for life-saving measures in your practice, clinic or care facility. Intubation enables safe airway protection in emergency situations and during operations. In our online shop meddax24.de you will find a large selection of endotracheal tubes, fixations and laryngoscopes. Products made of various materials such as silicone or PVC are available to meet individual requirements. Thanks to our efficient storage system, you benefit from very short delivery times and an excellent price-performance ratio. Whether for emergency medicine or use in anesthesia - our intubation solutions are designed to the highest quality and offer reliable protection.

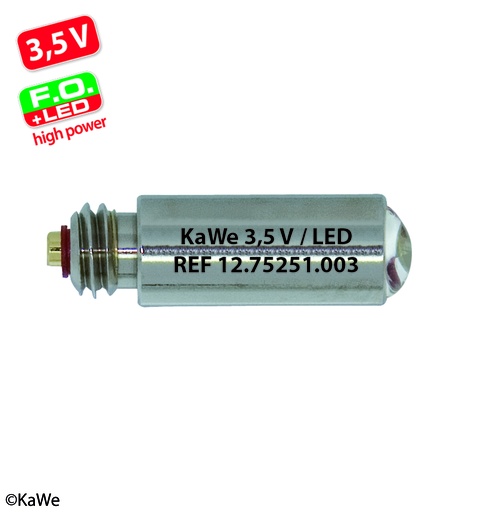

KAWE LED Lamp for F.O. battery handles
for F.O. standard laryngoscope battery handles
Pack size = 1 pc.
()
36.99 € 36.99 EUR

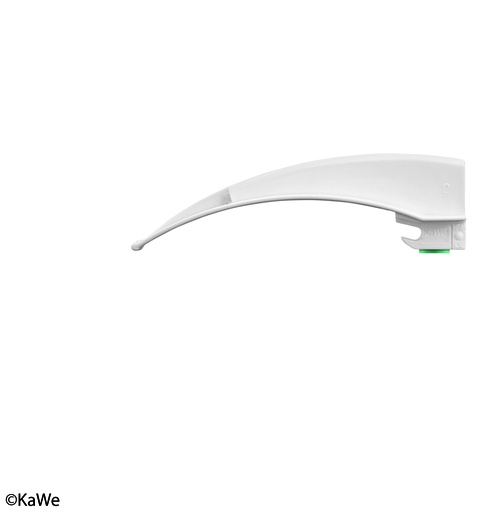

KAWE Macintosh Disposable blade plastic non-sterile
- for F.O. handles
- available in Macintosh and Miller versions
- acrylic light guide ensures optimum light transmission
- illuminance > 8,700 lux / 3.5 V
- light guide Ø 3.8 mm
- no transmission of infection
- environmentally friendly / recyclable plastic (polyamide)
- maintenance-free
- pack size = 20 pcs.
()
From 80.27 € 0.0 EUR

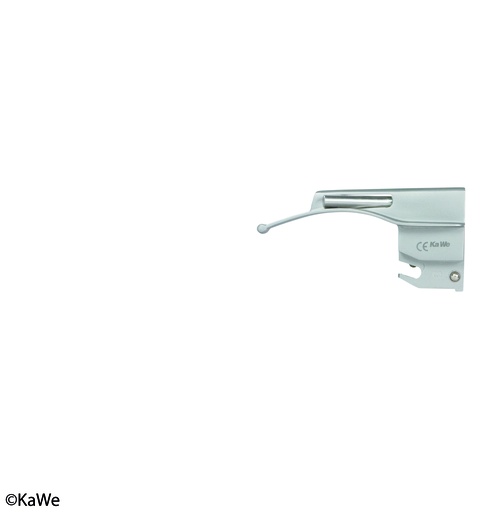

KAWE Macintosh Standard F.O.
- Spatula with replaceable fibre optic
- Matte stainless steel – prevents back reflection
- Replaceable light guides
- Easy to clean
- Environmentally friendly and economical at the same time
- Fibre optic Ø 4 mm, min. 5,500 individual fibres
- Illuminance > 4,200 lux / at 2.5 V > 12,500 lux / at 3.5 V (measured at a distance of 35 mm from the light outlet)
- Autoclavable up to 134°C – for approx. 4,000 cycles
- Complies with DIN ISO 7376
()
From 99.82 € 0.0 EUR

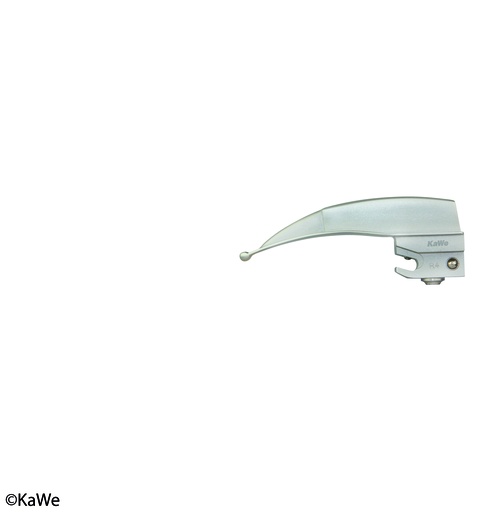

KAWE Megalight Macintosh
- Macintosh blade with integrated fibre optics
- Matte stainless steel – prevents reflections
- With integrated fibre optics
- No dirt traps – easy to clean
- Very large fibre-optic bundle – cross-section (3.0 x 7.0 mm), min. 8,000 individual fibres for optimal light output
- Illuminance > 6,000 lux / 2.5 V; > 13,000 lux / 3.5 V (measured at a distance of 35 mm from the light exit)
- Autoclavable up to 134°C – for approx. 4,000 cycles
- In accordance with DIN ISO 7376
- Maintenance-free
()
From 133.95 € 0.0 EUR
KAWE Miller Economy green
- Spatula with non-replaceable fibre optics
- Matte stainless steel, version with shatterproof plastic base, service life identical to metal
- Light guide is not replaceable
- Fibre optics Ø 3.0 mm / min. 3000 individual fibres
- Illuminance > 3,500 lux / 2.5 V > 10,000 lux / 3.5 V
- Environmentally friendly, economical and low-priced
- Autoclavable up to 134°C – for approx. 4000 cycles
- According to DIN ISO 7376
- Maintenance-free

Product data:

Length/width:
Size 00 – length a 65 mm b 12 mm
Size 0 – length a 79 mm b 12 mm
Size 1 – length a 106 mm b 12 mm
Size 2 – length a 160 mm b 15 mm
Size 3 – length a 197 mm b 15 mm
Size 4 – length a 210 mm b 20 mm
()
From 70.69 € 0.0 EUR

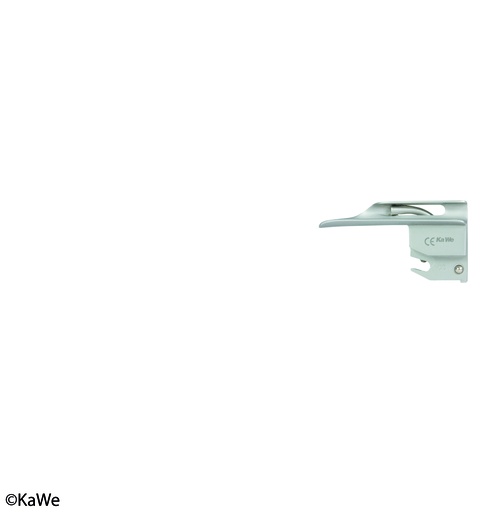

KAWE Miller Economy Standard
- Spatula with replaceable fibre optics
- Matt stainless steel – prevents back reflection
- Replaceable light guides
- Easy to clean
- Environmentally friendly and economical at the same time
- Fibre optics Ø 4 mm, min. 5,500 individual fibres
- Illuminance > 4,200 lux / at 2.5 V > 12,500 lux / at 3.5 V (measured at a distance of 35 mm from the light outlet)
- Autoclavable up to 134°C – for approx. 4,000 cycles
- Complies with DIN ISO 7376

Product data:

Length/width:

Size 00 – length a 65 mm, b 11 mm
Size 0 – length a 79 mm, b 12 mm
Size 1 – length a 106 mm, b 12 mm
Size 2 – length a 160 mm, b 15 mm
Size 3 – length a 197 mm, b 15 mm
Size 4 – length a 210 mm, b 20 mm
()
From 99.82 € 0.0 EUR
KAWE Miller/Macintosh F.O. Laryngoscope Set, Adult + Pediatrics 1 Handle+7 Blades 2.5V
Consisting of

1 x battery/rechargeable handle F.O. (medium) 2.5 V, REF 03.41000.721, rechargeable in the KaWe MedCharge® 4000 charging station in conjunction with rechargeable battery
1 x Macintosh F.O. blade, size 2, REF 03.42013.621
1 x Macintosh F.O. blade, size 3, REF 03.42013.631
1 x Macintosh F.O. blade, size 4, REF 03.42013.641
1 x Miller F.O. blade, size 0, REF 03.42023.601
1 x Miller F.O. blade, size 1, REF 03.42023.611
1 x Miller F.O. blade, size 2, REF 03.42023.621
1 x Miller F.O. blade, size 3, REF 03.42023.631
2 x illuminants xenon lamp 2.5 V REF 12.75141.003 (28934)
Supplied in case REF 03.90004.261



Compatible light guide:

REF 03.49013.621 replacement light guide F.O. for Macintosh blade, size 2
REF 03.49013.631 replacement light guide F.O. for Macintosh blade, size 3
REF 03.49013.641 replacement light guide F.O. for Macintosh blade, size 4
REF 03.49023.601 replacement light guide F.O. for Miller blade, size 0
REF 03.49023.611 replacement light guide F.O. for Miller blade, size 1
REF 03.49023.621 replacement light guide F.O. for Miller blade, size 2
REF 03.49023.631 replacement light guide F.O. for Miller blade, size 3



Possible set combinations:

REF 03.62022.002 Economy Macintosh F.O. laryngoscope set, adults, 1 handle + 3 blades
REF 03.62020.011 Macintosh F.O. laryngoscope set, adults, 1 handle + 3 blades, 2.5V
REF 03.62320.011 KaWe MEGALIGHT® Macintosh F.O. laryngoscope set, adults, 1 handle + 3 blades, 2.5V
()
849.66 € 849.66 EUR
KAWE Miller / Macintosh F.O. Laryngoscope Set, Pediatrics, 1 Handle + 3 Blades
Consisting of

1 x battery/charging handle F.O. (medium) REF 03.41000.721, rechargeable in KaWe MedCharge® 4000 charging station in combination with rechargeable battery
1 x Miller F.O. blade, size 0, REF 03.42023.601
1 x Macintosh F.O. blade, size 1, REF 03.42013.611
1 x Macintosh F.O. blade, size 2, REF 03.42013.621
Supplied in case REF 03.90001.261
2.5 V NiMH rechargeable battery (medium), rechargeable battery not included
Light source: xenon lamp for 2.5 V handle C REF 12.75141.003 (28934)



Matching light guide:

REF 03.49023.601 replacement light guide F.O. for Miller blade, size 0
REF 03.49013.611 replacement light guide F.O. for Macintosh blade, size 1
REF 03.49013.621 replacement light guide F.O. for Macintosh blade, size 2



Possible set combinations:

REF 03.62120.011 Miller F.O. laryngoscope set, neonatal, 1 handle + 3 blades, 2.5 V
()
From 421.26 € 0.0 EUR

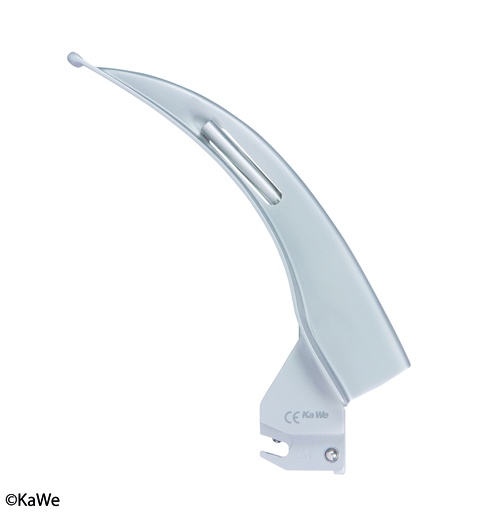

KAWE Polio Macintosh F.O.
- Spatula with replaceable fibre optic Improved, easier use in obese patients.
- Length a 130 mm b 22 mm
- Replacement light guide REF 03.49063.631
()
From 128.52 € 0.0 EUR
KAWE Rechargeable handle AA small 2.5V without battery
- for C laryngoscopes
- small
- rechargeable in the KaWe MedCharge® 4000 charging station in combination with rechargeable battery
- Ø 19 mm
- 2.5 V
- Batteries: 2 AA (Mignon) (not included)

Possible set combinations:

REF 03.51120.011 Standard Miller C laryngoscope set, neonatal, 1 handle + 3 blades
()
56.41 € 56.41 EUR

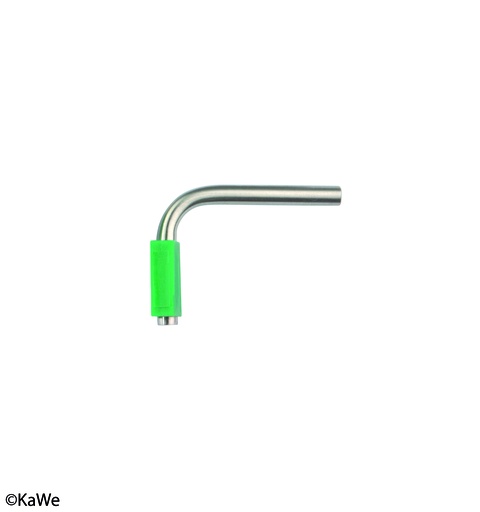

KAWE Replacement light guide F.O. Foregger blade
F.O. replacement light guide for Foregger spatula sizes 0–4
()
From 70.54 € 0.0 EUR

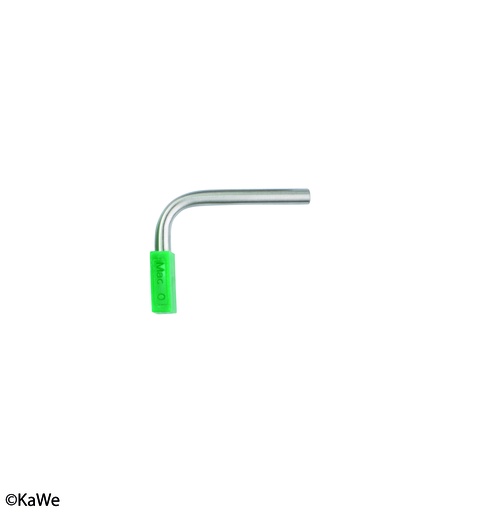

KAWE Replacement light guide F.O. Macintosh
Replacement fibre optic light guide for Macintosh blades in sizes 0–5
()
From 70.54 € 0.0 EUR

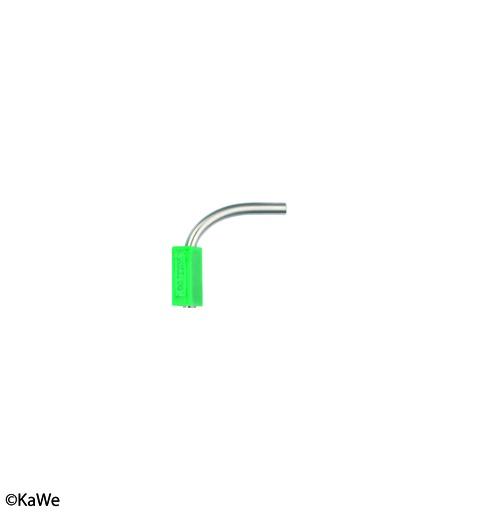

KAWE Replacement light guide F.O. Miller blade
F.O. replacement light guide for Miller blades in sizes 00 - 4
()
From 70.54 € 0.0 EUR
KAWE Replacement light guide F.O. Polio blade
F.O. replacement light guide for polio spatulas, available in sizes 3 and 4
()
From 70.54 € 0.0 EUR
KAWE Replacement light guide F.O. Tepro blade
Replacement fibre-optic light guide F.O. for Tepro spatulas, available in sizes 2–4
()
From 70.54 € 0.0 EUR

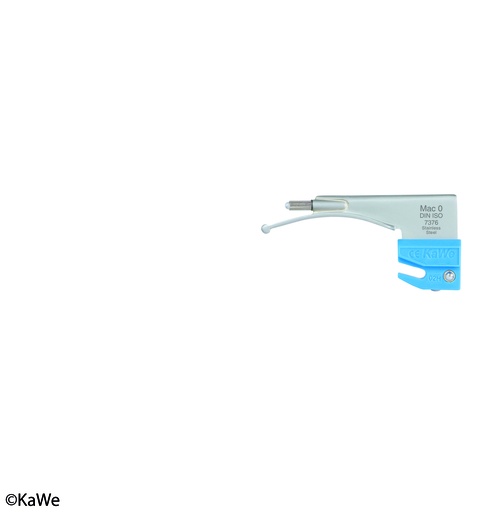

KAWE Std. Macintosh Economy blade blue
- blue
- matt stainless steel, version with shatterproof plastic base, service life identical to metal
- vacuum lamp
- illuminance >1500 or >2000 lux/2.5 V depending on lamp/spatula size
- environmentally friendly, economical and cost-effective
- sterilizable according to the instructions for use
- compatible in accordance with DIN ISO 7376
()
From 28.42 € 0.0 EUR

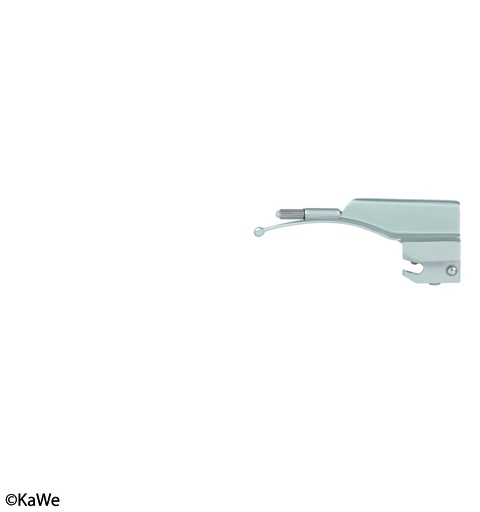

KAWE Std. Macintosh Standard
Matt stainless steel, prevents back reflections
Vacuum lamp
Illuminance >1500 or >2000 lux/2.5 V depending on lamp/spatula size
Sterilisable according to the instructions for use
Compatible according to DIN ISO 7376
()
From 46.41 € 0.0 EUR
KAWE Tepro Macintosh F.O.
- The proven TEPRO® is shaped like the most commonly used Macintosh blade. What makes it special, however, is the tapering in the blade section close to the handle. This recess increases the manoeuvrability and ease of handling of the blade during intubation. Despite the protection of the front teeth provided by the narrowing of the proximal blade, the tongue can be displaced upwards to the side as in a normal intubation with a conventional Macintosh blade. Intubation is effortless and the patient’s teeth remain optimally protected. Blade with replaceable fibre optics
Narrowing of the blade section close to the handle, allowing easy intubation even in difficult anatomical conditions
- Matt stainless steel – prevents back reflection
- Replaceable light guides
- Easy to clean
- Environmentally friendly and economical at the same time
- Fibre optics Ø 4 mm, min. 5,500 individual fibres
- Illuminance > 4,200 lux / at 2.5 V > 12,500 lux / at 3.5 V (measured at a distance of 35 mm from the light outlet)
- Autoclavable up to 134°C – for approx. 4,000 cycles
- According to DIN ISO 7376
()
From 127.81 € 0.0 EUR
