Ventilation and Intubation

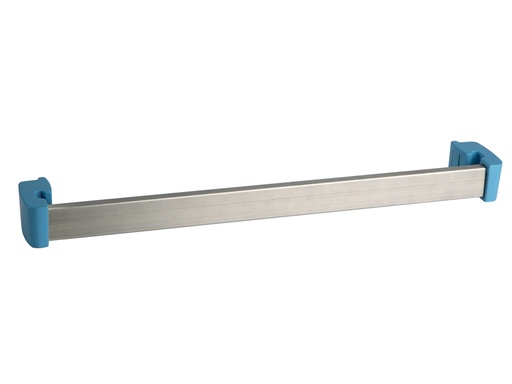

Accessories for Hospi Plus MPR - Multipurpose stainless steel rail - Optional

This is an accessory for the Hospi Plus MPR.

Water-repellent antibacterial filter

Flow settings 0 to 5 L

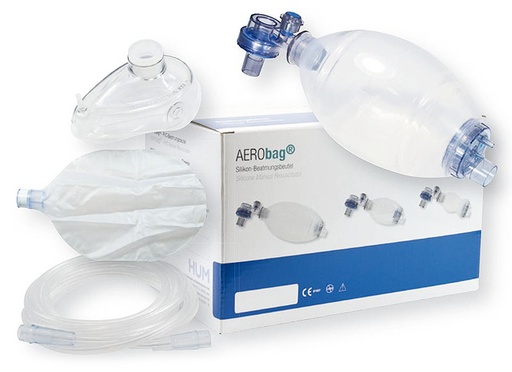

AERObag BB05-E-5R silicone resuscitator bag complete with size 5 mask, O2 tubing and reservoir bag.

High-quality materials
Long service life! Ready for use even under the toughest emergency conditions.
• Autoclavable up to 134 °C (resuscitator bag made of silicone and polysulphone)

High operating comfort
• Comfortable “grip”
• Rotatable patient connector cone
• Pressure limiting valve 60 mbar – adults or
40 mbar – children and babies
• Easy and space-saving to fold up

Hygienic and “transparent”
• Contamination is very easy to detect
• Easy to clean

Perfect fit
• Connectors comply with ISO 5356
• Connection option for masks, tubes and filters
• Innovative all-in-one intake valve
the previously required reservoir valve is integrated
• Separate oxygen connection for 6 mm O2 tubing
• Direct connection for oxygen reservoir bags,
demand valves or bag-refill systems
(conical plug part – 26 mm outer diameter / 22 mm inner diameter)

The AeroTube single-use cold light laryngoscope is a medical device used for intubation. The battery-powered handle contains a light source that guides the light via light guides into the blade, so the blade does not heat up in the mouth even during prolonged use.

Technical data:

Cold light laryngoscope handle
Preferred cold light technology
Battery handle made of high-quality polycarbonate
Halogen lamp in the battery handle
Operates with two standard 1.5 V alkaline baby cells (C) or two 1.2 V nickel metal hydride rechargeable batteries (not included)
Single-use cold light laryngoscope blades
Single use, therefore hygienic and safe
Blades made of high-quality polycarbonate
Acrylic light guide with high optical conductivity
Smooth-gliding blade with ball catch

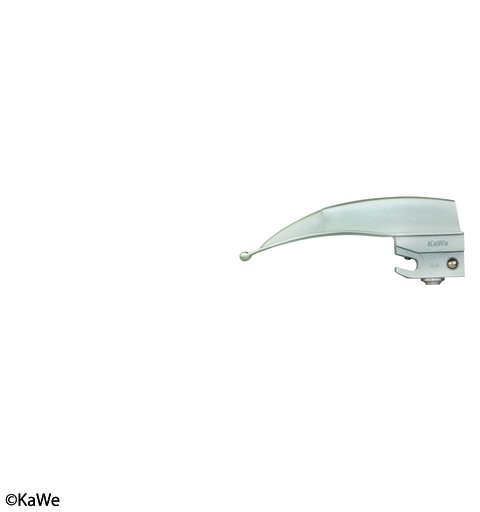

Optimised and proven blade shape according to Miller and MacIntosh
Storage box
Dimensions: 25 cm x 28 cm x 4.5 cm
Weight: 555 g (including handle and blade)

Scope of delivery:

Case with foam insert
Cold light laryngoscope handle (without batteries)
Miller laryngoscope blade size 0
Miller laryngoscope blade size 1
Miller laryngoscope blade size 2

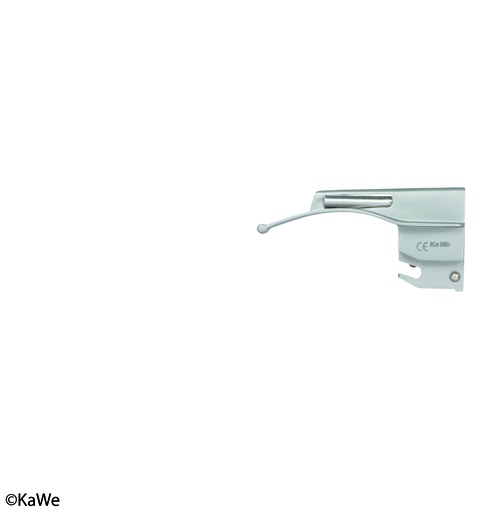

MacIntosh laryngoscope blade size 2
MacIntosh laryngoscope blade size 3
MacIntosh laryngoscope blade size 4

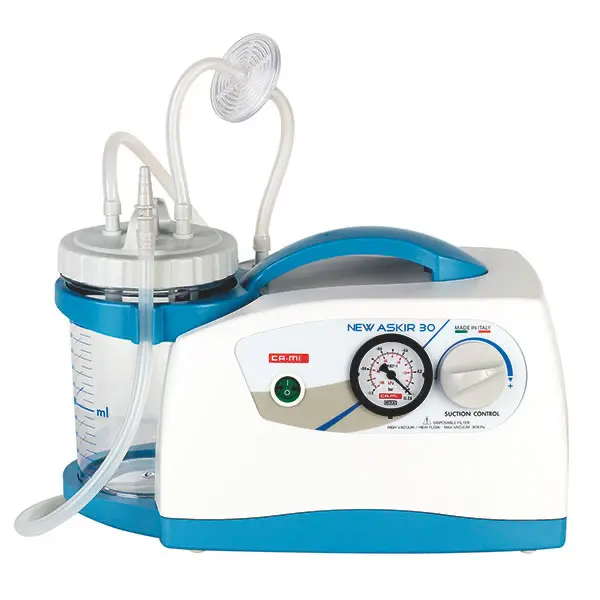

- Portable mains-powered unit for nasal, oral and tracheal aspiration.
- Operating time max. 120 minutes, followed by 60 minutes cooling time.
- Ideal for home use as it is easy to transport.
- Meets all requirements of current EU safety standards.
- With 1-litre plastic container (autoclavable), overflow valve, adjustable suction performance and vacuum gauge.
- Complete with suction hose connector, suction catheter,
- filter and 1-litre container.
- The stand model is equipped with 2 x 2-litre containers.
- Available as a tabletop unit and as a stand unit (on castors).

Product details:

- Max. vacuum: -80 kPa (-0.8 bar)
- Max. suction flow rate: 40 l/min
- Duty cycle: 120 min. ON, then 60 min. OFF
- Weight: 3.6 kg
- Dimensions: 350 x 210 (H) x 180 mm
- Weight with stand: 6.2 kg
- Dimensions with stand: 320 x 995 (H) x 305 mm

Delivery restriction:
This product can only be shipped within Germany; incoming orders with delivery abroad will be cancelled.
In some cases, shipping abroad may be possible, however this must be arranged on the basis of an individual quotation –
please contact us
for this.

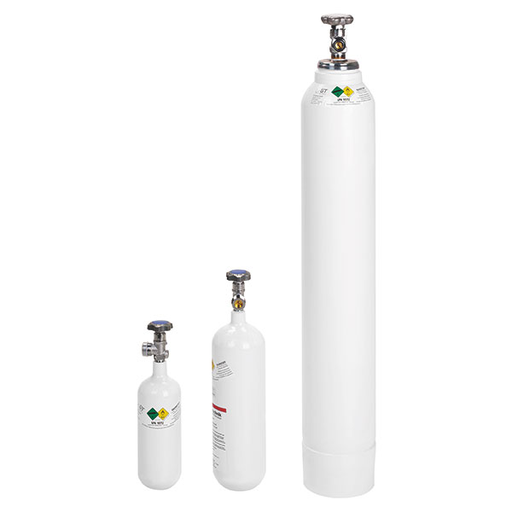

Filled lightweight steel cylinders with medical oxygen, white, 200 bar, with residual pressure valve, to DIN standard.

NOTE: Oxygen cylinders. Medical oxygen is classified as dangerous goods. It is a medicinal product and has a shelf life of 2 years!

NEW: With residual pressure valve to prevent corrosion.


How do you determine the fill level of oxygen cylinders?

Cylinder volume x cylinder pressure = oxygen supply
Example: 2.0 l x 200 bar = 400 l oxygen
2.0 l x 50 bar = 100 l oxygen

Oxygen supply: flow rate (dosage) = treatment time

Example: 400 l: 4.0 l/min flow = 100 min treatment time

100 l: 4.0 l/min flow = 25 min treatment time
400 l: 10.0 l/min flow = 40 min treatment time
200 l: 10.0 l/min flow = 20 min treatment time

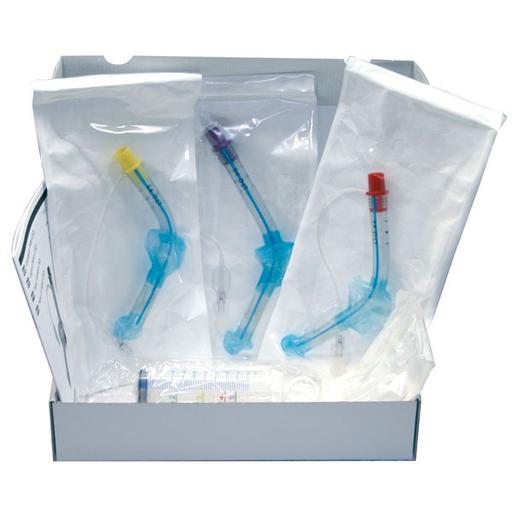

single-lumen, sterile-packed, made of PVC, latex-free, set consisting of: 1 x LT-D size 3, 4, 5, 1 x colour-coded syringe

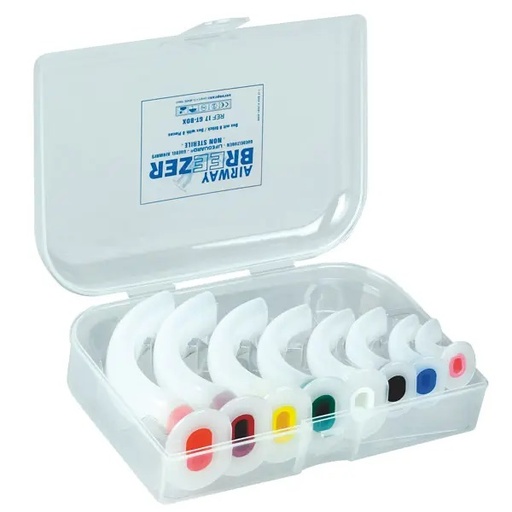

Consisting of 1 Guedel airway each

Sizes: 000, 00, 0, 1, 2, 3, 4, 5. sterile, colour-coded

ATTENTION: without the box shown in the photo.

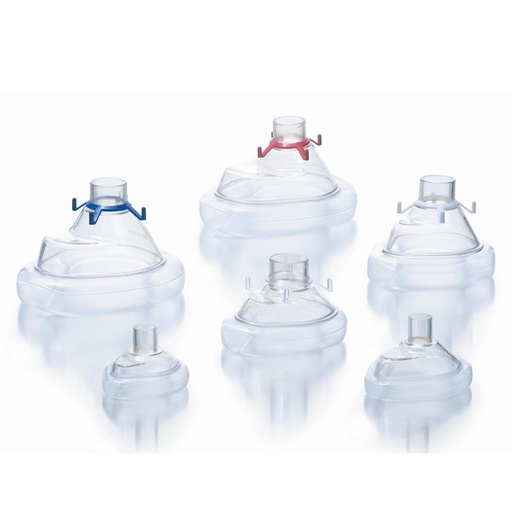

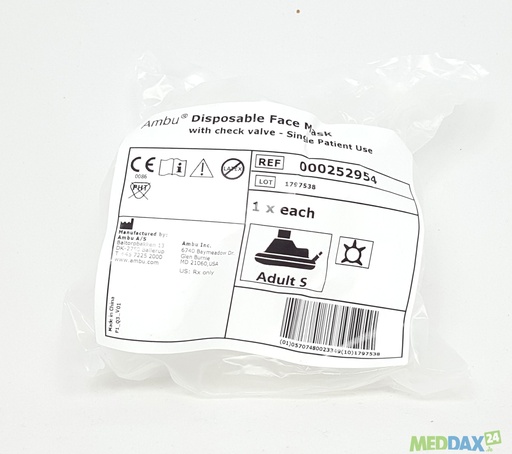

Disposable AMBU face mask for adolescents and adults.

Storage box
King Vison aBlade hard-shell case incl. padding.

The King Vision video laryngoscope, used in combination with the aBlade single-use blades, enables economical use of the video laryngoscope for all intubations. It serves as an aid for visualising the airway for routine or difficult intubation. The King Vision video laryngoscope was developed for indirect visualisation of the vocal cords, thereby reducing the required tissue manipulation and improving the ability to visualise anterior airways. The King Vision display is a lightweight, battery-powered, water-resistant and self-contained system. The robust, non-reflective full-colour display withstands repeated cleaning without difficulty. It can be used continuously for more than 90 minutes.

The set consists of: 1 King Vision display, 1 video adapter, 4 aBlade single-use blades with guide channel, 2 aBlade standard single-use blades, 3 AAA batteries and a case.

Technical specifications (reusable display):
- Video screen: OLED display
- Video connection: RCA
- Connection to monitor via cable
- Automatic shut-off
- Automatic white balance
- Video screen size: 6.1 cm / 2.4” diagonal
- Material: polycarbonate / ABS, anti-glare coating on the display window
- Batteries: 3 AAA (alkaline recommended)

Technical specifications (reusable video adapter):
- Video aspect ratio: 4:3
- Frame rate: 30 frames per second
- Video resolution: 320 x 240 (QVGA)
- Camera sensor: CMOS
- Camera resolution: 640 x 480 VGA
- Light source: white LED

Technical specifications (single-use blades):
- Anti-fog protection: coating on the distal lens
- AP blade height: 13 mm (standard), 18 mm (with guide channel)
- Blade length: 17 cm
- Blade width: 26 mm (standard), 29 mm (with guide channel), 16 mm at the distal tip
- Single-use material: polycarbonate / TPE
- ET size: 6.0 mm - 8.0 mm (blade with guide channel)

AMBU Mark IV with single-membrane patient valve without mask
The AMBU Mark IV is suitable for manual ventilation of adults and children weighing 15 kg or more (approx. 3 years). In combination with Mask 0 with bore, the Ambu Mark IV is also approved for children from 15 kg body weight. The double-chamber principle (inner body with elastic outer shell) allows the user to feel the ventilation pressure, making ventilation safer. Thanks to this integrated pressure limitation, the user can easily and safely recognise whether the airways are clear. The integrated hand strap makes the bag easier to grip and ensures it sits optimally in the hand – even with smaller hands.
Technical data
- Max. tidal volume: 1300 ml
- Dimensions (L x D): 275 x 135 mm
- Patient valve: 22/15 mm (ISO)
- Weight: 415 g
- Expiratory connector: 30 mm (ISO)
- latex-free, autoclavable up to 134°C

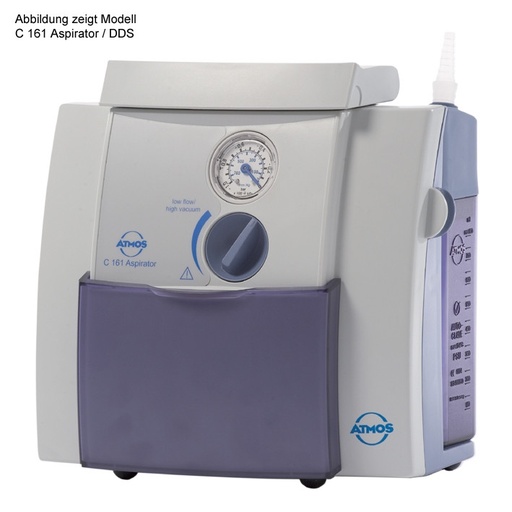

ATMOS C 161 electric suction unit aspirator /DDS
Portable secretion suction unit, suction capacity: 16 ± 2 L/min, vacuum: -80 kPa ± 2 kPa / -800 mbar ± 20 mbar / -600 mmHg ± 15 mmHg, infinitely variable vacuum regulation and precision gauge, graduated 1 L secretion canister, canister lid with triple overflow protection thanks to modern filter technology, integrated overflow protection and DDS (Direct Docking System), 1 DDS bacterial filter, condensate trap, silicone suction hose Ø 6 mm, L = 1.30 m, hose connector (fingertip), all hoses and secretion canister parts sterilizable up to 134°C, 2 m mains cable for 230 V~/50–60 Hz, dimensions (H x W x D): 250 x 255 x 180 mm. Use: on wards and in the care/rehabilitation sector.

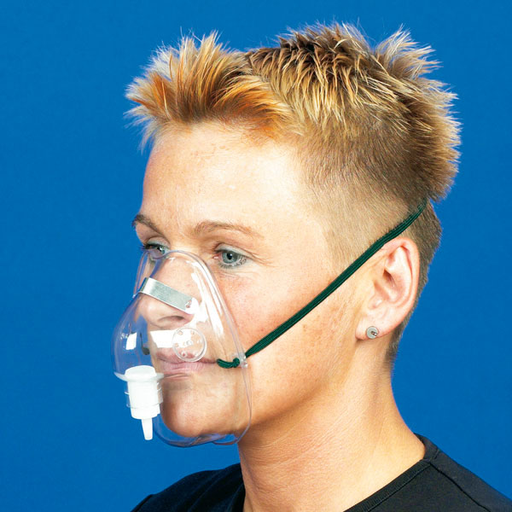

The O² mask from DCT features a nose clip. It is supplied with a 2.10 m O² connecting tube. Available from us for both children and adults. The masks are individually sterile packed.

The O² mask from DCT features a nose clip. It is supplied with a 2 m O² connecting tube. Available from us for both children and adults. The masks are individually sterile-packed.

• With smooth inner wall
• Kink protection
• Extension adapter
• 2 x universal cone

Individually sterile packed.

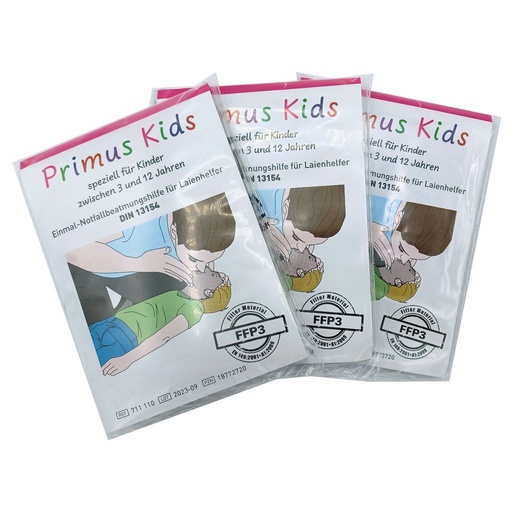

For ventilating children aged between 3 and 12 years.

Complies with DIN 13154.

The permeability of the filtering part meets the FFP3 requirements in accordance with EN 149:2001+A1:2009 in both directions at a constant flow rate of 20 l/min.

Sealed in foil.
