Monitoring Monitors

Product data:

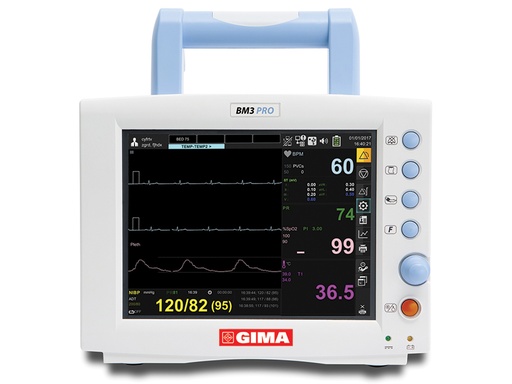

GIMA BM3 PRO Touch MONITOR (8” - 800x600 - TFT display)

GIMA monitor is configured with:
- 8-inch TFT LCD colour touchscreen for clear viewing
- Individual sweep speed setting for each parameter
- 168 full hours of trend data stored
- SpO2 measurement with detection of very low perfusion and pulse tone
- 2-trace ECG - screen freeze on/off
- External HDMI output for large screen
- Connection to the central monitoring system via LAN or Wi-Fi
- Li-ion battery (for 2 hours of continuous operation)
- High-performance ECG detection and analysis

• Input impedance for dry skin or electrode patches
• ST level, real-time display of PVC count
• 13 types of arrhythmia analysis
• Pacemaker detection function
- Enhanced and expandable multi-parameter monitoring
• Sidestream/mainstream EtCO2
- Improved data management
• Graphical and tabular trends
• 20 cases per 10 sec. alarm waveform stored, reviewed and printed
- USB storage
- B2B connection
• Up to 4 monitors (BM3/5/7) can be connected
- Internal software selectable in GB, DE, FR, IT, PT, PL, RO, HU, ES, CZ, BG, RU, TR, CN
- User manual: GB, IT (on request: ES, FR, DE).

58 mm built-in printer for real-time and trend data (speeds: 25-50 mm/sec.)
Bed rail hook
Ergonomic handle
Pacemaker detection is displayed on the ECG screen
Battery status indicator - continuous operating time approx. 2 h

For all Bionet monitors: accessory kit included!
- 3-lead ECG cable for BM 3
- 5-lead ECG cable for BM 5
- SpO2 sensor and SpO2 adapter cable 3 m
- NIBP blood pressure cuff
- 2 rolls of paper (BM 3 & BM 5)
- Adhesive electrodes (BM 3 & BM 5)
- User manual
- Mains cable
- Battery

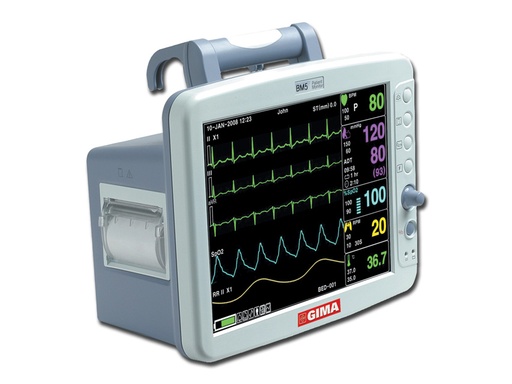

With 10.4" TFT colour display with 800 x 600 pixels, additional VGA connection for external monitor, IBP and CO2 measurement (optional)

With Suntech blood pressure module incl. printer.



- Measures NIBP, ECG, pulse rate, respiration, SpO2, temperature (optional), IBP (optional), CO2 with EtCO2 module (optional)
- Alarm function for all parameters
- Incl. built-in printer, printing parameters freely selectable
- With training mode
- Display of up to 7 waveforms
- Ideal transport monitor: weight only approx. 4.5 kg
- Incl. accessory set
- W 270 x H 184 x D 250 mm



For all Bionet monitors: accessory set included!

- 3-lead ECG cable with BM 3
- 5-lead ECG cable with BM 5
- SpO2 sensor and SpO2 adapter cable 3 m
- NIBP blood pressure cuff
- 2 rolls of paper (BM 3 & BM 5)
- Adhesive electrodes (BM 3 & BM 5)
- Operating instructions
- Mains cable
- Rechargeable battery

Thermal printer paper for BM 3/5/7 patient monitors and also for the Sonost 3000 bone densitometer.

10 rolls of 30 m each

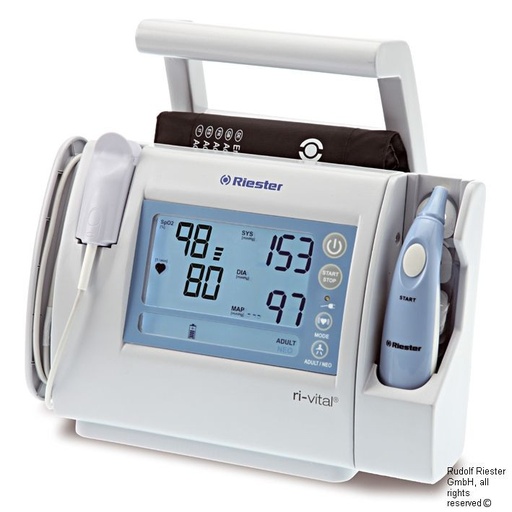

for adults and ri-thermo N infrared thermometer incl. 25 probe covers

with Velcro cuff, finger sensor

for mobile, precise and fast recording of vital signs in clinics, hospitals and medical practices; for non-invasive blood pressure measurement (NIBP) incl. special measurement mode for neonates, mean arterial pressure (MAP), pulse and oxygen saturation (SpO2), clinically approved; easy to use thanks to the straightforward menu; large, bright LCD display, shock-protected design, with integrated storage options for cuff and sensor; long-lasting rechargeable Li-ion battery; incl. mains adapter

Scope of delivery:

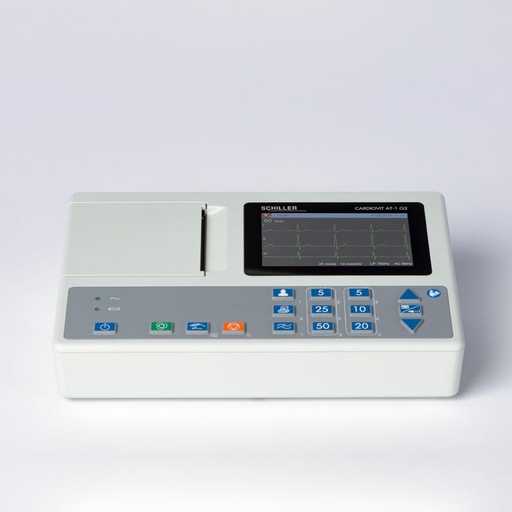

CARDIOVIT AT-1 G2 ECG device Schiller
10-lead patient cable
4 clip electrodes
6 chest suction electrodes
Recording paper

Product description:

The CARDIOVIT AT-1 G2 was developed based on the proven CARDIOVIT AT-1, but is equipped with the latest technologies and impresses with outstanding signal quality and the latest interpretation algorithms. Easy patient data entry, intuitive operation, the colour display and the easy-to-clean keyboard complete this reliable ECG device.

- Easy patient data entry
Outstanding ECG signal quality for adults and children

- Detection of swapped electrodes

- Hook-Up Adviser with colour-coded curves

- ETM interpretation and CCAA, optional

When developing the CARDIOVIT AT-1 G2, the focus was always on user-friendliness: patient data can be entered at the touch of a button and, thanks to the 5-inch colour display for preview and the simplified keyboard, recording an ECG has never been so easy.

STEP-BY-STEP WORKFLOWS

1. Patient data entry (at the touch of a button)
2. Signal preview and real-time quality check, incl. detection of swapped electrodes
3. Review after completion of the recording

ETM software for the CARDIOVIT AT-1 G2

ETM: One of the most renowned 12-channel ECG interpretation programs for adults and children

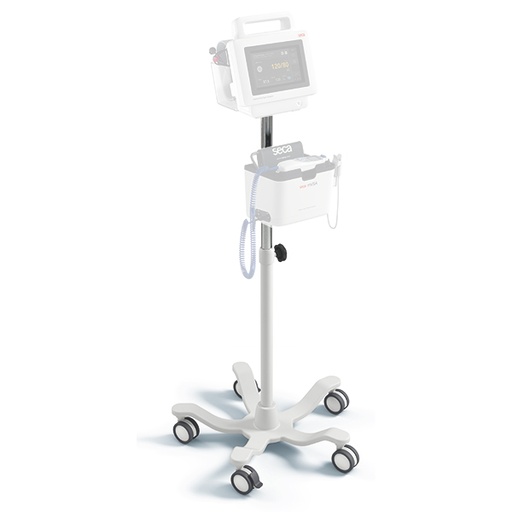

SECA 4750535 - Mobile stand, incl. holder for Smart-Bucket, 5 castors

PLEASE NOTE: The devices are not included in the scope of delivery!

This is a 6-pin SpO2 adapter cable.
