Emergency

Wall cabinet for defibrillators with or without alarm.

Product data:

Dimensions: 38 x 38 x 20 cm
Colour: white
Material: metal

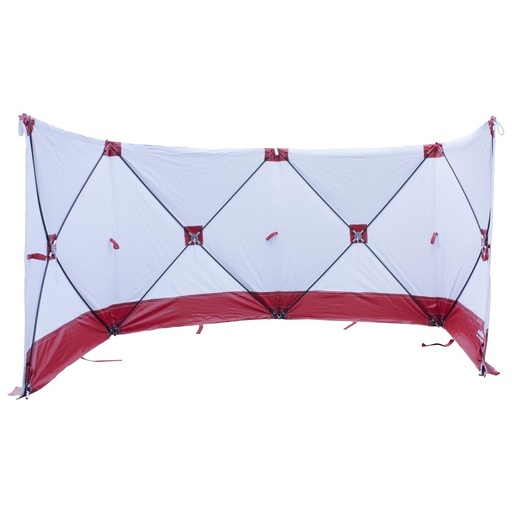

Onlookers have always been a major problem for emergency services. Since almost everyone carries a smartphone and can publish and share photos and videos almost instantly, this problem has taken on entirely new dimensions in recent years. But it’s not only the additional stress caused by bystanders that is an issue; police officers often have to be called in to keep onlookers at a distance. Accidents on the opposite carriageway during motorway incidents are an everyday occurrence.

Thanks to its compact pack size, the mobile privacy screen can be carried with you at all times. It can be fully set up in just a few seconds by a single person.
The screen is made of a robust, wipe-clean tarpaulin material and fibreglass poles. Numerous straps and eyelets allow for easy positioning and securing with guy lines*. Zips are integrated at the beginning and end of the screen, allowing several screens to be connected together to protect even large incident sites from unwanted views.

Features:
Tool-free set-up in just one minute
can be set up by just one person
infinitely extendable thanks to zips
height of the privacy screen approx. 180 cm
robust and durable

Scope of delivery:
1 x privacy screen
1 x carry bag

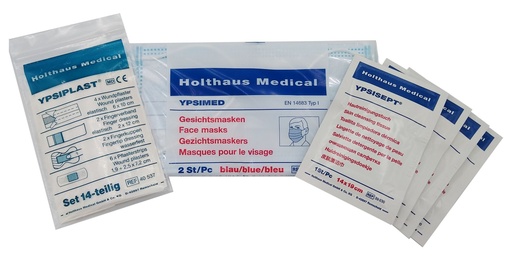

Supplementary set for DIN 13157/13169
Contents:
- 2 face masks to EN 14683
- 4 skin cleansing wipes
- 14 wound plasters

PLEASE NOTE:
To supplement DIN 13157 you need 1 set
To supplement DIN 13169 you need 2 sets

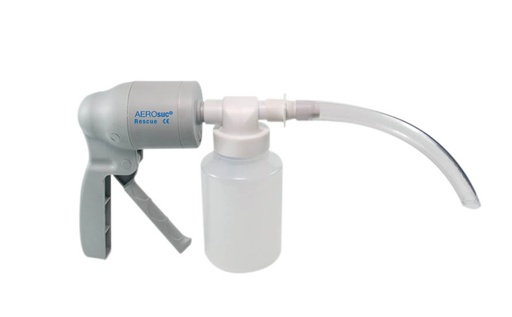

Manual suction pump with a 300 ml secretion suction unit, very well suited for emergency use. Ideal for emergency cases, bags or backpacks.

Weight: 275 g
Vacuum: -60 kPa


Scope of delivery:

AEROsuc - Rescue manual suction pump
300 ml suction canister with overflow protection
VC suction hoses size S and L

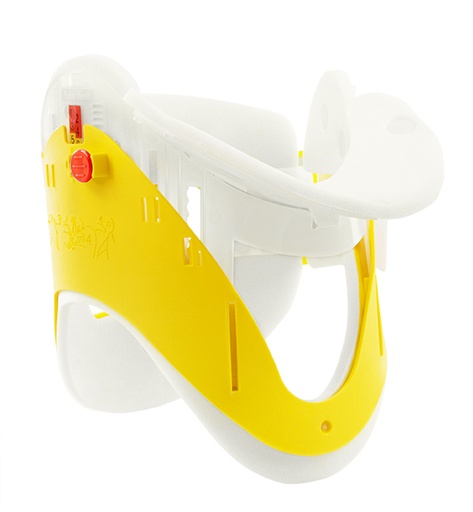

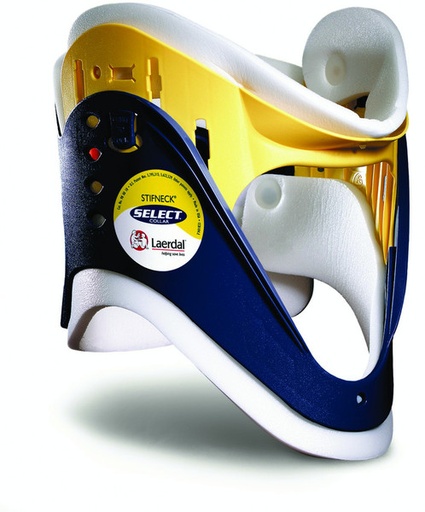

Cervical spine immobilisation collar adjustable to 4 sizes for suspected spinal injury. Latex-free, radiolucent, suitable for CT and MRI. One-piece collar design with stamped application instructions; sizes easy to read. Symmetrical adjustment via guide grooves and secure locking; the set size is maintained. Oversized tracheal opening for easy access for pulse checks and airway management. Large rear opening for easy palpation of the cervical spine, ensures fluid drainage and provides a good view of the neck. High wearing comfort with ensured air circulation.

Stat-Padz II electrode for adults.
For ZOLL AED Plus, ZOLL AED PRO.

Characteristics

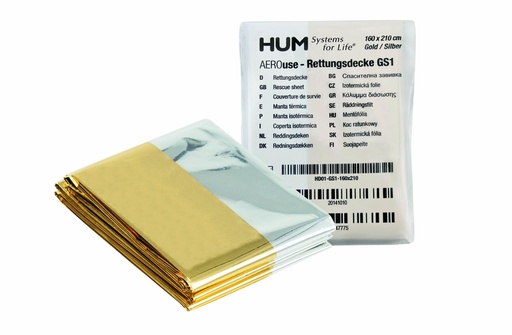

Gold/silver emergency blanket for first aid; for protection against heat and cold in road traffic, workplace, skiing and mountain accidents; component in accordance with DIN 13164, DIN 13157 and DIN 13169 for the first-aid kit; min. 160 x 210 cm

Disposable resuscitation bag for newborns with single-use newborn face mask, O2 reservoir and pressure relief valve 40 cm H2O

Accessories included with the AED:

Adult electrodes (1), disposable battery (1), carry bag (1), user manual (1)

Product description:

Latest-generation AED device – the fully automatic external defibrillator iPAD CU-SP1

EASY TO UNDERSTAND
Automatic volume
Immediately after switching on, the device detects background noise and automatically adjusts the volume of its voice prompts accordingly. Especially in crowded railway stations, at airports or in factory halls with lots of loud ambient noise, this feature can be lifesaving.

READY FOR IMMEDIATE USE
Pre-connected electrodes – cleverly stored
Already connected and well protected, the defibrillation electrodes are located on the underside of the device in an integrated storage compartment. This makes your AED even safer and quicker to use! Are the electrodes new? If used or expired “intelligent” electrodes are connected, the smart defibrillator immediately tells you what to do.

SIMPLE SOLUTION
Adult and paediatric mode
Is the patient a child? Thanks to a simple slide switch, you can quickly change from adult to paediatric mode. The device then works with less energy to protect the smaller heart muscle. Special paediatric electrodes are available optionally.

DOUBLE PROTECTION
Artefact and CPR detection
As an intelligent first-aid defibrillator, the CU-SP1 detects whether the patient is being touched by other people. In that case, it will not deliver a shock. Not only is the emergency patient optimally cared for – you, as a first aider, are also protected! In addition, the iPAD CU-SP1 detects whether you are performing chest compressions to give the emergency patient the best chance of survival.

ALWAYS IN VIEW
The clear status display – whether battery charge level or electrode status – means you can always keep an eye on the functionality of your iPAD on the LCD display! Is your device ready for use? Regular self-tests check that everything is OK. Do the defibrillation electrodes need to be replaced? The display warns you in good time, starting as early as three months before the expiry date.

AFTER USE
Storage and data transfer
The iPAD CU-SP1 stores up to five emergency deployments on an SD card. Would you like to analyse the ECGs on your computer? Simply transfer the data via SD card or via the infrared interface. With the optionally available CU-EX1 software, you can edit and archive the patient data.

Product data:

Defibrillator
Type: Automated external defibrillator
Model: CU-SP1
Manufacturer: CU Medical Systems, Inc.
Waveform: Biphasic truncated exponential pulse, E-cube technology
Energy output: 150 joules for adults, 50 joules for children, impedance compensated
Charging time: Under 8 seconds

Controls
LCD display (electrode and battery status, correct functionality), metronome for chest compressions, voice prompts (automatic volume adjustment to the operating environment) and backlit pictograms, pre-connected electrodes, slide switch for adult and paediatric mode, information button for detailed voice instructions (optionally activatable), shock button, on/off switch

Resuscitation guidelines
Standard preset: 5 cycles with 30 chest compressions and 2 ventilations (according to CPR guidelines 2010)
Individual settings: number of chest compressions, number of ventilations, number of cycles, number of chest compressions per minute, pause duration, activation of detailed guidance (individually adjustable according to future guideline changes)

Self-tests
Automatic self-diagnostic test after switching on and continuous functional tests during use; daily, weekly and monthly self-diagnostic tests
Manual self-diagnostic test after each insertion of the battery

Environmental conditions
Operation and storage: temperature 0 °C to 43 °C, humidity: 5% to 95% (non-condensing)
Transport: temperature -20 °C to 60 °C
Vibration protection: switched on: meets MIL-STD-810G, Fig. 514.6E-1, random test; stand-by: meets MIL-STD-810G, Fig. 514.6E-2, swept sine (helicopter)
Protection class: protected against dust and water jets, class IP55 according to DIN EN 60529: IP55
Drop protection: withstands drops from up to 1.2 metres onto edges, corners or smooth surfaces
ESD: complies with EN 61000-4-2:2001
EMC emissions: meets EN 60601-1-2 limit values, method EN 55011:2007 + A2:2007, Group 1, Class B
EMC immunity: meets EN 60601-1-2 limit values, method EN 61000-4-3:2006 + A1:2008 Level 3 (10 V/m, 80 MHz to 2500 MHz)

Event documentation
Internal memory: recording of up to 5 incidents, up to 3 hours
Data transfer: via SD card or infrared interface
Data analysis: PC software CU-EX1 (optional)

Power supply
Standard battery: 12 V DC; 2.8 Ah LiMnO2, at least 50 shocks or 4 hours operating time, at least 3 years stand-by time

Size and weight
Dimensions: 260 mm x 256 mm x 69.5 mm (width x length x height)
Weight: 2.4 kg (including battery and electrodes)

Included in delivery:

• 1 long-life battery and electrode cassette for adults and children
• Dual carry bag, can also be used as a headrest
• Emergency kit incl. CPR poster, emergency instructions
• Instructions for use, quick start guide

Product description:

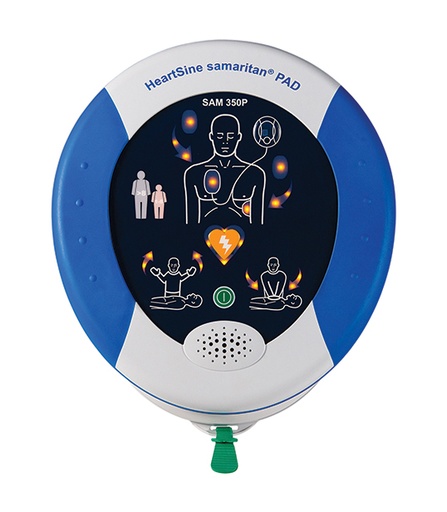

The HeartSine samaritan 350P AED offers unique features:
Compact and powerful

Portable and lightweight. At only 1.1 kg, it weighs less and is up to 56% smaller than other portable defibrillators.

Maximum protection against dust/moisture. The samaritan PAD has an IP56 rating, giving the 350P defibrillator the highest level of water and dust protection in the industry.

Durable. The samaritan PAD 350P withstands shocks and vibrations and has an IP56 rating, the highest industry rating for protection against dust and moisture.

Advanced technology. The samaritan PAD 350P uses dedicated electrode technology, advanced and stable software, and patented biphasic SCOPE* technology (a biphasic waveform that automatically adapts to patient impedance) to assess the rhythm and, where necessary, maximise effective shock delivery.

*Self-Compensating Output Pulse Envelope technology automatically compensates energy, rise time and envelope.
Easy-to-follow visual and audible instructions

User-friendly. The samaritan PAD 350P features easy-to-understand visual and audible prompts that guide the rescuer through the application process, including CPR coaching. Three large, clearly recognisable symbols facilitate the rescue process: apply electrodes, do not touch the patient, and the patient may be touched.

Operation with only 2 buttons. Only two buttons—ON/OFF and SHOCK—are required to operate the device.

Always ready for use. A system status indicator flashes when the entire system is operational and ready for use. The device performs an automatic self-test once a week.

Practical solutions for everyday use

Two components, one expiry date. The combined Pad-Pak cassette contains battery and electrodes, so only one expiry date needs to be monitored.

Lowest total cost of ownership. With a shelf life of four years from the date of manufacture, the Pad-Pak offers significant savings compared with other defibrillators that require separate batteries and electrodes.

Protection for adults and children. The technology integrated into HeartSine PADs and the unique Pediatric-Pak (infant/toddler cassette), intended for children aged 1–8 years (< 25 kg), ensure that the optimal energy is delivered.

Upgradeable on site. Can be upgraded at any time to the latest AHA/ERC guidelines.

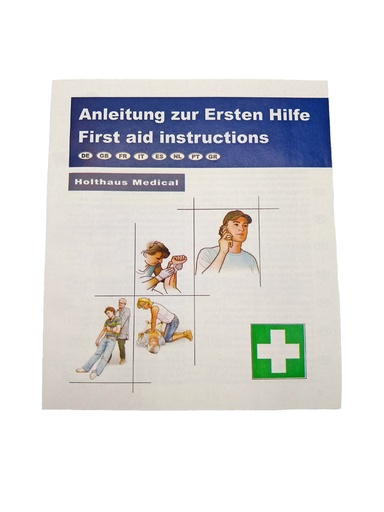

First aid instructions in 8 languages for DIN 13157 and DIN 13169.

ISO 13485 certification

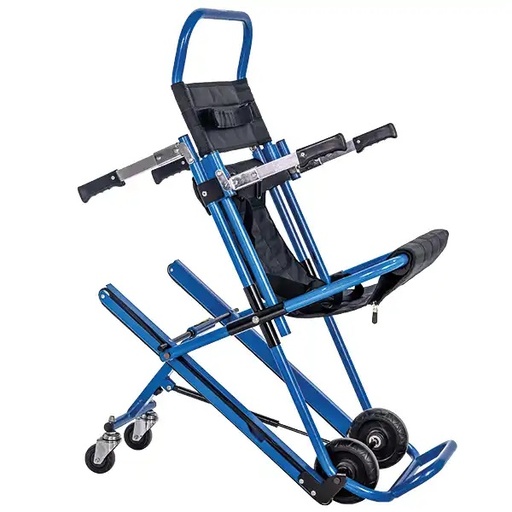

This aluminium evacuation chair is used wherever people need to be evacuated via stairs and are no longer able to move independently due to their physical condition (pregnant women, people with disabilities, injured persons, etc.). The chair is ready for use within seconds and, thanks to its design, can be operated by one person. The sliding system ensures safe transport, and thanks to the fold-out small wheels, horizontal transport is also possible. Technical data:

Product data:

Dimensions (unfolded): L 88 x W 53 x H 140 cm
Dimensions (folded): L 120 x W 53 x H 17 cm
Weight: 13 kg
Max. load capacity: 159 kg

Image similar

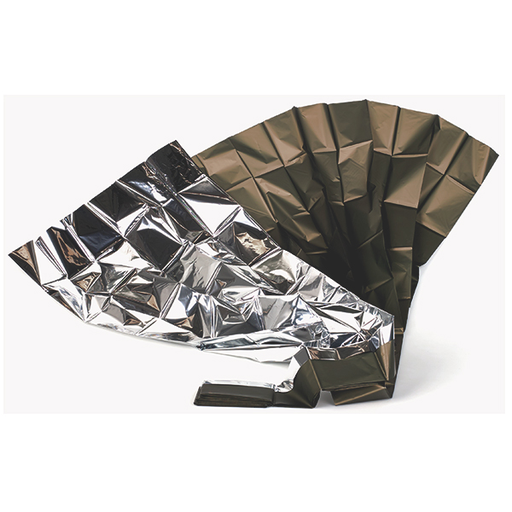

For immediate cold/heat protection

Instructions for use

As protection against cold:

Gold/green side facing outwards, silver side facing inwards: body heat is reflected.

As protection against heat:

Silver side facing outwards, sun rays are reflected.

The Plum eye wash bottle (0.9% sodium chloride solution) is a handy bottle with an ergonomically shaped eye cup and dust cap. It is filled with a sterile sodium chloride solution. Ideal for refilling eye wash stations and for mobile use, e.g. in a toolbox or first-aid kit.

Product data:

Colour: colourless
Rinsing time: approx. 5 minutes
Shelf life: 3 years

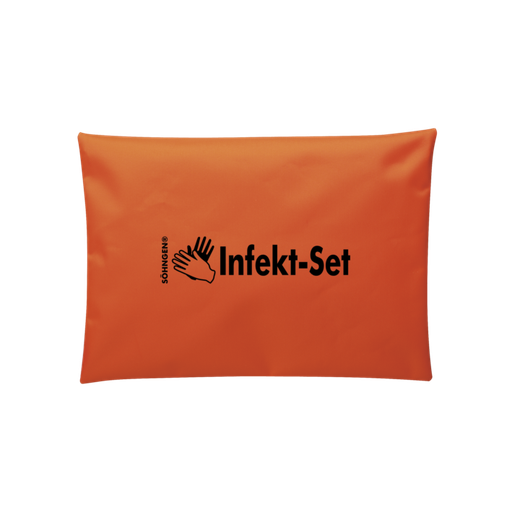

Infection Set. Comprehensive personal infection protection for first aiders and persons involved in accidents during all immediate measures at the scene. Especially during contact with first aiders, the greatest risk of infection arises from transmission via saliva or contamination with blood or vomit. The Infection Set should be part of every first-aid kit and belongs in every first-aid box.

It contains an Air-Vita® Bi-Protect resuscitation device, Safe-Set protective gloves and face mask, hand disinfectant, a bag with disposable gloves, non-woven cleaning wipes, and a waste bag. Practical zip pouch made of coated nylon fabric, pouch size 240 x 170 mm, orange. Robust, light, soft, flexible, takes up little space. Labelling and motif screen-printed.

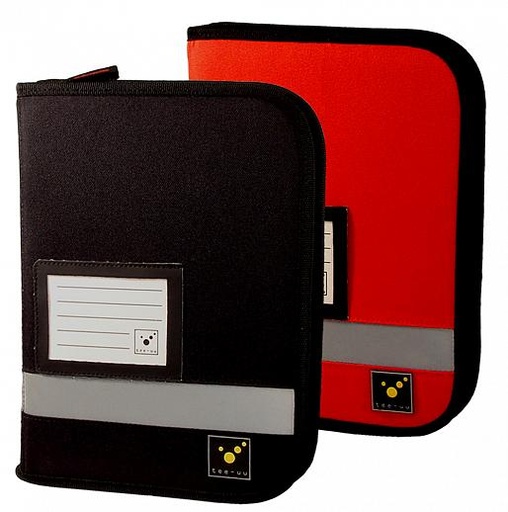

Logbook folder in DIN A5 portrait format with ring binder mechanism.

Thanks to a large number of compartments, neat storage of all documents is guaranteed.

Features:
- Ring binder mechanism for sheets up to DIN A5 in portrait format
- 2 transparent pockets, e.g. for the registration certificate, service booklet and fuel card
- 1 mesh pocket with secure hook-and-loop fastener for small items
- 1 compartment for the logbook
- 1 double compartment for a notepad or similar
- 3 pen loops
- 1 detachable key holder

The TRIP Organizer is securely closed with a zip.

Scope of delivery:
Organizer only, without any other accessories shown

Specifications:
- Colours: red or black
- Size (W x H x D): 20 x 28 x 4 cm
- Weight: 0.34 kg
- Material: polyester

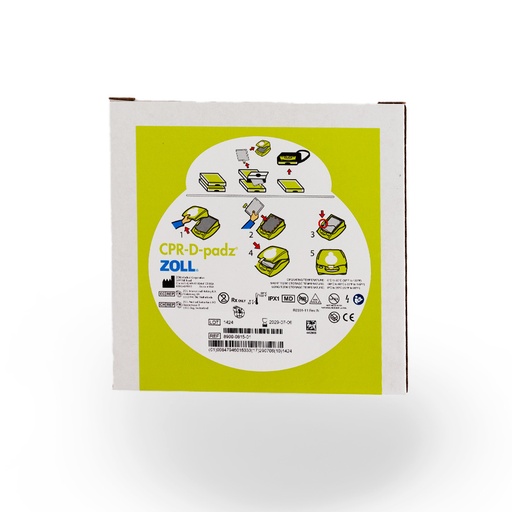

ZOLL CPR-D padz electrodes for ZOLL AED Plus and ZOLL AED Pro

5-year shelf life

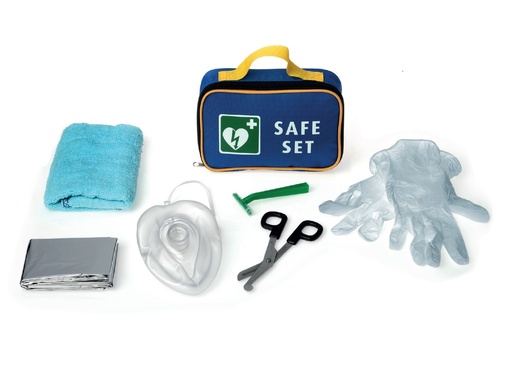

ARKY Safe Set incl. bag for defibrillation preparation

Contents:
- Microfibre cloth
- Emergency blanket
- Resuscitation mask
- Scissors
- Razor
- Gloves

Purpose:
Essential accessories for resuscitation
