Spirometry

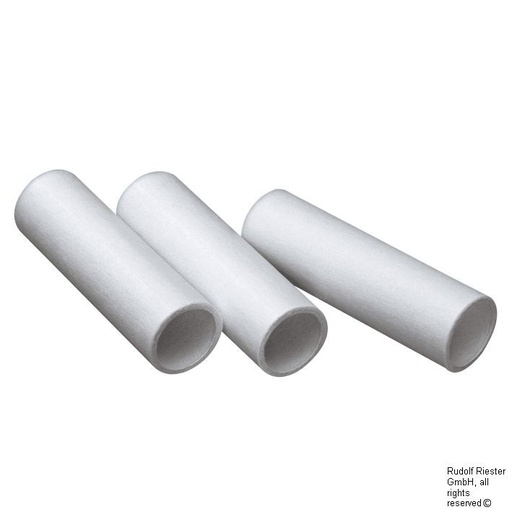

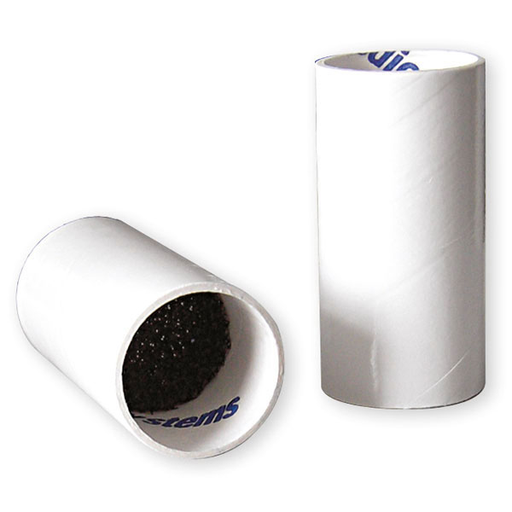

Length 4 cm, outer Ø 1.2 cm, inner Ø 1.0 cm

For use in both adult and paediatric care.

Indicates the correct volume through a deep and prolonged inhalation. Individually packed in a cardboard box.

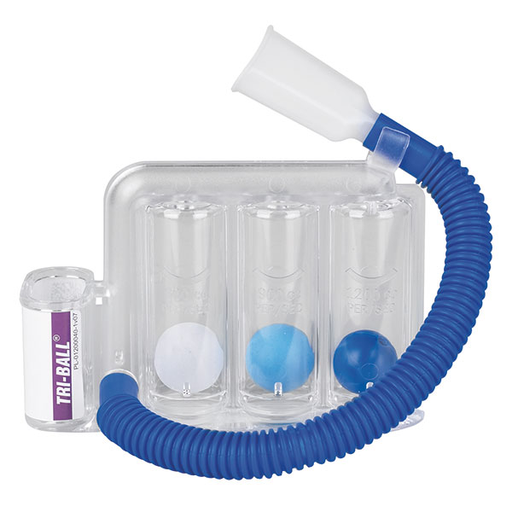

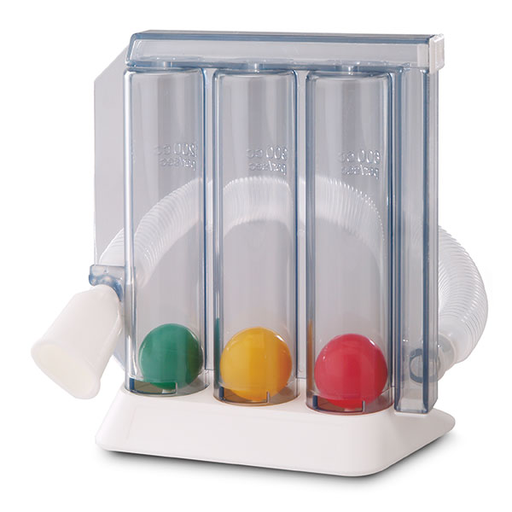

The cost-effective breathing trainer with flow control

With deep inhalation, the patient can keep 2 balls suspended.

The 3rd ball must not be lifted. This achieves calm, deep inspiration. With patient label. Flow: 0.6–0.9 l/sec.

The quality product

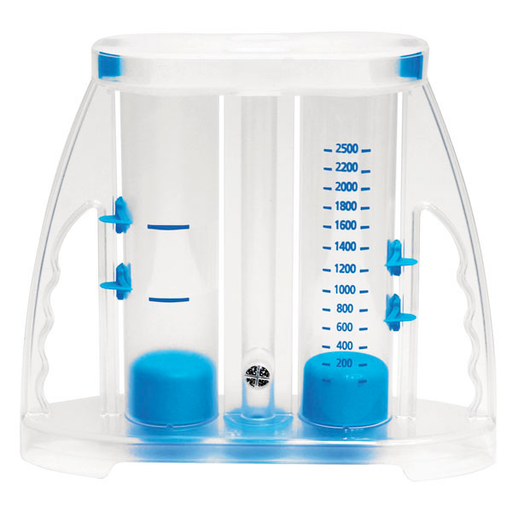

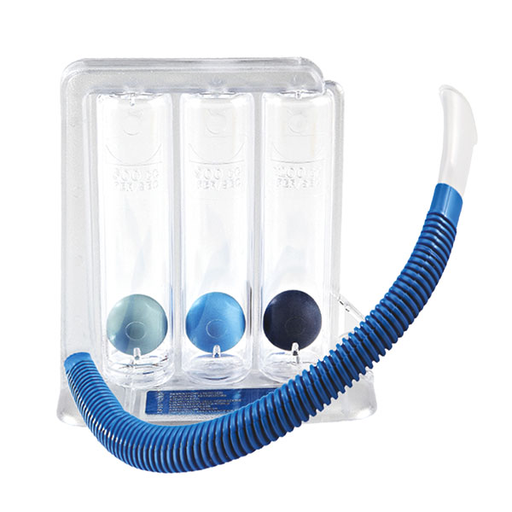

Practical and reusable, for controlled breathing training.

With the Triflo, the patient can carry out targeted inhalation exercises. The inspiratory performance is indicated to the patient by three individual indicator balls, encouraging further practice.

Complete with 1 mouthpiece and breathing tube, crystal-clear plastic.

This precision device enables reproducible training conditions, unlike cheap devices!

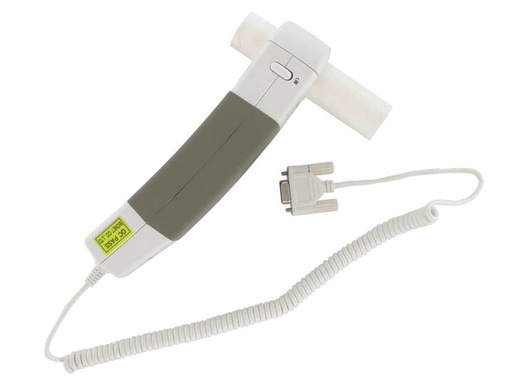

- Printout: time / flow chart
- Report of all measured data and measurement curves
- Display: flow / volume curve
- Graphical display and printout of the complete flow-volume curve
- Measurement parameters: FVC, FEV 1.0, FICV, FEV 1.0, FEF 25 - 75 %, FEF 200 - 1200 ml, FEF 50 % / FIF 50 %, PIF, FET 100 %, SVC, ERV, IRV, TV, MVV, RR, TV
- Measures according to ATS criteria
- Large printout for easy archiving
- Incl. 100 practical disposable mouthpieces with measuring tube
- Incl. ECG accessory set

- Printout of time/flow diagram
- Report of all measurement data and measurement curves
- Display of flow/volume curve
- Graphical display and printout of the complete flow-volume curve
- Measurement parameters: FVC, FEV 1.0, FICV, FEV 1.0, FEF 25 - 75 %, FEF 200 - 1200 ml, FEF 50 % / FIF 50 %, PIF, FET 100 %, SVC, ERV, IRV, TV, MVV, RR, TV
- Measures according to ATS criteria
- Large printout for easy archiving

ATTENTION: B-stock - This is only the item shown in the pictures!

without corrugated hose

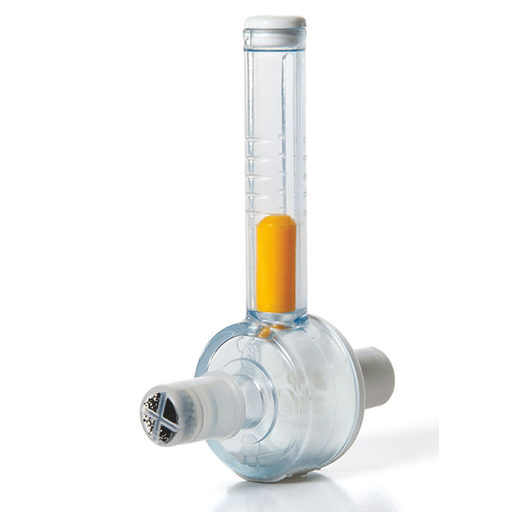

To support breathing exercises during exhalation, this device can only be used in combination with Ca-Mi Pulmo-Gain or Pulmo-Vol. This allows a complete cycle of inhalation and exhalation to be carried out without interruption.

Vicatest cardboard mouthpieces for VT 1009 without non-return valve

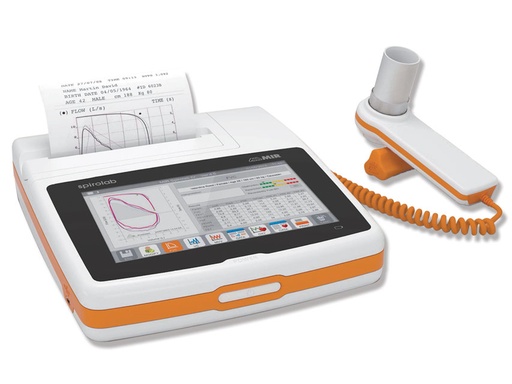

Fast, easy-to-use and durable diagnostic spirometer, made in Italy.

Unbeatable features
- Comparison of FVC, VC, MVV and PRE/POST bronchodilator results with a wide range of selectable parameters
- Long-life battery
- 7” colour touchscreen display
- Direct connection to an external USB PostScript printer
- 10,000 spirometry tests
- Wireless real-time testing on a PC via Bluetooth®
- Fast and quiet built-in printer with customisable print format
- Selectable internal software languages: GB, FR, IT, ES, DE, PT

The Flow MIR® disposable flowmeter complies with the ATS/ERS standard

Guaranteed 100% hygiene, no cross-contamination.
No calibration required.
Also suitable for children without an adapter.

Suitable for children.
Patented child incentive directly on the screen.

Winspiro PRO® high-performance PC software for spirometry and oximetry.
Multilingual software: GB, FR, IT, ES, DE, PT, PL, NL, LV, SE, CZ, RU, TR, JP, CN.

Scope of delivery:
- Spirolab 7"
- Carrying bag
- Winspiro PRO® software
- Battery charger
- USB port and cable
- 1 roll of thermal paper
- Reusable turbine
- Nose clip
- CD manual: GB, FR, IT, ES, DE, PT


Product data:

SPIROMETRY SPECIFICATIONS:
- Power supply: battery
- Autonomy: approx. 10 hours
- Temperature sensor: semiconductor (0–45 °C)
- Flow sensor: bidirectional digital turbine
- Flow range: ±16 l/s
- Volume accuracy: ±3% or 50 ml
- Flow accuracy: ±5% or 200 ml/s
- Dynamic resistance: <0.5 cm H2O/L/s
- Connectivity: USB 2.0, Bluetooth® 2.1
- Display: 7-inch touchscreen LCD with a resolution of 800 x 480 pixels
- Mouthpieces: Ø 30 mm
- Dimensions: 220 x 210 x 51 mm (8.66 x 8.26 x 2 inches)
- Weight: 1450 g (incl. battery)
- Electrical protection: Class II
- Standards: Electrical safety standard EN 60601-1
- Electromagnetic compatibility EN 60601-1-2
- Spirometry parameters: FVC, FEV1, FEV1/FVC, FEV1/VC, PEF, FEF25, FEF50, FEF75, FEF25-75, FEF75-85, lung age, extrapolated volume, FET, time to PEF, FEV0.5, EV0.5/FVC, FEV0.75, FEV0.75/FVC, FEV2, FEV2/FVC, FEV3, FEV3/FVC, FEV6, FEV1/FEV6, FEV1/PEF, FEV1/FEV0.5, FIVC, FIV1, FIV1/FIVC, PIF, FIF25, FIF50, FIF75, FEF50/FIF50, VC, IVC, IC, ERV, IRV, RF, VE, VT, tI, tE, VT/tI, tE/tTOT, MVV (measured), MVV (calculated).


WINSPIRO PRO® SOFTWARE REQUIREMENTS:
Windows 2000, XP, Vista (32/64-bit), 7 (32/64-bit), 8 and 8.1 (32/64-bit), 10 (32/64-bit). RAM 512 MB

Fast, easy-to-use and durable diagnostic spirometer, made in Italy.

Unbeatable features
- Comparison of FVC, VC, MVV and PRE/POST bronchodilator tests with a wide range of selectable parameters
- Long-life rechargeable battery
- 7" colour touchscreen display
- Direct connection to an external USB PostScript printer
- 10,000 spirometry tests or 500 hours of oximetry recording
- Wireless real-time test on PC via Bluetooth®
- Fast and quiet built-in printer with customisable print format
- Selectable internal software languages: GB, FR, IT, ES, DE, PT

Oximetry option: available reusable finger probe for adults and children.

Fast and user-friendly: every function can be activated at the touch of a button.

The Flow MIR® disposable flow sensor complies with the ATS/ERS standard

Guaranteed 100% hygiene, no cross-contamination.
No calibration required.
Also suitable for children without an adapter.

Suitable for children.
Patented paediatric incentive directly on the screen.

Winspiro PRO® high-performance PC software for spirometry and oximetry.
Multilingual software: GB, FR, IT, ES, DE, PT, PL, NL, LV, SE, CZ, RU, TR, JP, CN.

Scope of delivery:
- Spirolab 7"
- Carry bag
- Winspiro PRO® software
- Battery charger
- USB port and cable
- Adult SpO2 sensor
- 1 roll of thermal paper
- Reusable turbine
- Nose clip
- CD manual: GB, FR, IT, ES, DE, PT


Product data:

SPIROMETRY SPECIFICATIONS:
- Power supply: rechargeable battery
- Autonomy: approx. 10 hours
- Temperature sensor: semiconductor (0–45°C)
- Flow sensor: bidirectional digital turbine
- Flow range: ±16 l/s
- Volume accuracy: ±3% or 50 ml
- Flow accuracy: ±5% or 200 ml/s
- Dynamic resistance: <0.5 cm H2O/l/s
- Connectivity: USB 2.0, Bluetooth® 2.1
- Display: 7-inch LCD touchscreen with a resolution of 800 x 480 pixels
- Mouthpieces: Ø 30 mm
- Dimensions: 220 x 210 x 51 mm (8.66 x 8.26 x 2 inches)
- Weight: 1450 g (incl. rechargeable battery)
- Electrical protection: Class II
- Standards: Electrical safety standard EN 60601-1
- Electromagnetic compatibility EN 60601-1-2
- Spirometry parameters: FVC, FEV1, FEV1/FVC, FEV1/VC, PEF, FEF25, FEF50, FEF75, FEF25-75, FEF75-85, lung age, extrapolated volume, FET, time to PEF, FEV0.5, EV0.5/FVC, FEV0.75, FEV0.75/FVC, FEV2, FEV2/FVC, FEV3, FEV3/FVC, FEV6, FEV1/FEV6, FEV1/PEF, FEV1/FEV0.5, FIVC, FIV1, FIV1/FIVC, PIF, FIF25, FIF50, FIF75, FEF50/FIF50, VC, IVC, IC, ERV, IRV, RF, VE, VT, tI, tE, VT/tI, tE/tTOT, MVV (measured), MVV (calculated).

OXIMETRY SPECIFICATIONS:
- SpO2 range: 0–99%
- SpO2 accuracy: ±2% between 70–99% SpO2
- Pulse rate range: 18–300 bpm
- Pulse rate accuracy: ±2 bpm or 2%, whichever is greater
- Memory capacity: up to 500 hours of oximetry
- Oximetry parameters: %SpO2 and pulse rate (min, max, mean), test duration, total SpO2 events, T90% (SpO2 time = 89%), T89% (SpO2 time = 88%), T40 (bradycardia duration with pulse rate <40 bpm), T120 (tachycardia duration with pulse rate >120 bpm).

WINSPIRO PRO® SOFTWARE REQUIREMENTS:
Windows 2000, XP, Vista (32/64 bit), 7 (32/64 bit), 8 and 8.1 (32/64 bit), 10 (32/64 bit). RAM 512 MB

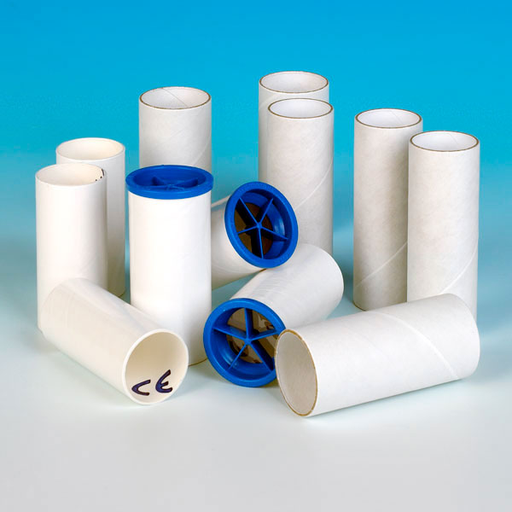

Cardboard mouthpieces for Schiller SP 100/200

With air filter, extendable corrugated hose and mouthpiece.

Flow range: 600 cc/second, 900 cc/second, 1200 cc/second.

Individually carton-packed.
