Specialized Diagnostics

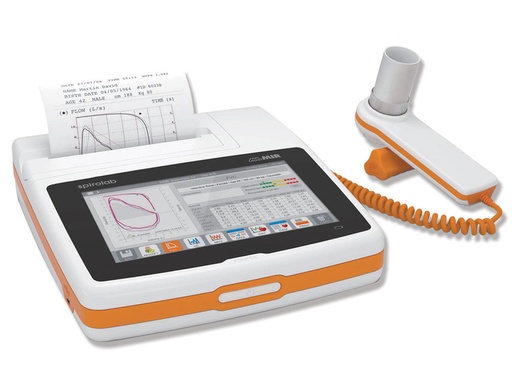

Fast, easy-to-use and durable diagnostic spirometer, made in Italy.

Unbeatable features
- Comparison of FVC, VC, MVV and PRE/POST bronchodilator tests with a wide range of selectable parameters
- Long-life rechargeable battery
- 7" colour touchscreen display
- Direct connection to an external USB PostScript printer
- 10,000 spirometry tests or 500 hours of oximetry recording
- Wireless real-time test on PC via Bluetooth®
- Fast and quiet built-in printer with customisable print format
- Selectable internal software languages: GB, FR, IT, ES, DE, PT

Oximetry option: available reusable finger probe for adults and children.

Fast and user-friendly: every function can be activated at the touch of a button.

The Flow MIR® disposable flow sensor complies with the ATS/ERS standard

Guaranteed 100% hygiene, no cross-contamination.
No calibration required.
Also suitable for children without an adapter.

Suitable for children.
Patented paediatric incentive directly on the screen.

Winspiro PRO® high-performance PC software for spirometry and oximetry.
Multilingual software: GB, FR, IT, ES, DE, PT, PL, NL, LV, SE, CZ, RU, TR, JP, CN.

Scope of delivery:
- Spirolab 7"
- Carry bag
- Winspiro PRO® software
- Battery charger
- USB port and cable
- Adult SpO2 sensor
- 1 roll of thermal paper
- Reusable turbine
- Nose clip
- CD manual: GB, FR, IT, ES, DE, PT


Product data:

SPIROMETRY SPECIFICATIONS:
- Power supply: rechargeable battery
- Autonomy: approx. 10 hours
- Temperature sensor: semiconductor (0–45°C)
- Flow sensor: bidirectional digital turbine
- Flow range: ±16 l/s
- Volume accuracy: ±3% or 50 ml
- Flow accuracy: ±5% or 200 ml/s
- Dynamic resistance: <0.5 cm H2O/l/s
- Connectivity: USB 2.0, Bluetooth® 2.1
- Display: 7-inch LCD touchscreen with a resolution of 800 x 480 pixels
- Mouthpieces: Ø 30 mm
- Dimensions: 220 x 210 x 51 mm (8.66 x 8.26 x 2 inches)
- Weight: 1450 g (incl. rechargeable battery)
- Electrical protection: Class II
- Standards: Electrical safety standard EN 60601-1
- Electromagnetic compatibility EN 60601-1-2
- Spirometry parameters: FVC, FEV1, FEV1/FVC, FEV1/VC, PEF, FEF25, FEF50, FEF75, FEF25-75, FEF75-85, lung age, extrapolated volume, FET, time to PEF, FEV0.5, EV0.5/FVC, FEV0.75, FEV0.75/FVC, FEV2, FEV2/FVC, FEV3, FEV3/FVC, FEV6, FEV1/FEV6, FEV1/PEF, FEV1/FEV0.5, FIVC, FIV1, FIV1/FIVC, PIF, FIF25, FIF50, FIF75, FEF50/FIF50, VC, IVC, IC, ERV, IRV, RF, VE, VT, tI, tE, VT/tI, tE/tTOT, MVV (measured), MVV (calculated).

OXIMETRY SPECIFICATIONS:
- SpO2 range: 0–99%
- SpO2 accuracy: ±2% between 70–99% SpO2
- Pulse rate range: 18–300 bpm
- Pulse rate accuracy: ±2 bpm or 2%, whichever is greater
- Memory capacity: up to 500 hours of oximetry
- Oximetry parameters: %SpO2 and pulse rate (min, max, mean), test duration, total SpO2 events, T90% (SpO2 time = 89%), T89% (SpO2 time = 88%), T40 (bradycardia duration with pulse rate <40 bpm), T120 (tachycardia duration with pulse rate >120 bpm).

WINSPIRO PRO® SOFTWARE REQUIREMENTS:
Windows 2000, XP, Vista (32/64 bit), 7 (32/64 bit), 8 and 8.1 (32/64 bit), 10 (32/64 bit). RAM 512 MB

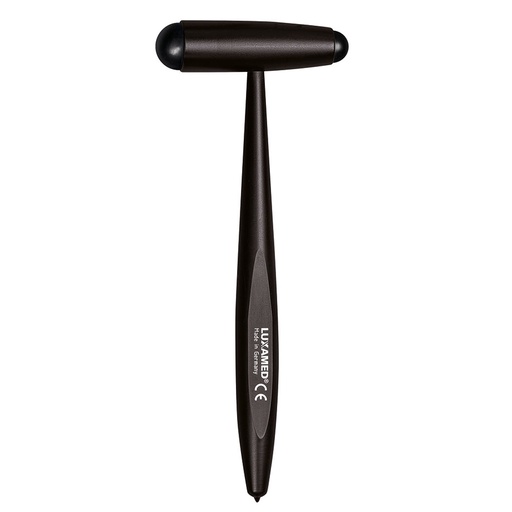

With two different heads. The product is supplied with a needle and a brush.

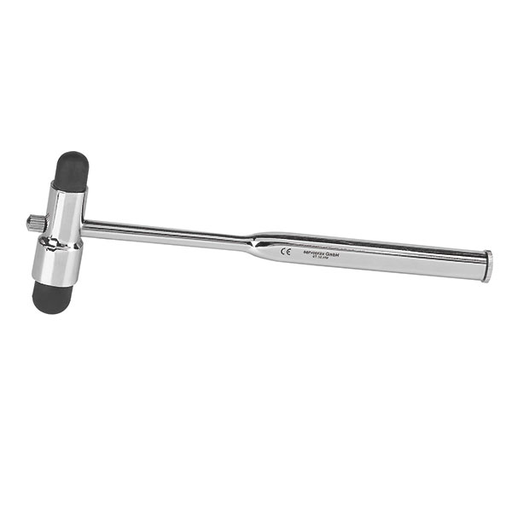

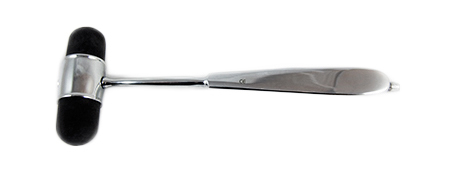

Used to test deep tendon reflexes during a diagnostic assessment. This hammer has a double-sided head with two rounded rubber striking surfaces for greater comfort.

Reflex hammer

Shaped like a double-headed hammer. The larger head is used to elicit tendon stretch reflexes, and the smaller head is used to elicit percussion myotonia.

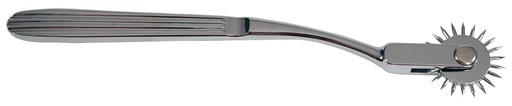

for pain perception

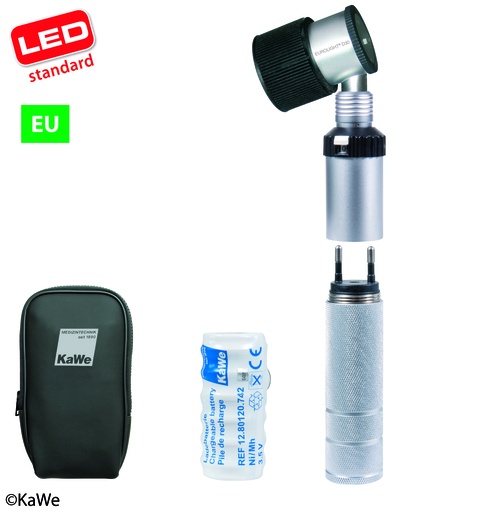

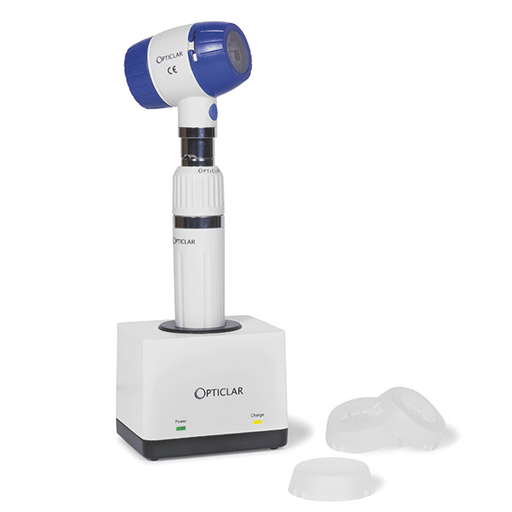

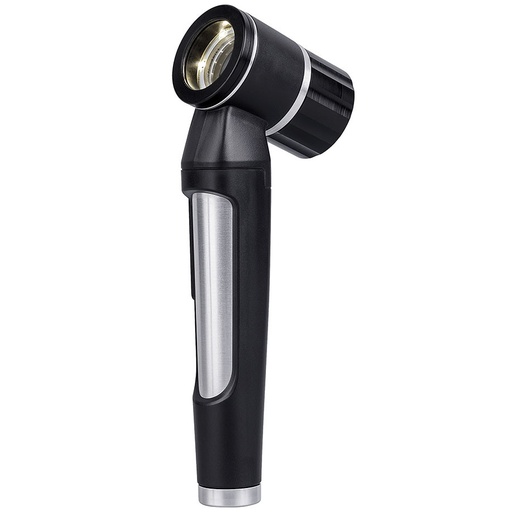

For polarisation and immersion, contactless diagnostics and single-use protective caps. Multifunction contact plate with 10 single-use protective caps, standard contact plate with X/Y scale, lithium rechargeable handle incl. rechargeable battery with automatic charging station and case.

Compatible with Welch Allyn instruments and handles.

In combination with the OPTICLAR adapters REF: I5 5000098/I5 5000099, compatible with instrument heads and handles with HEINE triangular bayonet lock.

• 4 high-performance LEDs for illumination

• Excellent imaging for the early detection of melanomas

• Switchable between polarisation and immersion

• Optimal hygiene thanks to single-use contact plates

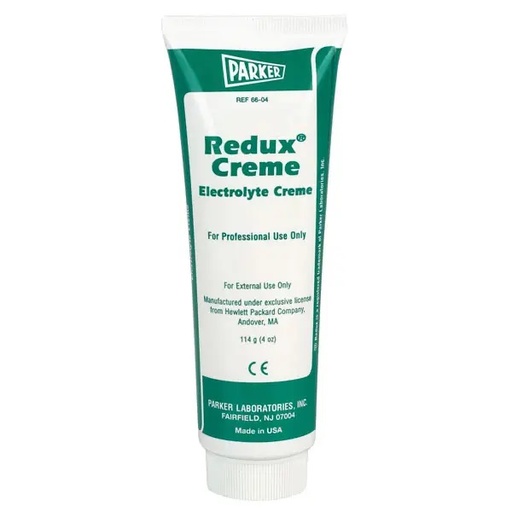

The well-known electrode cream.
114 g tube

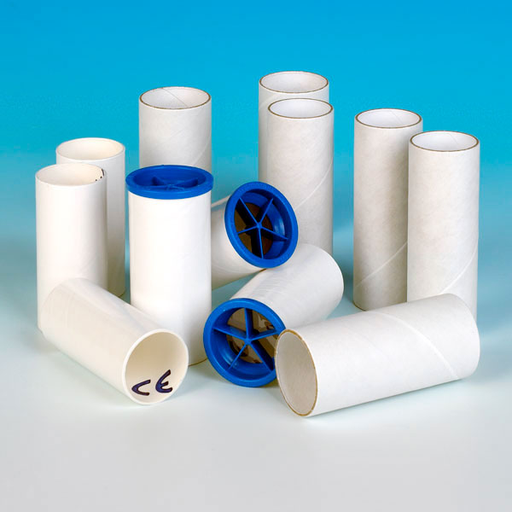

Cardboard mouthpieces for Schiller SP 100/200

Robust design.

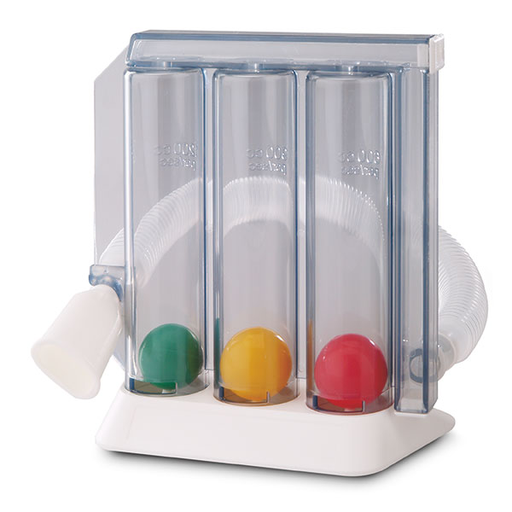

With air filter, extendable corrugated hose and mouthpiece.

Flow range: 600 cc/second, 900 cc/second, 1200 cc/second.

Individually carton-packed.

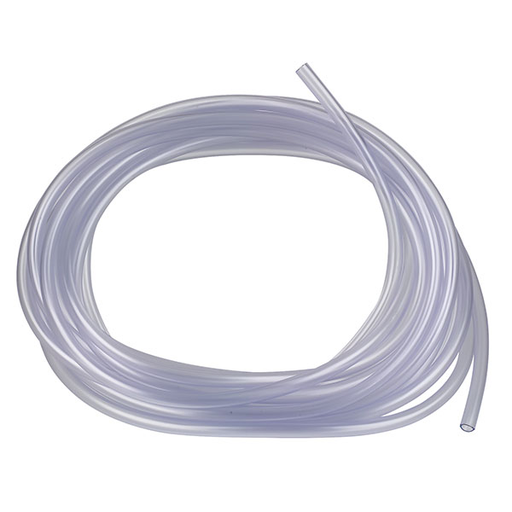

For cutting to size, crystal clear, for creating custom connections as required.

Size: 8 x 10.3 mm Ø

Roll = 10 m

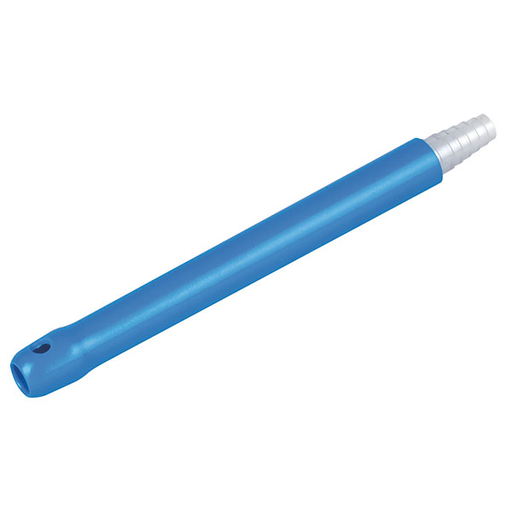

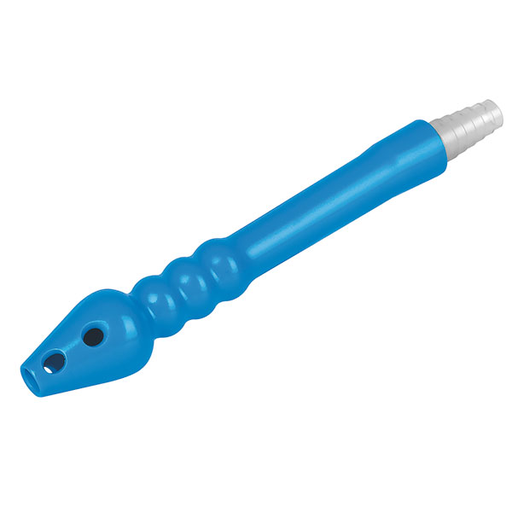

Made from particularly soft plastic, large olive, ribbed profile, central and 2 side openings.

Made of soft plastic, standard version, olive with a central and 2 lateral openings.

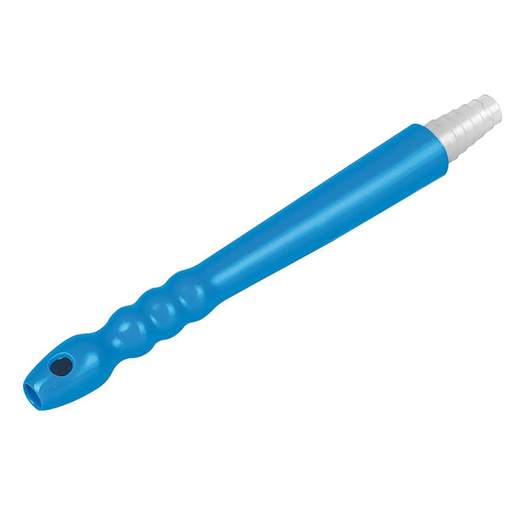

Made of soft plastic, with a small olive tip, ribbed profile, one central and two lateral openings.

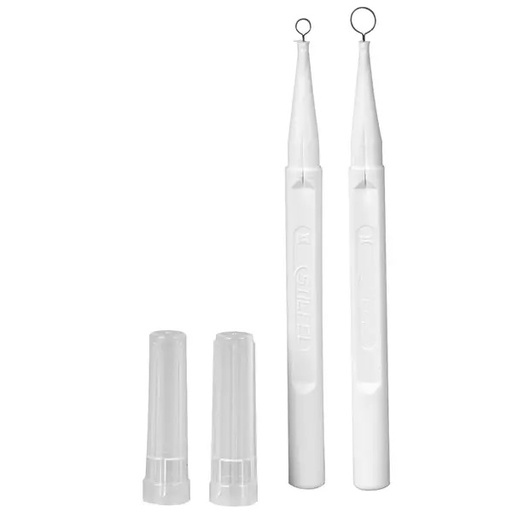

Sterile, precise single-use instrument for clean and gentle curettage.

Extremely sharp stainless steel cutting edge, ergonomic handle, usable surgical field thanks to the ring-shaped cutting edge.
