Audiometer

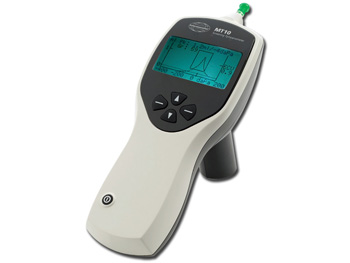

Professional portable tympanometer for the easy and cost-effective performance of fast and reliable tests.

Objective analysis: The automatic tympanometer MT10 is quick and easy to use and provides objective measurements that cannot be achieved by otoscopy alone.

Easy and fast tympanograms: Results can be obtained with minimal effort and without any patient response. This is particularly advantageous for patients who are difficult to test or for small children.

30 patients in memory: The MT10 can store test results for up to 30 patients. This enables the examination of a large group of patients and the later printout of the data.

Professional portable tympanometer for fast and reliable tests in a simple and cost-effective way.

Objective analysis: The MT10 automatic tympanometer is quick and easy to use and provides objective measurements that cannot be achieved by otoscopy alone.

Easy and fast tympanograms: Results can be obtained with minimal effort and without any patient response. This is particularly useful for patients who are difficult to test or for young children.

Clinical application: The MT10 is also suitable for diagnostic use, as tympanometry and reflex responses are all recorded in great detail. With the MT10 you can detect middle ear infections (a major cause of temporary or permanent hearing loss in children), a perforated eardrum, cholesteatoma and certain neurological disorders. You can also check ventilation tubes (grommets) and monitor medical treatments.

Ipsilateral acoustic reflex: Four different reflex tests per ear can be performed at 500, 1,000, 2,000 and 4,000 Hz, using either a fixed or automatic intensity selection. The test is performed at the correct pressure level and the actual reflex characteristics are displayed on the screen so the operator can view and interpret them.

30 patients in memory: The MT10 can store test results for up to 30 patients. This makes it possible to assess a large group of patients and print out the data at a later time.

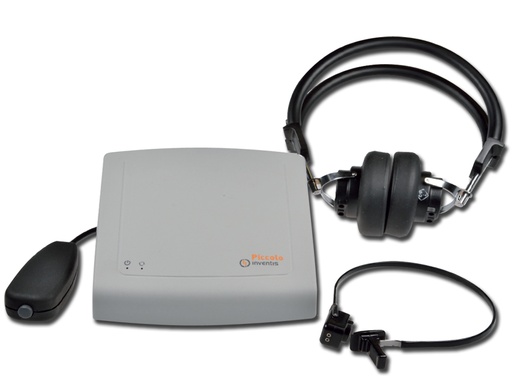

Piccolo Plus is a basic diagnostic audiometer offering air- and bone-conduction audiometry functions.

Piccolo can be controlled from a Windows computer.

Its lightweight, compact design, powerful, user-friendly software and Noah connectivity make Piccolo the ideal choice for professionals on the move.

- Computer control via the dedicated Noah or Daisy module. USB connection. Compatible with Windows 7, 8, 10.

- small and lightweight
- Power supply via the USB connection when controlled from the computer.

Made in Italy.

Software language: GB, FR, IT, ES, DE, PL, PT, RU.
CD manual and quick guide: GB, FR, IT, ES, DE, PL, PT, NL.

Standard accessories
• TDH-39 supra-aural headphones
• B71 bone vibrator
• Patient response switch
• Clip-on microphone for communication between operator and patient
• Inventis Daisy Patient Record Manager with Daisy Maestro module
• Noah Maestro module
• USB connection cable
• Medical power supply
• User manual

Product data:
• Device type: PC-controlled
• Class EN 60645-1, ANSI S3.6: Diagnostic class 3
• Output: AC, BC
• Masking: NBN
• Warble tone: Yes
• Pulsed tone: 0.5 Hz, 1 Hz, 2 Hz
• Frequency range: 125 - 8000 Hz
• Maximum output intensities:
- Air conduction: -10 to 120 dB HL
- BC: -10 to 80 dB HL
• Attenuation step: 5 dB
• Automatic audiometry: HW auto-threshold
• Speech audiometry: No
• Speech inputs: -
• Crosstalk: External microphone
• Connection to PC: USB [driverless]
• Control software: Daisy or Noah with Maestro module
• Connection to iPad: No
• Control app: Maestro (App Store)
• Size: 16 x 16 x 3 cm
• Weight: 300 g
• Operating voltage: 100-240 V, 50/60 Hz
