KERN MWS Digital wheelchair scale
Wheelchair scale with low overall height for easy roll-on access – with verification and medical approval for professional, mobile use in medical diagnostics.

-Verification class III (verification, price €53, incl.)

-Medical approval according to 93/42/EEC

-Especially suitable for weighing patients in wheelchairs, thanks to the low-profile platform accessible from both sides and a memory for tare weights of up to five (electric) wheelchairs

-The large steel weighing platform is also ideal for weighing bariatric patients

-Safe, non-slip positioning thanks to height-adjustable rubber feet

-Spirit level for precise levelling of the scale, as standard

-Hold function:
For patients who are standing or sitting unsteadily, a stable weight value is determined by averaging and “frozen”. This leaves enough time to attend to the patient and then read the weight value at your convenience

-BMI function to determine underweight/normal weight/overweight

-The scale can be easily transported using two rollers and a handle and stored away in a space-saving manner

-Evaluation unit with 2 magnets on the rear, ideal for attachment to metallic surfaces, e.g. to the weighing platform


Technical data:

-Readability/verification interval: 0.1 kg

-LCD display, digit height 25 mm

-Dimensions of evaluation unit: W×D×H 210×110×50 mm

Overall dimensions:
-MWS 300K100NM W×D×H 1155×800×66 mm
-MWS 400K100DM W×D×H 1255×1060×69 mm

-Cable length of evaluation unit approx. 180 cm

-Battery operation possible, 6×1.5 V AA, not included, operating time up to 50 h

-Mains adapter (external) as standard

-Net weight approx. 28.4 kg

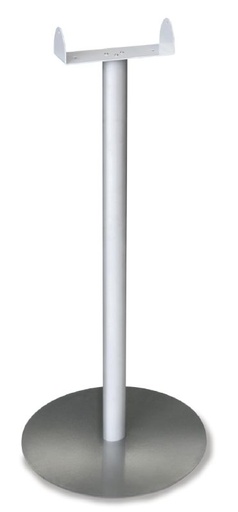

Optional accessories: Stand for mounting the evaluation unit at a higher position, stand height approx. 950 mm,
KERN MWS - A01.
Our item number: 19507-01
()
From 1,486.31 € 0.0 EUR

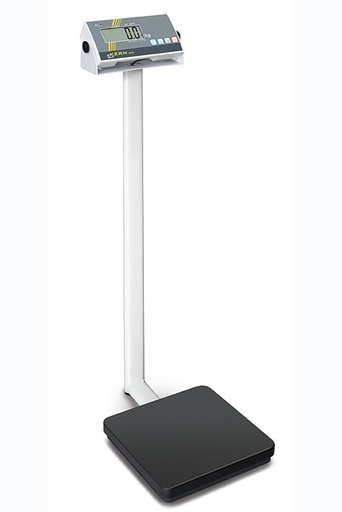

KERN Personal scale MPB 300K with stand and BMI function
Personal Scale MPB 300K with BMI function with stand

- sturdy steel weighing platform with a non-slip, abrasion-resistant surface, easy and hygienic to clean
- Dynamic Weighing function, ideal for patients who are unable to stand still
- simple and convenient 4-button operation
- BMI function to determine normal weight/overweight

Product data:

Maximum capacity: 300 kg
Graduation: 100 g
LCD display: digit height 25 mm
Weighing platform dimensions (W x D x H): 315 x 300 x 60 mm
Display unit dimensions (W x D x H): 210 x 110 x 50 mm
Overall dimensions incl. stand (W x D x H): 315 x 440 x 1010 mm
Battery operation possible, 6 x 1.5 V AA (not included)
Operating time approx. 170 hrs. Mains adapter supplied as standard
Net weight: approx. 6.4 kg
()
405.20 € 405.2 EUR
KERN Personal scale MPE 250K100HM with stand and height measuring rod
Personal scale MPE 250K100HM with stand and height measuring rod incl. EUR 69.00 calibration costs

- Calibrated to Class III
- Medical approval in accordance with 93/42/EEC
- Rear secondary display
- Telescopic height measuring rod integrated in the stand, measuring range 88–200 cm
- Robust design for daily use in professional environments
- Hygienic and easy to clean
- Safe, non-slip positioning thanks to height-adjustable rubber feet. Spirit level for precise levelling of the scale as standard
- Large, non-slip weighing platform
- Vibration-free weighing: vibrations are filtered out to determine a stable weight value, ideal for patients who cannot stand still
- Data-hold function: when weighing is stable, the weight display is “frozen” for 10 seconds, giving enough time to read the result at ease
- Mother-and-child function: the mother’s weight determined by weighing is set to zero at the press of a button. The mother and child are then weighed together. The child’s weight is displayed directly. Particularly comfortable for small children, who can be weighed safely and securely in the mother’s arms
- BMI function for determining normal weight/overweight
- 2 rollers for convenient transport of the scale
- Fine display: at the touch of a button, readability can be increased by 1 digit for 5 seconds

Product data:

Maximum capacity: 250 kg
Graduation: 100 g
LCD display: digit height 25 mm
Dimensions of weighing platform (W x D x H): 365 mm x 360 mm x 80 mm
Dimensions of display unit (W x D x H): 200 mm x 128 mm x 55 mm
Incl. batteries (6 x 1.5 V AA) - mains adapter (external) as standard
RS232 data interface as standard
Net weight: approx. 12 kg
()
658.07 € 658.07 EUR

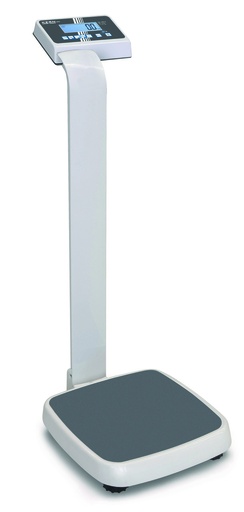

KERN Personal scale MPE 250K100PM with stand
Personal scale MPE 250K100PM with stand incl. EUR 51.00 calibration costs

- Calibrated to Class III
- Medical approval according to 93/42/EEC
- Rear secondary display
- Robust design for daily use in professional environments
- Hygienic and easy to clean
- Safe, non-slip positioning thanks to height-adjustable rubber feet. Spirit level for precise levelling of the scale as standard
- Large, non-slip platform
- Vibration-free weighing: vibrations are filtered out to determine a stable weight value, ideal for patients who cannot stand still
- Automatic Data Hold function: when weighing is stable, the weight display is “frozen” for 10 sec. This leaves enough time to read the weight at ease
- Mother-and-child function: the mother’s weight determined by weighing is set to zero at the touch of a button. The mother and child are then weighed together. The child’s weight is now displayed directly. Particularly comfortable for small children, as they can be weighed safely and securely in the mother’s arms
- BMI function to determine normal weight/overweight
- 2 rollers for convenient transport of the scale
- Fine display: at the press of a button, readability can be increased by 1 digit for 5 seconds

Product data:

Capacity: 250 kg
Graduation: 100 g
LCD display: digit height 25 mm
Weighing platform dimensions (W x D x H): 365 mm x 360 mm x 80 mm
Display unit dimensions (W x D x H): 200 mm x 128 mm x 55 mm
Incl. batteries (6 x 1.5 V AA)
Mains adapter (external) as standard
RS232 data interface as standard
Net weight: approx. 12 kg
()
604.52 € 604.52 EUR

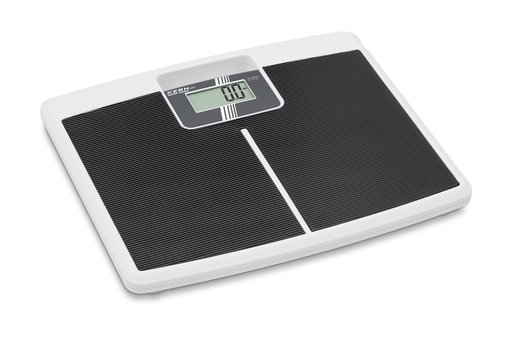

KERN Personal scale MPI 200K-1
Personal scale with an extra-large, low-profile weighing platform for easy step-on access and maximum safety

This personal scale is the ideal measuring instrument for elderly care, paramedical use or private use, including weighings in the obese range up to 200 kg
Very large weighing platform
Hygienic and easy to clean
The scale can be conveniently carried using the handle and stored in a space-saving way
Extra-flat design makes stepping on easier
Extra-large platform with a non-slip, abrasion-resistant plastic surface
Very easy to use: tap – step on – read
Integrated AUTO-OFF function to save battery power
Unit switch from kg to lb possible
Large display, makes reading easier
Supplied in an individual designer packaging

Technical data:

Weighing range (max): 200 kg
Readability (d): 0.1 kg
Units: kg, lb
Dimensions of weighing platform (W x D x H): 433 x 370 x 34.5 mm
Battery operating time: 20 h
Net weight: 3.024 kg
Scale type: single-range scale
()
97.46 € 97.46 EUR

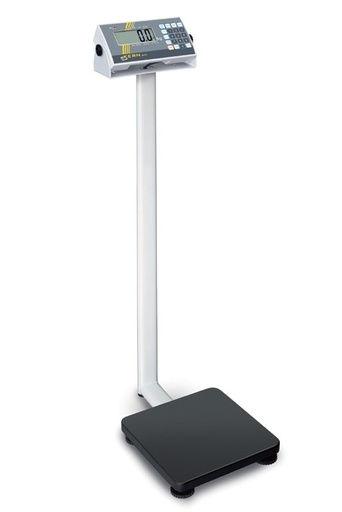

KERN Personal scale MPS 200K100PM with stand
Personal scale MPS 200K100PM with stand incl. EUR 51.00 verification costs

- verified to Class III
- medical approval in accordance with 93/42/EEC
- sturdy steel weighing platform with non-slip and abrasion-resistant surface
- easy and hygienic to clean
- safe, non-slip positioning thanks to height-adjustable rubber feet
- Dynamic Weighing function to determine a stable weighing value, ideal for patients who cannot stand still
- Data Hold function: when the weighing stabilises, the weight display is automatically “frozen” until the Hold button is pressed
- intuitive operation via keypad
- PRE-TARE function for 5 weight values
- BMI function to determine normal weight/overweight
- battery and mains operation possible
- wall bracket for wall mounting of the display unit included as standard

Product data:

Capacity: 200 kg
Graduation: 100 g
LCD display: digit height 25 mm
Dimensions of weighing platform (W x D x H): 275 x 295 x 58 mm
Dimensions of display unit (W x D x H): 210 x 110 x 50 mm
Overall dimensions incl. stand (W x D x H): 275 x 430 x 1015 mm
Battery operation possible, 6 x 1.5 V AA (not included), operating time approx. 57 hrs
Mains adapter (external) included as standard
RS232 data interface included as standard
Net weight: approx. 6 kg
()
781.83 € 781.83 EUR

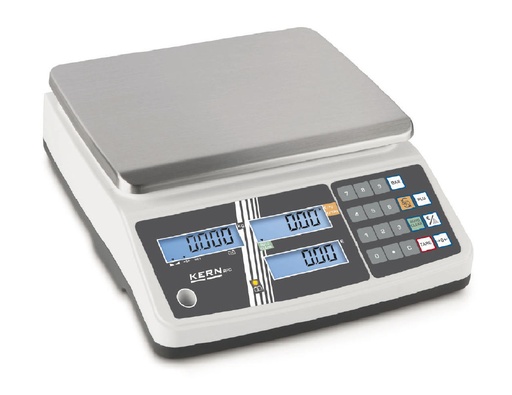

KERN Price computing scale RPB 15K2DM
- New: modern, ergonomic design and an even more compact housing, supporting efficient work and saving space
- Secondary display on the rear of the scale, as standard (only for models without column display)
- Three displays for: weight (legal-for-trade), unit price, total price
- Change calculation
- Unit price switchable from €/kg to €/100 g
- Memory (PLU) for 10 item prices
- Auto-clear key: the set unit price is automatically cleared when the scale is unloaded

Application examples:
Retail shops
Markets (mobile)
Farm shops
Fruit and vegetable sales for pick-your-own customers

Product data:

Design:
Housing dimensions (W×D×H): 310 mm x 270 mm x 65 mm
Rotating levelling feet: yes
Housing material: plastic
Overall dimensions, fully assembled (W×D×H): 310 mm x 270 mm x 65 mm
Spirit level: yes
Weighing plate material: stainless steel
Weighing surface (W×D): 204 mm x 263 mm

Measuring system:
Readability [d]: 2 g / 5 g
Warm-up time: 10 min / 10 min
Number of weighing ranges: 2
Resolution: 3 3,000
Resolution (legal-for-trade): 6000
Resolution (non-legal-for-trade): 6000
Eccentric loading at 1/3 Max: 10 g / 25 g
Stabilisation time under laboratory conditions: 2 s
Recommended calibration weight: 15 kg (M1)
Calibration options: calibration with external weight
Linearity: 6 g / 15 g
Repeatability: 2 g / 5 g
()
229.91 € 229.91 EUR

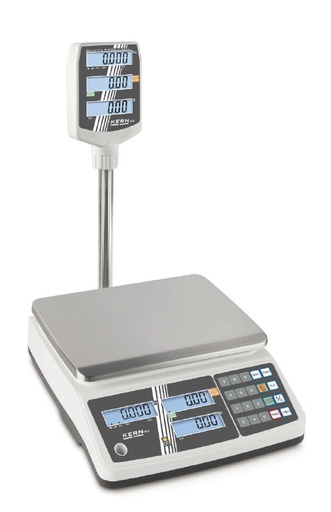

KERN Price computing scale with elevated display RPB 15K2DHM
- New: modern, ergonomic design and an even more compact housing, supporting efficient working and saving space
- High-visibility backlit display, rotatable on stand, stand height approx. 480 mm, only -HM, not retrofittable
- Three displays for: weight (verifiable), unit price, sales price
- Change calculation
- Unit price switchable from €/kg to €/100 g
- Memory (PLU) for 10 item prices
- Auto-clear button: the set unit price is automatically cleared when the scale is unloaded

Application examples:
Retail shops
Mobile markets
Farm shops
Fruit and vegetable sales for pick-your-own customers

Product data:

Design
Housing dimensions (W×D×H): 310 mm x 270 mm x 65 mm
Rotatable levelling feet: yes
Housing material: plastic
Overall dimensions, fully assembled (W×D×H): 310 mm x 270 mm x 545 mm
Spirit level: yes
Weighing pan material: stainless steel
Stand height: 48 cm
Weighing surface (W×D): 204 mm x 263 mm

Measuring system:
Readability [d]: 2 g / 5 g
Warm-up time: 10 min / 10 min
Number of weighing ranges: 2
Resolution: 3 3,000
Resolution (verifiable): 6000
Resolution (non-verifiable): 6000
Off-centre load at 1/3 Max: 10 g / 25 g
Stabilisation time under laboratory conditions: 2 s
Recommended adjustment weight: 15 kg (M1)
Adjustment options: adjustment with external weight
Linearity: 6 g / 15 g
Repeatability: 2 g / 5 g
()
257.04 € 257.04 EUR
KERN Robust and high-resolution platform scale
- High mobility thanks to compact, low-profile design, suitable for use at multiple locations (laboratory, quality control, order picking etc.)
- Platform: stainless steel weighing plate, painted steel base, silicone-coated aluminium load cell, dust and splash water protection IP65
- Spirit level and foot screws for precise levelling of the scale as standard, ensuring maximum weighing accuracy
- Percentage determination: enables weighing in to a preset value (100%) and determining deviations from this target value
- Weighing with tolerance range (checkweighing): an optical and acoustic signal supports portioning, dosing or sorting
- Hold function: in unstable weighing conditions, a stable weight value is calculated by averaging
- Table stand incl. wall bracket for the display unit as standard
- Weigh instead of counting! The easy-to-use counting function allows quick recording of large quantities of small parts – saving time and costs!
- Querying and remote control of the scale via external control devices or computer using the KERN Communication Protocol (KCP). KCP is a standardised interface command set for KERN scales and other instruments, enabling retrieval and control of all relevant parameters and device functions. KERN devices with KCP can therefore be easily integrated into computers, industrial controllers and other digital systems. The KCP protocol is largely compatible with the MT-SICS protocol. Only possible via RS-232 data interface; further interfaces available on request
- Protective work cover included in delivery

Product data:

Design
Dimensions of display unit (W×D×H): 268 mm x 115 mm x 80 mm
Dimensions of weighing plate (W×D×H): 300 mm x 300 mm x 110 mm
Rotating foot screws: yes
Cable length display unit: 3 m
Spirit level: yes
Material of weighing plate: stainless steel
Stand height: 33 cm
Wall bracket: yes
Weighing surface (W×D): 300 mm x 300 mm

Functions:
Vibration-free weighing (animal weighing programme): yes
Percentage determination: yes
Weighing with tolerance range: yes
Counting function: yes

Measuring system
Readability [d]: 1 g / 2 g
Warm-up time: 10 min / 10 min
Resolution: 3 3,000
Off-centre load at 1/3 Max: 5 g / 10 g
Stabilisation time under laboratory conditions: 2 s
Recommended adjustment weight: 6 kg (M1)
Adjustment options: adjustment with external weight
Linearity (in points): 3
Linearity: 3 g / 6 g
Repeatability: 1 g / 2 g
Tare range: -6 kg
Weighing range [Max]: 3 kg / 6 kg
Weighing units: g kg lb oz
()
357.00 € 357.0 EUR

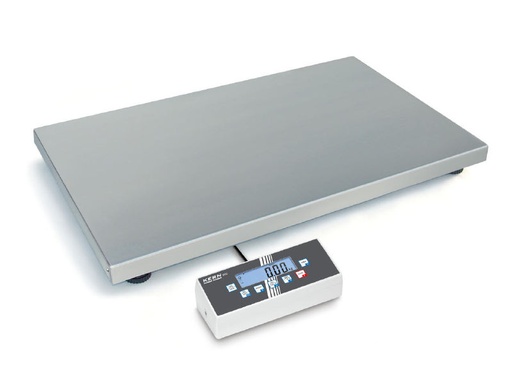

KERN Robust and high-resolution platform scale EOC 100K-2XXL
- High mobility thanks to compact, low-profile design, suitable for use at multiple locations (laboratory, quality inspection, order picking, etc.)
- Platform: stainless steel weighing plate, painted steel base, silicone-coated aluminium load cell, dust and splash-water protection IP65
- Spirit level and levelling feet for precise levelling of the scale as standard, ensuring maximum weighing accuracy
- Percentage determination: enables weighing-in to a preset value (100%) and determining deviations from this target value
- Weighing with tolerance range (checkweighing): an optical and acoustic signal supports portioning, dosing or sorting
- Hold function: in unstable weighing conditions, a stable weight value is calculated by averaging
- Table base incl. wall bracket for the indicator as standard
- Weigh instead of count! The simple operation of the counting function enables fast recording of large quantities of small parts – saving time and costs!
- Querying and remote control of the scale via external control devices or computer using the KERN Communication Protocol (KCP). KCP is a standardised set of interface commands for KERN scales and other instruments, allowing retrieval and control of all relevant parameters and device functions. This makes it easy to connect KERN devices with KCP to computers, industrial controllers and other digital systems. The KCP protocol is largely compatible with the MT-SICS protocol. Only possible via RS-232 data interface; further interfaces available on request
- Protective work cover included in the scope of delivery

Product data:

Design
Dimensions of indicator (W×D×H): 268 mm x 115 mm x 80 mm
Dimensions of weighing plate (W×D×H): 950 mm x 500 mm x 60 mm
Swivelling levelling feet: yes
Indicator cable length: 2.700 m
Spirit level: yes
Material of weighing plate: stainless steel
Stand height: 33 cm
Wall bracket: yes
Weighing surface (W×D): 950 mm x 550 mm

Functions
Vibration-free weighing (animal weighing programme): yes
Percentage determination: yes
Weighing with tolerance range: yes
Counting function: yes

Measuring system
Readability [d]: 20 g / 50 g
Warm-up time: 10 min / 10 min
Resolution: 3 3,000
Eccentric load at 1/3 Max: 100 g / 250 g
Stabilisation time under laboratory conditions: 2 s
Recommended calibration weight: 150 kg (M1)
Calibration options: calibration with external weight
Linearity (in points): 3
Linearity: 60 g / 150 g
Repeatability: 20 g / 50 g
Tare range: -150 kg
Weighing capacity [Max]: 60 kg / 150 kg
Weighing units: g kg lb oz
()
671.16 € 671.16 EUR

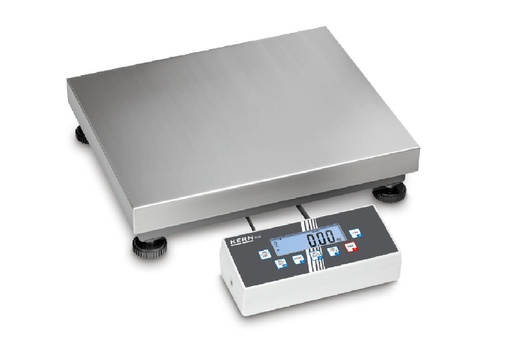

KERN Robust and high-resolution platform scale EOC 30K-3L
- High mobility thanks to the compact, low-profile design, suitable for use at multiple locations (laboratory, quality inspection, order picking etc.)
- Platform: stainless steel weighing plate, painted steel substructure, silicone-coated aluminium load cell, dust and splash water protection IP65
- Spirit level and levelling feet for precise levelling of the scale as standard, ensuring maximum weighing accuracy
- Percentage determination: enables weighing in to a preset value (100%) and determining deviations from this target value
- Weighing with tolerance range (checkweighing): an optical and acoustic signal supports portioning, dosing or sorting
- Hold function: in unstable weighing conditions, an average value is calculated to obtain a stable weight reading
- Table stand incl. wall bracket for the indicator as standard
- Weigh instead of count! The easy-to-use counting function enables fast recording of large quantities of small parts – saving time and costs!
- Querying and remote control of the scale via external control devices or computers using the KERN Communication Protocol (KCP). KCP is a standardised set of interface commands for KERN scales and other instruments, enabling retrieval and control of all relevant parameters and device functions. KERN devices with KCP can therefore be easily integrated into computers, industrial controllers and other digital systems. The KCP protocol is largely compatible with the MT-SICS protocol. Only possible via RS-232 data interface; further interfaces available on request
- Protective work cover included in the delivery

Product data:

Design
Dimensions of indicator (W×D×H): 265 mm x 110 mm x 70 mm
Dimensions of weighing plate (W×D×H): 500 mm x 400 mm x 120 mm
Swivelling levelling feet: yes
Indicator cable length: 3 m
Spirit level: yes
Material of weighing plate: stainless steel
Stand height: 33 cm
Wall bracket: yes
Weighing surface (W×D): 500 mm x 400 mm

Functions
Vibration-free weighing (animal weighing programme): yes
Percentage determination: yes
Weighing with tolerance range: yes
Counting function: yes

Measuring system
Readability [d]: 5 g / 10 g
Warm-up time: 10 min / 10 min
Resolution: 3 3,500
Off-centre load at 1/3 Max: 25 g / 50 g
Stabilisation time under laboratory conditions: 2 s
Recommended adjustment weight: 30 kg (M1)
Adjustment options: adjustment with external weight
Linearity (in points): 3
Linearity: 15 g / 30 g
Repeatability: 5 g / 10 g
Tare range: -30 kg
Weighing capacity [Max]: 15 kg / 35 kg
Weighing units: g kg lb oz
()
437.33 € 437.33 EUR

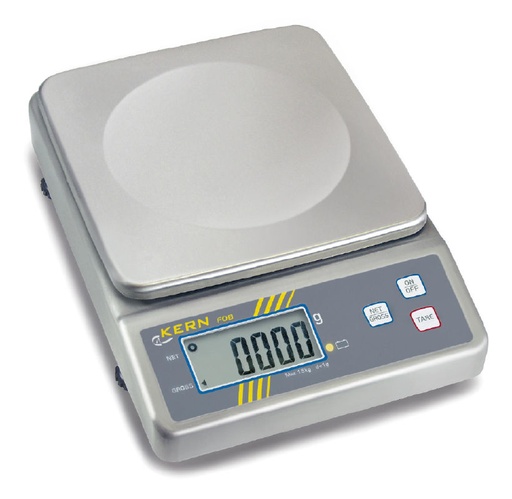

KERN Stainless steel bench scale FOB 6K2 up to 6 kg (2 g)
- NEW: Innovative checkweighing with tolerance range: the display colour changes depending on the weighing result (too light/OK/too heavy), supporting portioning, dosing and sorting
- Stainless-steel version of housing and weighing plate. Easy to clean thanks to smooth surfaces
- Increased moisture protection through waterproof silicone sealing of load cell, electronics and solder joints
- High mobility: thanks to compact, flat design suitable for use at multiple locations (kitchen, sales area, market stall, food laboratory, etc.)
- Net/gross weight: switch at the touch of a button to check the already loaded weighing range
- Supports your HACCP-compliant quality system

Application examples:
- Weighing ingredients and spices in catering/food service
- Portioning dough, meat, fish, poultry, salad plates in canteens, etc.
- Filling tins, etc.
- Checking pre-packaged products
- Safe, non-slip positioning thanks to rubber feet
- Check the already loaded weighing range at the touch of a button (net/gross weight)

Product data:

Design:
Housing dimensions (W×D×H): 180 mm x 235 mm x 60 mm
Rotating levelling feet: yes
Housing material: stainless steel
Spirit level: yes
Weighing plate material: stainless steel
Weighing surface (W×D): 175 mm x 165 mm

Measuring system:
Readability [d]: 2 g
Warm-up time: 10 min
Resolution: 3000
Off-centre load at 1/3 Max: 6 g
Stabilisation time under laboratory conditions: 2 s
Recommended calibration weight: 5 kg (M2)
Calibration options: calibration with external weight
Linearity: 4 g
Repeatability: 2 g
Weighing capacity [Max]: 6 kg
Weighing units: g lb oz
Weighing system: strain gauge load cell (DMS)
()
204.68 € 204.68 EUR

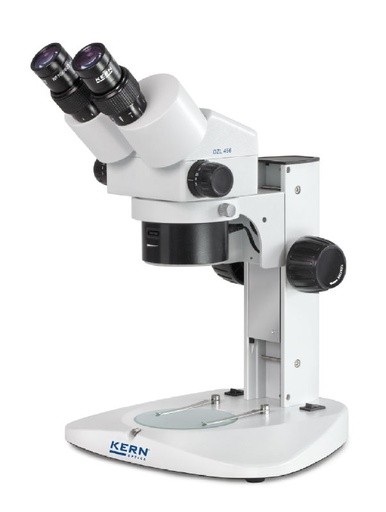

KERN Stereo zoom microscope OZL-45R Binocular
- The KERN OZL-45R stereo zoom microscope series impresses with its very good optical performance, easy operation and integrated LED ring illumination.
- A highlight of the KERN OZL-45R is the powerful integrated LED ring light in the objective housing, continuously dimmable, which ensures uniform, shadow-free illumination. In addition, an LED transmitted-light unit is included.
- Thanks to the built-in quality optics and the powerful integrated LED illumination, this model is a particularly versatile all-rounder for all areas of application.
- The zoom objective allows continuous magnification from 7.5× to 50×.
- As standard, the KERN OZL-45R series is equipped in the binocular version with 10× eyepieces with a field of view of 23.0 mm diameter.
- The mechanical stand provides plenty of working space as well as precise focusing mechanics.
- A wide range of eyepieces and auxiliary objectives is available as accessories.
- A dust cover, eyecups and a multilingual operating manual are included in the scope of delivery.

Technical data:
Field of view: Ø 33.0 mm – 5.0 mm
Eyepiece: HSWF 10× Ø 23.0 mm
Optical system: Greenough optics
Incident light illumination dimmable
Tube inclined 45° (binocular)
Zoom ratio: 6.7:1
Interpupillary distance: 55.0–75.0 mm
Dioptre adjustment on both sides
Overall dimensions W×D×H 320×275×420 mm
Net weight approx. 4.585 kg
()
931.77 € 931.77 EUR

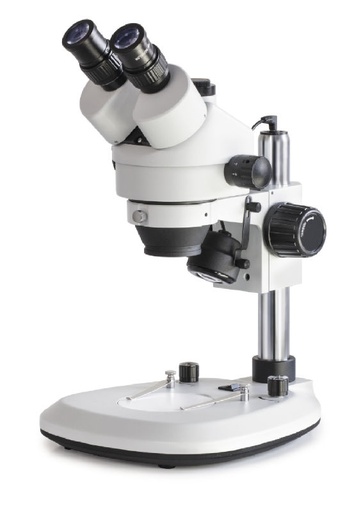

KERN Stereo zoom microscope OZL-46
The flexible, cost-effective all-rounder with zoom function for schools, training workshops, testing facilities and laboratories

- The KERN OZL-46 series comprises stereo zoom microscopes that impress with their quality, ease of use, flexibility, stability and attractive price
- The standard LED reflected and transmitted illumination ensures optimal lighting of your sample
- A highlight of the KERN OZL 465/OZL 466 is the powerful, infinitely dimmable integrated LED ring light in the objective housing, which provides even, shadow-free illumination. In addition, an LED transmitted-light unit is included
- In addition to the good optical properties, these models offer maximum convenience in this class thanks to their large working surface – ideal for training companies, workshops as well as assembly and repair workstations, e.g. in the electronics industry
- The zoom objective enables continuous magnification from 7× to 45×
- The KERN OZL-46 series is available in binocular or trinocular versions
- The column stand offers maximum flexibility and the freedom to remove the microscope head and integrate it into other modular systems, e.g. a universal stand
- A wide selection of eyepieces, external illumination units and supplementary objectives are available as accessories
- A dust cover, eyecups and a multilingual operating manual are included in the scope of delivery
- A C-mount adapter is required to connect a camera to the trinocular version

Area of application:
In vitro fertilisation, parasite detection, zoology and botany, tissue preparation, dissection, quality control

Applications/samples:
Specimens with a focus on 3D impression, zoom with variable magnification (depth, thickness), e.g. insects, seeds, circuit boards, components

Technical data

- Optical system: Greenough optics
- Illumination independently dimmable
- Tube inclined at 45°
- Magnification ratio: 6.4:1
- Beam path split: 50:50
- Interpupillary distance: 55.0–75.0 mm
- Dioptre adjustment on both sides
- Overall dimensions W×D×H 300×240×420 mm
- Net weight approx. 4.085 kg
- Zoom objective: 0.7×–4.5×
- Illumination: 3W LED (transmitted), 3W LED (reflected)
()
549.78 € 549.78 EUR

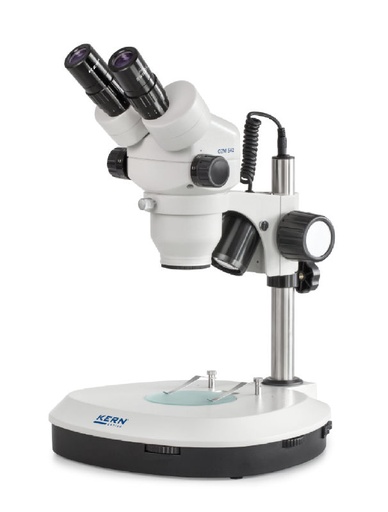

KERN Stereo zoom microscope OZM-5
Premium optics and powerful illumination combined with high flexibility

- KERN includes outstanding stereo zoom microscopes with above-average optical performance
- The ergonomic design allows effortless and comfortable work over several hours
- The exceptionally powerful 3W LED incident and transmitted light illumination, continuously dimmable, ensures particularly good and flexible illumination of your sample
- In addition to the large working distance, an extra-large field of view and brilliant resolution, the KERN OZM-5 delivers true-colour, high-contrast images with excellent depth of field
- The zoom objective enables continuous magnification from 7.5x to 45x
- You can choose between a binocular model and a trinocular model for connecting a camera for documentation and quality reports
- Thanks to its variable and robust adjustment mechanism, the pillar stand is particularly flexible and enables ergonomic working
- A wide range of eyepieces, (universal) stands, a darkfield insert, external illuminations as well as auxiliary objectives and more are available as accessories
- A dust cover, eyecups and a multilingual operating manual are included in the scope of delivery
- A C-mount adapter is required to connect a camera to the trinocular version

Field of application

In vitro fertilisation, detection of parasites, zoology and botany, tissue preparation, dissection, quality control, electronics and semiconductor industry, assembly and repair

Applications/samples:
Specimens with a focus on spatial impression, zoom with variable magnification (depth, thickness), e.g. insects, seeds, printed circuit boards, components

Technical data:
Optical system: Greenough optics
Illumination can be dimmed independently
Illumination: 3W LED (transmitted), 3W LED (reflected)
Eyepiece: HSWF 10× Ø 23.0 mm
Field of view: Ø 32.8 mm - 5.1 mm
Zoom objective: 0.7x - 4.5x
Tube inclined at 45°
Magnification ratio: 6.4:1
Beam path distribution: 50:50
Interpupillary distance: 52.0–76.0 mm
Dioptre adjustment on both sides
Overall dimensions W×D×H 330×285×440 mm
Net weight approx. 4.7516 kg
()
From 1,488.69 € 0.0 EUR

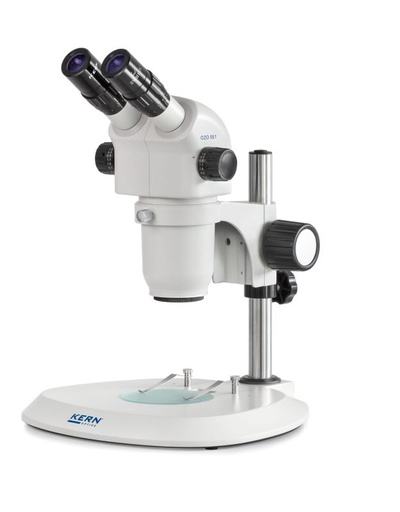

KERN Stereo zoom microscope OZO-5, Binocular
High quality for flexible and professional users

- The KERN OZO-5 models are very robust, easy-to-use stereo microscopes with a zoom function operable from both sides
- Thanks to their design, the pillar stand and the integrated, dimmable LED incident and transmitted light, these models are particularly versatile
- All variants feature dioptre adjustment on both tubes
An additional trinocular model version is available, allowing a camera to be connected
- These models are ideal for quality control, assembly and repair workstations in the electronics and semiconductor industry as well as in biological laboratories and research
- These models are also ideal for workplaces with a harsh working environment, such as training companies, workshops and production facilities
- The design of the optical system provides a large depth of field, meaning refocusing during zoom magnification is only required to a minimal extent
- In addition, it offers precise resolution, very high-contrast images, an extra-large field of view and absolutely true colour reproduction
- Thanks to the extra-large working distance, these models offer maximum comfort with their large working areas
- The wide range of selectable auxiliary objectives, eyepieces, universal stands and other accessories enables use for all common and professional stereo microscopy applications
- A key feature of this variable yet robust microscope series is its stable and precisely adjustable mechanics. This is emphasised by the functional and ergonomic design

Eyepiece: HSWF 10× Ø 23.0 mm
Field of view: Ø 28.8 mm - 3.3 mm
Objective zoom: 0.8× - 7×
Stand: Pillar stand
()
953.19 € 953.19 EUR

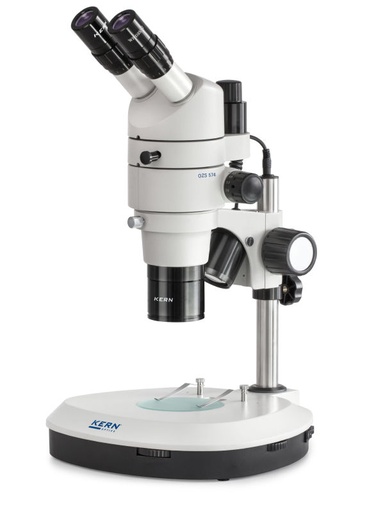

KERN Stereo zoom microscope OZS-5 3W LED (transmitted), 3W LED (reflected)
High-quality parallel optics for the best images, depth of field and contrast – with an extra-large zoom range

- The instruments in the KERN OZS-5 series are special, very high-quality stereo zoom microscopes with parallel optics and an exceptionally large zoom range for your demanding analyses
- The KERN OZS-5 series is available either as a powerful, continuously adjustable 3 W LED reflected and transmitted light version for optimum, high-contrast illumination of your sample, or as a version without illumination
- Parallel optics are the highest-quality optical system and deliver excellent images with outstanding contrast, colour and depth of field while enabling fatigue-free work. Refocusing when changing zoom magnification is also only required to a very small extent
- The exceptionally large, adjustable magnification range from 8x to 80x enables continuous zooming for the views you require
- The models in the KERN OZS-5 series are supplied as standard in a trinocular version and are therefore prepared for connecting a camera for documentation and quality reports
- Thanks to the modular design, the column stand and the optionally integrated, powerful and long-lasting LED reflected and transmitted light, these models are particularly flexible
- A wide selection of eyepieces, (universal) stands, a darkfield insert, external illuminations, auxiliary objectives and more are available as accessories
- A dust cover, eyecups and a multilingual operating manual are included in the scope of delivery


Field of application:
In vitro fertilisation, parasite detection, zoology and botany, dissection, quality control, electronics and semiconductor industry, assembly and repair

Applications/samples:
Specimens with a focus on a three-dimensional impression, zoom with variable magnification (depth, thickness), e.g. insects, seeds, circuit boards, components

Technical data:
Optical system: parallel optics
Illumination independently dimmable
Tube inclined at 45° (trinocular)
Eyepiece: HWF 10× Ø 22.0 mm
Field of view: Ø 27.5 mm – 2.8 mm
Objective zoom: 0.8x – 8x
Stands: column
Zoom ratio: 10:1
Beam path distribution: 50:50
Interpupillary distance: 52.0–76.0 mm
Dioptre adjustment on both sides
Overall dimensions W×D×H 305×300×510 mm
Net weight approx. 5.7337 kg
()
3,898.44 € 3898.44 EUR

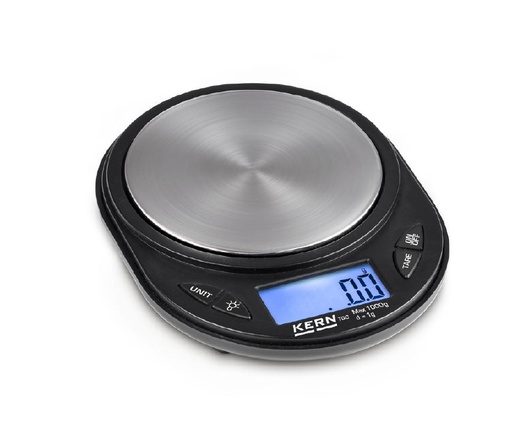

KERN TGC Precision pocket balance with large stainless steel weighing plate
- High-resolution pocket scale with particularly fast response and settling time, enabling very efficient operation
- Extra-slim design
- Impact-resistant plastic cover for pressure and dust protection. Can also be used as a weighing container
- Stainless steel weighing plate, hygienic and easy to clean

Product data:
Housing dimensions (W×D×H): 100 mm x 130 mm x 18 mm
Housing material: Plastic
Weighing plate material: Stainless steel
Weighing surface (d): 81 mm
Display digit height: 12 mm
Battery: 2xCR2032
Battery operating time: 33 h
()
From 95.06 € 0.0 EUR

KERN & SOHN – Waagen für medizinischen Bedarf

Die Kern & Sohn GmbH steht für qualitative, hochpräzise Waagen und Zubehör. In unserem Sortiment finden Sie verschiedenste Waagen und Mikroskope der Marke Kern für Ihre Praxis oder Labor. Als eine der ältesten Waagenfabriken in Deutschland hat sich das mittelständische Unternehmen mit Sitz in Frommern, Baden-Württemberg, weltweit als Hersteller etabliert. Die Kern & Sohn GmbH wurde 1844 gegründet und wird seitdem als Familienunternehmen geführt.

Die Unternehmensgeschichte

Gründer Gottlieb Kern startete 1844 das Unternehmen und verkaufte Waagen an Apotheker, Chemiker aber auch Goldschmiede. 1870 stieß Gottfried Kerns Stiefsohn dazu und führte mit seinem Stiefvater das Unternehmen. Der Konzern entwickelte für seine Zeit fortschrittliche Präzisionswaagen und steuerte erheblich zur Innovation und Produktentwicklung bei.

Nach einem Einbruch der Produktion während des Ersten Weltkrieges sank die Nachfrage nach Waagen, was Kern & Sohn mit der Entwicklung von zahlreichen neuen Modellen konterte. Nach dem Tod der Inhaber im Zweiten Weltkrieg führte die Schwester der damaligen Inhaber das Unternehmen weiter. Im Zuge der weiteren Industrialisierung expandierte Kern & Sohn von mechanischen Waagen zu (halb-)elektrischen Waagen für Analyse und Laborarbeiten.

Mittlerweile setzt sich das Portfolio aus zahlreichen Waagentypen wie Industriewaagen, Personenwaagen und sogar Mikroskopen zusammen. Die Geschäftsführung liegt in der 8. Generation der Familie und die Geschichte des Unternehmens wird in einem Museum ausgestellt.

Präzision in Ihrer Praxis

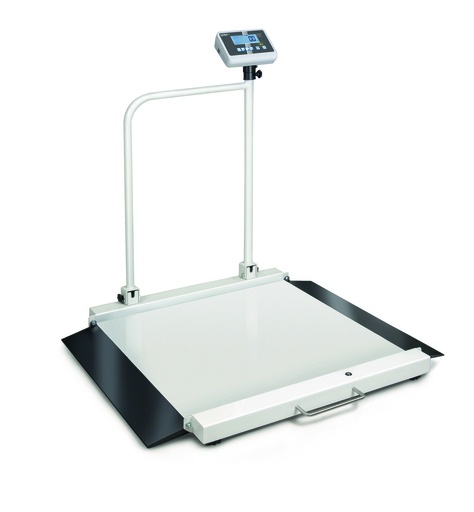

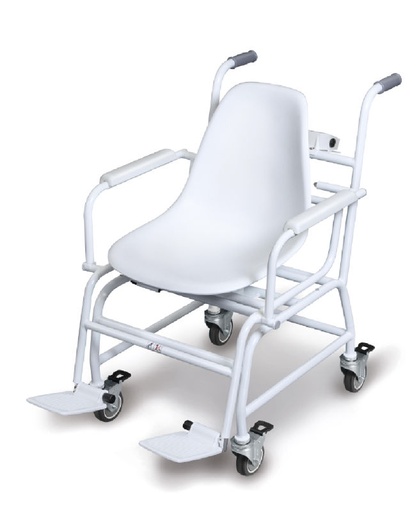

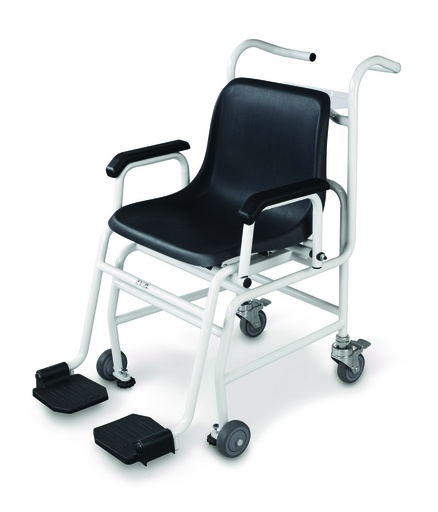

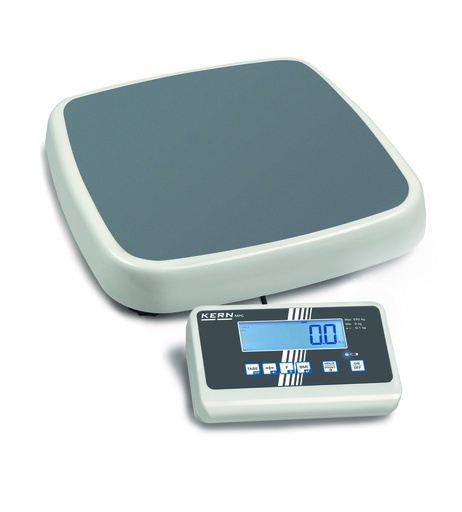

Sie finden in unserem Onlineshop Waagen der Marke Kern für jeden Anwendungsbereich. Personen- und Babywaagen sind ideal für Ihre Praxis, um sie während Routineuntersuchungen zu verwenden. Patienten im Rollstuhl sind ebenfalls versorgt, Kern produziert sowohl Rollstuhlwaagen mit Haltebügeln als auch Stuhlwagen, bei welchen sich der/die Patient*in auf die stuhlförmige Waage setzen und festhalten kann. Bei sonstiger Gehbehinderung der Patienten kann eine Stehhilfewaage zum Einsatz kommen und den/die Patienten*in während des Wiegens stützen.

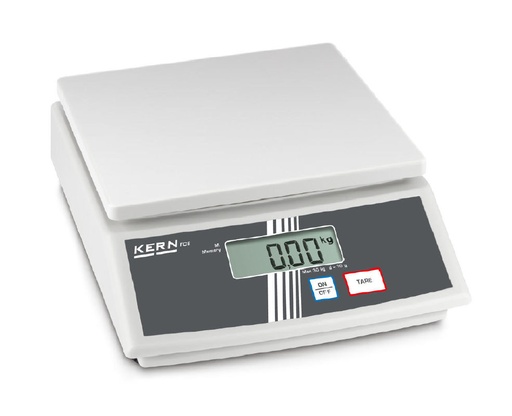

Im Labor werden neben der klassischen Präzisionswaage auch simple Tischwaagen oder Organwaagen genutzt, um das Gewicht von Proben exakt zu bestimmen. Gerade bei der Dosierung von Medikamenten oder Ähnlichem ist es besonders wichtig, genau zu arbeiten.

Mikroskope von Kern

Die Mikroskope von Kern können sowohl für den medizinischen als auch für den didaktischen Bereich oder im Labor angewendet werden. Das KERN Stereomikroskop OSF 5, Objektiv Zoom 1x 3x ist besonders robust und einfach zu bedienen. Mit der großen Arbeitsfläche können auch Schüler erste oder fortgeschrittene Arbeiten durchführen. Je nach Modell variiert die dimmbare LED-Beleuchtungseinheit, sodass Sie Ihr Mikroskop genau an Ihren Bedarf anpassen können.

Weitere Messgeräte

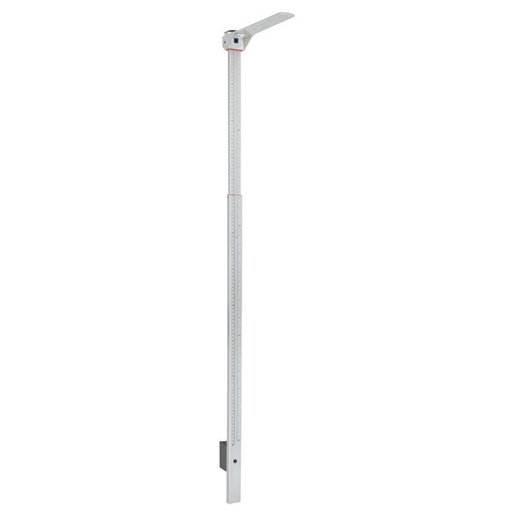

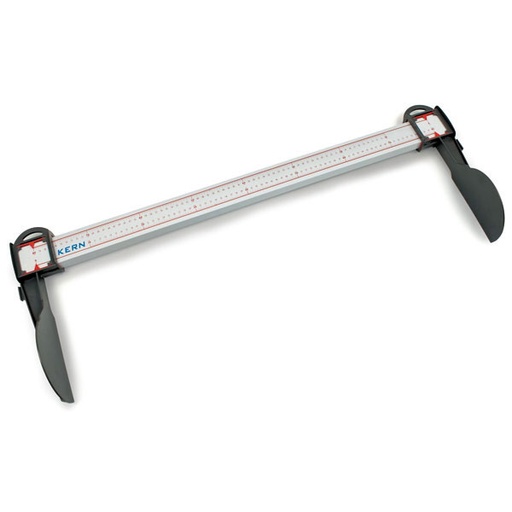

Neben dem Gewicht stellt Kern & Sohn auch Geräte zum Messen von anderen Größen her. In unserem Sortiment im Meddax24 Onlineshop finden Sie sowohl Handkraftmessgeräte als auch Größenmessstäbe. Diese sind in tragbarerer Form für Babys und Kleinkinder und als mechanische Stäbe für große Patienten erhältlich.

Vertrag widerrufen
