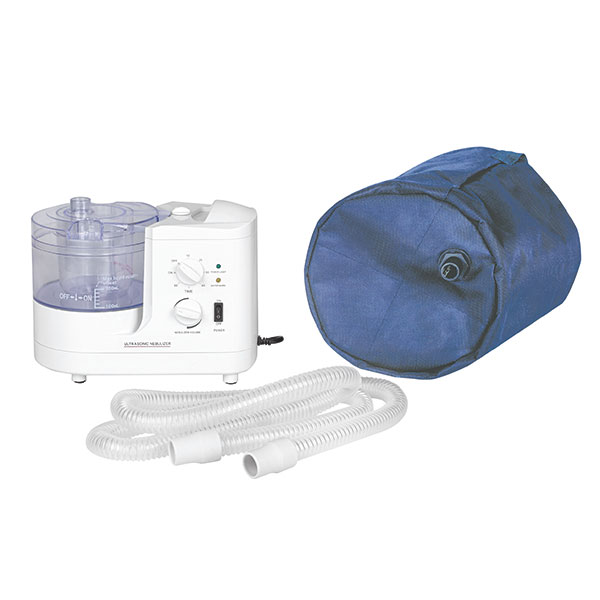

MEDIWARE Ultrasonic inhaler for horses

Whether caused by an infection or an allergy, inhalation therapy using a suitable device has proven to be an effective form of treatment for respiratory problems in horses. As part of inhalation therapy, the liquids prescribed by the vet (e.g. chamomile, saline solution or medicines) are finely nebulised with the aid of a nebuliser. The nebulised particles are extremely small, are inhaled by the horse and thus reach the lower airways. This enables targeted treatment of the airways, as the substances used reach the affected area directly.

Compared to a human, an adult horse has lungs around 10 times larger. It therefore makes sense that the output and medication capacity for inhalation therapy must also be correspondingly large. At rest, a horse takes approx. 12 breaths per minute and inhales approx. 4 to 7 litres of air per breath. This results in an average respiratory volume of around 60–80 litres per minute. Because of these considerable air volumes, the nebuliser output must be appropriately rated. Another important point is the size of the nebulised particles. The particles must be small enough to penetrate all branches of the lungs. With particle sizes above approx. 5 µm (micrometres), only the upper airways are reached. Only smaller particles (under 5 µm) are considered respirable and can reach the deep bronchi and alveoli.

The mediware ultrasonic horse inhaler operates at a frequency that is inaudible even to horses and produces a fine aerosol mist of tiny particles (approx. 4.6 µm). Combined with an easy-to-clean inhalation bag, it enables fast and effective therapy.

Product details
• Stress-free inhalation without disturbing noises
• High nebuliser output – infinitely adjustable
• Long nebuliser hose for greater freedom of movement
• Easy to use
• Simple cleaning and maintenance

Included in delivery:
- mediware ultrasonic horse inhalation device
- Inhalation bag with adjustable head strap
- Inhalation hose (approx. 215 cm long)
- Membranes for small/large medication cup
- Operating instructions

Technical data:
Voltage: 220V ± 22V / 110V ± 11V, 50Hz / 60Hz ± 1Hz
Input power: 45 VA
Ultrasonic frequency: 1.70 MHz ± 10%
Maximum nebulisation rate: ≥ 3 ml/min
Operating time: 0–60 min, infinitely adjustable
Max. capacity of small nebuliser cup: 150 ml
Max. capacity of large nebuliser cup: 350 ml
Particle size: approx. 4.6 µm
Dimensions: 247 x 140 x 201 mm
Ambient temperature: 5 °C to 40 °C
Relative humidity: ≤ 80%
Air pressure: 860 kPa to 1060 kPa
