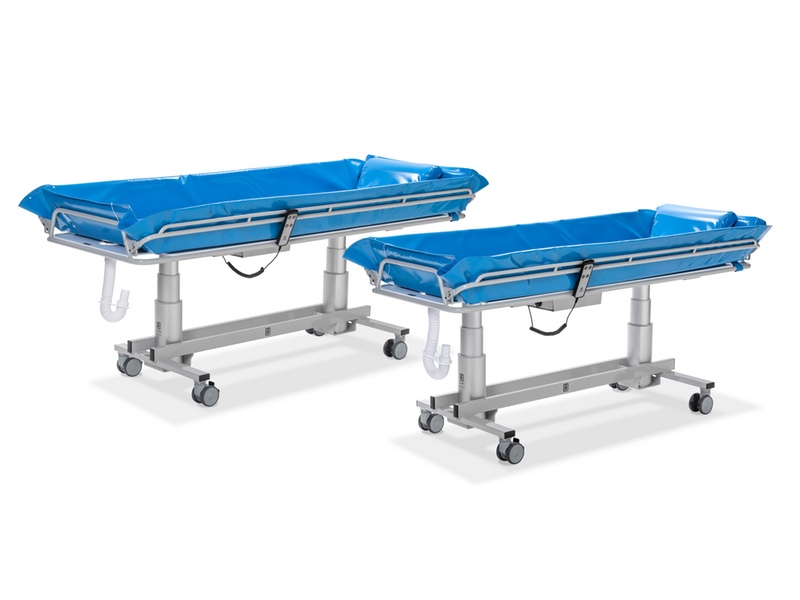

TRANSPOREHAMED Electric Shower trolley - Type 3200

Mobile patient shower and transport trolley, for transferring a resident/patient in a lying position from the nursing bed to the care area and back again.

The TR 3200 electric shower trolley is specially designed for higher loads up to 200 kg. Thanks to its stable yet flexible design, the shower trolley can be used not only in many areas of care, but also for transporting bariatric residents/patients.
The padded shower mattress is closed all round, providing safety at all times and comfortable transfer. The supplied neck pillow supports the resident/patient and increases comfort.

SAFETY CHASSIS with four swivel castors Ø 100 mm, with two braked castors and two castors with straight-line tracking. Its well-thought-out design allows the shower trolley to be accessed underneath with a hoist and enables the resident to be picked up from the nursing bed. This ensures safe handling of the resident/patient in all situations.

HEIGHT AND TILT ADJUSTMENT via the shower trolley hand control. In addition to the stepless height adjustment of the shower trolley from 500–900 mm (lying surface), the lying platform can be tilted in both directions by approx. 5 degrees. When returning the lying surface to the level position, an audible signal sounds and the tilt adjustment stops in the horizontal position.

FOLD-DOWN SIDE RAILS. For easier handling, the side rails can be folded into two positions: on the resident side into the horizontal position, and on the operator side into the vertical position. This provides an optimal solution for taking on the resident/patient and offers excellent support for staff.

Technical data TR3200:

Overall length max.: 1950 mm

Overall width: 816 mm

Lying surface height: 500–900 mm

Lifting range: 400 mm

Max. load: 200 kg

Colour: light grey / blue



Technical data TR3200 L:

Overall length max.: 2150 mm

Overall width: 916 mm

Lying surface height: 500–900 mm

Lifting range: 400 mm

Max. load: 200 kg

Colour: light grey / blue
