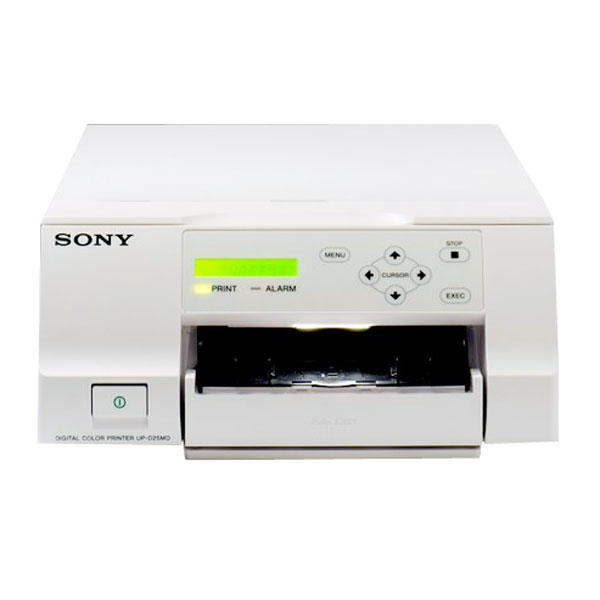

SONY A6 Colour printer UP-D25MD

Digital A6 colour printer for medical applications. Dye-sublimation process for the best image quality.

The UP-D25MD is the successor model to the UP-D23MD. It is a user-friendly printer with improved image quality (up to 423 dpi, colour adjustment function) and is suitable for a wide range of media (Standard / Lamination). The UP-D25MD has a more compact design.

• Fits on modern trolleys for endoscopic examinations

With a width of 212 mm, the UP-D25MD fits on modern

trolleys for endoscopic examinations. Its footprint is

just as small as that of the UP-D23MD.

• High user-friendliness.

The LCD display and control buttons are located on the front.

Required adjustments can be carried out quickly and easily.


• Dye-sublimation printing with lamination

This printer produces durable prints that can be stored and used for a long time. Thanks to intelligent technology that regulates colour consumption per number of sheets, the colour lasts for as long as there is paper in the printer.

• Easy operation from the front of the device

Even in tight spaces, consumables (including the ribbon) can be replaced quickly and easily. There is no need to access the top or back, or the sides.

• Colour adjustment functions

The colours shown on the surgical monitor display are reproduced precisely on the printout, enabling the user to interpret the processes in the original colours accordingly.

• Compatible media

The UP-D25MD is compatible with UPC-21L and 21S media. Printing method: dye-sublimation printing

Resolution: 423 dpi

Gradation: 8-bit (256 levels) for yellow, magenta and cyan

Effective print pixels: 21L / 24LA: 2100x1600 pixels 21S / 24SA: 1600x1200 pixels

Print size: 21L / 24LA: 126 x 96 mm 21S / 24SA: 96 x 72 mm

Print speed: 21L 21S 24LA 24SA approx. 29 sec. approx. 19 sec. approx. 36 sec. (approx.) approx. 25 sec. (approx.)

Interface: Hi-Speed USB (USB 2.0)

Paper capacity: Size L: max. 50 sheets Size S: max. 80 sheets

Operating voltage: 100 to 240 V AC, 50/60 Hz

Input current: 1.7 - 1.0 A

Operating temperature: 5 °C to 35 °C

Operating humidity: 20 to 80% (non-condensing)

Temperature (storage / transport): -20 °C to 60 °C

Humidity (storage / transport): 20% to 80% (non-condensing)

Dimensions: approx. 212 (W) x 98 (H) x 398 (D) mm

Weight: approx. 5.5 kg

Printer paper: UPC-21L: colour printer paper (Size L, 50 sheets, 4 x) UPC-21S: colour printer paper (Size S, 80 sheets, 3 x)

UPC-24LA: colour printer paper with lamination (Size L, 40 sheets, 4 x) UPC-24SA: colour printer paper with lamination (Size S, 60 sheets, 3 x)
