7 Produkt(e)

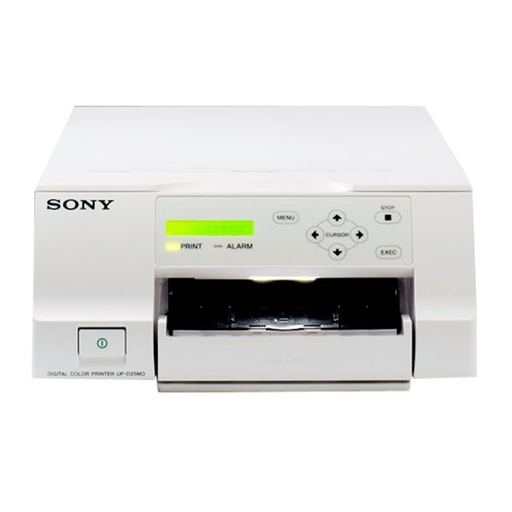

SONY A6 Colour printer UP-D25MD
Digital A6 colour printer for medical applications. Dye-sublimation process for best image quality.

The UP-D25MD is the successor model to the UP-D23MD. It is a user-friendly printer with improved image quality (up to 423 dpi, colour adjustment function), suitable for a wide range of media (standard / lamination). The UP-D25MD has a more compact design.

• Fits on modern trolleys for endoscopic examinations

With a width of 212 mm, the UP-D25MD fits on modern trolleys for endoscopic examinations. The space requirement is just as low as with the UP-D23MD.

• High ease of use

The LCD display and control buttons are located on the front. Required adjustments can be made quickly and easily.

• Dye-sublimation printing with lamination

This printer produces durable prints that can be stored and used for a long time. Thanks to intelligent technology that regulates colour consumption per number of sheets, the colour lasts for as long as there is paper left in the printer.

• Easy operation from the front of the device

Even in confined spaces, consumables (including the ribbon) can be replaced quickly and easily. There is no need to access the top, rear or sides.

• Colour adjustment functions

The colours shown on the OR monitor display are reproduced accurately on the printout, enabling the user to interpret procedures in the original colours accordingly.

• Compatible media

The UP-D25MD is compatible with UPC-21L and 21S media.

Printing method: dye-sublimation printing

Resolution: 423 dpi

Colour gradation: 8-bit (256 levels) for yellow, magenta and cyan

Effective print pixels: 21L / 24LA: 2100 x 1600 pixels 21S / 24SA: 1600 x 1200 pixels

Print size: 21L / 24LA: 126 x 96 mm 21S / 24SA: 96 x 72 mm

Print speed: 21L 21S 24LA 24SA approx. 29 sec. approx. 19 sec. approx. 36 sec. (approx.) approx. 25 sec. (approx.)

Interface: Hi-Speed USB (USB 2.0)

Paper capacity: Size L: max. 50 sheets Size S: max. 80 sheets

Operating voltage: 100 to 240 V AC, 50/60 Hz

Input current: 1.7 - 1.0 A

Operating temperature: 5 °C to 35 °C

Operating humidity: 20 to 80% (non-condensing)

Temperature (storage / transport): -20 °C to 60 °C

Humidity (storage / transport): 20% to 80% (non-condensing)

Dimensions: approx. 212 (W) x 98 (H) x 398 (D) mm

Weight: approx. 5.5 kg

Printer paper: UPC-21L: colour printer paper (size L, 50 sheets, 4 x) UPC-21S: colour printer paper (size S, 80 sheets, 3 x)

UPC-24LA: colour printer paper with lamination (size L, 40 sheets, 4 x) UPC-24SA: colour printer paper with lamination (size S, 60 sheets, 3 x)
()
2,746.75 € 2746.75 EUR

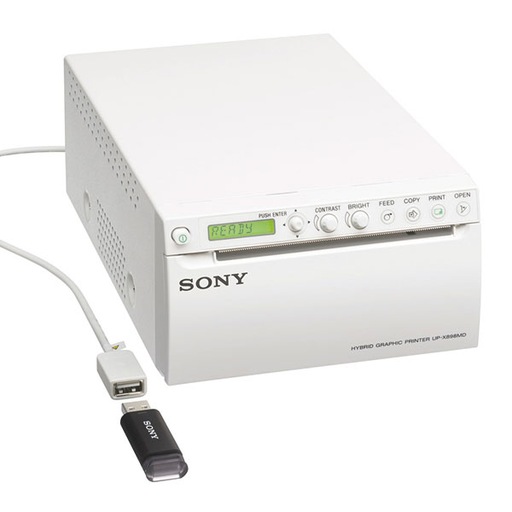

SONY A6 Thermal printer UP-X898MD
The UP-X898MD is a compact A6 black-and-white printer for medical applications that processes both analogue video signals and PC-friendly digital USB input signals. It was designed for integration with a wide range of compatible medical imaging systems, for example mobile C-arm, cardiac catheter laboratory and digital ultrasound systems. The high-quality thermal print mechanism can produce still-image printouts from such systems for use in patient records and referrals. For even greater convenience, printed photos can also be saved to a connected USB flash drive.

(Please note that images printed by the UP-X898MD cannot be used for diagnostic purposes).

The UP-X898MD is the successor to Sony’s popular UP-897 series of medical printers. The newly designed and revised version now offers numerous operational enhancements and improved ergonomics while retaining its compact design and easy integration into medical trolleys. Ease of use has been further enhanced with a larger LCD display and a joystick for intuitive menu navigation. The unit is capable of producing high-quality black-and-white prints in under 2 seconds. Advanced thermal printing technology ensures near-photographic quality while working with widely used print media. Printing method: Direct thermal printing

Resolution: 325 dpi

Grey scale: 8 bit (256 levels)

Image elements: Digital: 4,096 x 1,280 pixels

Video NTSC: 720 x 504 pixels

Video PAL: 720 x 604 pixels

Image area: Digital: 320 x 100 mm (max.)

STD video NTSC: 94 x 73 mm, video PAL: 94 x 71 mm (WIDESCREEN 1)

SIDE video NTSC: 124 x 96 mm, video PAL: 127 x 96 mm (WIDESCREEN 1)

Paper size: Paper width 110 mm

Print speed: High-speed mode:

Approx. 1.9 seconds per image (at standard setting)

Normal-speed mode:

Approx. 3.3 seconds per image (at standard setting)

Image memory: Digital: 4,096 x 1,280 x 8 (bit)

Video: 10 image memories (850k x 8 bit per full frame)

Interface: USB port (Type A) for USB flash drives (1x)

Hi-Speed USB (USB 2.0) (1x)

VIDEO IN: BNC type (1x)

NTSC or PAL composite video signals

1.0 Vp-p, 75 ohms (NTSC/PAL automatically detected)

VIDEO OUT: BNC type (1x), loop-through

REMOTE: Stereo mini-jack (1x)

Printer driver software: Microsoft Windows XP 32/64, Vista 32/64, 7 32/64, 8 32/64

Operating voltage: 100 to 240 V AC, 50/60 Hz

Input current: 1.3 to 0.6 A

Operating temperature:

5 °C to 40 °C

Operating humidity: 20% to 80% (non-condensing)

Storage and transport temperature: -20 °C to +60 °C

Storage and transport humidity: 20% to 80% (non-condensing)

Dimensions (W x H x D): 154 x 88 x 240 mm

Weight: 2.5 kg

Safety regulations: (US/CA) ANSI/AAMI ES60601-1, UL 60601-1, UL 60950-1,

CAN/CSA-C22.2 No. 60601-1, CAN/CSA C22.2 No. 601.1, CAN/CSA C22.2 No. 60950-1

(EU) EN 60601-1, EN 60950-1 (CB) IEC 60601-1 (2nd/3rd ed.), IEC 60950-1

EMC standards: (US/CA) FCC Part 15 Subpart B Class A digital device, ICES-003 Class A

digital device (EU) EN 60601-1-2 (Class B), EN 55022 (Class B) + EN 55024,

EN 61000-3-2 and EN 61000-3-3 (AU) AS/NZS CISPR22 (EN55022) Class B (JP) VCCI

Class A, JIS C 61000-3-2 (KR) KN22, KN24 Class B

EU Directive: (EU) MDD, EMC, LVD

Supplied accessories: Thermal head cleaning sheet (1), CD-ROM (1), Notes on

using the printer (1), service contact list (1), USB flash memory

without cable cable, print media (UPP-110HG)
()
1,104.81 € 1104.81 EUR

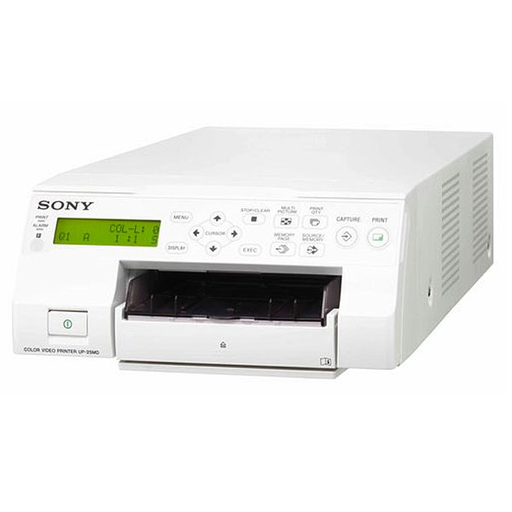

SONY Dye sublimation printer UP-25MD
The UP-25MD is a high-quality printer for medical applications. It is equipped with a wide range of analogue video inputs for standard-definition and high-definition signals and is compatible with numerous medical imaging devices.

The dye-sublimation printing process produces robust, durable prints in photo-lab quality. The unit can be used with both our traditional UPC-21S/L media series and the UPC-24SA/LA media, whose laminate layer protects the prints from external influences. To optimise colour reproduction accuracy, the colours can be adjusted using RGB or HSV colour spaces to match the monitor display. Dimensions: 212 x 98 x 398 mm (W x H x D)

Weight: 5.7 kg
()
2,819.99 € 2819.99 EUR

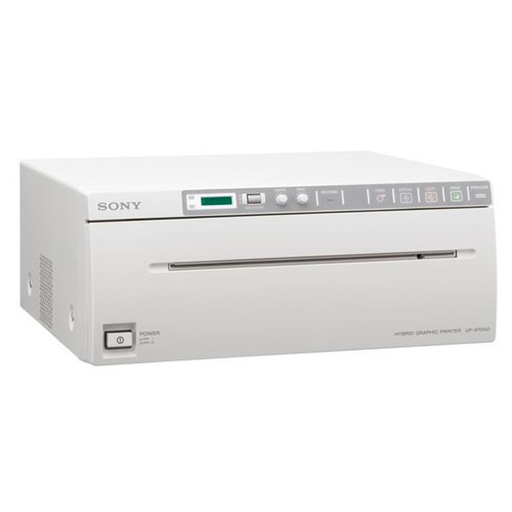

SONY Hybrid graphic printer UP-970AD
The UP-970AD, successor model to the UP-960, receives analogue and digital input signals. Ideal for medical applications such as printing C-arm and ultrasound images. Supplied accessories:

Print head cleaning sheet (1) BNC cable (1) USB cable (1) Operating instructions (Getting Started) (1) CD-ROM (Operating instructions, driver software) (1) Stickers (1) Software licence (1) UPP-210HD high-density printer paper (1)
()
3,070.25 € 3070.25 EUR
SONY Original Black and white HIGH GLOSS Special paper 110 HG
for Sony printers UP-895CE + 897 MDCE high-gloss print

Width: 110 mm
Length: 18 m
()
182.49 € 182.49 EUR
SONY Original Black and white Printer paper 110 S
Tear-resistant and individually sealed for manufacturer devices: UP-850/860/864/890/895

Width: 110 mm
Length: 20 m
()
8.12 € 8.12 EUR

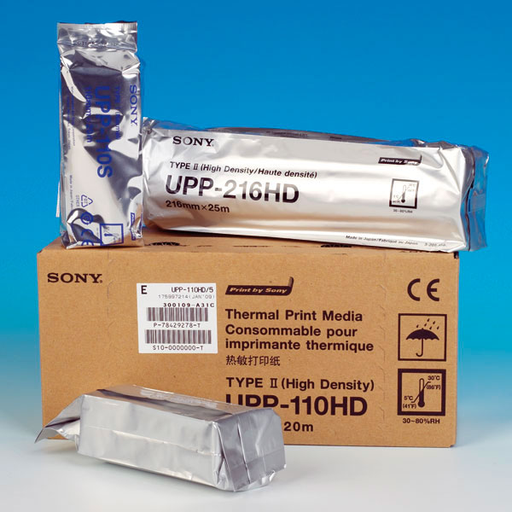

SONY UPP-110HD Video printer paper High Density Printer paper 110 HD
Sony UPP-110HD video printer paper – high-density paper for various printers.

Sony UPP-110HD video printer paper with antistatic coating, size 110 mm x 20 m (A6 width), features high water resistance and minimal curling. In addition to outstanding print quality, it also offers high resistance to heat and humidity, as well as high tear strength.

Sony UPP-110HD is compatible with the following printers:
UP-895 E/CE, UP-D895, UP-897CE, UP-897MD, UP-890CE, UP-D890, UP-860CE, UP-D860
()
16.12 € 16.12 EUR

Sony - Präzision und Innovation für die medizinische Bildgebung

Vom Visionär zur Weltmarke

Was 1946 als kleines Elektronikunternehmen in Tokio begann, ist heute einer der führenden Technologiekonzerne der Welt: Sony.

Gegründet von Masaru Ibuka mit dem Ziel, eine “ideale Fabrik voller Freiheit und Aufgeschlossenheit” zu schaffen, steht der Name bis heute für Pioniergeist, Qualität und Innovationskraft.

Neben Unterhaltungstechnik und professioneller Kameratechnik entwickelt Sony seit Jahrzehnten auch hochpräzise Produkte für die Medizintechnik.

Präzise Ausdrucke für Klinik, Praxis und Forschung

In der medizinischen Bildgebung zählt jedes Detail. Genau hier kommen die medizinischen Drucker von Sony zum Einsatz: Für kontrastreiche, beständige Ausdrucke aus Ultraschall-, Endoskopie- oder Herzkatheter-Systemen.

Die Geräte zeichnen sich durch schnelle Druckzeiten, ergonomisches Design und langlebige Medienkompatibilität aus. Damit sind sie ideal für den professionellen Einsatz in Kliniken, Arztpraxen und Forschungseinrichtungen.

Technologische Vielfalt im kompakten Format

Sony vereint in seinen Thermodruckern und Farbsublimationsdruckern jahrzehntelange Erfahrung aus der professionellen Bildverarbeitung mit modernster Drucktechnologie - für brillante Ergebnisse auf Knopfdruck.

Der kompakte Thermodrucker für den medizinischen Bereich verarbeitet analoge und digitale USB-Signale und liefert hochwertige Schwarzweiß-Ausdrucke in weniger als zwei Sekunden. Ausdrucke können zusätzlich auf einem USB-Flash-Laufwerk gespeichert werden – ideal für Patientenakten und Befunddokumentationen.

Ein leistungsstarker Farbdrucker für medizinische Anwendungen, der Ausdrucke in Laborqualität erzeugt. Dank RGB- und HSV-Farbraum Korrektur entspricht die Farbwiedergabe exakt der Monitoranzeige – ein klarer Vorteil bei endoskopischen oder chirurgischen Aufnahmen, bei denen Farbgenauigkeit entscheidend ist.

Der kompakte A6-Farbsublimationsdrucker liefert gestochen scharfe Ausdrucke mit 423 dpi Auflösung. Durch seine Laminationstechnologie entstehen strapazierfähige Ausdrucke, die lange aufbewahrt werden können – ideal als Drucker für Ultraschallbilder oder endoskopische Dokumentationen. Die Bedienung erfolgt komfortabel über die Gerätevorderseite – auch bei beengten Platzverhältnissen.

Qualität, die Vertrauen schafft

Sony Medizintechnik steht für Verlässlichkeit, hohe Materialqualität und präzise Farbwiedergabe. Die Drucker lassen sich nahtlos in bestehende Gerätewagen oder Diagnosesysteme integrieren und sind auf den klinischen Alltag abgestimmt - von der intuitiven Bedienung bis zur schnellen Papiernachfüllung.

Dank ihrer robusten Bauweise und bewährten Thermo- sowie Farbsublimations- Verfahren sind sie eine langlebige Lösung für die tägliche Arbeit mit medizinischen Bildern.

Nachhaltigkeit und Verantwortung

Sony verpflichtet sich als globaler Technologiekonzern zu einem nachhaltigen, verantwortungsvollen Wirtschaften - von der energieeffizienten Produktion bis zur ressourcenschonenden Entwicklung.

Dieser Anspruch spiegelt sich auch in den medizinischen Produkten wider.

Entdecken Sie jetzt medizinische Drucklösungen von Sony

Ob Thermodrucker, Farbsublimationsdrucker oder Drucker für Ultraschallbilder - Sony kombiniert technologische Präzision mit praxisnaher Anwendung.
