AKS

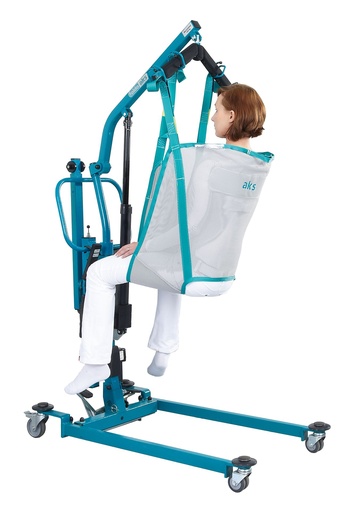

This sling, made from an extremely tear-resistant polyester mesh,
absorbs hardly any water, therefore dries again very
quickly, and was specially designed for use
in the bathroom and wet areas. The leg supports
are padded with foam. This reinforcement
ensures a wrinkle-free fit with high pressure relief
for the thighs.
Technical data
Standard: DIN EN ISO 10535:2007-04
Maximum load: 150 kg

Material composition:
Loop material: polyester webbing;
Outer fabric: 100% polyester mesh;
Padding (leg supports): 100% PE foam;
Hook-and-loop fastener: 100% nylon

The sling made of snag-resistant polyester mesh dries quickly and is particularly helpful for less mobile people with personal hygiene in the bathroom.

Technical data
Standard: DIN EN ISO 10535:2007-04, maximum load: 150 kg

Material composition:
Loop material: polyester webbing;
Outer fabric: 100% polyester mesh;
Padding (leg supports): 100% PE foam;
Padding (back): 100% PE foam;
Back reinforcement: aluminium strips

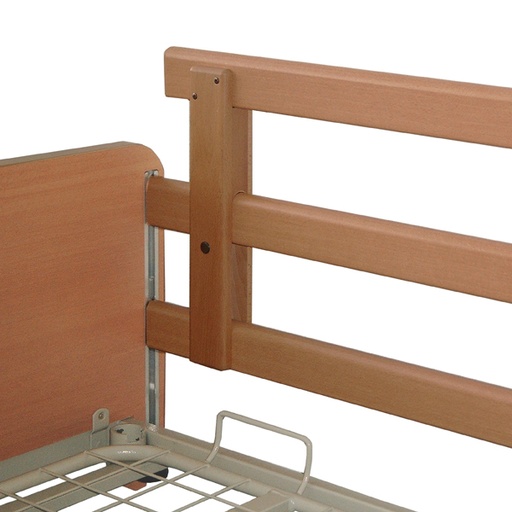

Set consists of 4 side rail bars and 1 mattress platform extension

Set consists of 4 side rail bars, 1 mattress base extension and 1 lower frame extension

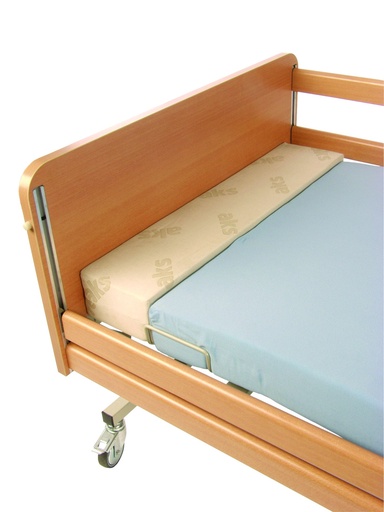

Bed extension for item 17582-02

Charger for item 17455-01

Maximum comfort in operation and use

The agile standard patient lift aks-clino® II shows its charm through comfortable, easy handling. Fast motor and high-quality, smooth-running castors. Bright, friendly appearance in a neutral colour scheme. In addition to home care, the aks-clino® II is especially suitable for use in institutional settings.

The advantages of the aks-clino® II
• more comfort thanks to high motor performance
• faster lifting and lowering, reduced lifting time
• high-quality castors with excellent rolling properties, easy “manoeuvring” even in small rooms and through narrow doors
• easily foldable and transportable without tools
• effortless lifting of people directly from the floor (Fig. 1)
• convenient handset with large buttons
• mechanical base spreading via foot pedal
• ideal for small rooms and narrow doors
• high stability thanks to robust construction
• low under-clearance height, also suitable for aks scissor beds
• increased safety thanks to mechanical emergency lowering and emergency stop switch in case of electrical faults
• visual and acoustic warning against deep discharge of the batteries when operating the handset

Options and accessories
• more flexibility and autonomy thanks to the removable aks battery pack with separate wall-mounted charging station
• various lifting slings, spreader bars, etc.

clino® XL was developed for the care of heavy-weight patients in facilities.
clino® XL
• with high-quality drive components from LINAK®
• high-quality castors with thread guard and excellent rolling performance, easy “manoeuvring”
• ergonomic push handle (Figure 1)
• ergonomic hand control
• mechanical spreading of the base via foot pedal
• low underclearance height, also suitable for aks nursing beds
• effortless lifting of persons directly from the floor
• max. load capacity 185 kg
Options and accessories
• battery pack with separate wall charging station
• wide range of lift slings, various spreader bars and lift scales
• electric spreading of the base via hand control (clino® e XL)

As a further development of the aks hygiene sling, this is the most comfortable solution for toileting. The sling provides more support in the back area and improved seating comfort thanks to particularly wide, padded leg supports. A head support can also be attached.

Product data:

Standard: DIN EN ISO 10535:2007-04
Maximum load: 150 kg

Material composition:
Loop material: polyester webbing;
Outer fabric: 100% polyester;
Padding (leg supports): 100% PE foam;
Hook-and-loop fastener: 100% nylon

The harness, specially developed for patients with limited trunk stability, provides comfortable support for the entire body. The high back section with removable aluminium stiffeners, as well as the integrated head support, increase safety during use and improve comfort. In addition, the integrated padding of the leg supports enhances sitting comfort for pressure-sensitive users and gives the harness its name. The colour-coded loops allow multiple adjustment options for the harness and flexible positioning. Several grab loops on the outside assist the caregiver when “manoeuvring” the patient.

Technical data
Standard: DIN EN ISO 10535:2007-04
Maximum load: 150 kg

Material composition
Loop material: polyester webbing;
Outer fabric: 100% polyester;
Padding (leg supports): 100% PE foam;
Back reinforcement: aluminium stays

without lifting arm, without standard yoke,
without footplate, without straps
Size: standard, Leg spread: manual

dualo mini Active lifting arm with side additional handles

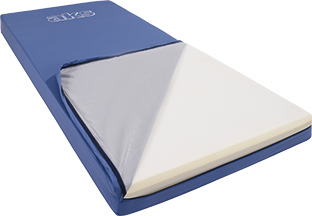

aks has expanded its anti-decubitus portfolio with the aks-duoplot soft-positioning foam mattress. Many benefits are combined in the two foam layers.

To meet the demands of everyday care, we also offer the aks-duoplot mattress in a 14 cm height, with or without edge zone reinforcement (RV).

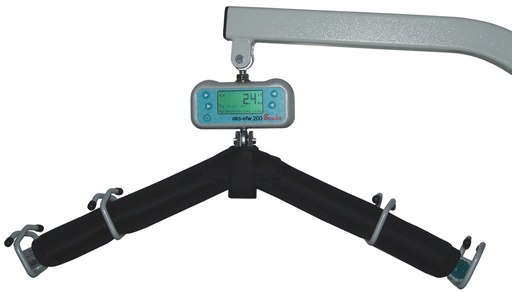

Calibrated weighing device for everyday care – suitable even for heavy-duty cases
• Battery-operated high-precision scale for aks lifters with special adapter
• For “determining mass in the practice of medicine when weighing patients for the purposes of medical monitoring, examination and treatment” in accordance with EU Directive 2009/23/EC, Class III non-automatic weighing instruments
• In accordance with Directive 93/42/EEC for attachment to aks patient lifters:
up to 150 kg body weight: aks-foldy®, aks-clino® II, aks-dualo® (standard lifter), aks-mini foldy®, aks mini dualo®;
up to 130 kg body weight: aks-micro foldy®, aks-foldo® (lifting and swivelling);
and up to 250 kg body weight: aks-goliath®
• Factory verified, calibrated and tested
• Easy operation with clear display and function indicators: on/off, tare, gross/net weight; readability in 100 g increments
• Energy-saving function: automatic switch-off after approx. three minutes
• BMI function

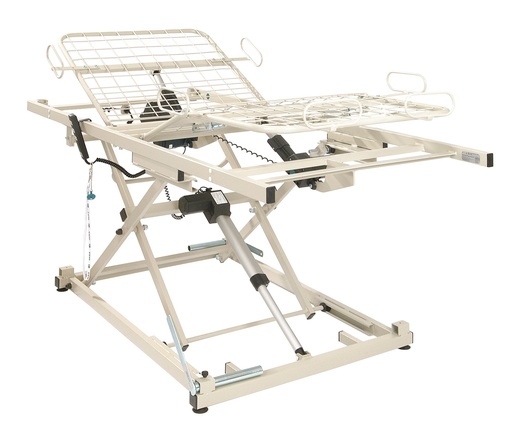

Height extension set (14 cm) for the B4 compact lifting care bed base to improve underclearance for use with a mobile patient hoist

Height extension set for item 17586-01

Fitted cover for foam mattresses by AKS

Fitted cover for item 17401-01, 17399-01, 17365-01

Lifting – swivelling – bathing
In addition to the standard functions – lifting, transferring and repositioning a person – the aks-foldo® can also be used in the bathroom thanks to the electronically safeguarded swivel function. It fully meets users’ expectations: universal, comfortable use in the bathroom and living area without any structural alterations at home or in a residential or nursing care facility.

The advantages of the aks-foldo®
• “Two-in-one” concept: standard lifter and bath lifter in one
• Performs the functions of a standard lifter (Fig. 1), also enabling effortless lifting of people directly from the floor
• Side swivelling for use at the bathtub (see above)
• Simple and quick “docking” of the lifter without structural alterations (see above)
• Lowers the patient down to the bottom of the tub without loss of height (Fig. 2)
• Cost-effectiveness principle: eliminates the need for a separate bath, wall or ceiling lifter
• Easily foldable and portable without tools
• Ideal for small rooms and narrow doors
• Low underclearance height, also suitable for scissor beds
• Comfortable handset with large buttons
• Mechanical base spreading via foot pedal
• Safety in the bathroom thanks to stable support on the tub rim via the bathtub support (Fig. 3) and telescopic boom (Fig. 4), as well as safety electronics for the electric motorised swivelling of the patient over the bathtub
• High stability thanks to two lockable castors (diameter 100 mm) and robust construction
• Increased safety thanks to mechanical emergency lowering and an emergency stop switch in the event of electrical faults

Options and accessories
• Various lift slings and spreader bars, spreader bar padding, bathtub support, bathtub support risers, aks lift scales

WITHOUT spreader bar and WITHOUT sling

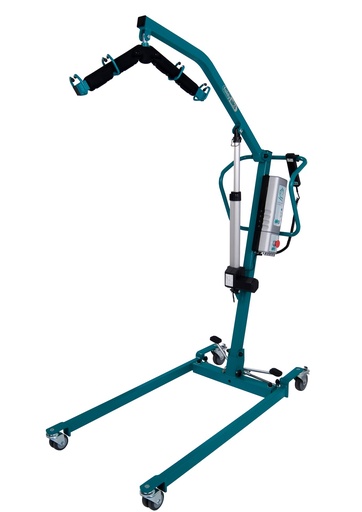

Small original, big performance
Developed as a mobility aid for small people and as a practical helper on the go as well as for particularly small spaces, the compact standard hoist aks-mini foldy® is ideal. Like its “big brother”, it can be used for all lifting tasks in home care or in residential and nursing homes.

Advantages of the aks-mini foldy®
• ideal for small rooms and narrow doorways
• for small people and children
• easy to fold and transport without tools
• ideal travel companion, easy to stow away (Fig. 4)
• simple and straightforward to use
• comfortable hand control with large buttons
• mechanical spreading of the chassis via foot pedal
• high stability thanks to robust construction
• low undercarriage clearance, also suitable for aks scissor beds
• increased safety thanks to mechanical emergency lowering (Fig. 2) and emergency stop switch (Fig. 3) in the event of electrical malfunctions
• visual and audible warning to prevent deep discharge of the batteries when operating the hand control
• independent of the mains supply thanks to battery operation

Options and accessories
• more flexibility and autonomy with the aks battery pack with separate wall-mounted charging station

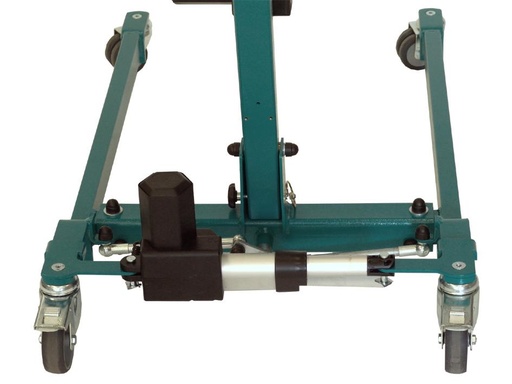

• electric chassis spreading via hand switch for more comfortable operation (aks-mini foldy®e)
• various lifting slings, spreader bars, etc.
