AKS

Charger for foldy, clino II, foldo, dualo

The calf strap provides additional support and helps support the lower legs when raising immobile patients.

Technical data
Standard: DIN EN ISO 10535:2007-04
Maximum load: 150 kg

Material composition:
Loop material: polyester webbing;
Outer fabric: 100% polyester;
Padding: 100% PE foam;
Hook-and-loop fastener: 100% nylon

Calf strap for item 17463-01

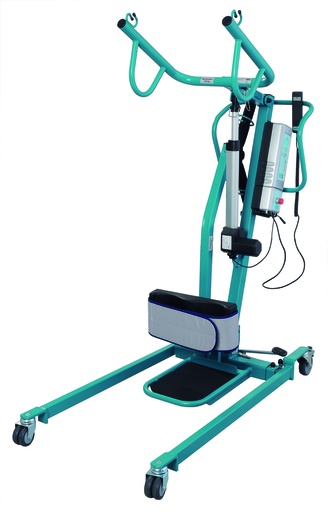

Flexible – economical – safe
The dual principle focuses on greater flexibility and freedom of choice.
Particular emphasis has been placed on increased comfort, safety and multifunctionality. The aks-dualo® is used for transferring and helping a person to stand up in combination with aks lifting slings, for home care or in a residential and nursing home.

The advantages of the aks-dualo®
• Multifunctionality: optimum use of the versatile functions of a standard lift and/or a sit-to-stand lift, such as lifting, transferring and assisting people to stand (Fig. 1, 4), picking up directly from the floor, support with hygiene, ideal for small rooms and narrow doorways
• Flexibility: easy conversion from standard lift to active lift and vice versa (Fig. 2, 3), simplified plug-in connection using stainless-steel square tubes
• Freedom of choice: Take your time. If you choose a standard lift, for example, you can retrofit the sit-to-stand arm of the active lift and the corresponding equipment at any time
• Economy and efficiency: lower acquisition costs and high utilisation rate, needs-based use as a dual lift – particularly useful in care facilities
• mechanical emergency lowering, emergency stop switch, visual and acoustic warning against deep discharge
• high stability due to mechanical spreading of the chassis via foot pedal, two lockable castors

Consisting of:
87012 aks-dualo Lifter base
87081 aks-dualo lifting arm Active smart
87098 aks-dualo / dualo mini large footplate and shin support

Options and accessories
• various lifting slings and spreader bars, spreader bar padding, charger, replacement battery, aks lift scales
• additional aks battery pack with separate wall-mounted charging station promotes independence in daily care

Product description:

Upright posture belt with chest loop, suitable for the aks torneo I and aks dualo models

Available in sizes S–XXL

The material quality and workmanship of this affordable model fully meet everyday requirements. A prerequisite is the patient’s cooperation and sufficient stability in the neck and shoulder area. This sling makes lifting from the floor possible. The standard sling is adjustable multiple times via colour-coded loops made of extremely tear-resistant polyester and can be used with all aks hoist models with hook attachment. The leg supports are made with additional fabric layers and quilt-stitched with padding for reinforcement. This reinforcement also ensures a crease-free fit with significant pressure reduction on the thighs. The practical grip loop on the outside helps the caregiver when “manoeuvring” the patient.

Technical data
Standard: DIN EN ISO 10535:2007-04
Maximum load: 150 kg

Material composition
Loop material: polyester webbing;
Outer fabric: 100% polyester;
Padding (leg supports): 100% PE foam;
Hook-and-loop fastener: 100% nylon

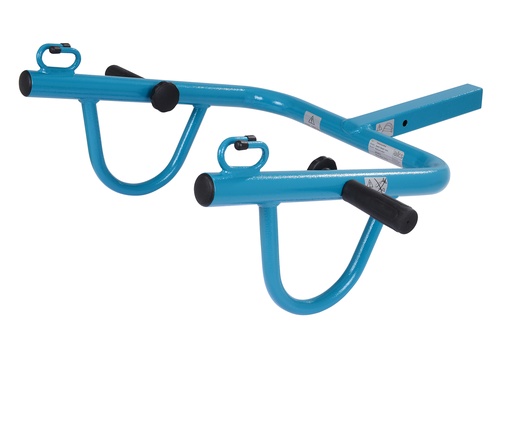

Dualo Mini active lifting arm with side additional handles

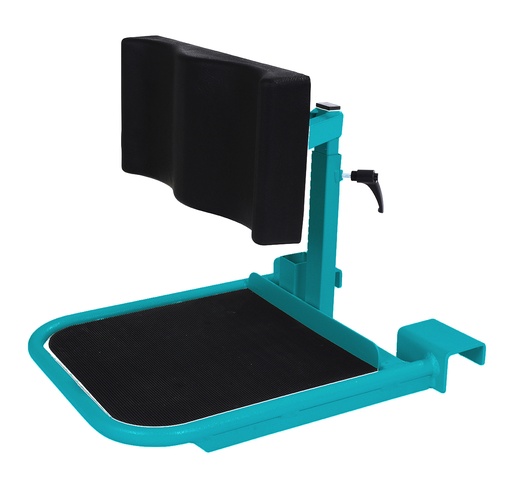

Large step board and shin support for dualo / dualo mini

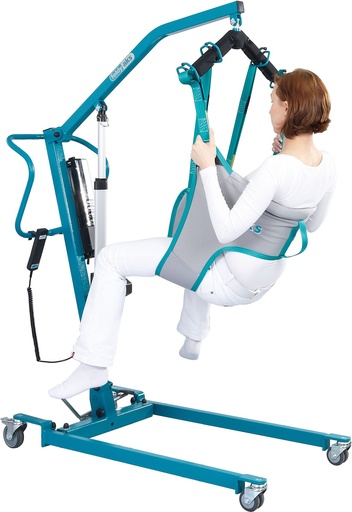

Thanks to its compact cut and the large opening in the back section, this sling can be applied easily and quickly. The patient can then be seated very well on a toilet, as the lower body remains free in the buttock area. The padding under the arms increases comfort during patient transfers.

Technical data
Standard: DIN EN ISO 10535:2007-04
Maximum load: 150 kg

Material composition:
Loop material: polyester webbing,
Outer fabric: 100% polyester;
Padding (leg supports): 100% PE foam;
Padding (underarm): 100% polyester foam

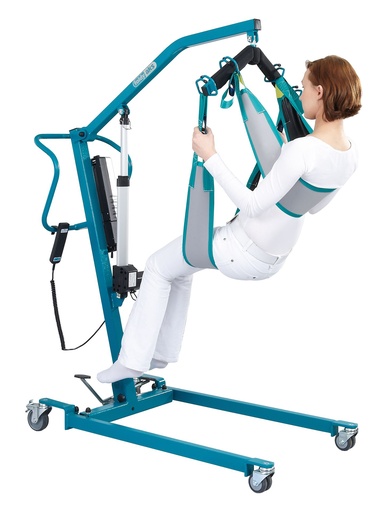

The standing sling for aks standard hoists consists of two separate straps with colour-coded, triple-adjustable loops. It is particularly suitable for the quick transfer of people who have sufficient muscle strength from the shoulder area across the upper body through to the thighs. The sling is characterised by simple and quick application and also supports the maintenance of residual mobility.

Product data:
Standard: DIN EN ISO 10535:2007-04
Maximum load: 150 kg

Material composition:
Loop material: polyester webbing;
Outer fabric: inside: 100% polyester;
with 100% PU coating;
outside: 100% polyester;
Padding: 100% PE foam

mini dualo lifting arm standard

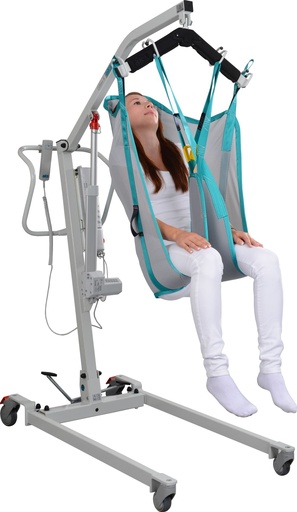

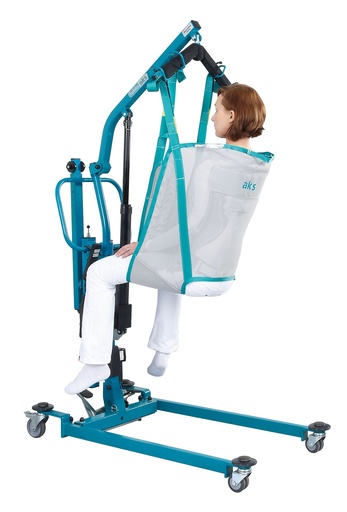

This sling has a similar cut pattern to the comfort sling with integrated head support; however, thanks to the mesh structure of the material it is water-permeable and dries quickly. It is therefore particularly well suited for wet areas.

Technical data
Standard: DIN EN ISO 10535:2007-04, maximum load: 150 kg

Material composition:
Loop material: polyester webbing,
Outer fabric: 100% polyester mesh;
Padding (leg supports): 100% PE foam;
Back reinforcement: aluminium strips

Strong – reliable – economical

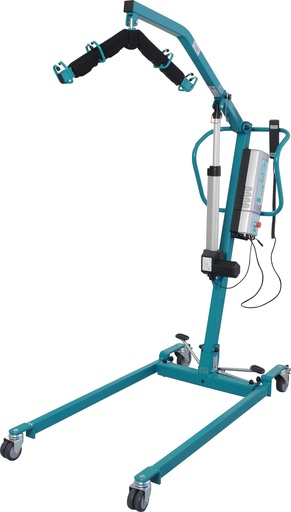

The mobile standard and active mini lift aks-mini dualo® completes the aks lift family. The dual principle focuses on greater flexibility and freedom of choice. The mini lift meets all the requirements of a “full-size” lift, but is more manoeuvrable and easier to handle thanks to its more compact dimensions.

The advantages of the dualo® mini
• Multifunctionality: optimum use of the versatile functions of a standard and/or stand-up lift, such as lifting, transferring and assisting people to stand up; picking up from the floor in a lying position is possible
• max. load capacity 150 kg
• Flexibility: easy conversion from standard lift to active lift and vice versa; simplified plug-in function thanks to stainless steel square tubes
• Freedom of choice: Take your time. If you decide, for example, on a standard lift, you can retrofit the active lift stand-up arm and the corresponding equipment at any time
• the stand-up arm also has side grips for greater comfort and support
• Cost-effectiveness and efficiency: lower purchase costs and high utilisation frequency; needs-based use as a dual lift is particularly useful in care facilities
• ideal for small rooms and narrow doorways
• mechanical emergency lowering, emergency stop switch in the event of electrical faults, visual and audible warning to prevent deep discharge
• high stability thanks to mechanical spreading of the chassis via foot pedal, two lockable castors

Options and accessories
• various lift slings and spreader bars, spreader bar padding, charger, spare battery, aks lift scales, see from p. 16 onwards
• additional aks battery pack with separate wall charging station promotes independence in daily care.

Consisting of:
87113 aks-mini dualo lift base
87190 aks-mini dualo standard lifting arm
79720 aks standard transport spreader bar, water blue

Flexible – economical – safe
The dual principle focuses on greater flexibility and freedom of choice. Particular emphasis has been placed on increased comfort, safety and multifunctionality. The aks-dualo® is used to transfer and raise a person in combination with aks lifting slings for care at home or in a residential/nursing home.

The advantages of the aks-dualo®
• Multifunctionality: optimum use of the versatile functions of a standard lifter and/or a stand-up lifter, such as lifting, transferring and raising people (Fig. 1, 4), picking up directly from the floor, assistance with hygiene, ideal for small spaces and narrow doors
• Flexibility: easy conversion of the standard lifter into an active lifter and vice versa (Fig. 2, 3), simplified plug-in connection thanks to stainless steel square tubes
• Freedom of choice: Take your time. If you decide, for example, on a standard lifter, you can retrofit the stand-up arm of the active lifter and the corresponding equipment at any time
• Cost-effectiveness and efficiency: lower purchase costs and high utilisation rate, needs-based use as a dual lifter – particularly useful in care facilities
• mechanical emergency lowering, emergency stop switch, visual and audible warning against deep discharge
• high stability thanks to mechanical spreading of the chassis via foot lever, two lockable castors

Consisting of:
87012 aks-dualo lifter base
87090 aks-dualo lifting arm standard
79720 aks standard transport spreader bar, water blue

Options and accessories
• various lifting slings and spreader bars, spreader bar padding, charger, replacement battery, aks lifter scales
• additional aks battery pack with separate wall-mounted charging station promotes independence in daily care

with standard lifting arm, WITHOUT spreader bar and WITHOUT sling

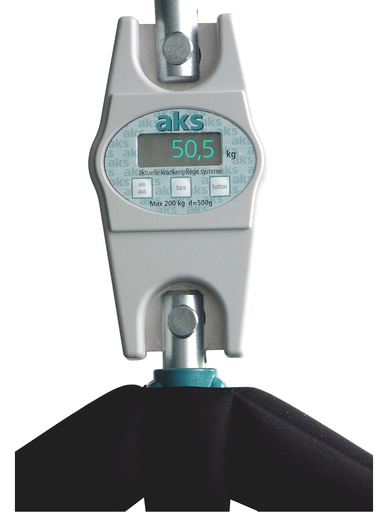

Weighing patients is part of everyday care practice.
It is particularly practical to use scales that are connected directly to the assistive device, i.e. the patient hoist.
aks offers two weighing units in combination with the various aks standard hoists.

Ideal aid for weight monitoring
• easy to use: on/off function, tare button, hold
• flexible use: can be used with an adapter for all aks hoists
(with aks-foldo® the scale cannot be used in the swivelled position)
• display indications: readability in 500 g increments,
“E” when the weighing range is exceeded; “LO” when the battery is low
• energy-saving function: automatic switch-off after approx. four minutes
• max. weighing capacity: 150 kg
• cost-effective standard solution for everyday care use

Basic care for at-risk patients

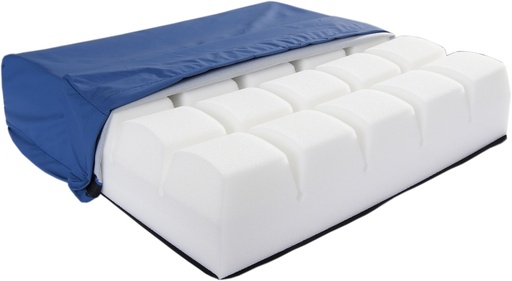

This foam cube cushion is suitable for wheelchair users who are mobile enough to change their position repeatedly. The correct compression firmness of the cushion and the cube structure ensure consistently good pressure distribution and low shear forces. With aks-inkoair® seat cushion cover.

Patient weight: 40–120 kg
Dimensions: 42 x 42 x 9 cm
Pressure ulcer grade: prophylaxis

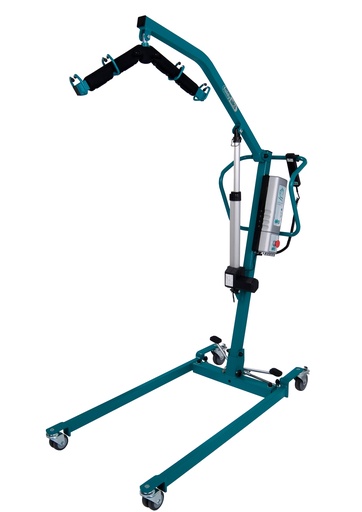

The XS among the aks standard hoists

The aks-micro foldy® has been made even smaller, even more manoeuvrable and designed for functionality.

Advantages of the aks-micro foldy®
• compact dimensions, even smaller than the aks-mini foldy®
• ideal for very tight spaces and very narrow doorways
• for small adults and children up to a maximum body weight of 130 kg
• plug-in mast, easy to remove without tools (Figure 2)
• ideal travel companion and easy to store away
• simple, straightforward operation
• hand control with large buttons
• mechanical base widening via foot pedal
• high stability thanks to robust construction
• low under-bed clearance, also suitable for aks scissor beds
• increased safety thanks to mechanical emergency lowering and emergency stop switch (Figure 1) in the event of electrical faults
• visual and acoustic warning to prevent deep discharge of the batteries when operating the hand control
• independence from the mains power supply thanks to battery operation

Options and accessories
• more flexibility and autonomy with the aks battery pack with separate wall-mounted charging station
• aks hoist slings and spreader bars available separately – NOT included in the scope of delivery

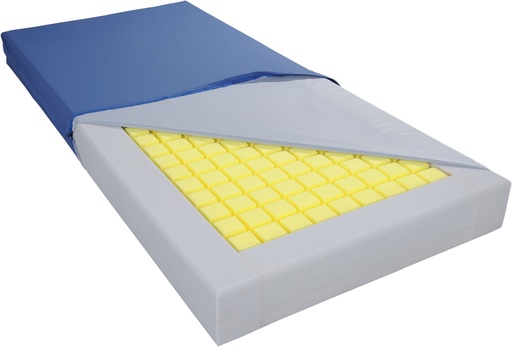

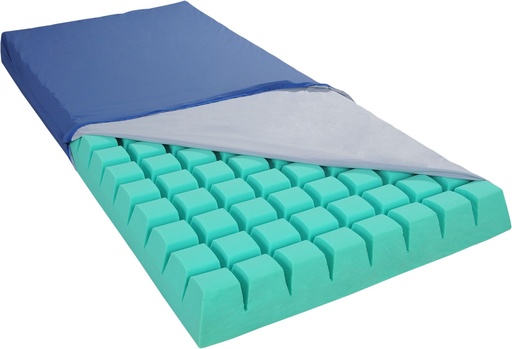

For pressure ulcer prevention and treatment. The extra benefit of stable soft positioning

Cube mattress with a stable base for optimum soft positioning. Also specially suited for low body weights thanks to an especially soft, cube-structured lying surface.

The advantages of the aks-microplot plus
• cube-structured lying surface with low compression hardness for optimised soft positioning
• specially rounded cube surfaces ensure better distribution of the patient’s weight over the largest possible area; this reduces contact pressure while decreasing shear forces
• the cube cut enables air circulation within the mattress
• reinforced edge zones to support patient mobilisation
• adaptable when adjusting the bed’s lying surface
• optionally available with aks-inkocover fitted cover or with aks-inkoair® mattress cover (also available)

Patient weight 40–120 kg
Pressure ulcer grade up to and including Grade II (according to EPUAP)
