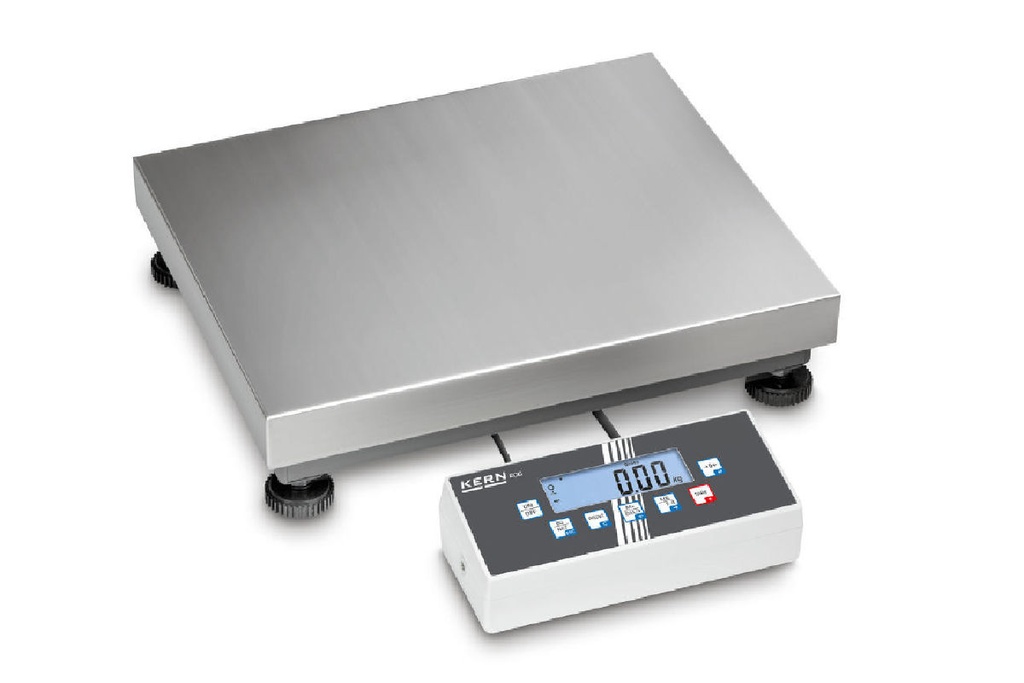

KERN Robust and high-resolution platform scale EOC 30K-3L

- High mobility thanks to compact, low-profile design, suitable for use at multiple locations (laboratory, quality control, order picking etc.)
- Platform: stainless steel weighing plate, painted steel base, silicone-coated aluminium load cell, dust and splash-water protection IP65
- Spirit level and levelling feet for precise levelling of the scale as standard, ensuring maximum weighing accuracy
- Percentage determination: enables weighing in to a preset value (100%) and determining deviations from this target value
- Checkweighing (weighing with tolerance range): an optical and acoustic signal supports portioning, dosing or sorting
- Hold function: under unstable weighing conditions, a stable weight value is calculated by averaging
- Table base incl. wall bracket for the evaluation unit as standard
- Weigh instead of count! The simple operation of the counting function enables quick recording of large quantities of small parts – saving time and costs!
- Querying and remote control of the scale via external control devices or computer using the KERN Communication Protocol (KCP). KCP is a standardised set of interface commands for KERN scales and other instruments, allowing retrieval and control of all relevant parameters and device functions. This makes it easy to connect KERN devices with KCP to computers, industrial controllers and other digital systems. The KCP protocol is largely compatible with the MT-SICS protocol. Only possible via RS-232 data interface; further interfaces on request
- Protective cover included in delivery

Product data:

Design
Dimensions of display unit (W×D×H): 265 mm x 110 mm x 70 mm
Dimensions of weighing plate (W×D×H): 500 mm x 400 mm x 120 mm
Rotating levelling feet: yes
Cable length display unit: 3 m
Spirit level: yes
Material of weighing plate: stainless steel
Stand height: 33 cm
Wall bracket: yes
Weighing surface (W×D): 500 mm x 400 mm

Functions
Vibration-free weighing (animal weighing program): yes
Percentage determination: yes
Checkweighing (weighing with tolerance range): yes
Counting function: yes

Measuring system
Readability [d]: 5 g / 10 g
Warm-up time: 10 min / 10 min
Resolution: 3 3,500
Eccentric load at 1/3 Max: 25 g / 50 g
Stabilisation time under laboratory conditions: 2 s
Recommended adjustment weight: 30 kg (M1)
Adjustment options: adjustment with external weight
Linearity (in points): 3
Linearity: 15 g / 30 g
Repeatability: 5 g / 10 g
Tare range: -30 kg
Weighing capacity [Max]: 15 kg / 35 kg
Weighing units: g kg lb oz
