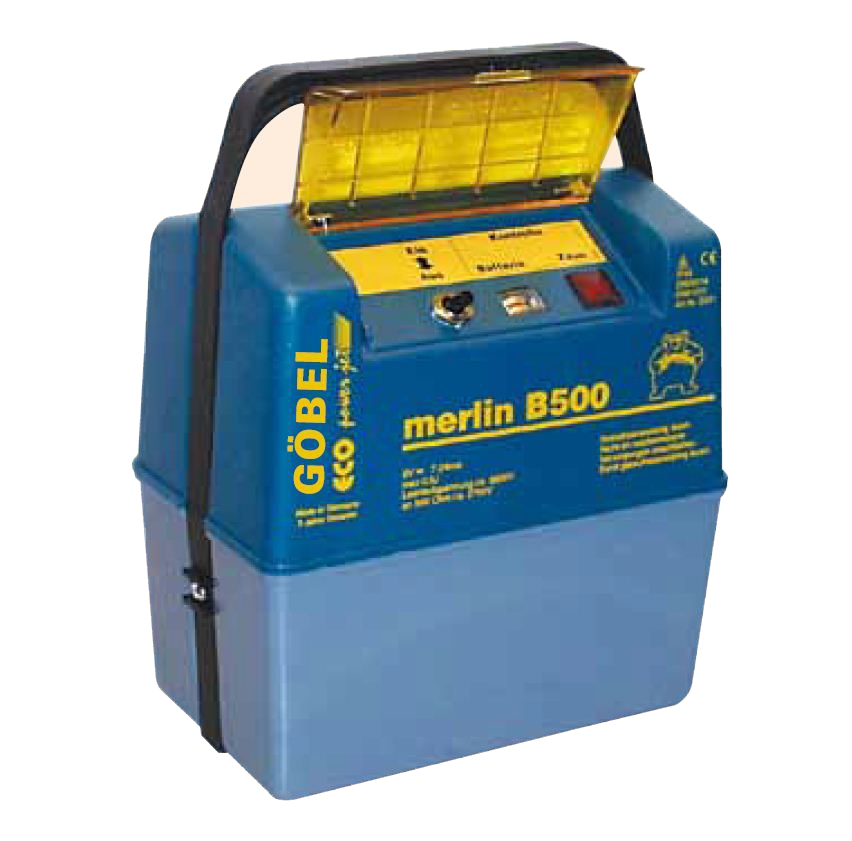

GÖBEL Battery unit Merlin B 500 without battery

(without battery)
our most powerful battery-powered unit
high power reserves
with power-saving circuit
fence and battery monitoring
insensitive to vegetation
also suitable for game deterrence on shorter fences
earth stake with unit holder included in the scope of delivery
optimised for alkaline batteries from 75 Ah

Technical data merlin B 500
Operating voltage: 9 V
No-load voltage: approx. 8,800 V
Voltage on animal contact: approx. 4,900 V
Voltage at 500 ohms (short circuit): approx. 2,700 V
Pulse energy: approx. 0.45 J
Power consumption: 10 - 45 mA
max. fence length (CEE): approx. 12 km
recommended fence length (depending on vegetation): approx. 3-8 km

Recommended use for battery-powered units
Battery-powered units are the ideal choice when there is no option for mains connection
and the higher output of a rechargeable unit is not required.
Typical areas of use are strip grazing, horse paddocks, and keeping small animals contained in the yard and garden. Depending on the version, soil conditions and vegetation, the possible fence lengths vary between one and eight kilometres.
Selectable power levels not only allow optimum adjustment to different fencing conditions, but also enable particularly economical operation.
